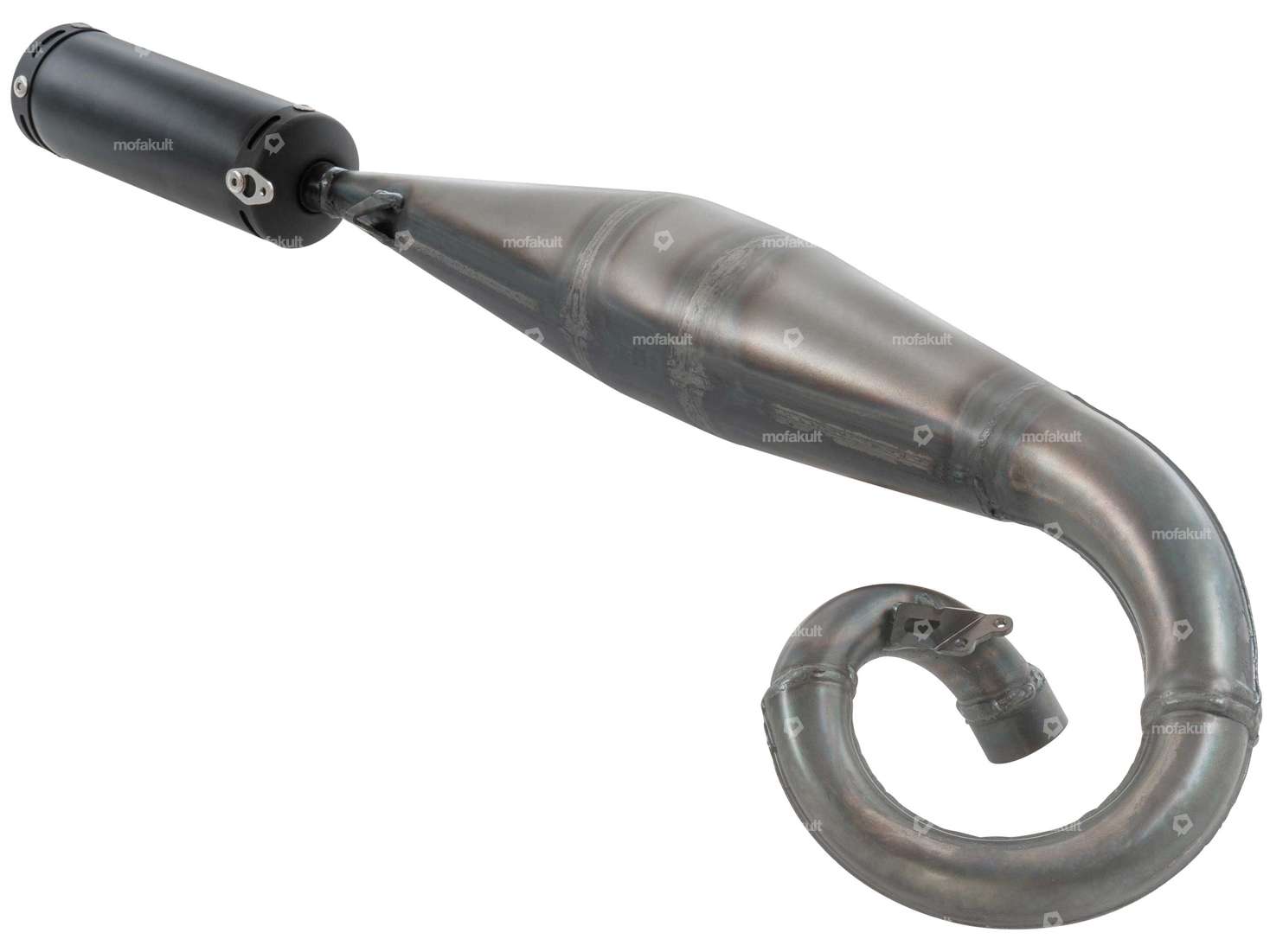

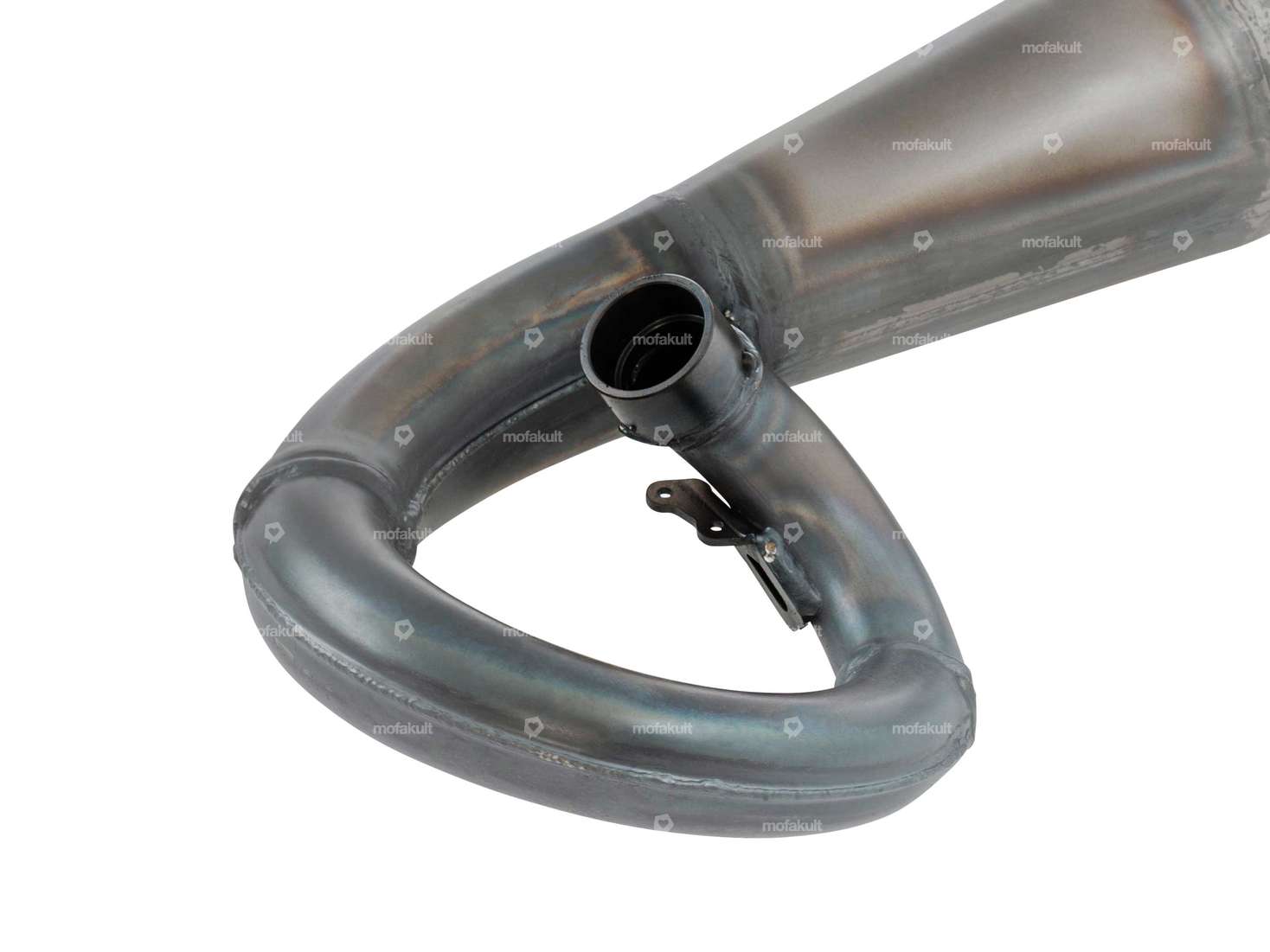

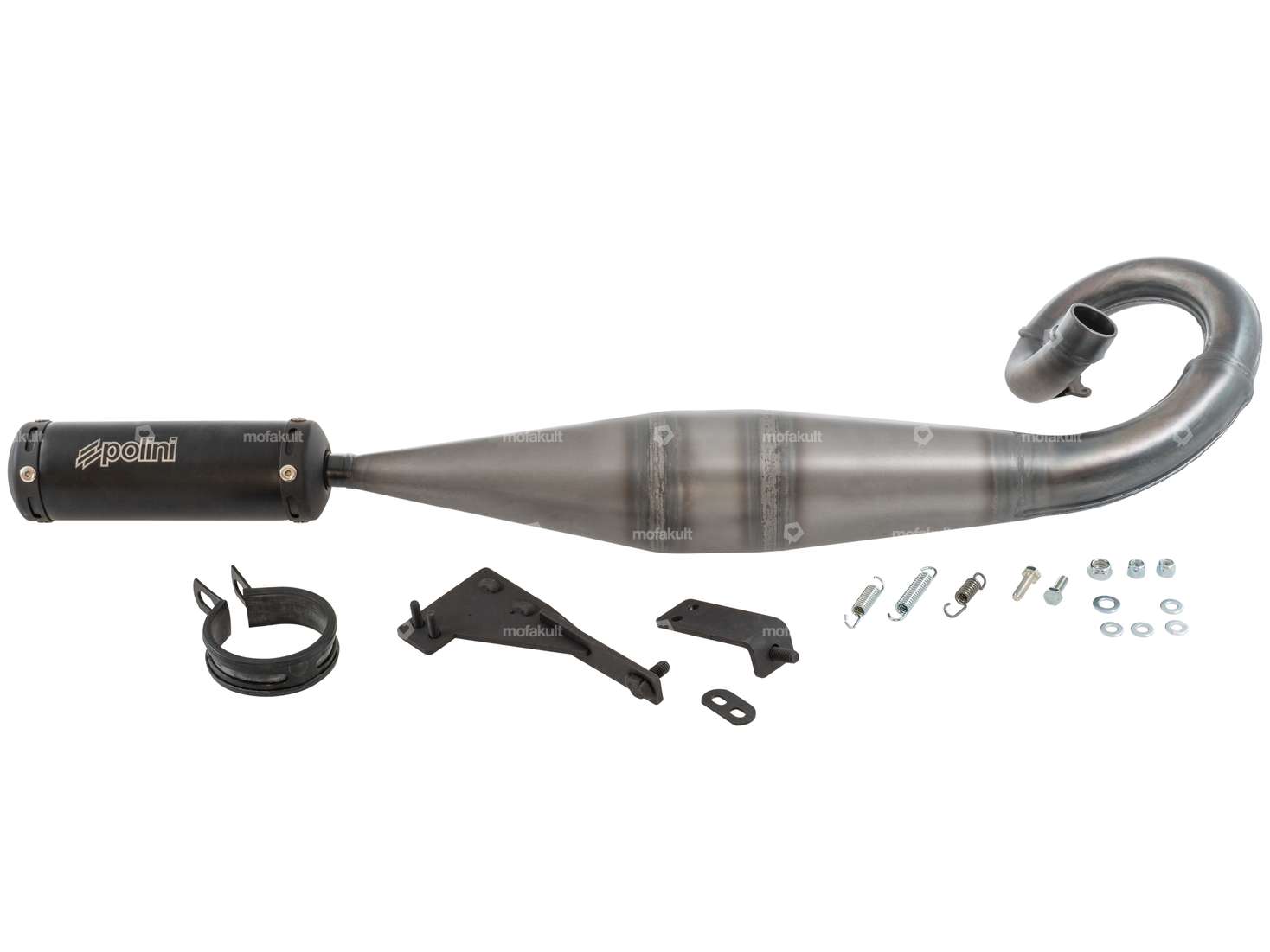

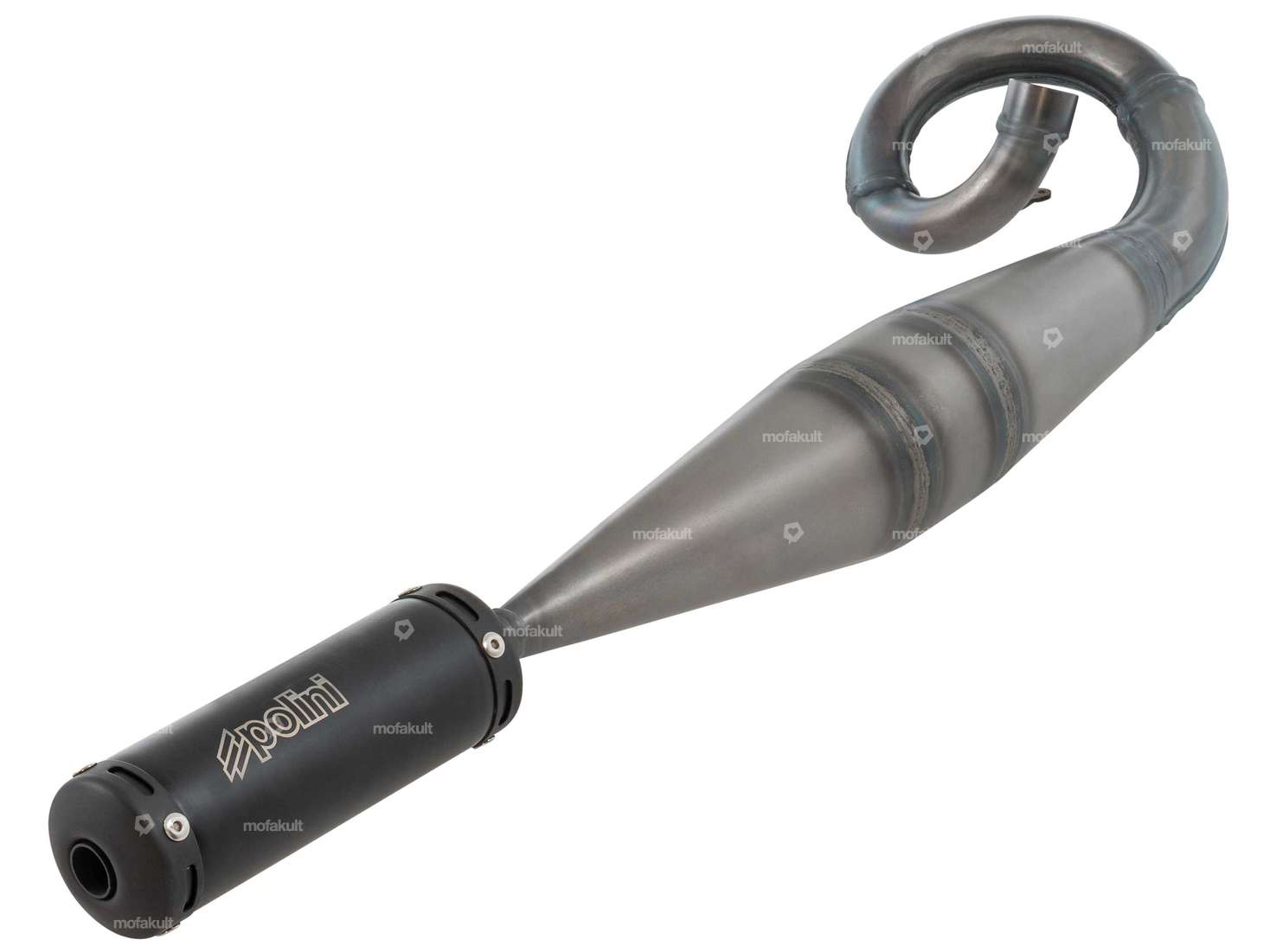

Powerful racing muffler with black aluminum silencer suitable for Piaggio Ciao, Bravo, Super Bravo and Si with corresponding 47 mm Polini EVO cylinder with 27 mm connection flange.
| Manufacturer | Polini |
| Color | graphite colors, black-matt |
| Surface | blank, varnished |
| Material | Steel, Aluminum |
| Ø Silencer | 60 mm |
| Ø Flame tube outside | 27 mm |
| Ø outside | 83 mm |
| Ø Internal connection | 27 mm |
| Exhaust type | Cone / double cone |
| Mounting type | Tab for screwing |
| Total length | 750 mm |
| Flame tube attachment | Plug connection |
| Number of fixing points | 2 pcs |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo |
