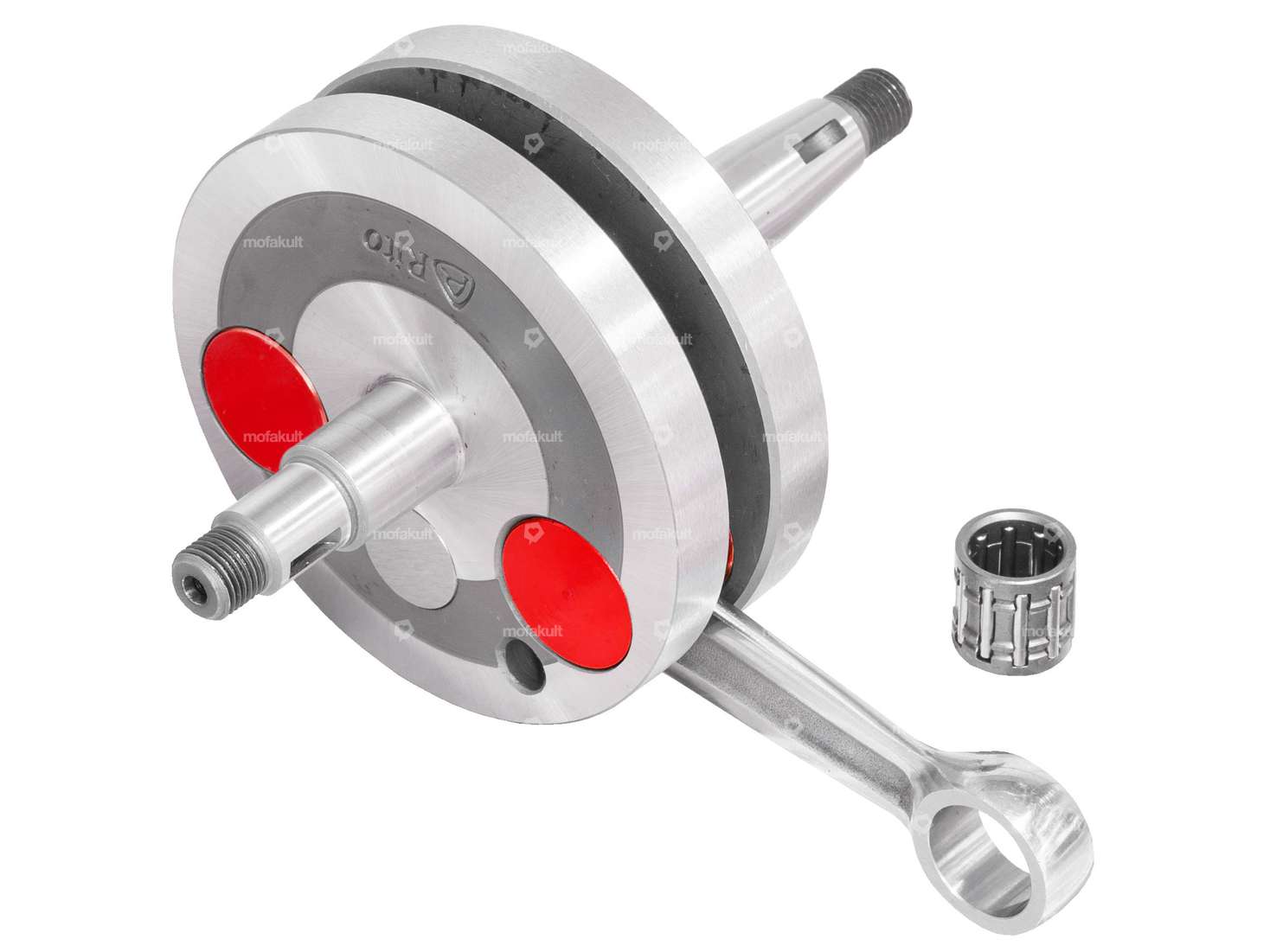

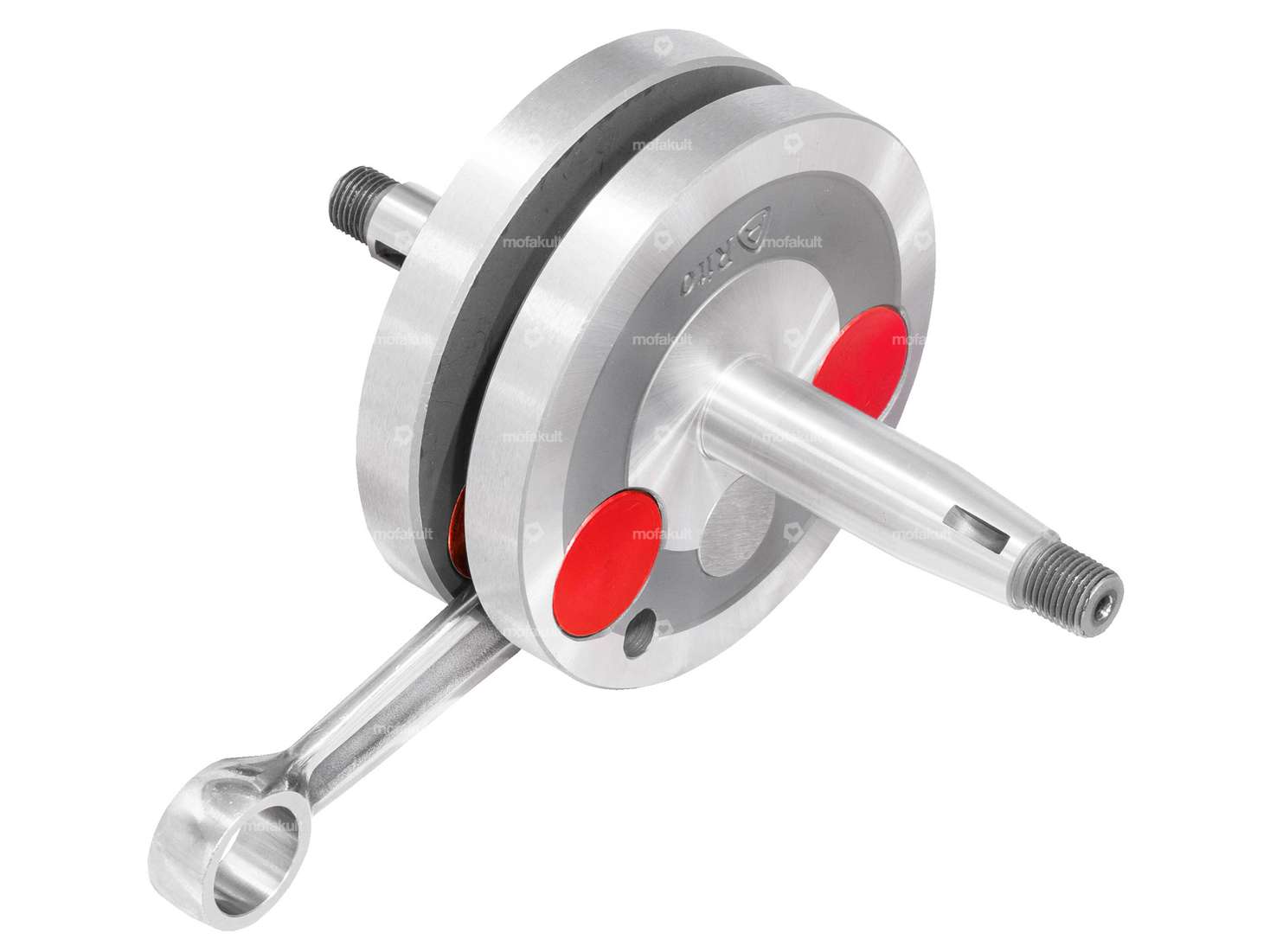

The legendary high-end crankshaft compatible with Sachs 50 (without supercharger) and 50/3 engines.
With minor adjustments, the crankshaft can also be used in the 50/2 (also known as the 502) and 503 engines.
High-quality, precision-fit solid-flange crankshaft with polished connecting rods, which has proven itself in a wide variety of stress tests. Designed for use in engines with significant power upgrades and tested up to 19,000 RPM.
The crankshaft can also be used on Sachs 503 engines; to prevent the drive sprocket from rubbing against the housing, it must be shimmed with 1.5 mm spacers. You can find the appropriate spacers in the accessories section.
The large balancing holes in the crankshaft webs have been sealed with aluminum inserts for maximum pre-compression.
This crankshaft is designed for E15 main bearings.
Crankshaft dimensions:
- Total length of the clutch-side crankpin: 41.5 mm
- Total length of the ignition-side crankpin: 63.7 mm
- Length of 1st shoulder (clutch side): 18.5 mm
- Length of 2nd step (clutch side): 14 mm
- Diameter of 1st step (clutch side): 15 mm
- Diameter of 2nd step (clutch side): 12 mm
- Thread (clutch side): MF10x1 mm
- Length of step (ignition side): 37 mm
- Diameter of step (ignition side): 15 mm
- Thread (ignition side): MF10x1 mm
- Ø crankshaft journals: 84.9 mm
- Crankcase width: 29.8 mm
- Upper connecting rod eye diameter: 16 mm
- Ø Connecting rod pin (bottom): 16 mm
- Connecting rod length (center-to-center): 85 mm
- Stroke: 42 mm
- Weight (including connecting rod): 1026 grams
- Needle bearing dimensions: Ø 12 / 16 x 15.7 mm (12-axis)
Note: The width of the needle bearing is 15.7 mm; depending on the piston, the inside may need to be slightly countersunk.
Installation tip: The transition between the crankshaft journals and the journal pins has a slight radius for reinforcement. To ensure proper spacing, use one Ø 16 x 1 mm spacer on each side (left and right); this fits neatly over the chamfer and thus centers itself optimally. The remaining spacers can be used as normal with a Ø 15 mm diameter.
A quality product from the Portuguese manufacturer Rito.
| Manufacturer | Rito |
| Cheek type | Full cheeks |
| Thread type | MF10x1 (fine pitch thread) |
| Material | Steel, Aluminum |
| Crankshaft stroke | 42 mm |
| Connecting rod length center-center | 85 mm |
| Total length of crankpin on clutch side | 41.5 mm |
| Number of gears | 2 pcs |
| Total length crankpin ignition side | 63.7 mm |
| Ø crank webs | 84.9 mm |
| Ø Connecting rod eye | 16 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 15 mm |
| Weight | 1026 g |
| Ø Bearing seat (ignition side) | 15 mm |
| Thread length | 7 mm, 9 mm |
| Dimension needle bearing | 12 / 16 x 15.7 mm (axe 12) |
| Wide crank webs | 29.8 mm |
| Length 1st paragraph | 18.5 mm |
| Length 2nd paragraph | 14 mm |
| Ø 1st step (on the coupling side) | 15 mm |
| Ø 2nd shoulder (on the clutch side) | 12 mm |
| Length of shoulder (ignition side) | 37 mm |
| Area of application | High End, Racing, Tuning |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 |
