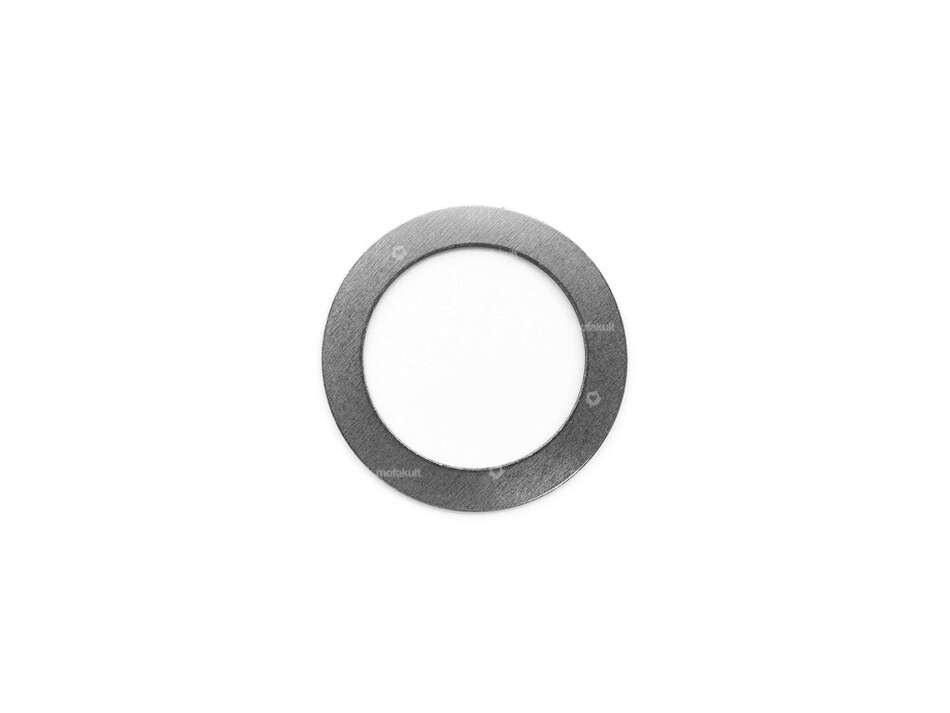

Shim to adjust the axial play of the crankshaft.
Für 2-speed manual Puch engines.
These shims are also installed on the ignition side of the 2-speed automatic ZA50 engine.
These shim washers are placed under the ball bearings to achieve the desired crankshaft clearance of 0.03 to 0.08 mm.
Outer diameter: 24 mm
Inner diameter: 17 mm
Thickness: 0.3 mm
| Ø inside | 17 mm |
| Ø outside | 24 mm |
| Manufacturer | Puch |
| Material | Steel |
| Surface | blank / oiled |
| Nominal diameter inside | 17 mm |
| Thickness | 0.3 mm |
| Universal | |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
