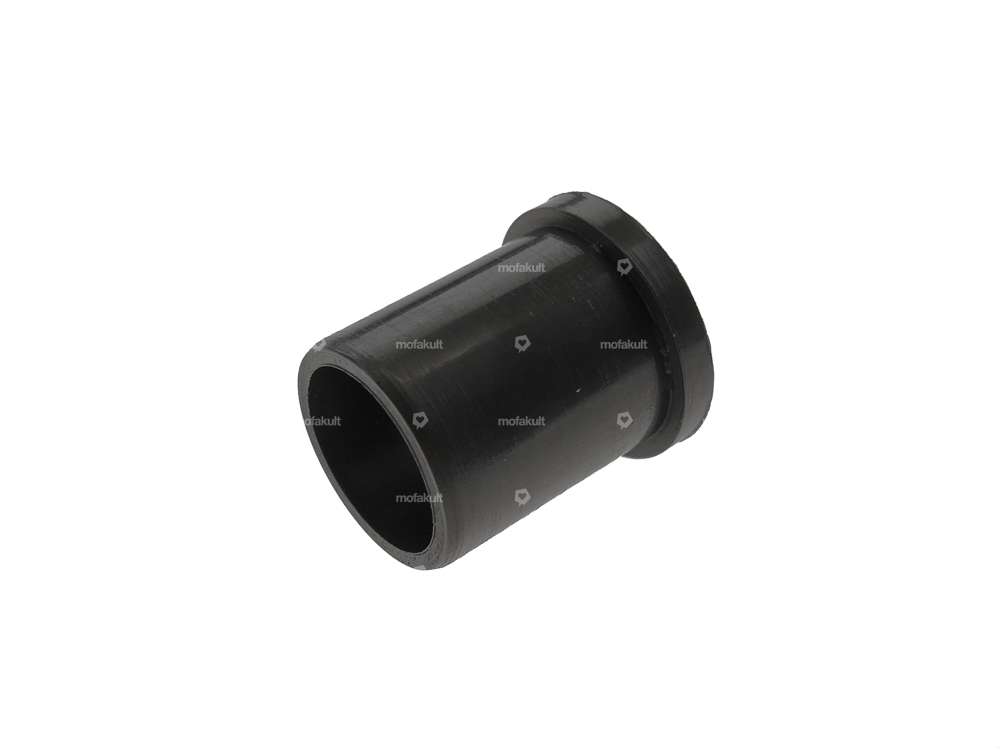

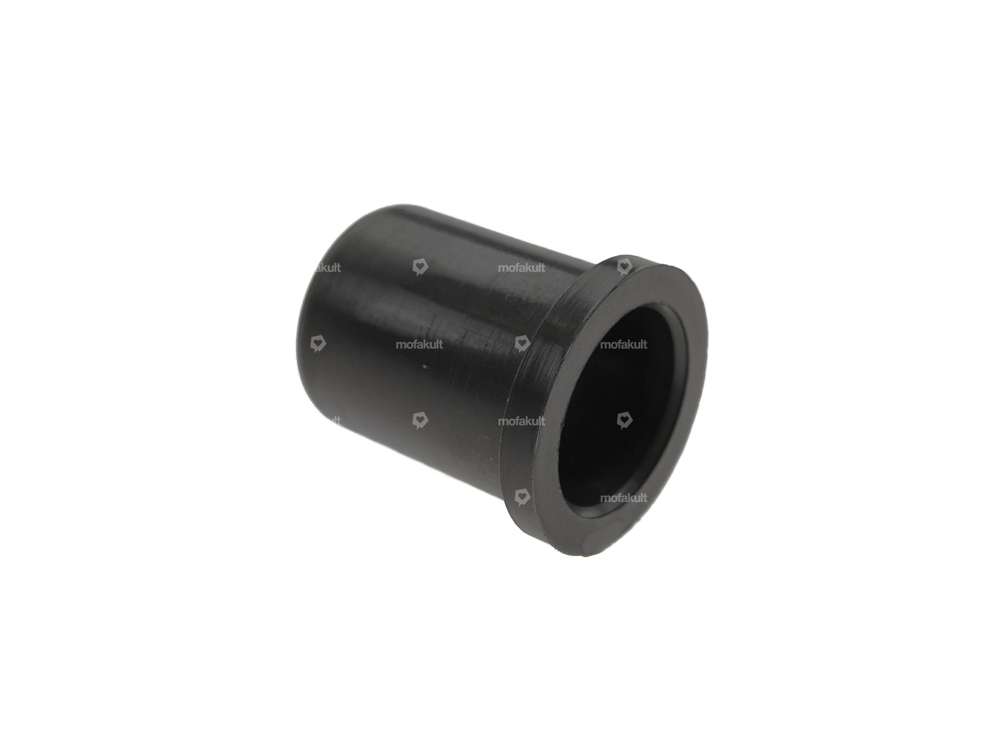

Original plastic guide bushing for the swing arm under the luggage rack of Piaggio Ciao SC, PX, and C24 mopeds.
The bushing is pressed into place on the side of the swing arm.
Inner diameter: 12.4 mm
Ø; outer diameter: 15.25 mm
Ø; outer flange: 17.75 mm
; length: 19.85 mm
Two sleeves are required per swing arm.
A high-quality product from the Italian manufacturer Piaggio, in OEM quality.
Original Piaggio part number: 135253
| Manufacturer | Piaggio |
| Total length | 19.85 mm |
| Nominal diameter inside | 12 mm |
| Ø Bundle | 17.75 mm |
| Ø inside | 12.4 mm |
| Ø outside | 15.25 mm |
| Piaggio OEM number | 135253 |
| Piaggio | Ciao - SC , PX , C24 |
