Not so nice

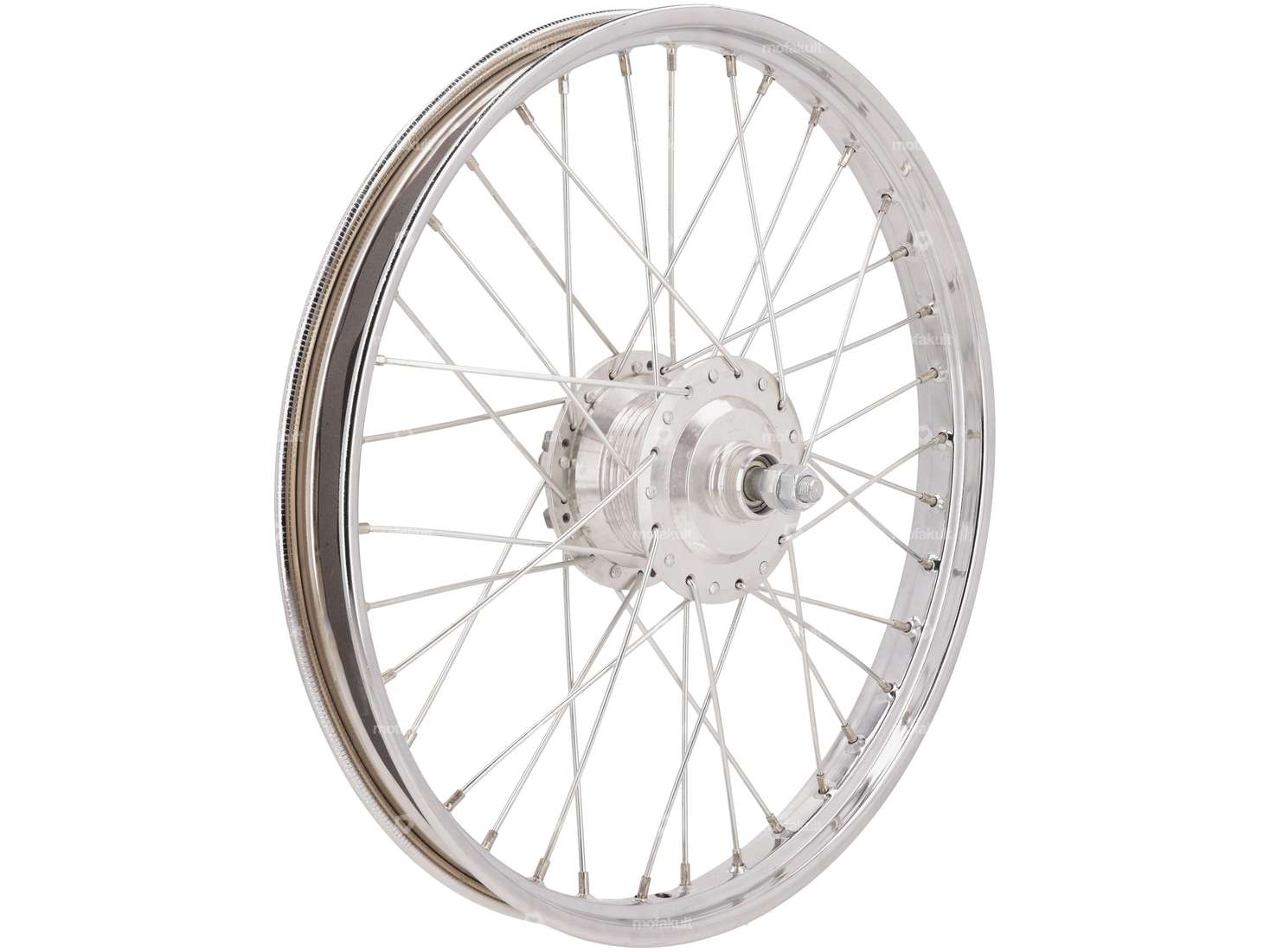

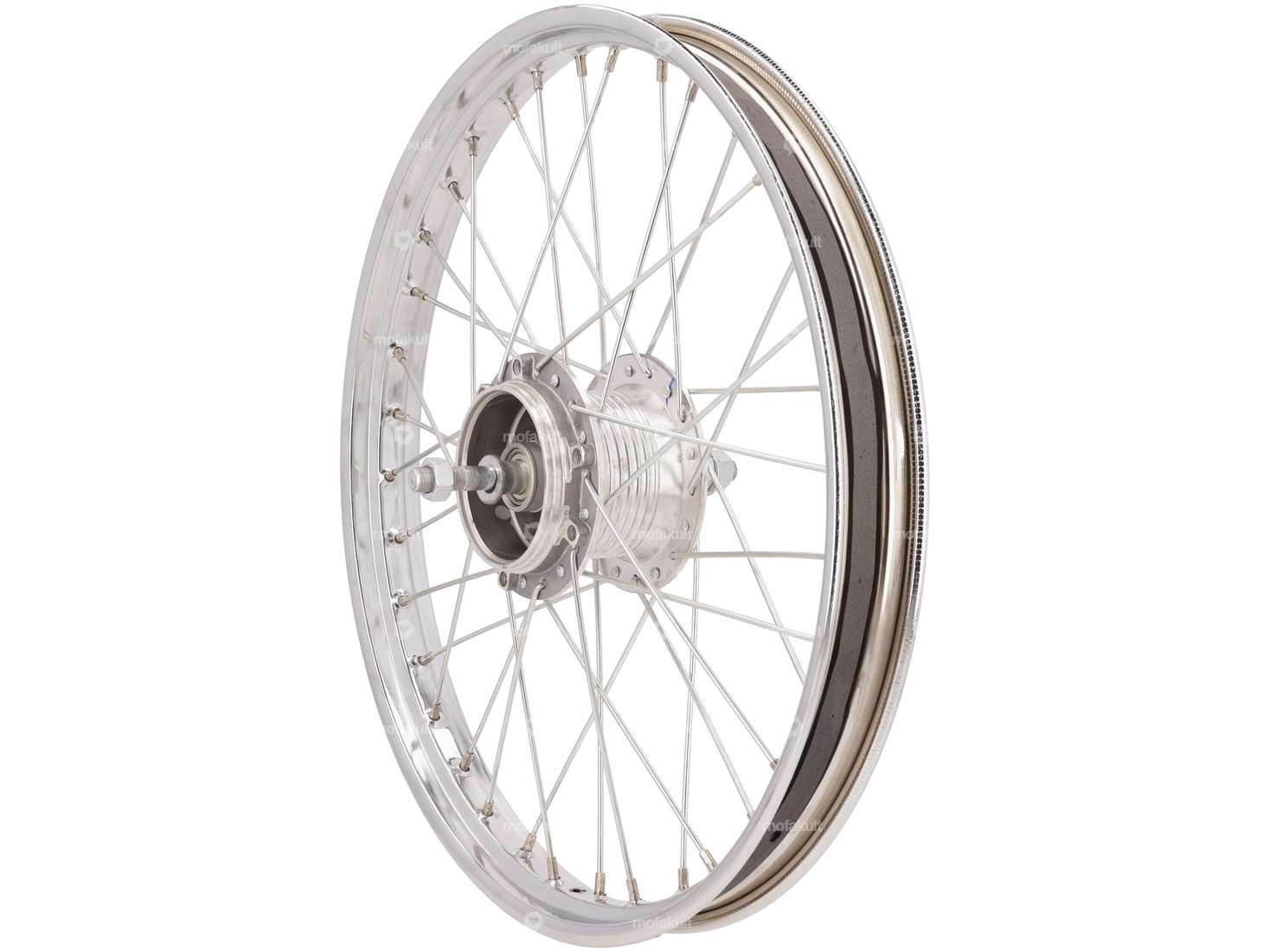

17-inch spoked rear wheel with a 1.5" rim for your Puch Maxi S & N moped.
The aluminum hub comes complete with wheel bearings, axle, nuts, and spacers. The rim is made of chrome-plated steel. The spokes and nipples are galvanized.
Moderately casual! – We strive to offer you the widest selection of moped replacement parts. However, the quality of this product is rather “moderately casual,” and we do not recommend it. If you still choose this item, we understand your decision, but we cannot offer any warranty or exchange. This is a replica product that differs in quality from the original rim.- The spokes should be checked before first use and tightened if necessary.
- The rim’s concentricity should be checked.
- The threads for the sprocket should be reamed out so that the sprocket can be secured with standard screws and nuts.

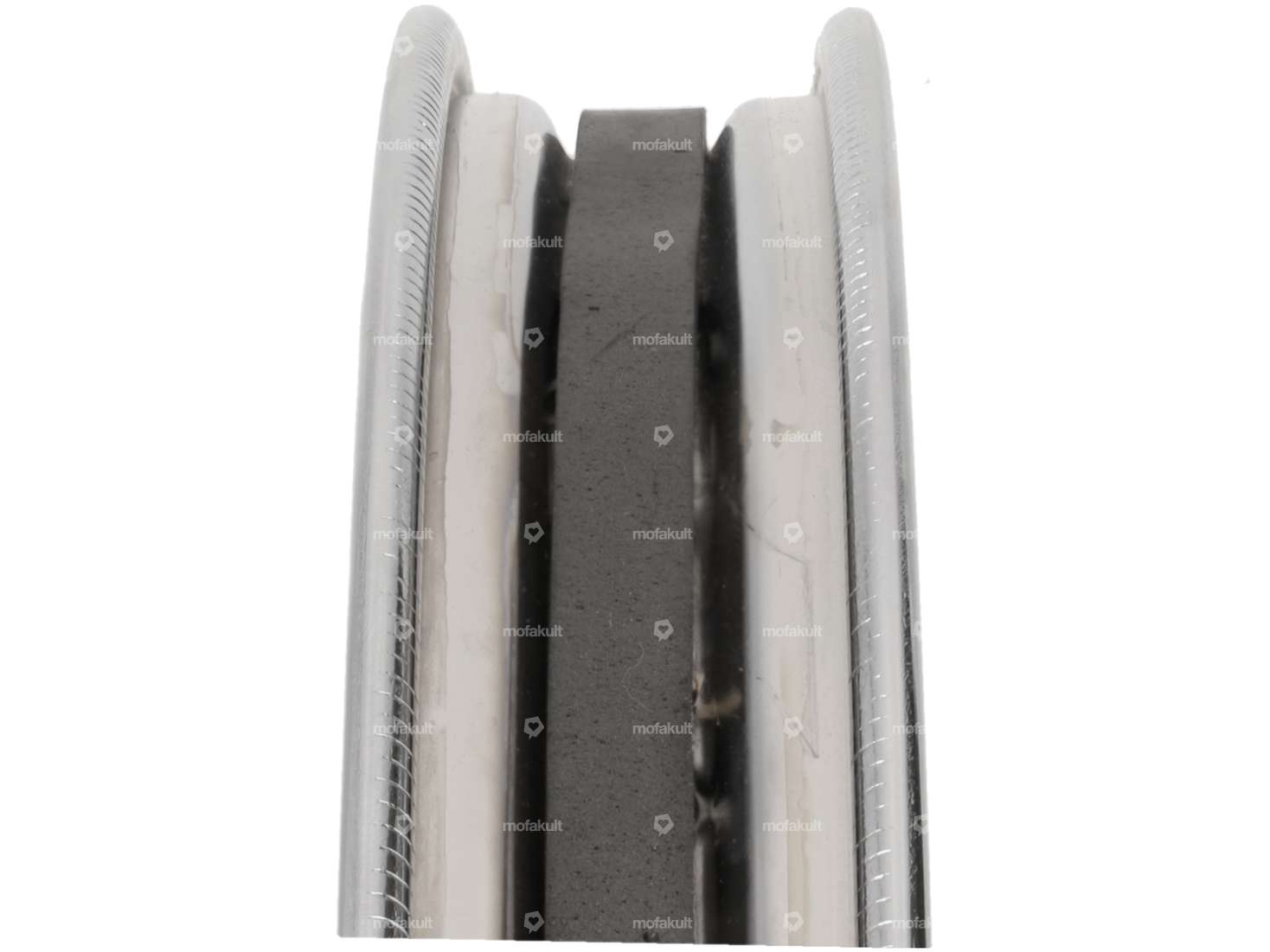

- The rim tape should be replaced with a high-quality product.
You can find high-quality alternatives, compatible brake anchor plates, and the rear wheel rim in the accessories section.
| Nominal diameter | 457 mm |
| Axle length | 180 mm |
| Ø axle | 12 mm |
| Material | Aluminum, Steel |
| Surface | galvanized (blue), chrome-plated |
| Wheel size | 17 " |
| Rim well depth | 9.5 mm |
| Ø spoke | 2.9 mm |
| Overall width outside | 50 mm |
| Jaw width [inch] | 1.5 " |
| Ø Brake drum | 80 mm |
| Jaw width [mm] | 37.5 mm |
| Number of spoke holes | 36 pcs |
| Thread type | MF12x1 (fine pitch thread) |
| Puch | E50 |
Accessories & related products
Fortune / Merrick 2.00-2.25 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Wheel size: 16 - 17 " · Wheel size: 17 " · Alternative version of the Puch OEM number: 567.060700 · Alternative version of the Puch OEM number: 901.0863 · Alternative version of the Puch OEM number: 902.0853
EUR 12.50
Hot
Mitas 2.25 x 17" tires MC11 Semi-Slick Whitewall
Inventory-managed: No · Manufacturer: Mitas · Tire width: 2.25 " · Color: black · Color: white · Tire width [mm]: 57.15 · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: MC11 · Tire type: Semi-slick · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 77.00
Heidenau 2.25 x 17" tires M4 Allround
Inventory-managed: No · Manufacturer: Heidenau · Tire width: 2.25 " · Color: black · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: B = 50 km/h · Load capacity index: 28 = 100 kg · Profile type: M4 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 56.80

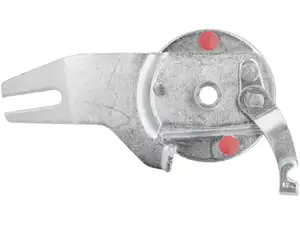

swiing® revival rear brake anchor plate | Puch Maxi S, X30 NG
Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Ø axle: 12 mm · Material: Steel · Ø External brake pads: 80 mm · Ø outside: 91 mm · Total length: 187 mm · Ø shaft: 10 mm · Ø bore: 12.2 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 55 mm · Cranking (offset): 8 mm · Ø screw holder: 6.5 mm
EUR 82.90
Not in stock
swiing® revival rear brake anchor plate | Puch Maxi N
Total length: 135 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø External brake pads: 80 mm · Ø shaft: 10 mm · Ø bore: 12.2 mm · Ø outside: 92 mm · Ø axle: 12 mm · Wide cam holder: 12 mm · Brake lever length (lever length): 68 mm · Cranking (offset): 10 mm · Ø screw holder: 6.5 mm
EUR 88.90
Michelin 2.25 - 2.50 x 17" tube
Manufacturer: Michelin · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 57.15 - 63.5 · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve · Wheel size: 17 "
EUR 19.60
Mitas 2.25 x 17" tires B4 Allround whitewall
Inventory-managed: No · Manufacturer: Mitas · Tire width: 2.25 " · Color: black · Color: white · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: B4 · Tire type: Allround · White wall: Yes · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 88.90
Hot
Spoked rim 17" front aluminum CNC solid silver
Surface: anodized · Ø axle: 12 mm · Material: Aluminum · Color: silver · Wheel size: 17 " · Rim well depth: 7.5 mm · Ø spoke: 3.5 mm · Nominal diameter: 432 mm · Overall width outside: 47 mm · Jaw width [inch]: 1.4 " · Ø Brake drum: 80 mm · Jaw width [mm]: 34.6 mm · Ø Nipple hole: 6.6 mm · Number of spoke holes: 36 pcs · Weight: 2700 g
EUR 284.60
Not in stock
Hot
Spoked rim 17" rear aluminum CNC solid silver
Surface: anodized · Ø axle: 12 mm · Material: Aluminum · Color: silver · Wheel size: 17 " · Rim well depth: 8.5 mm · Ø spoke: 3.5 mm · Nominal diameter: 432 mm · Overall width outside: 49 mm · Jaw width [inch]: 1.4 " · Ø Brake drum: 80 mm · Jaw width [mm]: 34.6 mm · Ø Nipple hole: 6.6 mm · Number of spoke holes: 36 pcs · Weight: 2600 g
EUR 296.50
Not in stock
VeeRubber 2.25 x 17" tires VRM094 (V094) Allround
Inventory-managed: No · Manufacturer: Vee Rubber · Tire width: 2.25 " · Color: black · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: L = 120 km/h · Load capacity index: 39 = 136 kg · Profile type: VRM-094 / V094 · Tire type: Allround · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 43.30
Not so nice

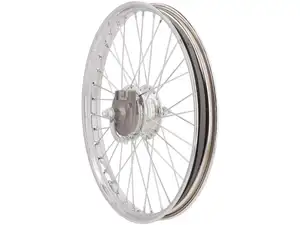

Spoked rim 17" front 1-crossed | Puch Maxi
