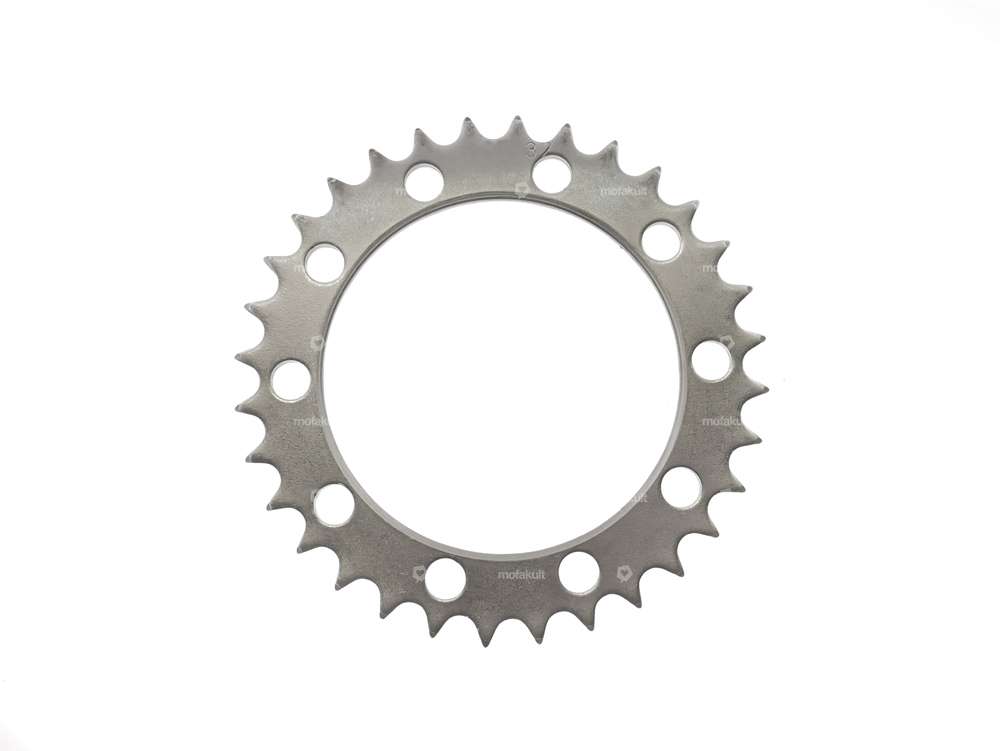

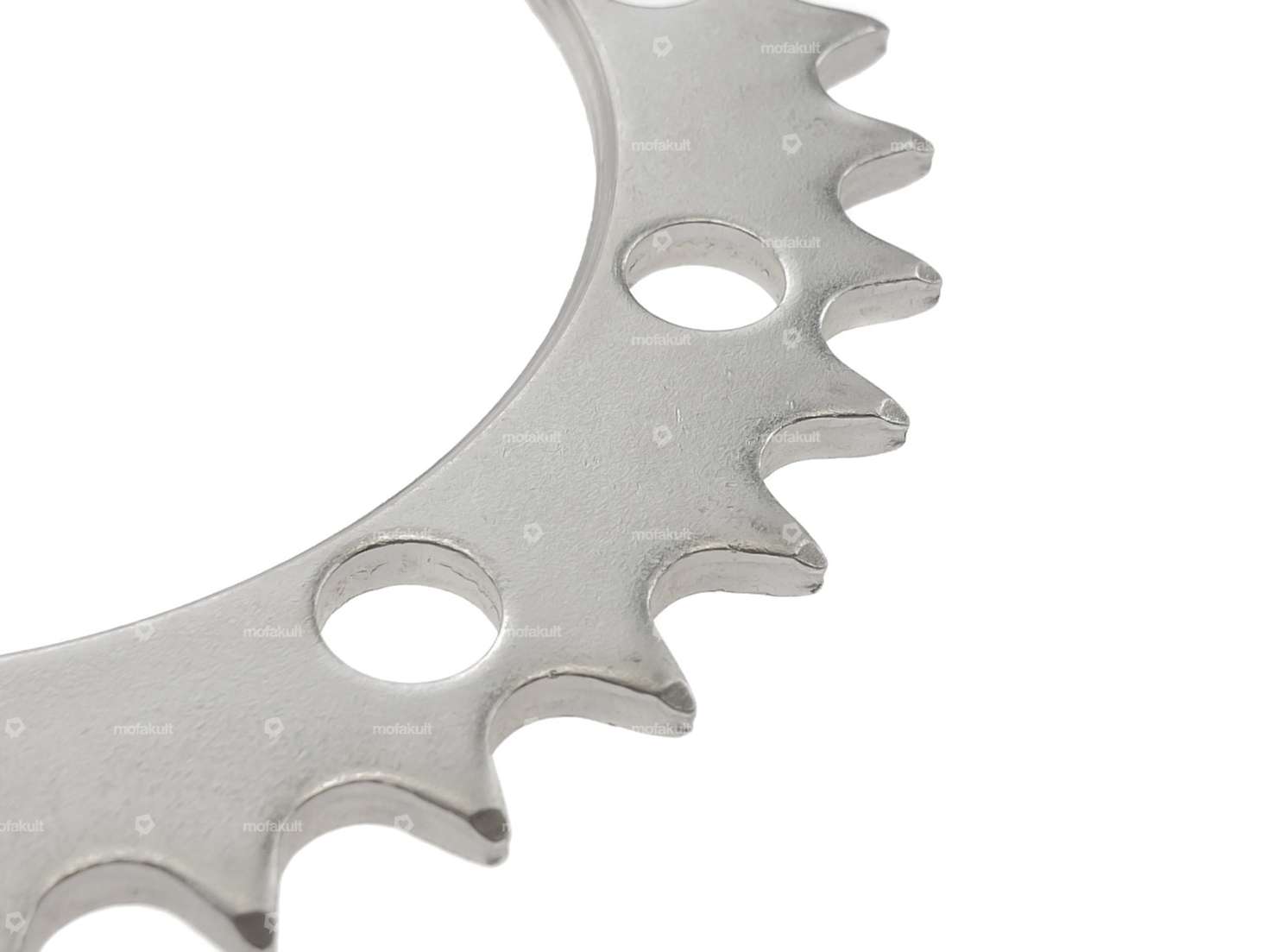

Zinc-plated sprocket (chain wheel) with 32 teeth suitable for the old HR90 Sachs sprocket hubs.
The hub with spokes was installed on various Sachs mopeds.
The sprocket is welded to the wheel hub.
NOS – New from old stock.
Internal diameter: 90 mm
Thickness: 4 mm
Details
| Chain type | 415H |
| Chain pitch | 1/2" x 3/16" |
| Manufacturer | Sachs |
| Material | Steel |
| Surface | galvanized (blue) |
| Color | silver |
| Number of teeth | 32 pcs |
| Ø inside | 90 mm |
| Ø bolt circle | 107 mm |
| Thickness | 4.1 mm |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo | |
| Cilo |
