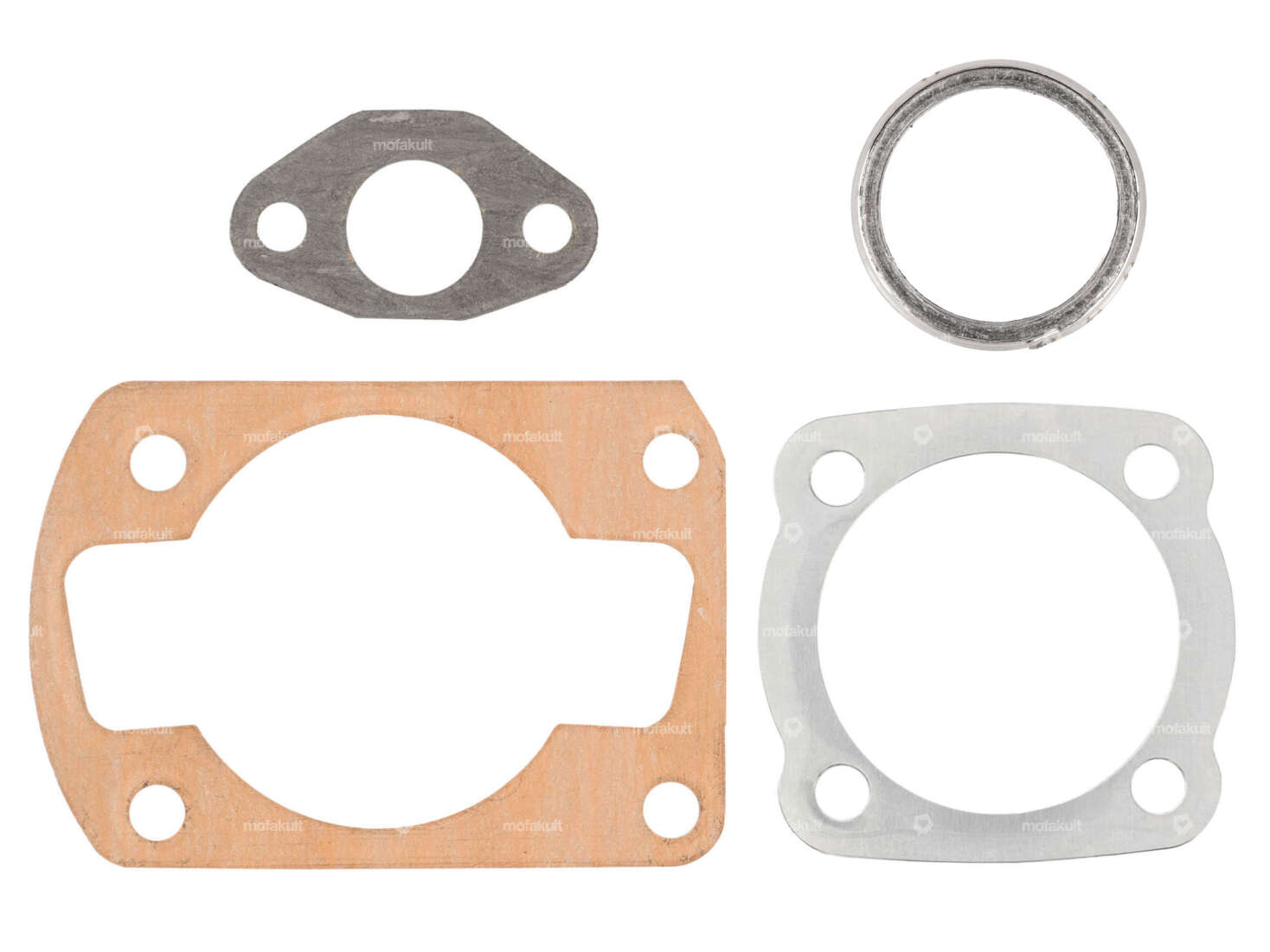

swiing® ingenious 38 mm gasket set cylinder | Sachs 50/2 (CH version)

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Contents: 70 ml · Color: green · Gap dimension (max.): 0.2 mm · Area of application: Chemistry

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Manufacturer: Elring · Material: Silicone · Contents: 70 ml · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 315 °C · Area of application: Chemistry

swiing® ingenious piston 38 mm | Sachs 50/2

Manufacturer: swiing® ingenious parts · Ø outside piston (A): 37.96 mm · Compression height (C): 28 mm · Curvature (D): 3.4 mm · Total piston height (E): 54 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 81 g

swiing® ingenious 38 mm cylinder kit Racing fan-cooled | Sachs 50/2 (CH)

Material: Aluminum · Surface: sandblasted · Manufacturer: swiing® ingenious parts · Nominal diameter: 38 mm · Camouflaged: No · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 60 x 40 · Number of fixing points: 4 pcs · Hole spacing inlet: 31 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Area of application: Racing

GPO license plate holder Inox (CH version)

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Color: silver · Thread type: M5x0.8 (standard thread) · Ø mounting hole: 5 mm · Number of fixing points: 2 pcs · Total length: 145 mm · Thread length: 8 mm · Hole spacing: 30 mm · Hole spacing: 50 mm · Mounting type: Nuts & bolts · Width: 105 mm · Height: 5.3 mm

BERU spark plug connector / 1 kΩ interference suppressed

Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Subcategory: Spark plug connector · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Area of application: (Dis)assembly tool · Total length: 55 mm · Total length: 75 mm · Width across flats Screw: 19 mm · Number of components: 1 pcs · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Strength class: 8.8

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Cable end sleeve 5 mm (1A quality)

Ø Cable bushing: 2.5 mm · Material: Brass · Surface: nickel-plated · Color: silver · Ø outside: 5.5 mm · Ø inside: 5 mm · Total length: 12 mm · Area of application: Standard

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch

Manual indoor cable set

Ø Stranded wire: 1.2 mm · Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Total length: 2200 mm

swiing® revival gasket 0.4 mm gearbox cover | Sachs 502, 50/2, 50/3, 50/4 (A1827)

Number of components: 1 pcs · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Thickness: 0.4 mm · Number of fixing points: 5 pcs · Total length: 210 mm · Width: 130 mm · Pony OEM number: A1827 · Sachs OEM no.: 0250 087 100

swiing® revival gasket cylinder head 38 mm cylinder | Sachs 503, 502, 50/2, 50/3, 50/4

Manufacturer: swiing® revival parts · Material: Aluminum · Ø cylinder: 38 mm · Nominal diameter: 38 mm · Thickness: 0.2 mm · Place of use: Cylinder head · Hole pattern [mm]: 37 x 37 · Area of application: Standard
