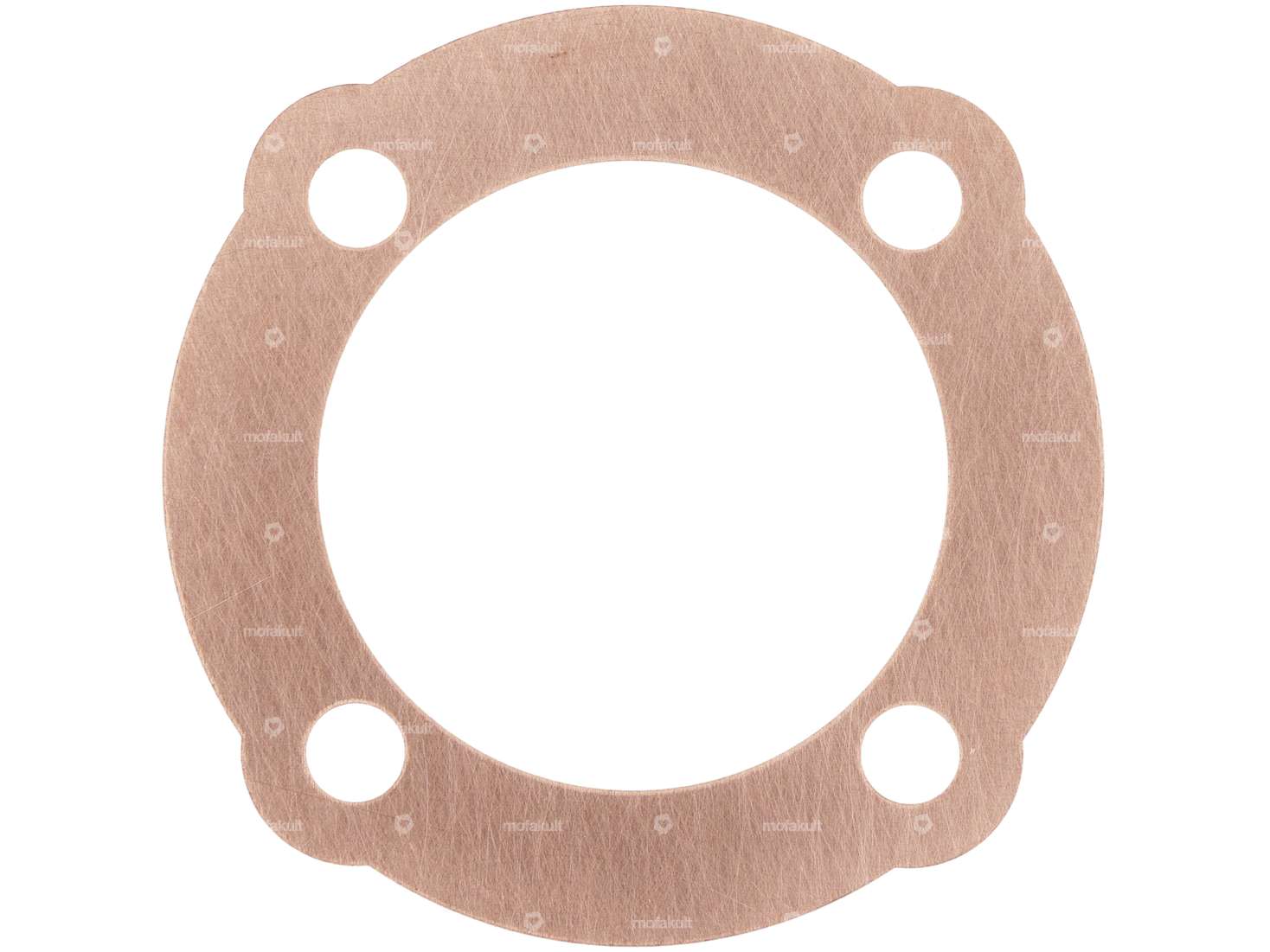

Custom-fit copper cylinder head gasket for mopeds, scooters, or small motorcycles equipped with Sachs 503, 502 (Saxonette) automatic engines, as well as manual 50/2, 50/3 (DE), or 50/4 (DE) engines.
The cylinder head gasket fits, for example, the 41 mm GPO cylinders “Pomodoro” and “Divertimento,” as well as the BAD ASS cylinders “Pandora” and “Diablo.”
Copper dissipates heat very effectively and fits snugly against the sealing surfaces. Compared to an aluminum gasket, the copper cylinder head gasket can therefore help maintain a uniform seal even under high thermal stress. Additionally, it better compensates for surface irregularities, as the cylinder head presses slightly into the gasket.
You can find additional cylinder head gaskets in the accessories section.
A sophisticated product from the premium swiing® brand, designed to meet the highest standards.
| Manufacturer | swiing® ingenious parts |
| Material | Copper |
| Ø cylinder | 41 mm |
| Nominal diameter | 41 mm |
| Thickness | 0.5 mm |
| Place of use | Cylinder head |
| Ø inside | 41.5 mm |
| Hole pattern [mm] | 37 x 37 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - AAL , ABL , 2AL / 2BL |
