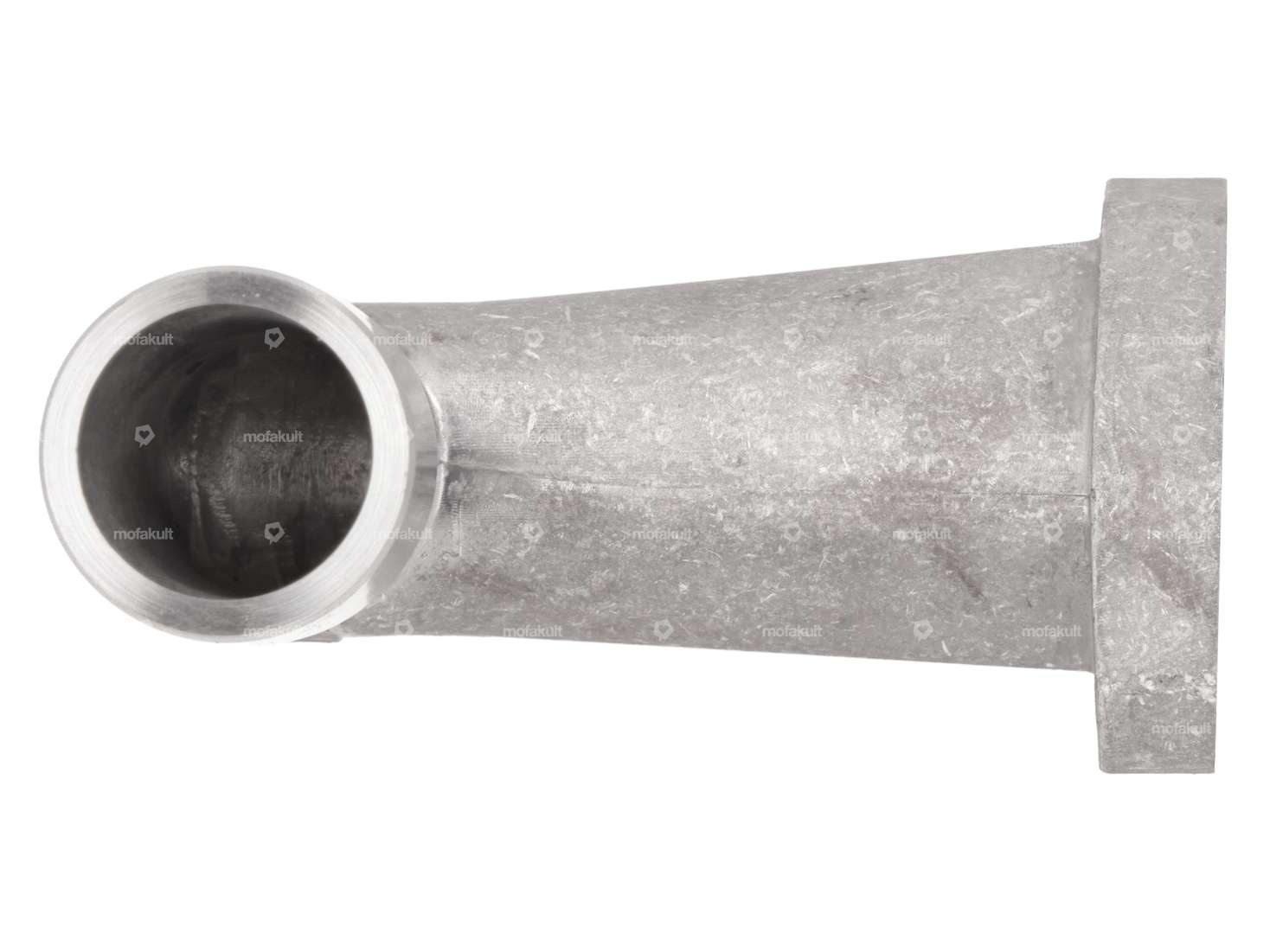

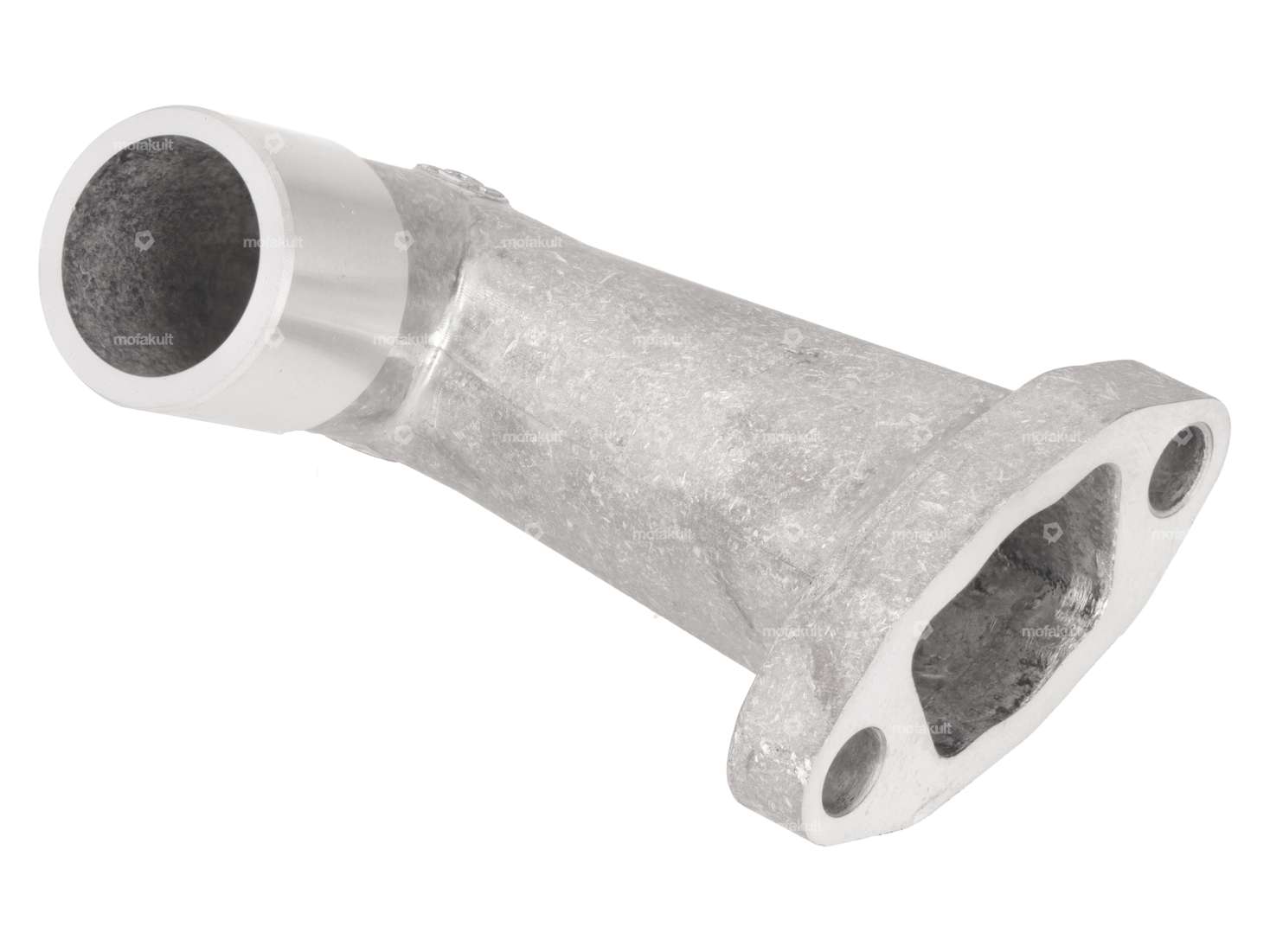

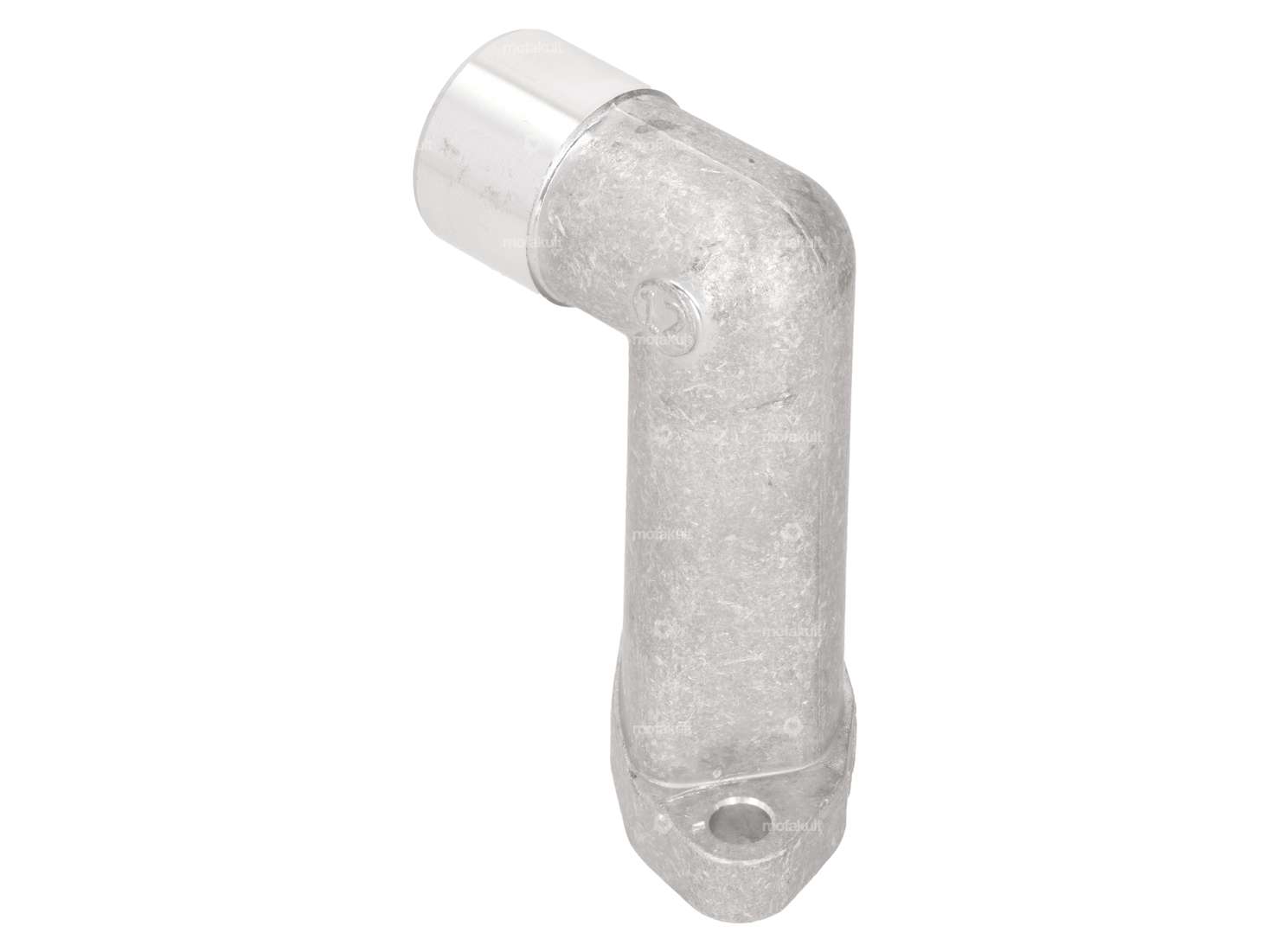

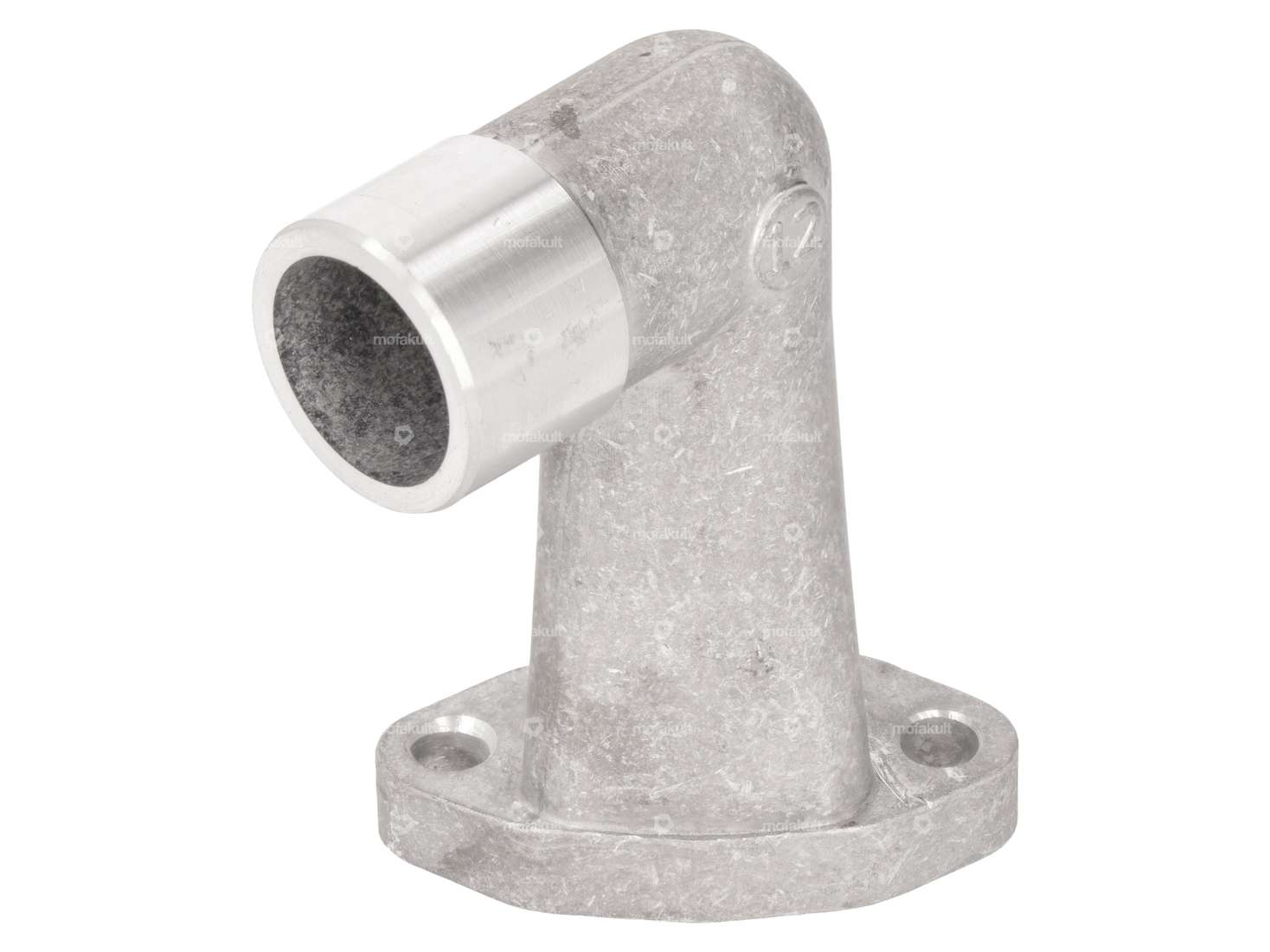

Camouflaged 17 mm tuning intake bend suitable for Puch mopeds / mopeds which have a Z50 engine installed.
The intake bend has been specially developed for use with the swiing ingenious 17 mm SRF carburetor with Ø 23 mm connection. In addition, the Puch logo and the 12 have been molded into the outside for optimum camouflage, just like the original.
This combination allows you to get the full potential out of your engine and still be perfectly camouflaged from the outside.
Ø inside: 17 mm
Ø connection: 23 mm
Height (flange - center bore): 61 mm
Total height: 73 mm
Hole spacing: 38 mm
To ensure that the air filter fits perfectly on the frame and the float chamber does not touch the engine housing, the 3 mm inlet gasket should always be used.
You will find the matching carburetor and gasket in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
Manufacturer | swiing® ingenious parts |
Camouflaged | Yes |
Area of application | Tuning, Racing, Performance |
Material | Aluminum |
Ø inside | 17 mm |
Total length | 45 mm |
Ø External connection | 23 mm |
Mounting type | Stud bolts & nuts |
Hole spacing inlet | 38 mm |
Number of fixing points | 2 pcs |
Total height | 73 mm |
Height flange center hole | 61 mm |
Puch | Z50 (X30 Sport) |
