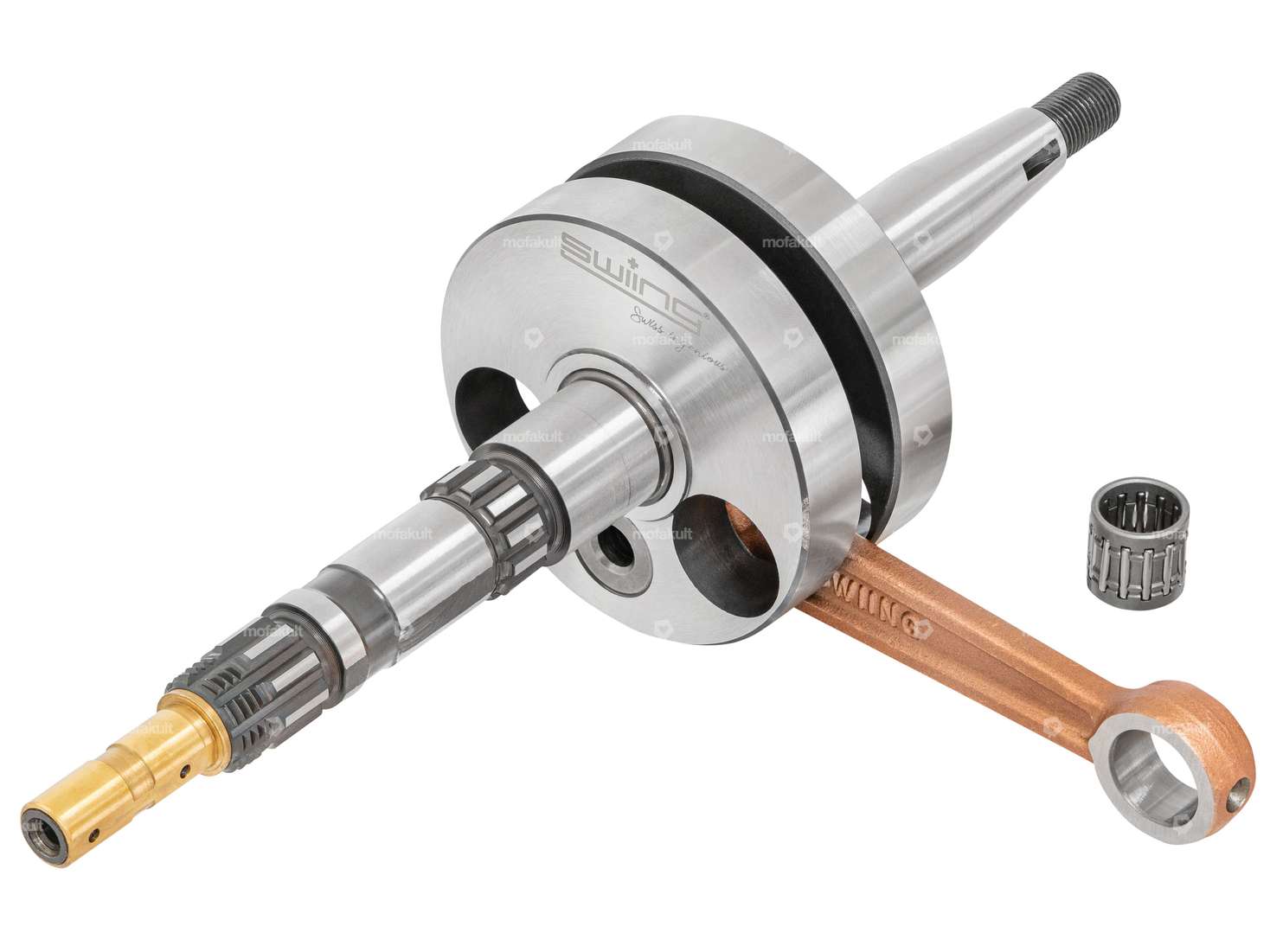

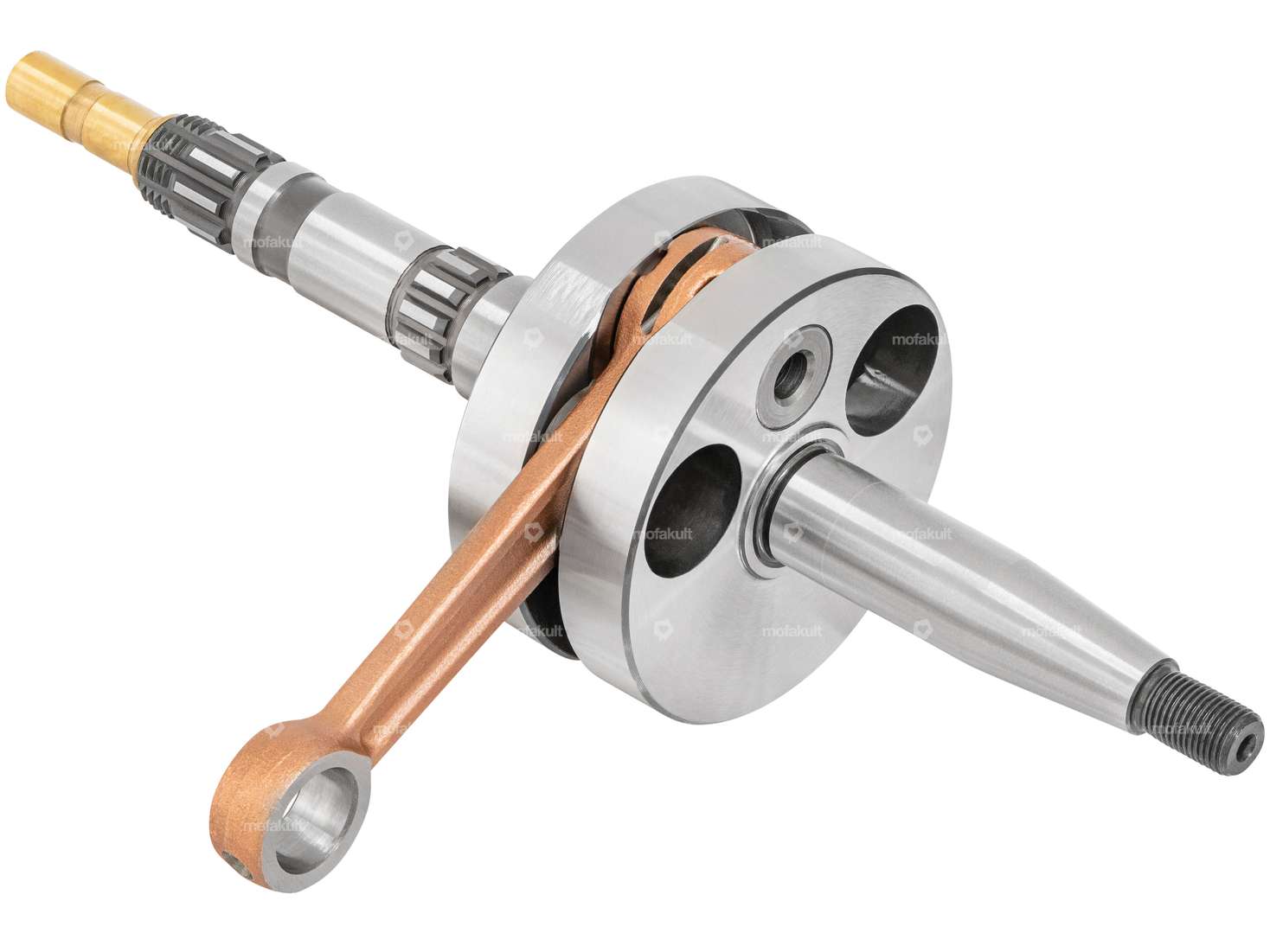

Original crankshaft suitable for your Puch Maxi S, Supermaxi LG2 and Puch X30 NG-2AH moped / moped with ZA50 engine.
The high-quality and precisely fitting, 1010 gram standard crankshaft, which has proven itself in various load tests, impresses with its excellent balancing ratio and good speed stability. In contrast to other competitor products on the market, this shaft has a correct thread for the clutch nut and wider teeth for the starter clutch.
This crankshaft was designed for use in engines with original power.
The solid connecting rod is provided with a more stable Ø 16 mm connecting rod bolt, which is hollow inside for better balancing.
Ø Brass pin: 9.5 mm (clutch piston with an inner diameter of 9.55 mm fits on this crankshaft).
The needle bearing (12/15 x14.2 mm) is included in the scope of delivery.
The matching bearings and shaft seals can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 117.8 mm |
| Total length crankpin ignition side | 79.5 mm |
| Ø crank webs | 69.9 mm |
| Ø piston pin (B) | 12 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 20 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Ø 1st step (on the coupling side) | 20 mm |
| Ø 2nd shoulder (on the clutch side) | 16.4 mm |
| Ø 3rd step (on the clutch side) | 9.5 mm |
| Weight | 1062 g |
| Area of application | Standard |
| Puch OEM number | 321.1.10.615.0 |
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
