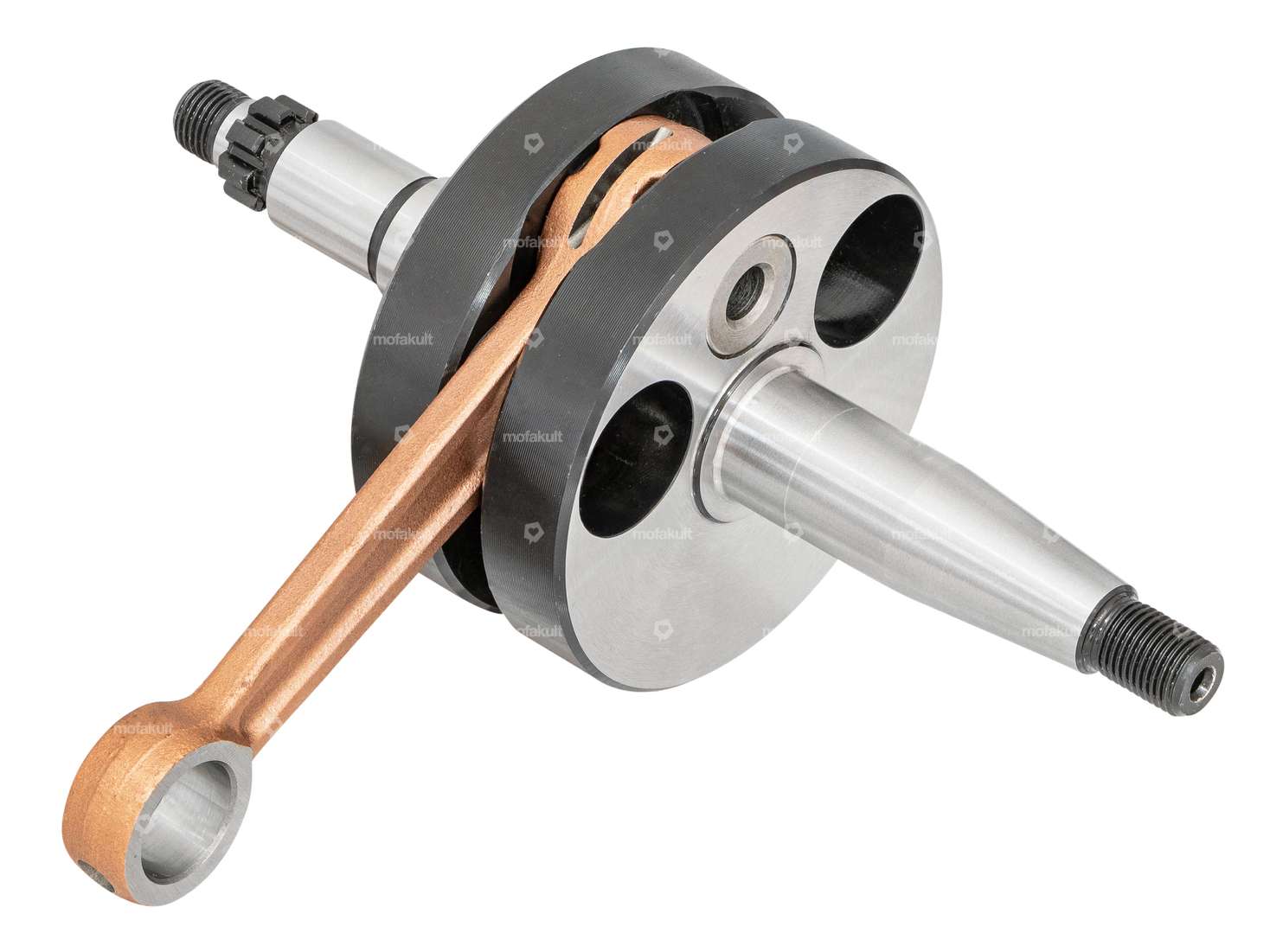

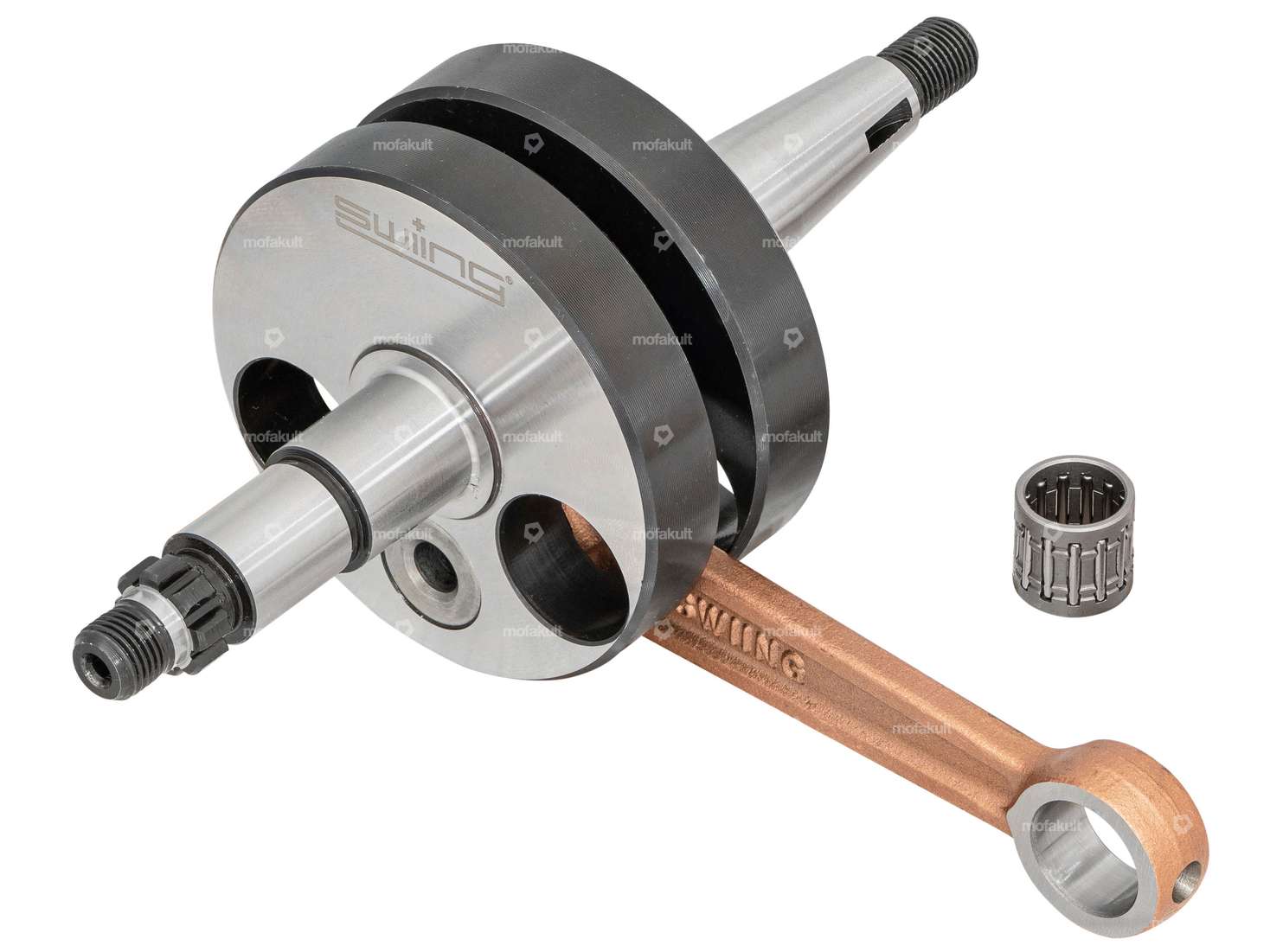

Original crankshaft suitable for your Puch X30 Sport NS/NL and Puch Maxi S2 mopeds / mopeds with manually shifted and windage-cooled Z50 engine.
High-quality and precisely fitting crankshaft, which has proven itself in various load tests.
The standard shaft was designed for use in original engines.
Revised version of the previously offered crankshaft with improved balance ratio and therefore smoother running characteristics.
The needle bearing is included in the scope of delivery.
Note: This crankshaft is not suitable for blown Z50 engines on Puch X30 Velux models.
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Cheek type | standard |
| Crankshaft stroke | 43 mm |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 57 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø piston pin (B) | 12 mm |
| Thread length | 7 mm, 13 mm |
| Ø Connecting rod eye | 15 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Wide crank webs | 34 mm |
| Length 1st paragraph | 20 mm |
| Length 2nd paragraph | 19 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 26.3 mm |
| Weight | 892 g |
| Number of gears | 2 pcs |
| Area of application | Standard |
| Puch | Z50 (X30 Sport) |
Accessories & related products
Motorex engine oil (gear oil) manual 450 ml
Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch
EUR 12.90
EUR 28.67/l

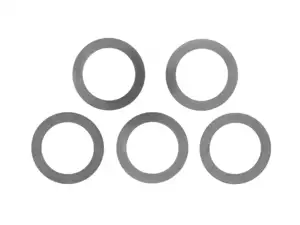

swiing® revival spacer set crankshaft L17 | Puch Z50
Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 17 mm · Ø inside: 17.1 mm · Ø outside: 23.8 mm
EUR 10.60

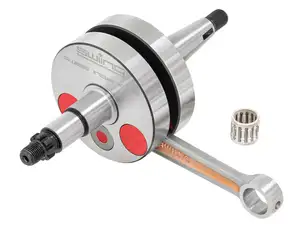

swiing® ingenious crankshaft "High End" | Puch X30 NS / NL (Z50)
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 70 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Weight: 954 g · Thread length: 10 mm · Ø piston pin (B): 12 mm · Thread length: 13 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Area of application: Racing · Area of application: Tuning · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 2 pcs
EUR 195.60
Serrated lock washer M10 galvanized
Surface: galvanized (blue) · Thread size: M10 · Thread size: M12 · Thread size: M4 · Thread size: M5 · Thread size: M6 · Thread size: M7 · Thread size: M8 · Material: Steel · Ø inside: 4.5 mm · Ø inside: 5.5 mm · Ø inside: 6.35 mm · Ø inside: 7.4 mm · Ø inside: 10.8 mm · Ø inside: 12.8 mm
EUR 0.35

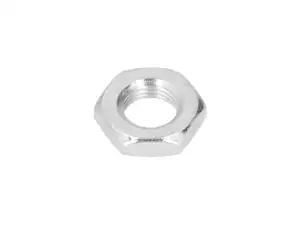

Nut M10x1 low
Thread type: MF10x1 (fine pitch thread) · Surface: galvanized (blue) · Nut type: Hexagon nut 0.5D · Material: Steel · Nominal diameter (thread): 10 mm · Drive: External hexagon · Height: 5 mm · Width across flats: 17 mm · Pony OEM number: A1493 · Pony OEM number: A1513 · Sachs OEM no.: 0242 000 001 · Sachs OEM no.: 0242 102 001
EUR 2.85
Explore categories from Engine block
Moped fans also bought

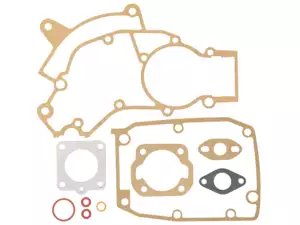

swiing® revival gasket set Z50 engine | Puch X30 NS / NL
