Inox
Hot

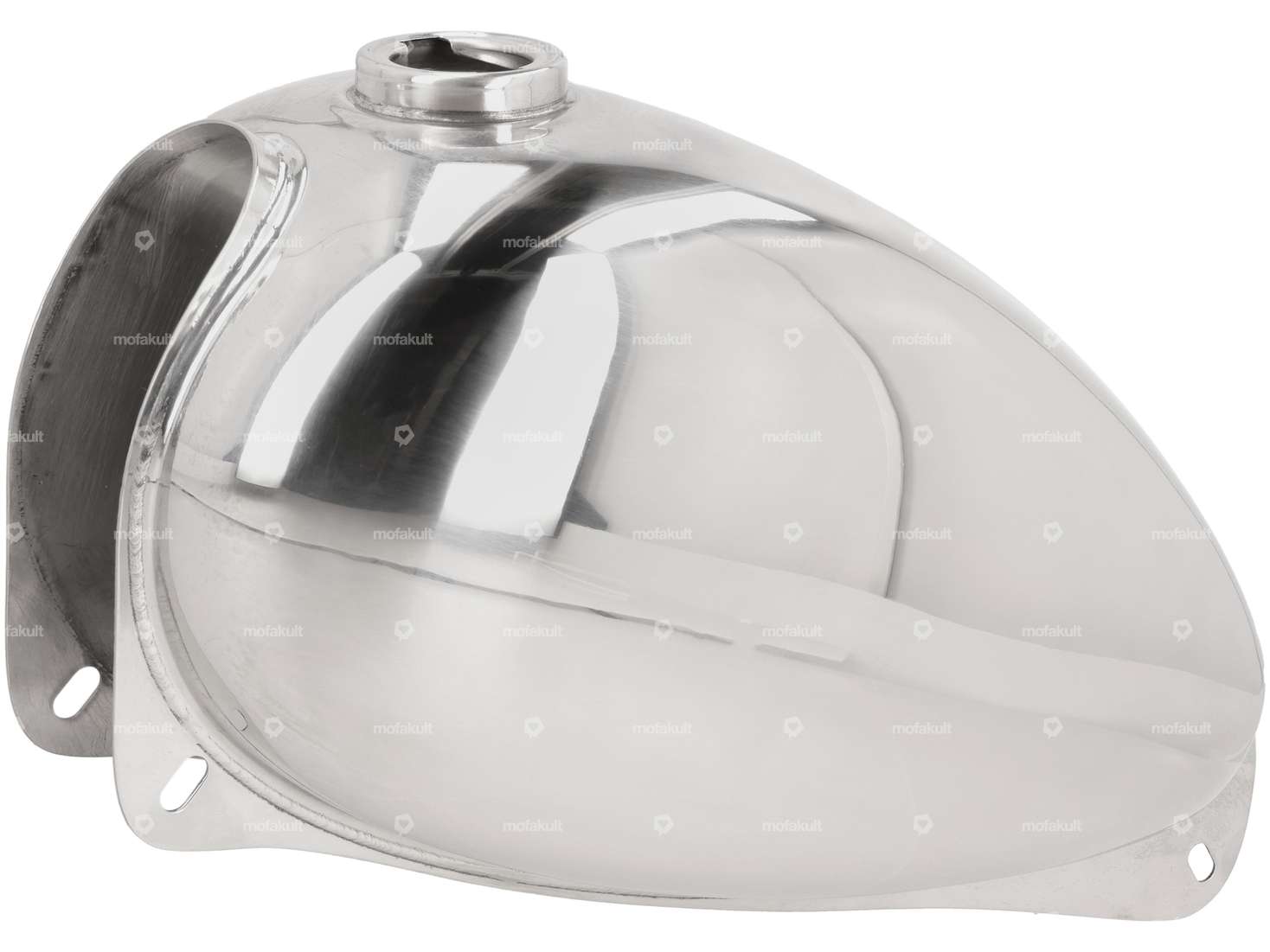

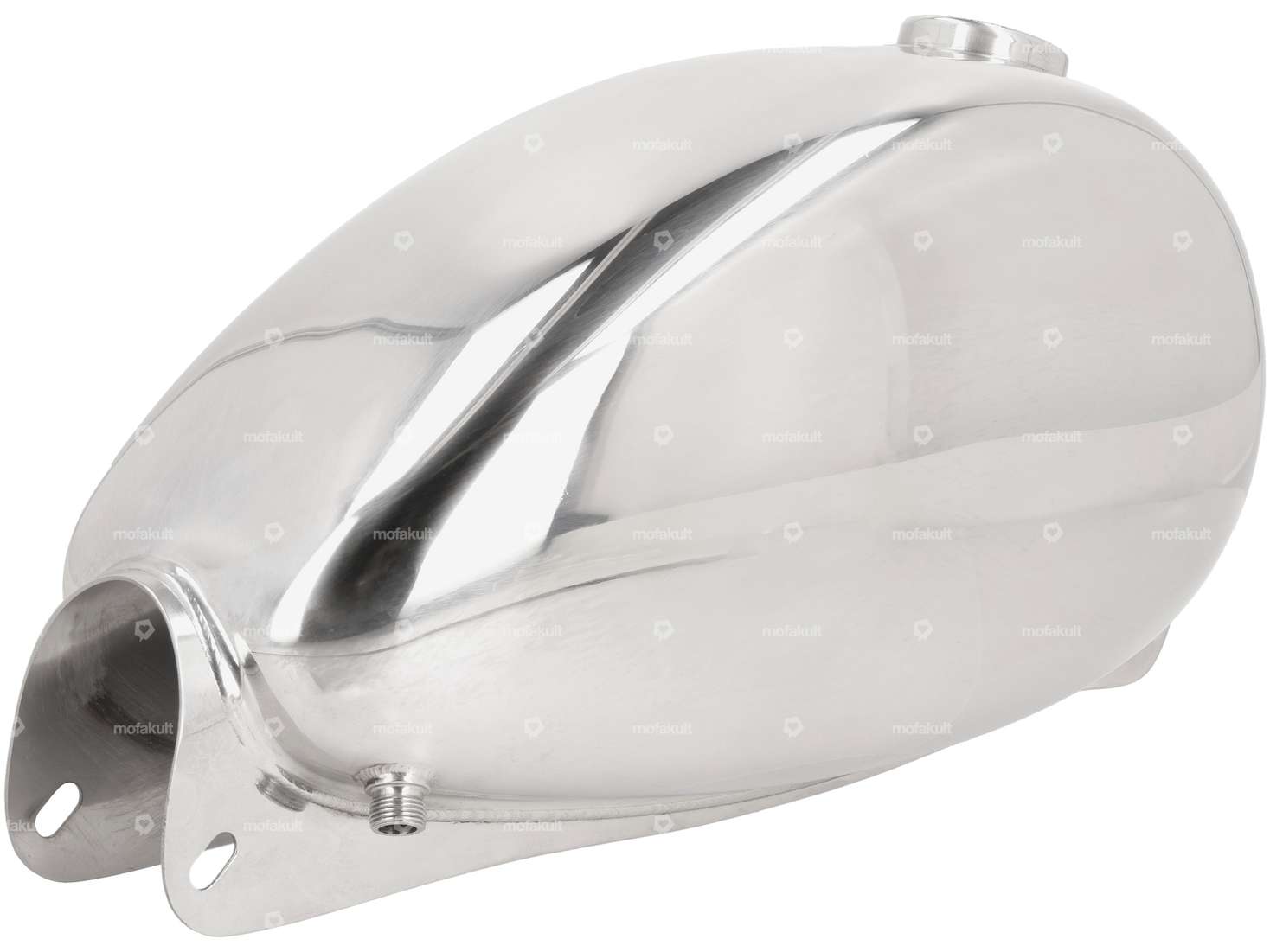

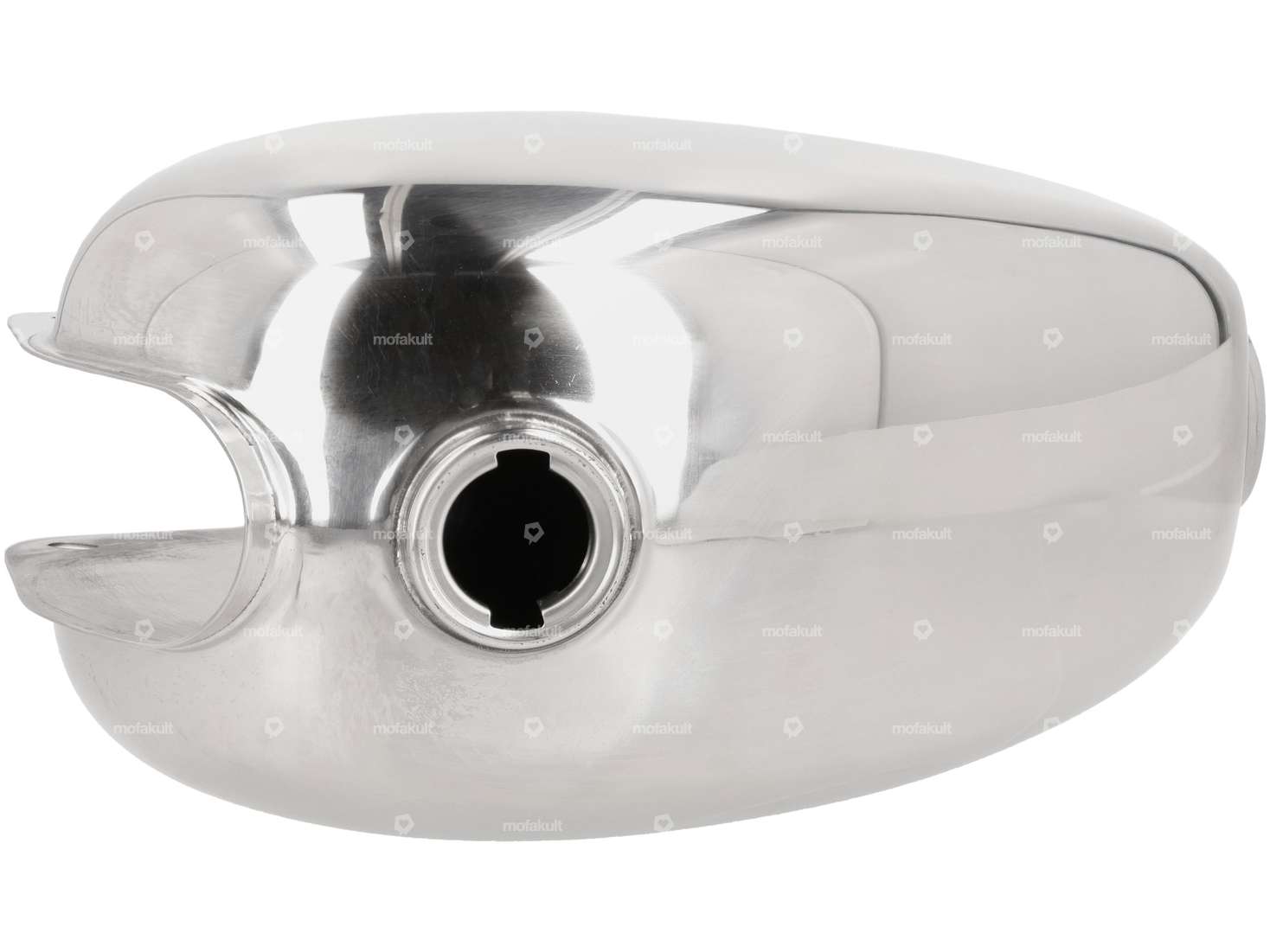

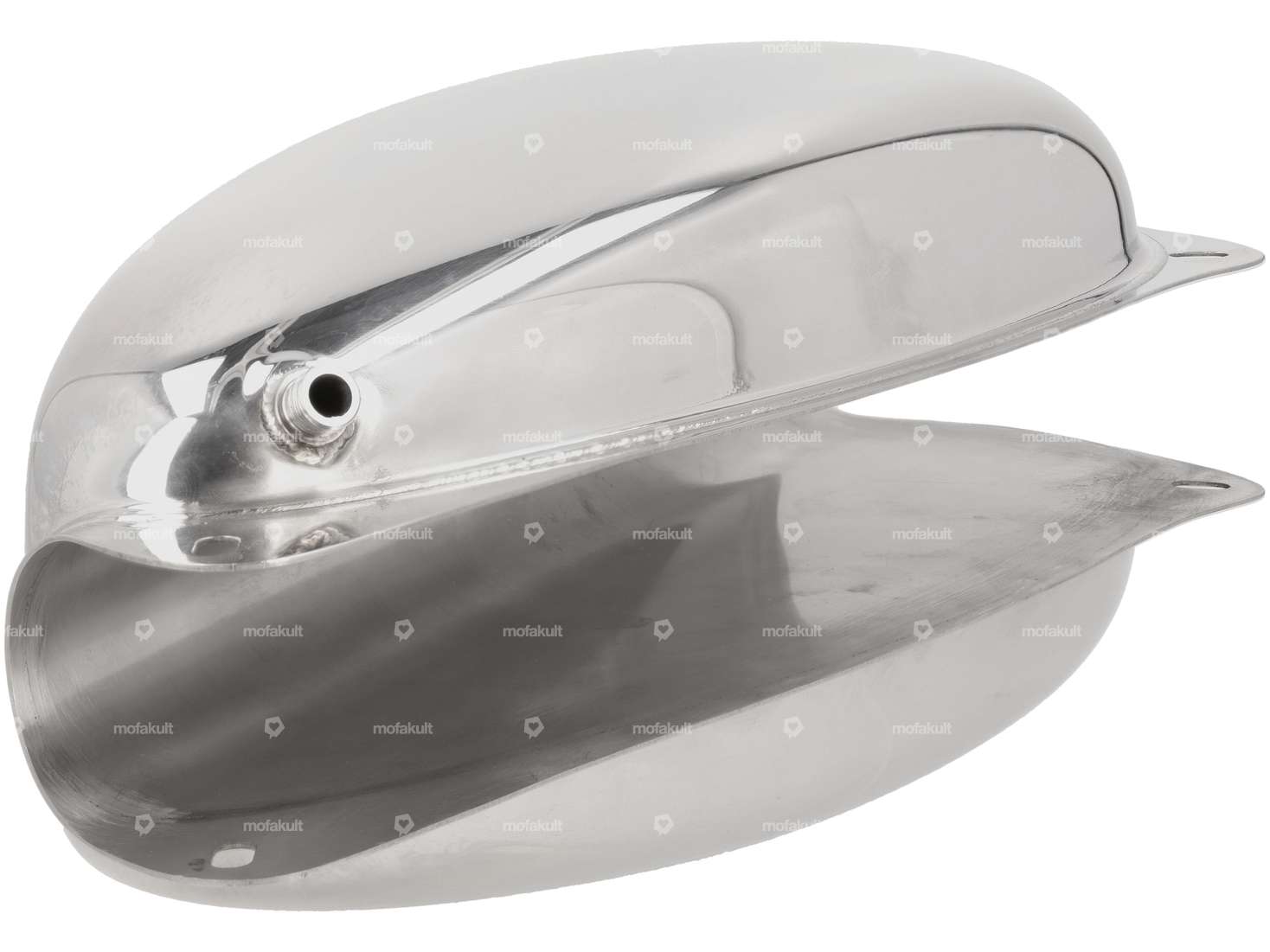

Noble stainless steel fuel tank suitable for your Sachs 502 Tour de Suisse moped as well as other vintage mopeds / mopeds.
The entire egg tank is made of 1.2 mm thick stainless steel sheet and is manufactured using laser welding technology. The workmanship impresses with its precision and true-to-original details.
The surface is already polished to a high gloss, but can be further refined as desired. If a scratch does occur, it can be easily polished out.
A real gem - durable, stylish and a perfect fit.
Ø mounting hole: 13 x 7 mm
Hole spacing center / center: 308 mm
Channel width: 54 - 55 mm
Notes:
A slightly discolored weld seam may be visible in the area of the fuel connection. This area was deliberately less polished at the factory so as not to damage the thread. When mounted, the discoloration is barely noticeable due to the tank height and the viewing angle.
Depending on the frame mount, it is recommended to use suitable nylon spacers - especially if the mount is slightly narrower than the tunnel width of the tank.
Matching tank caps, nylon washers, fuel caps and other add-on parts can be found in the accessories section.
Nostalgic product for the highest standards from the quality brand swiing®.
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Surface | polished |
| Width | 150 mm |
| Total length | 360 mm |
| Fuel filler cap | Bayonet 30 mm |
| Fuel tap connection thread | MF12x1 (fine pitch thread) |
| Universal |
| Sachs |
