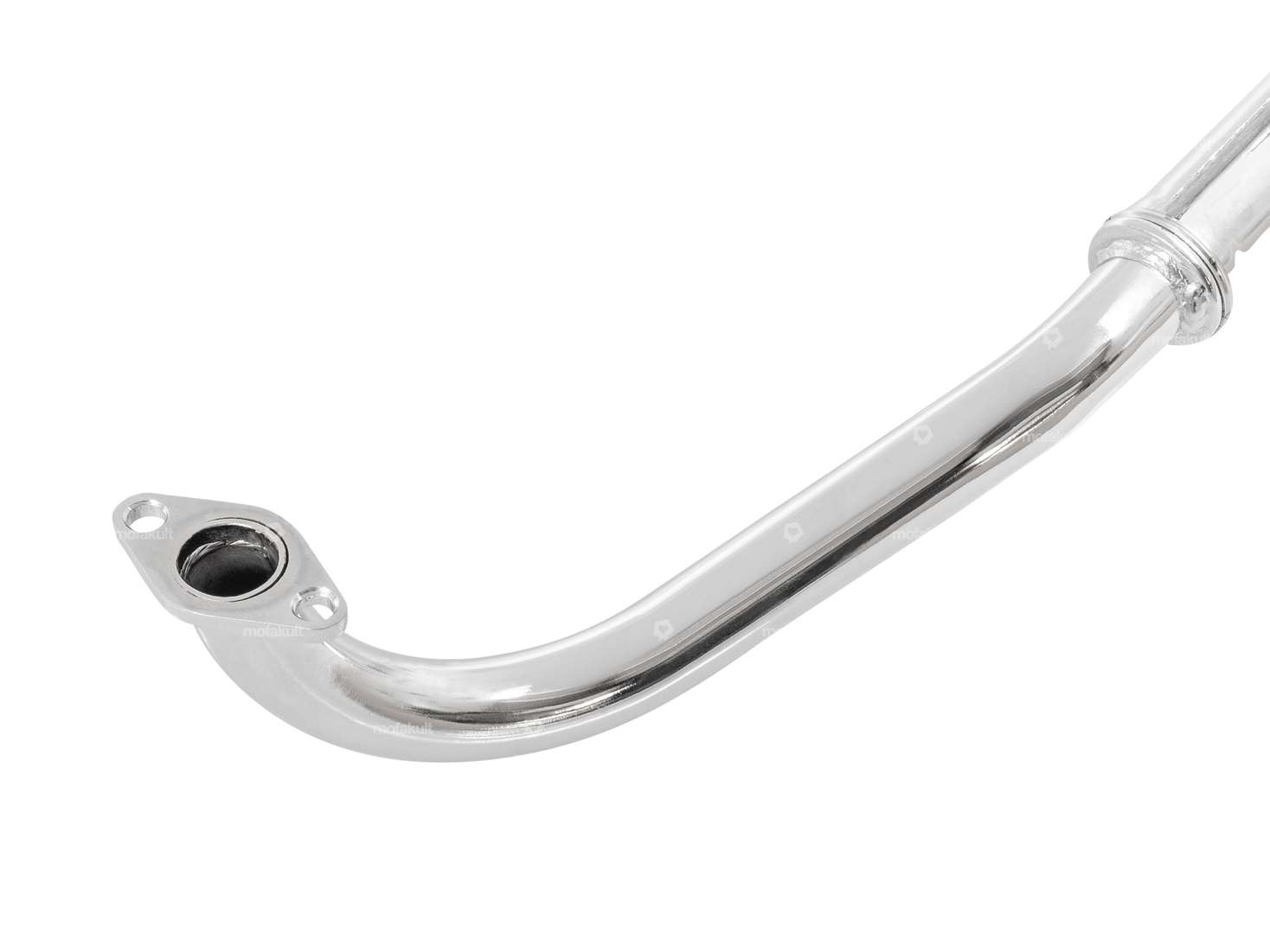

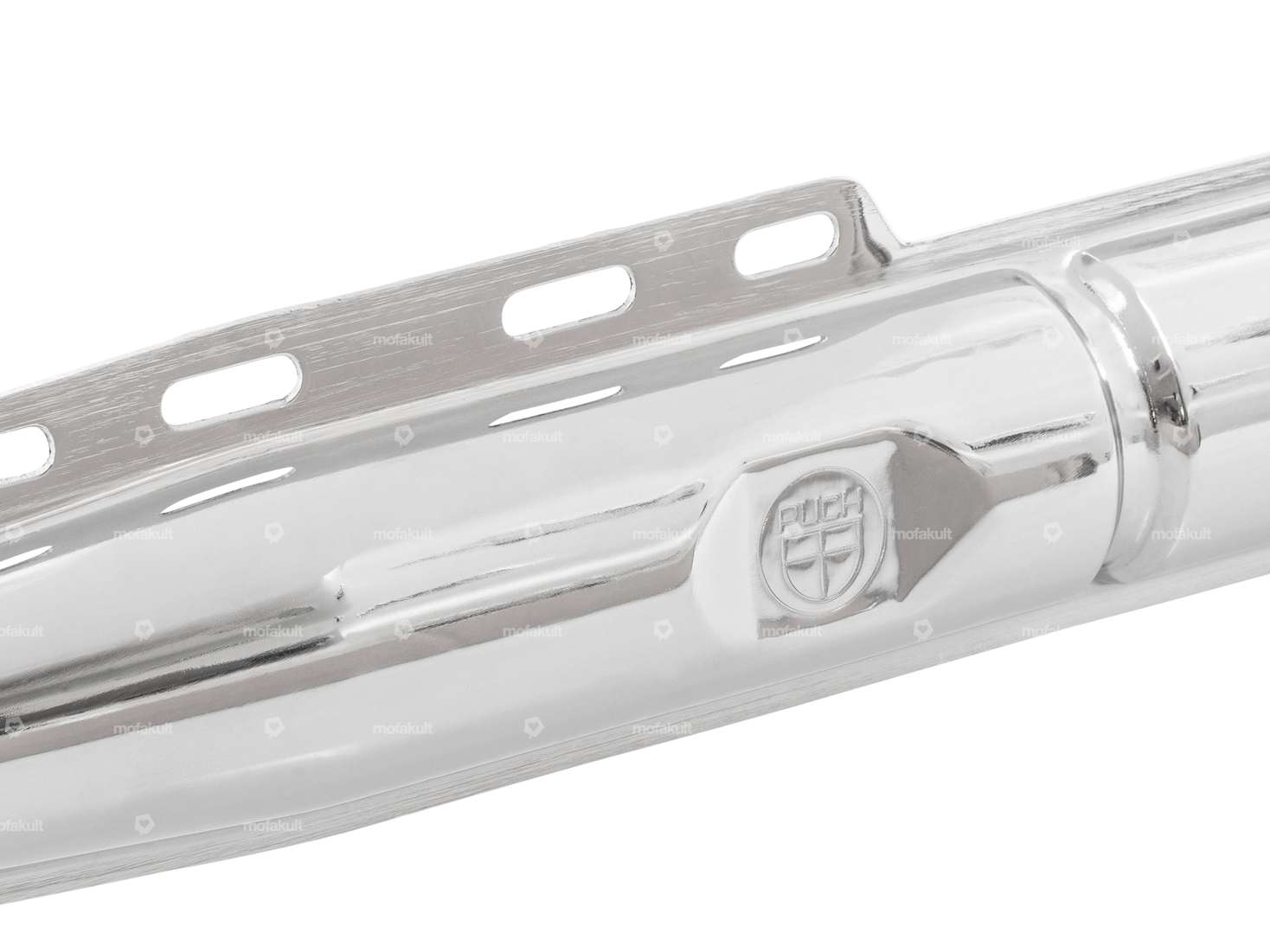

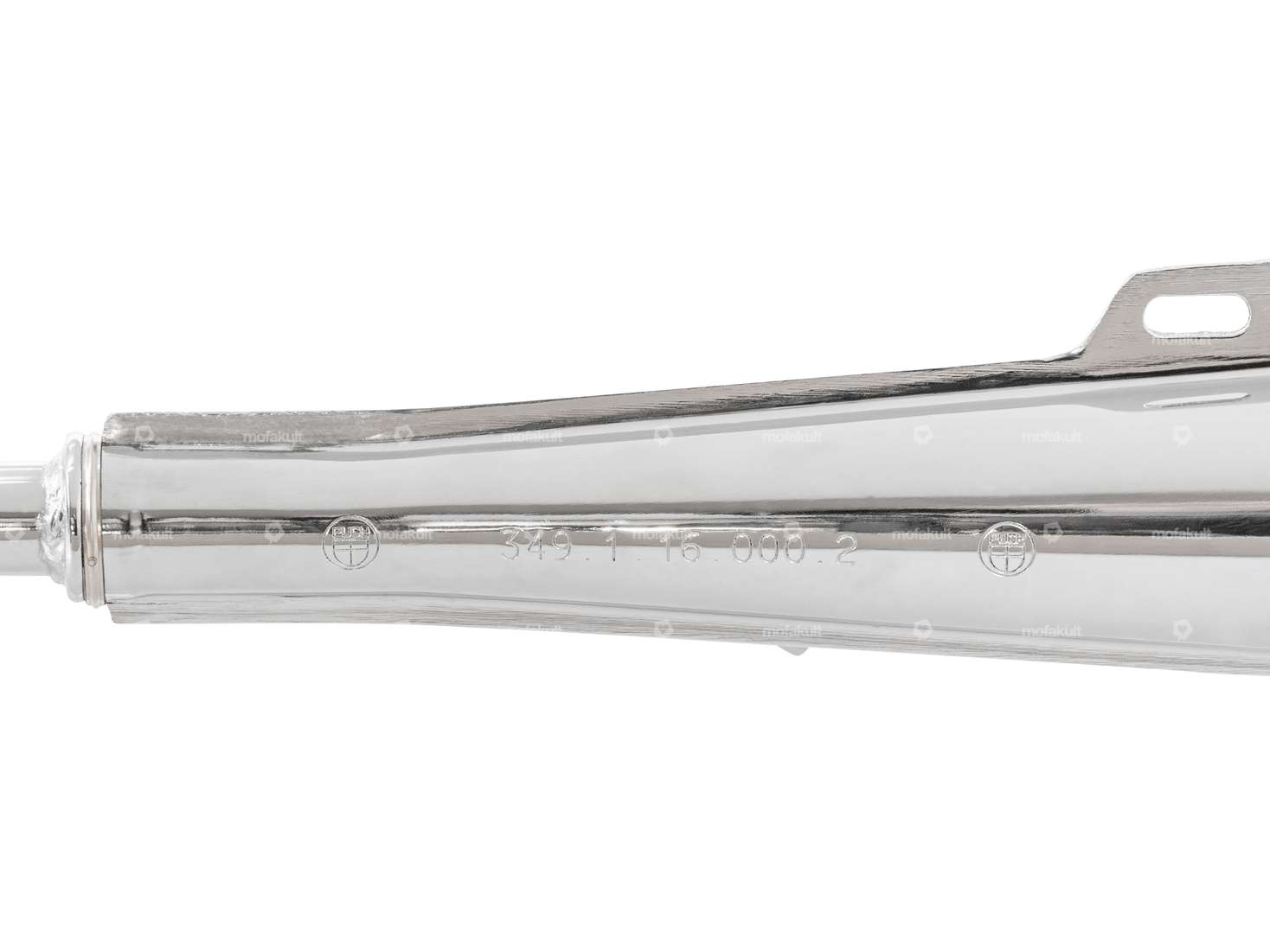

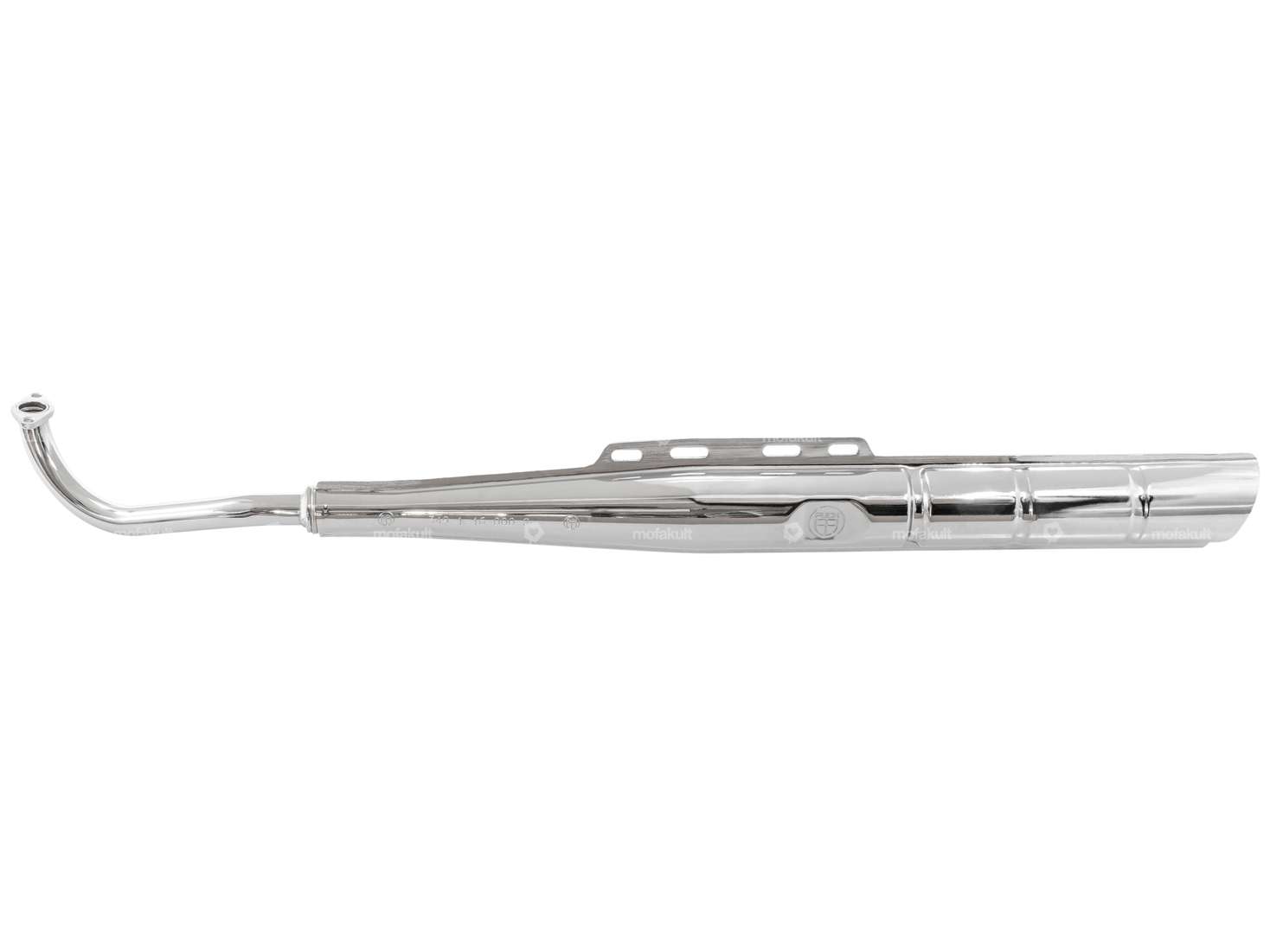

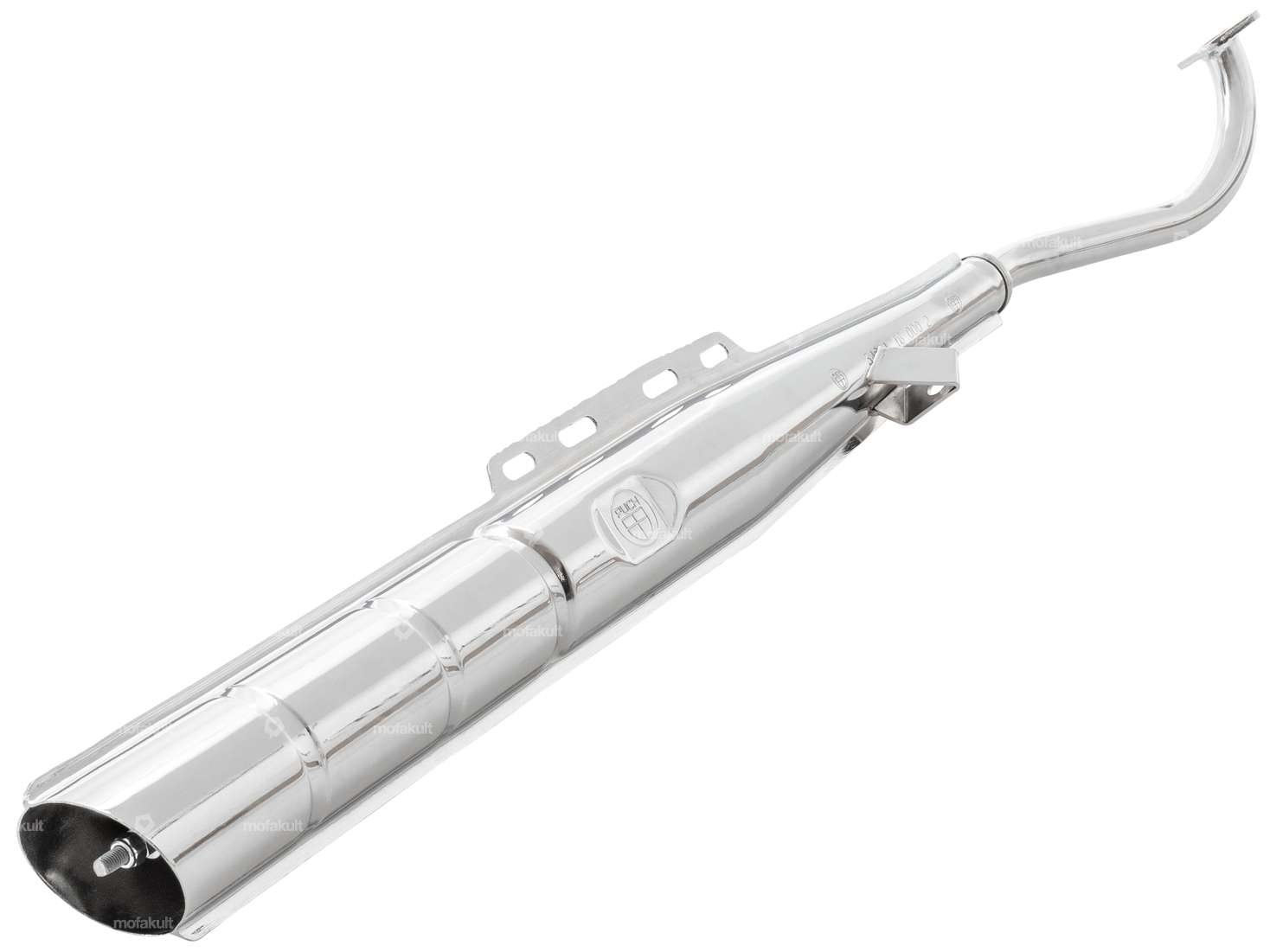

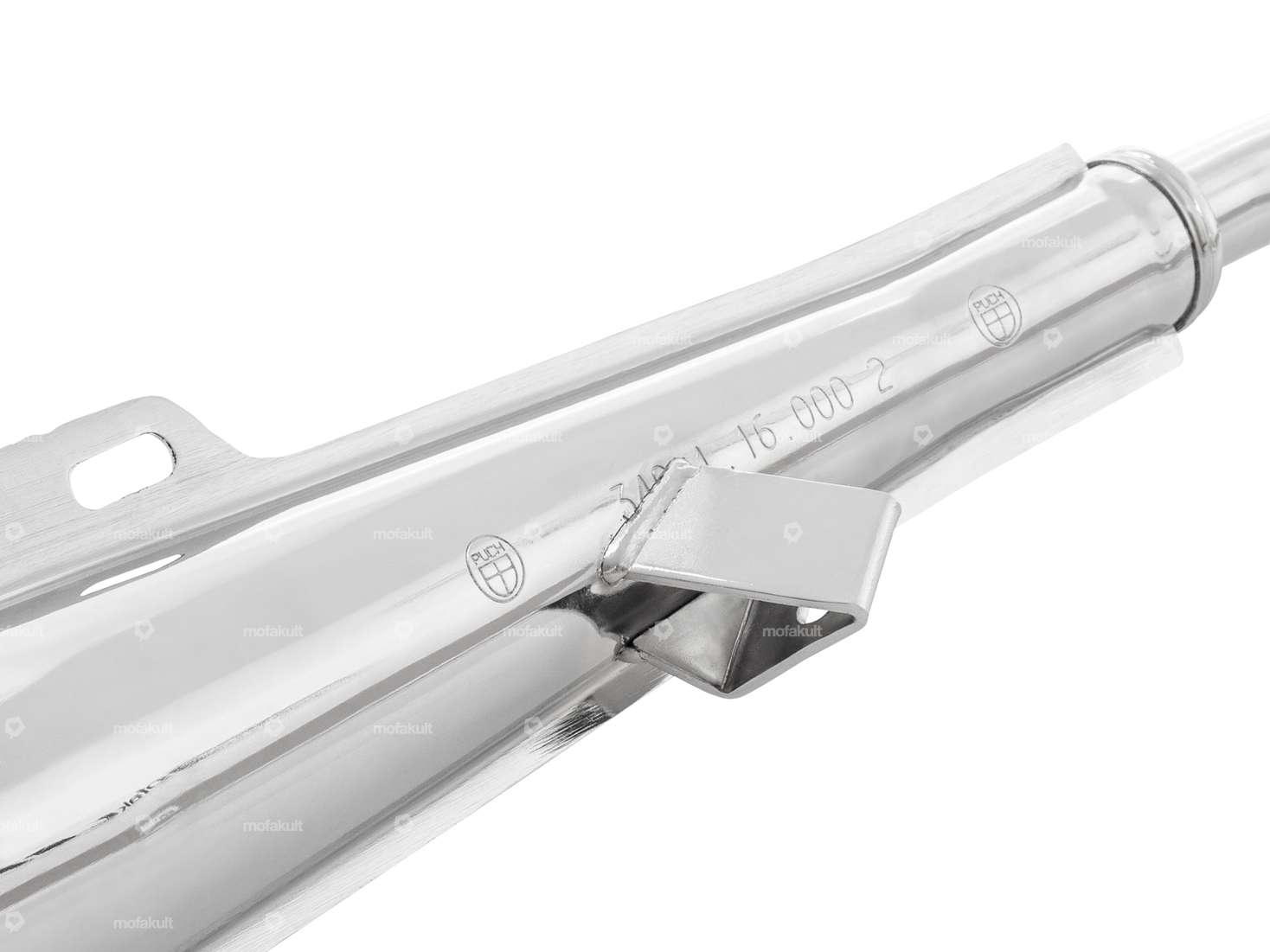

swiing® revival exhaust 22 mm original 2-piece | Puch X30 Sport

swiing® ingenious exhaust 22 mm camouflaged 2-piece | Puch Maxi S, N

Manufacturer: swiing® ingenious parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 910 mm · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Ø Silencer: 54.5 mm · Ø outside: 59 mm · Number of fixing points: 4 pcs · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Flame tube attachment: Flange

swiing® revival flame tube 22 mm | Puch X30 Sport (Z50)

Manufacturer: swiing® revival parts · Color: Chrome · Material: Steel · Surface: chrome-plated · Mounting type: Stud bolts & nuts · Nominal diameter (thread): 7 mm · Ø inside: 20 mm · Ø outside: 22 mm · Hole spacing outlet: 42 mm · Total length: 865 mm · Flame tube attachment: Stud bolts & nuts · Thread type: M7x1 (standard thread) · Number of fixing points: 2 pcs · Puch OEM number: 321.1.16.101.2 · Puch OEM number: 349.2.16.014.1

swiing® revival exhaust muffler original 2-piece | Puch X30 Sport (Z50)

Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 657 mm · Ø outside: 59 mm · Puch OEM number: 349.1.16.000.2

Pinch ring 27/34/4 Graphite

Manufacturer: Made in Spain · Material: Graphite / Graphite · Material: Sheet metal (steel) · Place of use: Exhaust · Ø outside: 34 mm · Ø inside: 27 mm · Thickness: 4 mm · Temperature resistance (min.): 550 °C

swiing® revival exhaust 22 mm original 2-piece | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Total length: 910 mm · Surface: chrome-plated · Ø Silencer: 54.5 mm · Ø outside: 59 mm · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Number of fixing points: 4 pcs · Flame tube attachment: Flange · Puch OEM number: 349.1.16.000.0

swiing® revival silencer 2-piece | Puch

Manufacturer: swiing® revival parts · Material: Aluminum · Ø inside: 7.3 mm · Ø inside: 14.3 mm · Ø outside: 54.5 mm · Total length: 224 mm

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Mounting type: Union nut

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Thread type: MF26x1 (fine pitch thread) · Color: silver · Surface: galvanized (blue) · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

swiing® revival gasket set Z50 engine | Puch X30 NS / NL

Manufacturer: swiing® revival parts · Area of application: Standard · Material: Sealing paper · Number of components: 10 pcs · Ø outlet inside: 22 mm · Hole spacing inlet: 32 - 38 mm · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm

Outlet gasket 18 - 22 mm metal ring

Place of use: Outlet · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Number of fixing points: 2 pcs · Thickness: 2 mm · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm

GPO intake manifold 15 mm square Puch X30 NS, NL | Sprinter

Manufacturer: GPO · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Total length: 48 mm · Hole spacing inlet: 38 mm · Height flange center hole: 60 mm · Total height: 70 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Camouflaged: No · Area of application: Tuning

swiing® ingenious 15 mm carburetor tuning camouflaged | Puch

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SRE · Choke control: Hand choke · Total length: 66 mm · Width: 50 mm · Mounting type: Plug connection clamped · Ø fuel hose connection: 6 mm · Height: 95 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Internal connection: 20 mm · Mixed oil connection: No · Vacuum connection: No · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m

swiing® revival bearing & shaft seals | Puch Z50

Manufacturer: NTN · Manufacturer: SKF · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Plastic · Material: Steel · Number of components: 6 pcs

Karcoma fuel tap M12x1 vertical | Puch X30 Sport NS (perforated tank)

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Aluminum · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Reserve level: 50 mm · Mounting type: Union nut

swiing® ingenious bottom bracket bushing brass | Puch Maxi, X30 Sport, Velux, NG-2AH

Manufacturer: swiing® ingenious parts · Material: Brass · Color: bronze · Surface: blank · Bearing type: Plain bearing · Total length: 19 mm · Ø Bundle: 23.9 mm · Ø inside: 16.1 mm · Ø outside: 20 mm · Puch OEM number: 349.1.42.005.1

GPO gasket outlet metal ring 18 - 22 mm | Puch

Manufacturer: GPO · Place of use: Outlet · Ø inside: 22.15 mm · Number of fixing points: 2 pcs · Thickness: 2 mm · Ø mounting hole: 6 mm · Hole spacing: 38 - 43 mm
