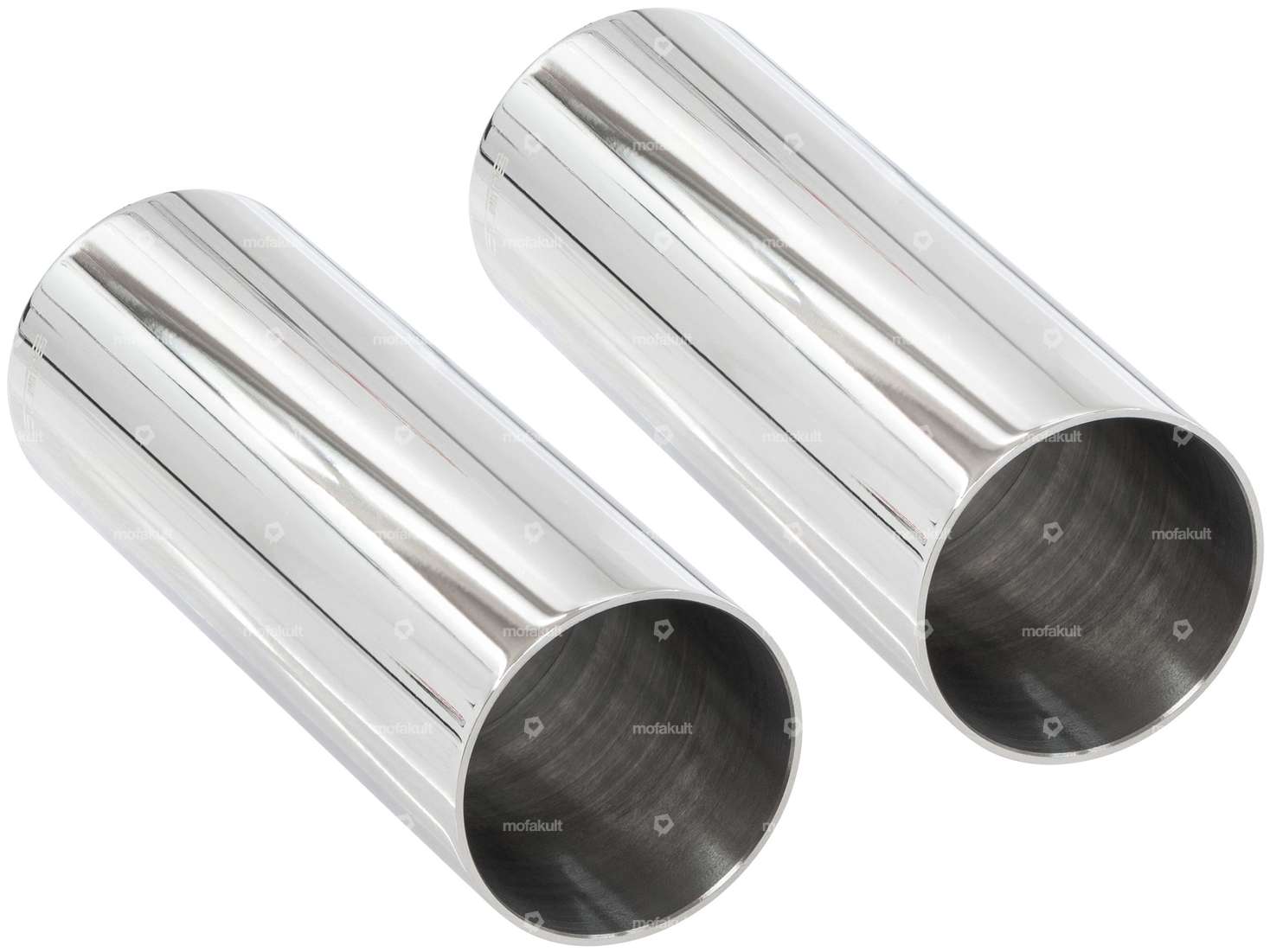

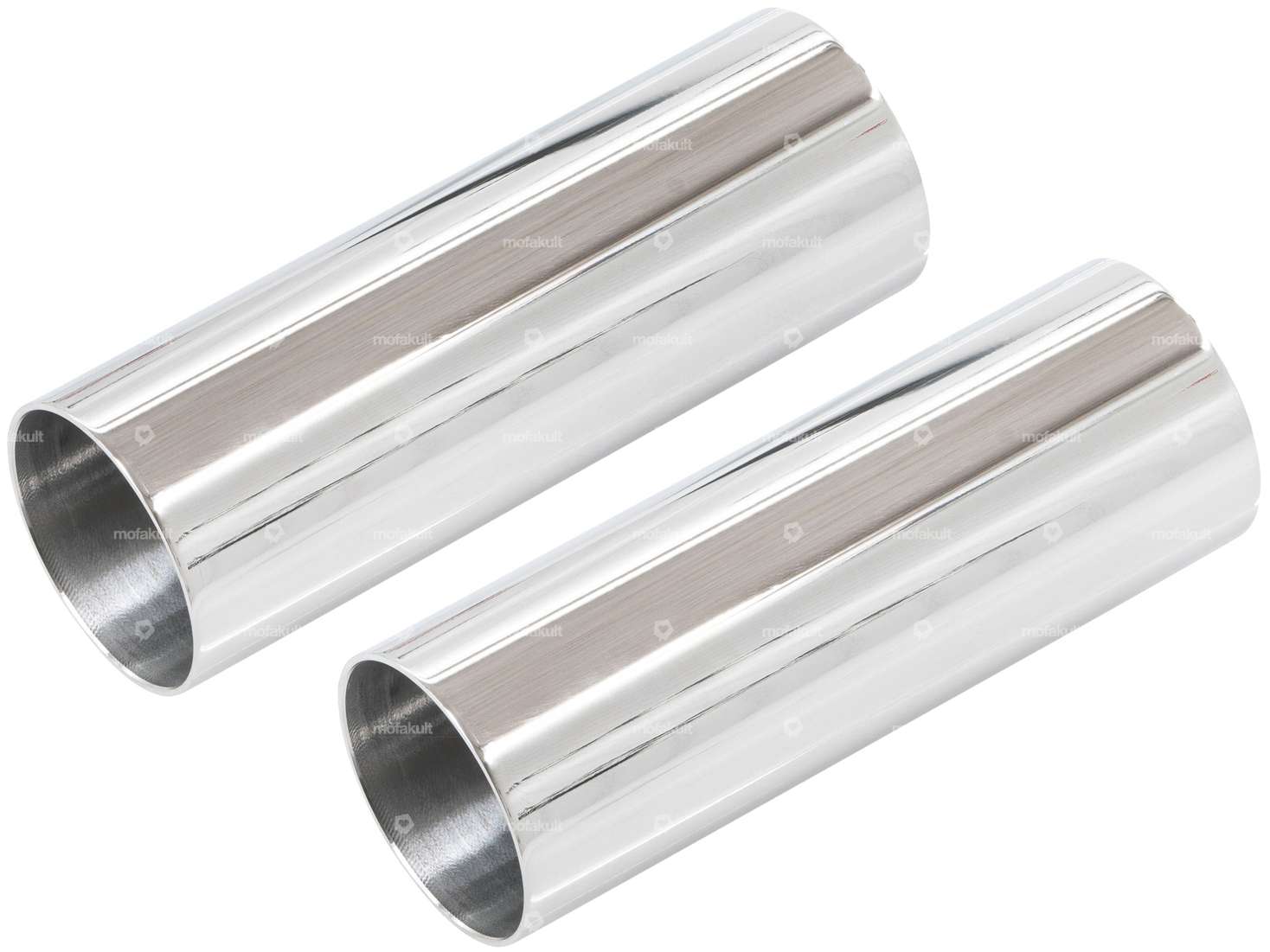

swiing® revival inverted tubes fork 33x35x100 mm Inox | Hercules, Sachs, DKW

GPO control bearing set M26x1 | Puch

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Color: silver

swiing® revival snap ring low control bearing set

Nominal diameter: 20 mm · Nominal diameter: 28 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: blank · Height: 7 mm · Thickness: 0.6 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Nut type: Cap nut · Area of application: Standard · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Height: 13.8 mm · Thread depth: 12 mm · Width across flats: 30 mm

GPO steerer tube nut M26x1 open stem chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Ø inside: 22.1 mm · Height: 14 mm · Drive: External hexagon · Ø outside: 36.5 mm · Thread depth: 11.5 mm · Thread type: MF26x1 (fine pitch thread) · Width across flats: 30 mm

swiing® revival steerer tube nut M26x1 closed fork plate Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Ø outside: 36.6 mm · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Height: 14 mm · Width across flats: 30 mm

Snap ring high control bearing set

Nominal diameter: 20 mm · Nominal diameter: 25 mm · Manufacturer: Made in Italy · Thickness: 0.3 mm · Material: Steel · Surface: galvanized (blue) · Height: 13.6 mm

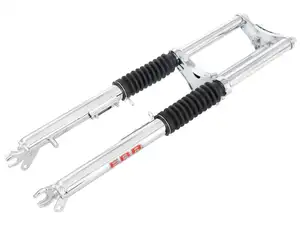

EBR fork reinforced chrome | Hercules

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 145 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.4 mm · Head tube length: 195 mm · Total length: 635 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 80 mm

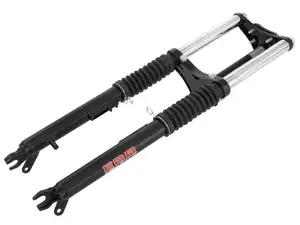

EBR fork reinforced black | Hercules

Manufacturer: EWC · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Adjustable: No · Thread type: MF26x1 (fine pitch thread) · Ø spars: 28 mm · Spar end distance (center-center): 145 mm · Ø outer head tube: 26.1 mm · Total length: 650 mm · Ø head tube inside: 22.2 mm · Head tube length: 195 mm · Thread length: 60 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 80 mm

Inverted tubes fork chrome NOS | Hercules / DKW

Ø inside: 32.2 mm · Ø outside: 35 mm · Material: Steel · Color: Chrome · Total length: 100 mm

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Mounting type: Union nut · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 50 mm

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Number of components: 1 pcs · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder

Magura cable end sleeve 5 mm (1A quality)

Manufacturer: Magura · Ø Cable bushing: 2.5 mm · Material: Brass · Surface: nickel-plated · Color: silver · Ø outside: 5.5 mm · Area of application: Standard · Ø inside: 5 mm · Total length: 12 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Ø Cable bushing: 1.6 mm · Material: Brass · Material: Steel · Surface: nickel-plated · Ø outside: 5 mm · Number of components: 2 pcs · Thread type: M4x0.7 (standard thread) · Drive: Slot · Screw head: Lens head · Total length: 6 mm · Thread length: 4 mm

Fortune / Merrick 2.00-2.25 x 16" / 17" inner tube

Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Tire height [%]: 100 · Wheel size: 16 - 17 " · Wheel size: 17 " · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve

Union pedals plastic standard

Manufacturer: Union · Material: Plastic · Material: Steel · Surface: rubberized · Width: 77 mm · Thread type: FG14.3 (9/16" 20G) · Drive: Hexagon socket · Drive: Outer edge · Height: 29 mm · Reflectors: Yes · Total length: 129 mm · Color: black · Width across flats: 15 mm

Rim tape blue 17" (protection for inner tube)

Total length: 1280 mm · Width: 23 mm · Manufacturer: Made in Germany · Material: Rubber · Wheel size: 17 " · Color: blue

GPO gasket set carburetor Bing SRE

Manufacturer: GPO · Material: Sealing paper · Component group Carburetor: Sealing, revising · Ø outside: 12.2 mm · Ø outside: 45 mm · Ø inside: 7.8 mm · Ø inside: 41 mm · Carburetor type: SRE · Thickness: 0.5 mm · Thickness: 0.9 mm · Thickness: 1.5 mm · Camouflaged: No

GPO exhaust cigar Ø 28 / 60 mm without exhaust clamp | Sachs 50/2, 503

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Ø outside: 60 mm · Ø Internal connection: 28 mm · Exhaust type: Cigar · Total length: 535 mm · Color: Chrome

GPO insert inverted tube fork | Hercules, Rixe

Manufacturer: GPO · Material: Rubber · Color: black · Ø inside: 22 mm · Ø outside: 33.6 mm · Ø outside: 36 mm · Total length: 17.5 mm
