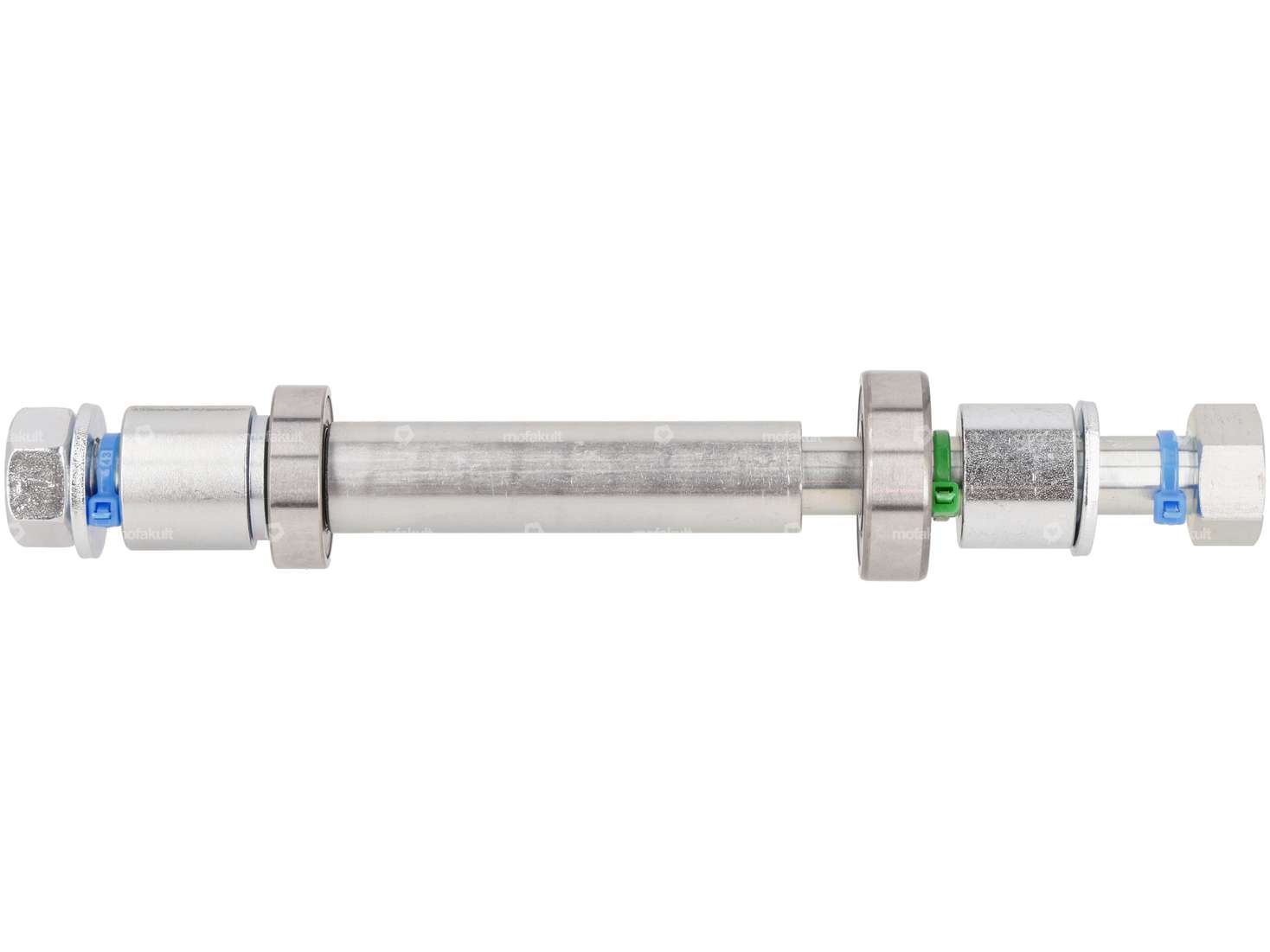

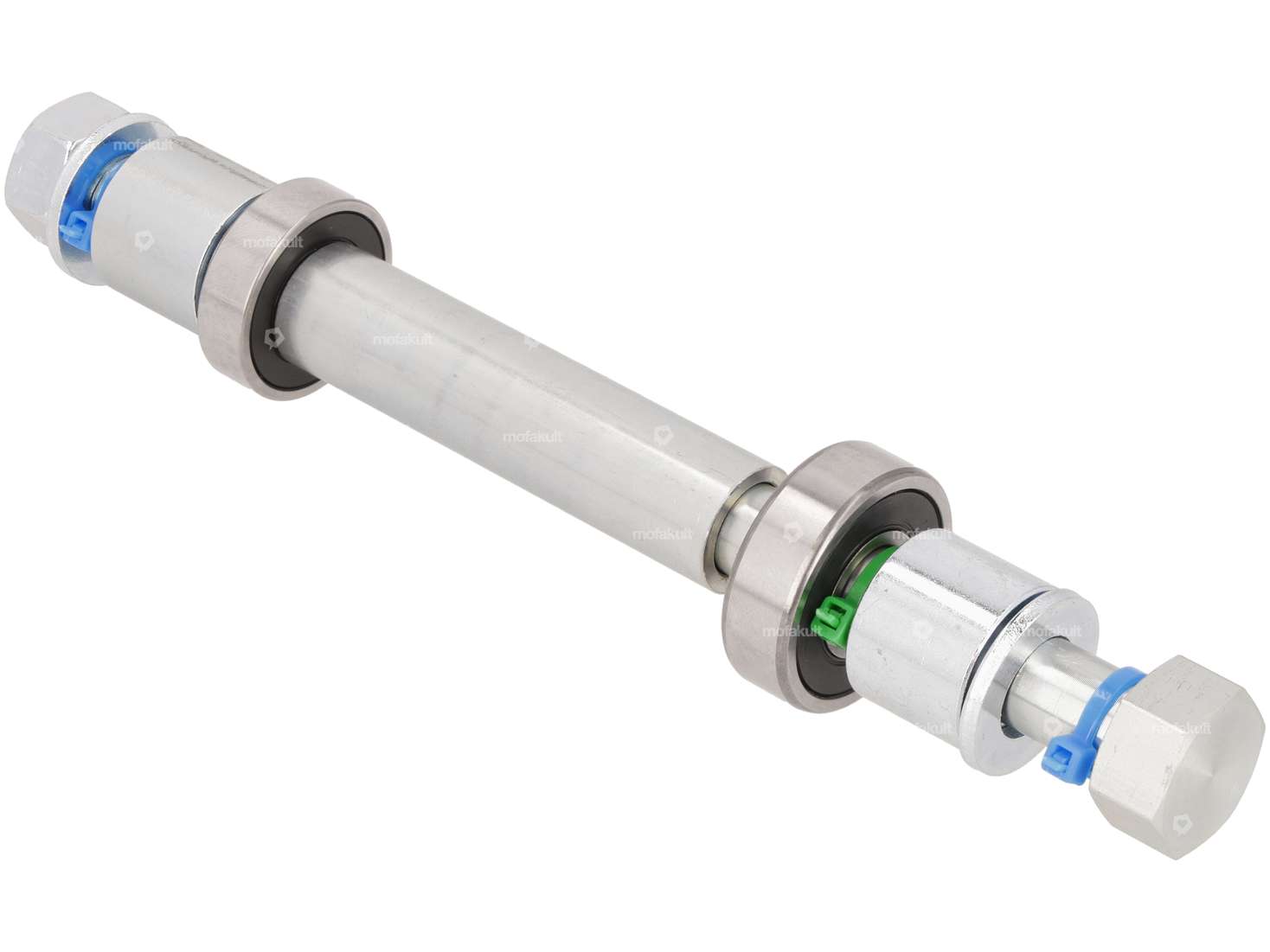

swiing® revival rear wheel axle set | Pony Cross 521

Washer M12 small galvanized

Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 12 mm · Ø inside: 13 mm · Ø outside: 24 mm · Thickness: 2.5 mm · Thread size: M12

Brake anchor plate rear wheel Grimeca | Pony Cross (P8359)

Manufacturer: Pony · Ø External brake pads: 90 mm

Bearing cup rear wheel Grimeca | Pony GTX 521, Cross 521 / Cilo 521

Material: Steel · Height: 13.05 mm · Manufacturer: Pony · Ø outside: 30 mm · Ø inside: 27.85 mm

GPO wheel clamp 12 mm cranked reinforced (per piece)

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Ø outside: 23.7 mm · Ø inside: 13.1 mm · Thread length: 35 mm · Cranking (offset): 6 mm · Total length: 75 mm

swiing® revival spacer sleeve 12.2/22/17 rear wheel axle | Pony Cross Beta 521 (P8380)

Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 17 mm · Manufacturer: swiing® revival parts · Ø outside: 22 mm · Ø inside: 12.2 mm

swiing® revival spacer sleeve rear wheel axle 12.2/22(19)/22 mm | Pony Cross Beta 521 (P8379)

Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 22 mm · Manufacturer: swiing® revival parts · Ø outside: 22 mm · Ø inside: 12.2 mm · Ø Bundle: 19 mm

swiing® revival spacer sleeve 12.2/17/71.6 rear wheel axle | Pony Cross Beta 521 (P8381)

Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 12 mm · Total length: 71.6 mm · Manufacturer: swiing® revival parts · Ø outside: 17 mm · Ø inside: 12.2 mm

Wheel axle M12x1.25 x 190 rear wheel | Pony Cross Beta 521 (P8358)

Material: Steel · Surface: galvanized (blue) · Total length: 188 mm · Manufacturer: Pony · Thread type: MF12x1.25 (fine pitch thread) · Ø shaft: 11.95 mm · Shank length: 160 mm · Thread length: 18 mm · Width across flats SW: 19 mm

Nut M12x1.25 fine thread galvanized

Material: Steel · Surface: galvanized (blue) · Drive: External hexagon · Height: 10 mm · Nut type: Hexagon nut · Thread type: MF12x1.25 (fine pitch thread) · Strength class: 8 · Width across flats SW: 19 mm

SKF 6001 2RSH Ball bearing 12/28/8

Bearing type: Deep groove ball bearing · Stock number: 6001 · Inner ring width: 8 mm · Manufacturer: SKF · Ball bearing closed: Yes · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 28 mm · Ø inside: 12 mm · Width: 8 mm

SKF 6201 2RSH ball bearing 12/32/10

Bearing type: Deep groove ball bearing · Bearing cage: "-" Sheet steel cage ball-guided · Stock number: 6201 · Width: 10 mm · Inner ring width: 10 mm · Manufacturer: SKF · Ø outside: 32 mm · Dust protection type: 2RSH - NBR contact seal on both sides · Bearing clearance: CN (standard) · Ø inside: 12 mm · Ball bearing closed: Yes

swiing® revival front wheel axle set | Pony Cross 521

Manufacturer: swiing® revival parts · Total length: 154 mm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: galvanized (blue) · Thread type: MF11x1 (fine pitch thread) · Ø shaft: 10.25 mm · Shank length: 27 mm · Ball bearing closed: No · Ø ball [inch] / [mm]: 1/4" (6.35 mm) · Thread length: 63 mm

KMC drive chain 415H (reinforced) 128L

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: KMC · Material: Steel · Surface: blank / oiled · Color: gray · Number of chain links: 128 pcs · Rolling circumference: 1626 mm · Chain lock type: Spring lock · Ø bore: 4 mm · Ø Pin: 3.94 mm

Woodruff key 3 x 3.7 mm

Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm

Motorex engine oil 450 ml | Pony / Cilo Beta 521 Automatic

Manufacturer: Motorex · Oil type: ATF Dexron 3 (DEXIII) · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -36 - 200 °C · Area of application: Gearbox lubrication with clutch

Clutch cable / brake cable Ø 1.5 mm x 225 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Number of components: 1 pcs · Ø Stranded wire: 1.5 mm · Cable length: 2250 mm · Nipple shape: Pears · Nipple length: 10 mm · Area of application: Standard · Piaggio OEM number: 270460

Fuel tap vertical M10x1 (to screw in) outgoing at the bottom / cast iron

Manufacturer: Made in Italy · Mounting type: screw in (thread) · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: below · Thread type: MF10x1 (fine pitch thread) · Spare tube shape: straight · Reserve level: 65 mm

ESJOT freewheel 20 teeth (1A quality) | Pony Cross 521

Chain pitch: 1/2" x 1/8" · Manufacturer: ESJOT · Material: Steel · Surface: Hardened · Color: silver · Number of teeth: 20 pcs · Thread type: FG34.8 (1.37" 24G)

swiing® ingenious bearing conversion kit front wheel | Pony GTX 521, Cross 521

Ball bearing closed: Yes · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: anodized · Ø inside: 11.25 mm

swiing® ingenious wheel axle for bearing conversion kit front wheel 16" | Pony Cross 521

Manufacturer: swiing® ingenious parts · Total length: 154 mm · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: galvanized (blue) · Thread type: MF11x1 (fine pitch thread)

swiing® ingenious wheel axle with bearing conversion kit front wheel 16" | Pony Cross 521

Total length: 154 mm · Ball bearing closed: Yes · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Chrome steel (known as Nirosta®) · Material: Steel · Surface: anodized · Surface: galvanized (blue) · Thread type: MF11x1 (fine pitch thread)
