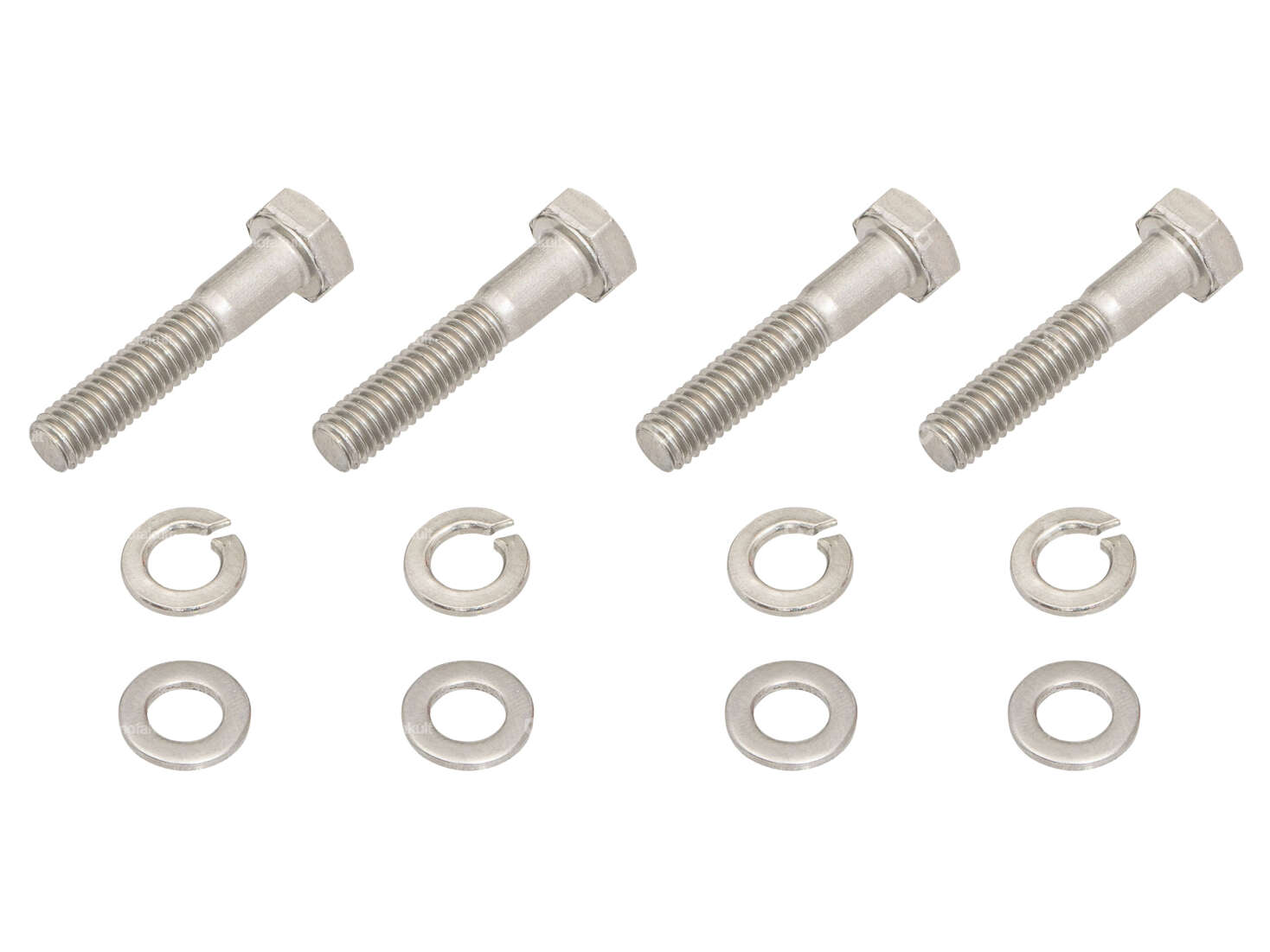

Stainless steel screw set for fastening the cylinder head of various Sachs mopeds / mopeds with 503, 50/2, 50/3 or 50/4 engine.
Set consists of four screws, four washers and four spring washers.
Screws: M6x30 mm, with shank
Ø inner washers and spring washers: 6.4 mm
Ø outside washers and spring washers 12 mm
Material: chrome steel (colloquially known as stainless steel)
Nostalgic product for the highest demands of the quality brand swiing®.
| Drive | External hexagon |
| Manufacturer | swiing® revival parts |
| Ø shaft | 5.85 mm |
| Material | Chrome steel (colloquially known as stainless steel) |
| Area of application | Standard |
| Total length | 34 mm |
| Screw head | Hexagon |
| Shank | Yes |
| Number of components | 12 pcs |
| Shank length | 8 mm |
| Width across flats | 10 mm |
| Thread type | M6x1 (standard thread) |
| Thread length | 22 mm |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) 503 - AAL , ABL , 2AL / 2BL |
