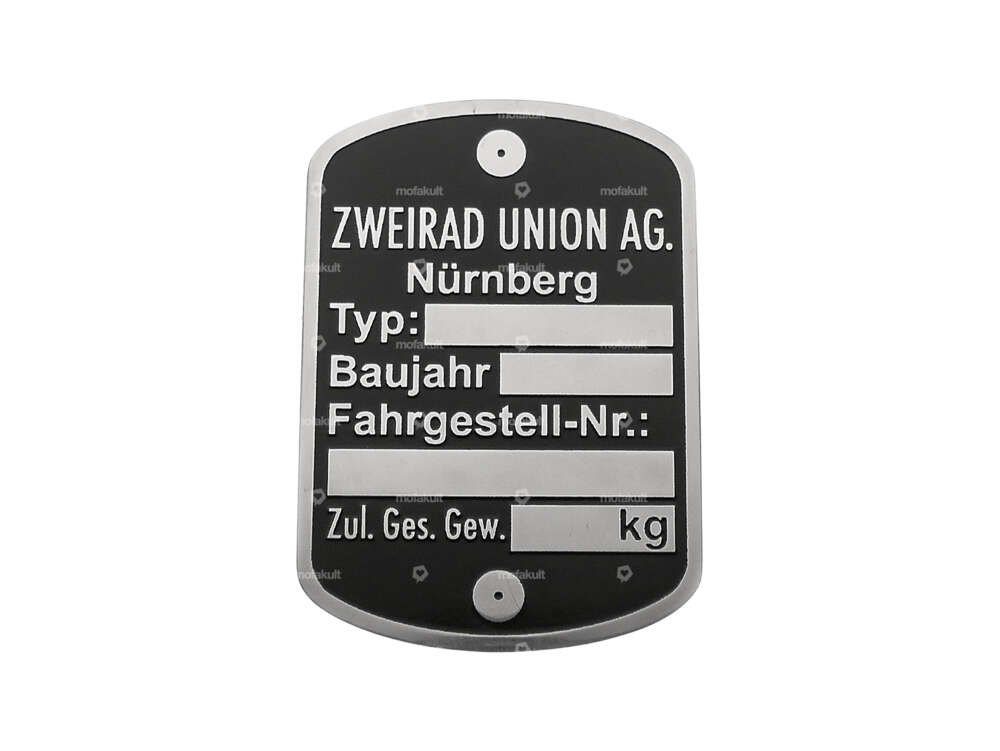

Type plate | Zweirad Union

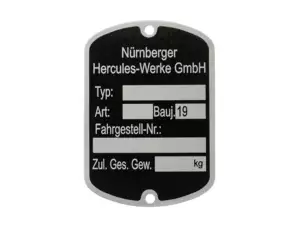

Nameplate small | Hercules

Color: black · Width: 35 mm · Height: 50 mm · Manufacturer: Made in Germany · Number of fixing points: 2 pcs · Ø mounting hole: 2.45 mm · Hercules OEM number: P09 504 947 00 01 000

Karcoma fuel tap M12x1 vertical (with union nut) 2 connections

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Thread type: MF12x1 (fine pitch thread) · Ø fuel hose connection: 6 mm · Reserve level: 50 mm · Mounting type: Union nut

Chrome mirror

Surface: chrome-plated · Color: Chrome · Thread size: M8 · Material: Steel · Clamping diameter: 22 mm · Ø mirror surface: 96 mm · Ø mirror rod: 7 mm · Mirror rod length: 230 mm · Thread type: M8x1.25 (standard thread) · Total length: 285 mm

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø nipple: 3.5 mm · Ø nipple: 6 mm · Manufacturer: Made in Germany · Surface: galvanized (blue) · Material: Steel · Ø Stranded wire: 1.8 mm · Cable length: 2200 mm · Nipple shape: Pears · Number of components: 1 pcs · Nipple length: 10 mm · Area of application: Standard

Sliding bush fork original | Puch

Manufacturer: Made in Italy · Color: white · Material: Plastic · Total length: 30 mm · Ø inside: 23 mm · Ø outside: 27 mm · Puch OEM number: 349.1.30.126.1

Magura lever screw M5x18 mm

Manufacturer: Magura · Surface: galvanized (blue) · Color: silver · Material: Steel · Ø shaft: 5.9 mm · Drive: External hexagon · Drive: Slot · Total length: 21.5 mm · Ø External head: 8.8 mm · Thread type: M5x0.8 (standard thread) · Width across flats SW: 8 mm · Shank length: 9 mm · Thread length: 8.5 mm

Union pedals plastic standard

Manufacturer: Union · Surface: rubberized · Color: black · Material: Plastic · Material: Steel · Drive: Hexagon socket · Drive: Outer edge · Total length: 129 mm · Width: 77 mm · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes · Width across flats SW: 15 mm

Bumm mirror round Inox

Manufacturer: Bumm · Surface: chrome-plated · Color: Chrome · Material: Chrome steel (known as Nirosta®) · Thread size: M8 · Material: Steel · Clamping diameter: 22 mm · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Thread type: M8x1.25 (standard thread) · Total length: 360 mm

Leonelli 6V voltage regulator (1A quality)

Manufacturer: Leonelli · Tension: 6 V · Material: Aluminum · Material: Plastic · Mounting type: Screws · Performance: 50 W · Type of current: Alternating current (AC) · Total length: 50 mm · Ø mounting hole: 6 mm · Width: 27 mm · Height: 15 mm

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Simmering type: B - With sheet metal outer casing / one sealing lip. · Manufacturer: Sachs · Material: NBR · Ø outside: 30 mm · Ø inside: 15 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

swiing® revival bulb 6V - 25/25W (BAX15d) 2-filament

Manufacturer: swiing® revival parts · Color: white · Bulb holder: BAX15d · Ø base: 15 mm · Tension: 6 V · Total length: 51 mm · Performance: 25 W · Test mark: none · Ø Lamp head: 28 mm · LED: No
