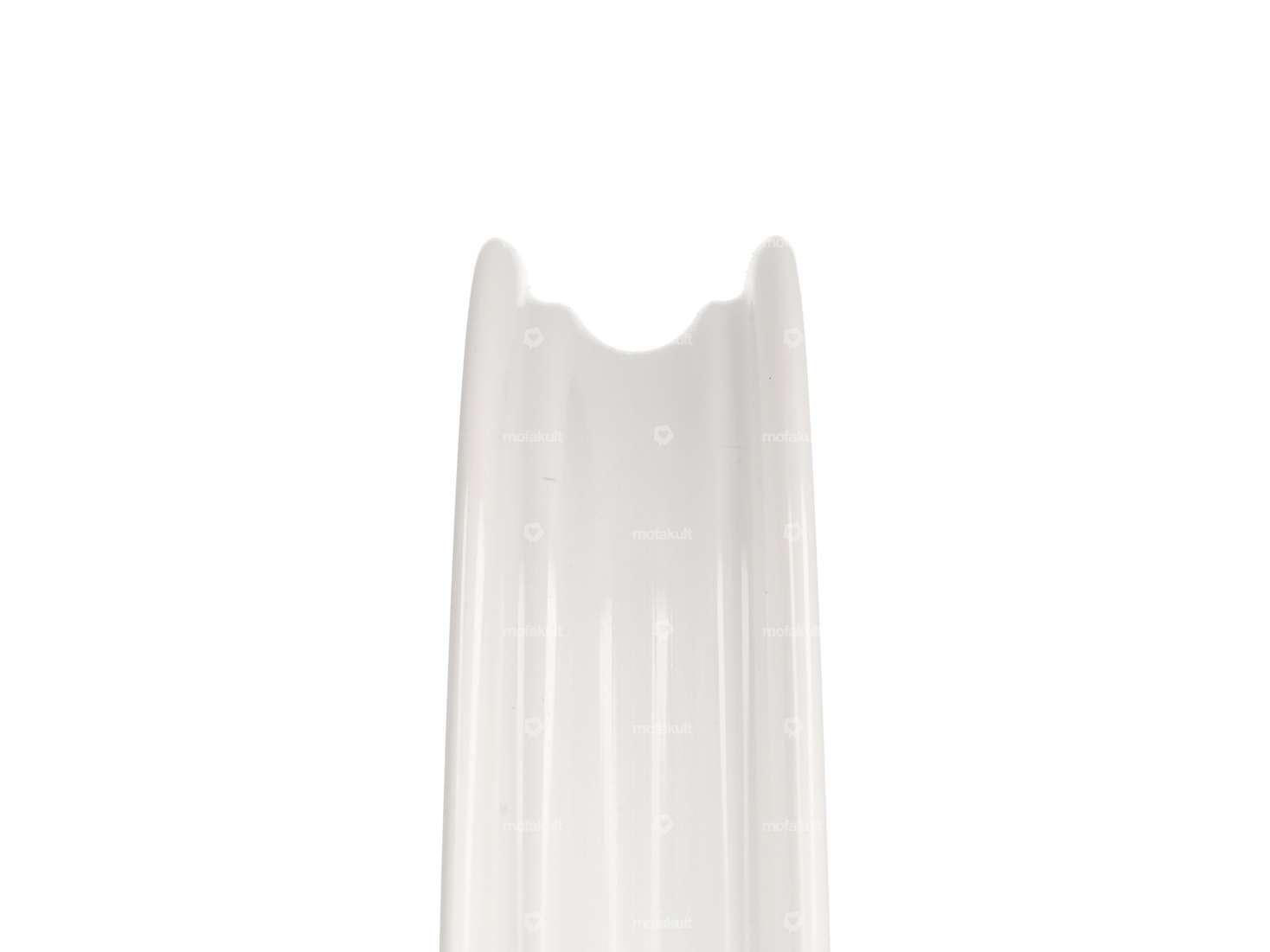

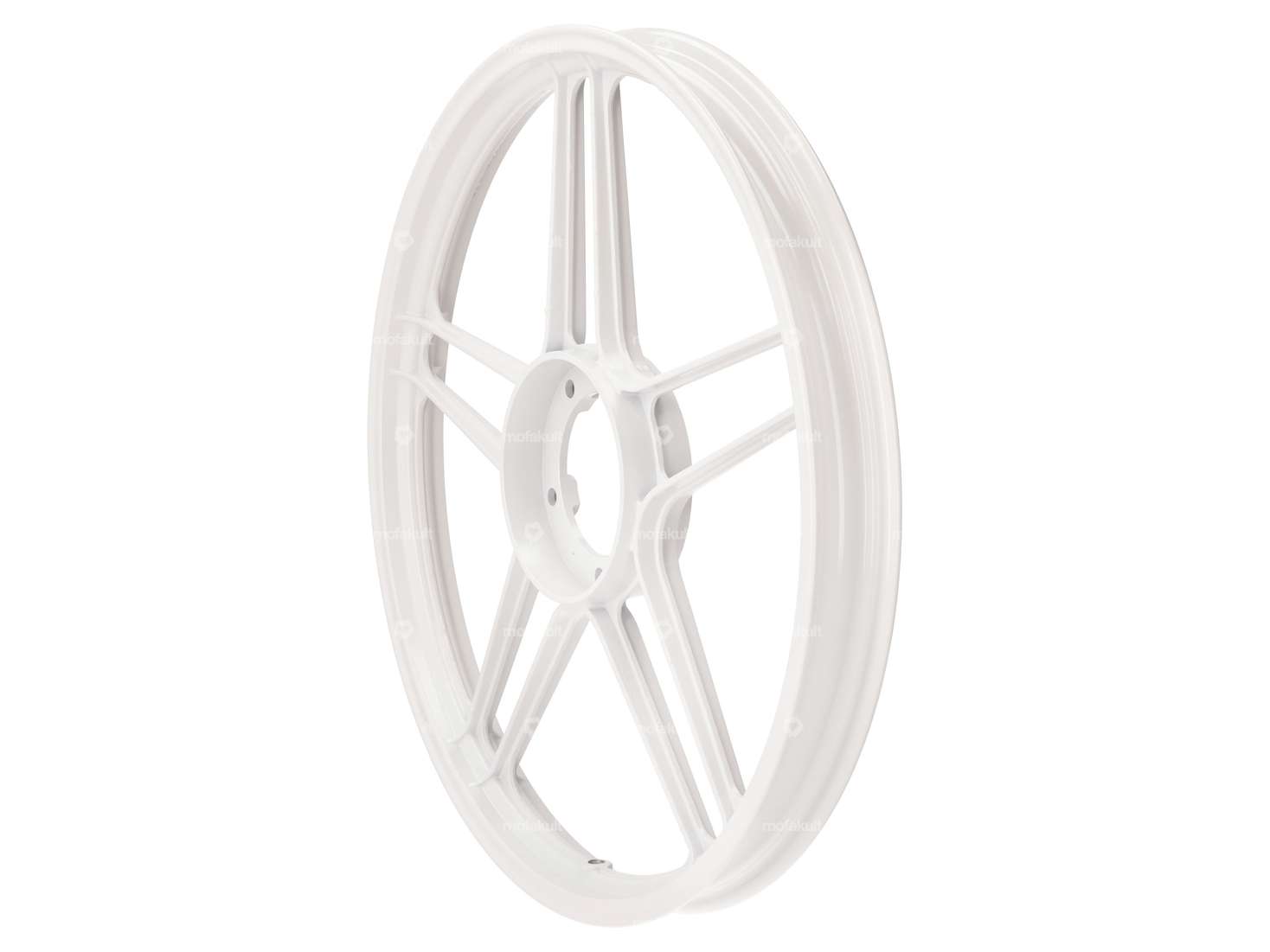

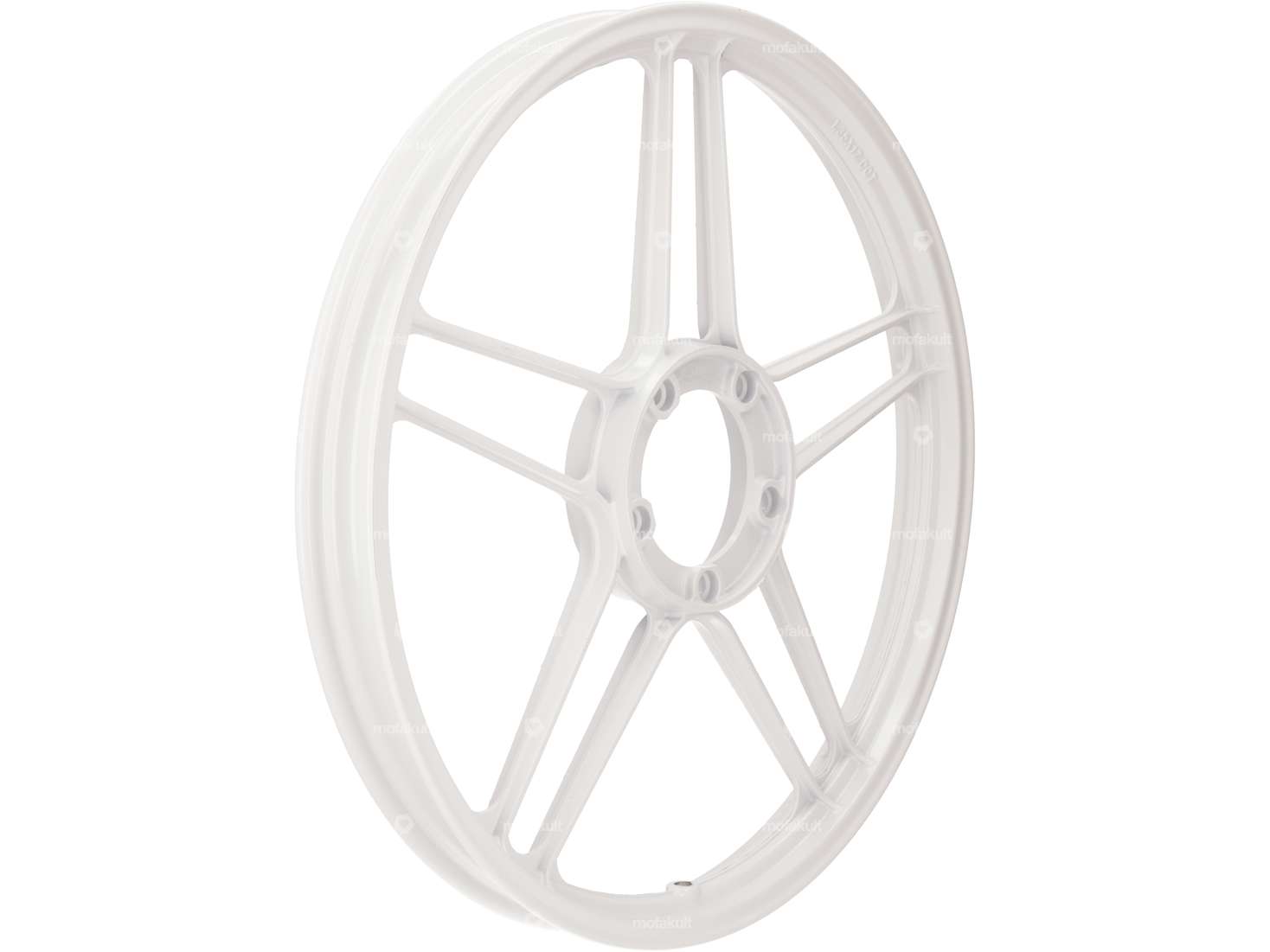

17 inch 5-star reproduction cast rim suitable for Puch Maxi S/N, Supermaxi LG1/LG2, X30 NG-2AH, X30 N-2A and other Puch mopeds with Leleu or Grimeca hub.
Ø outer: 457 mm
Rim width outer: 49 mm
Rim width inner: 34.29 mm (1.35”)
Ø inner: 85 mm
Sprocket mounting bolt circle: 105 mm
Ø sprocket mount: 97.2 mm
Ø mounting hole: 10.1
Sprockets, tires and hoses can be found in the accessories section.
| Color | white |
| Material | Aluminum |
| Surface | varnished |
| Nominal diameter | 432 mm |
| Rim well depth | 10.1 mm |
| Overall width outside | 49 mm |
| Wheel size [inch] | 17 " |
| Puch |
