Complete spoke set for 22-inch rear wheel rims of various mopeds, mopeds and small motorcycles.
Only the real thing is the real thing!

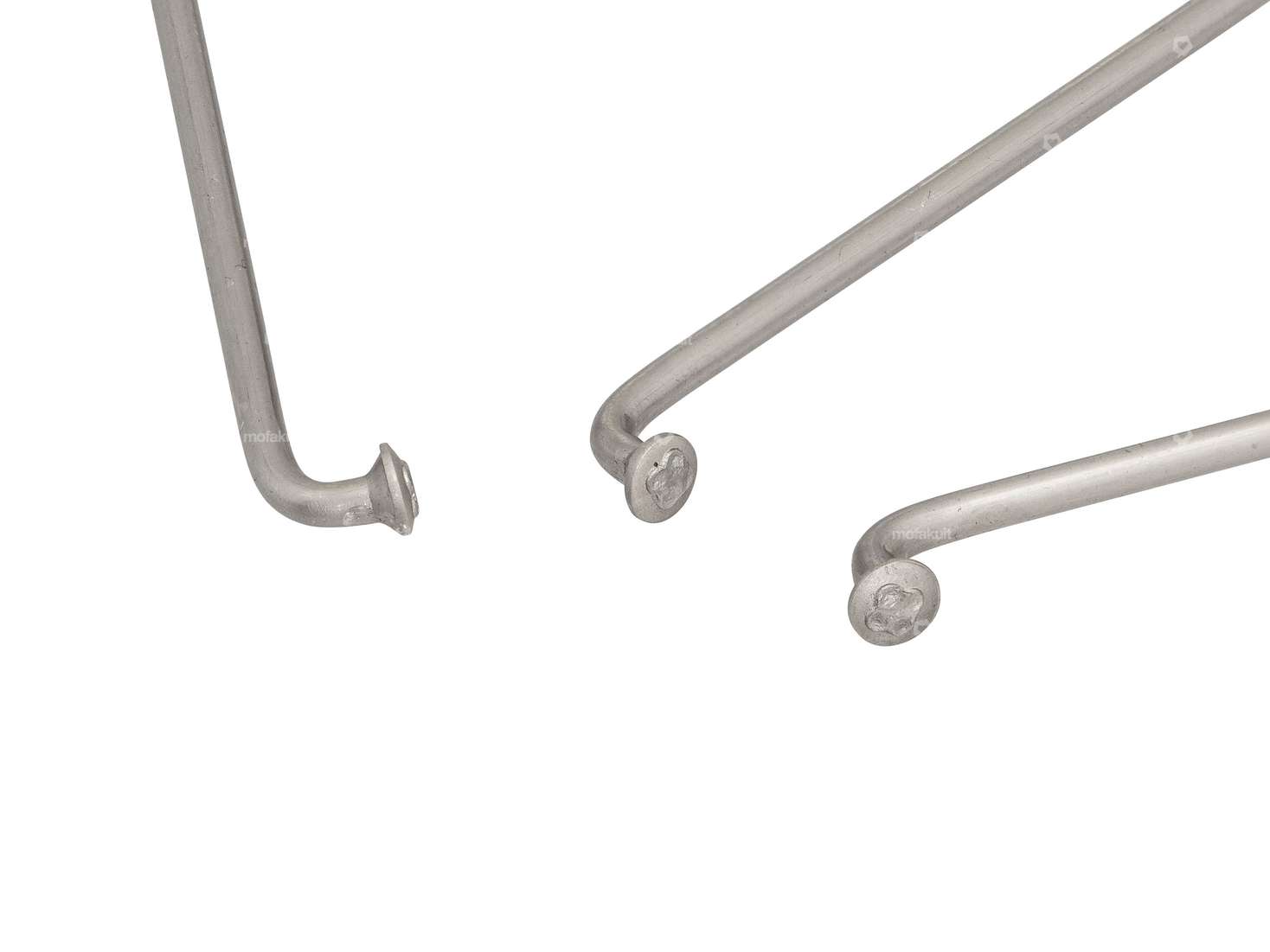

The wire spokes with 2.6 mm shaft from the German manufacturer WWS with the world-famous "cloverleaf" embossing stand for absolute top quality and cannot be compared with cheap replica spokes.

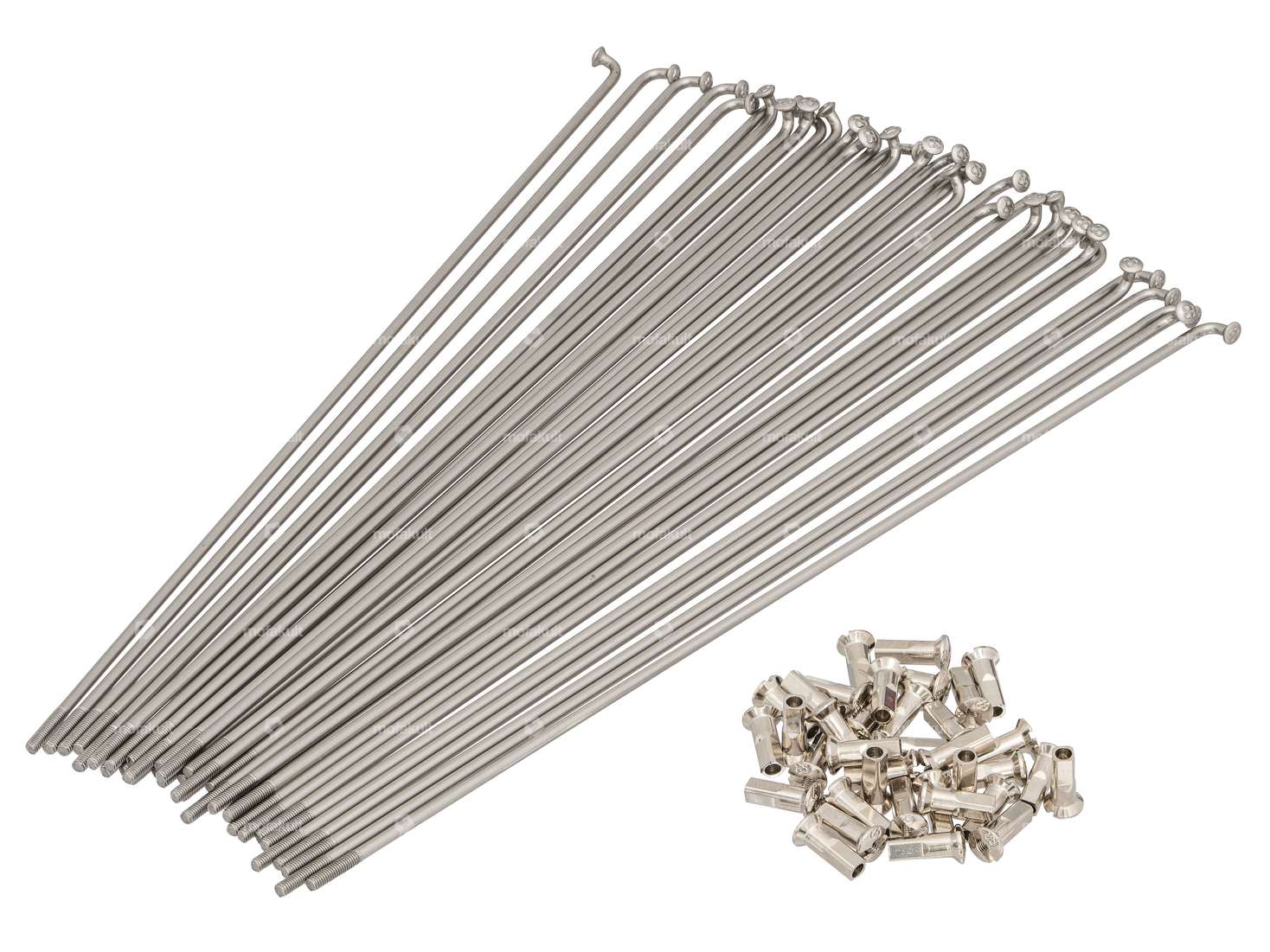

The kit consists of 36 pcs. Stainless steel spokes and 36 nickel-plated brass nipples.

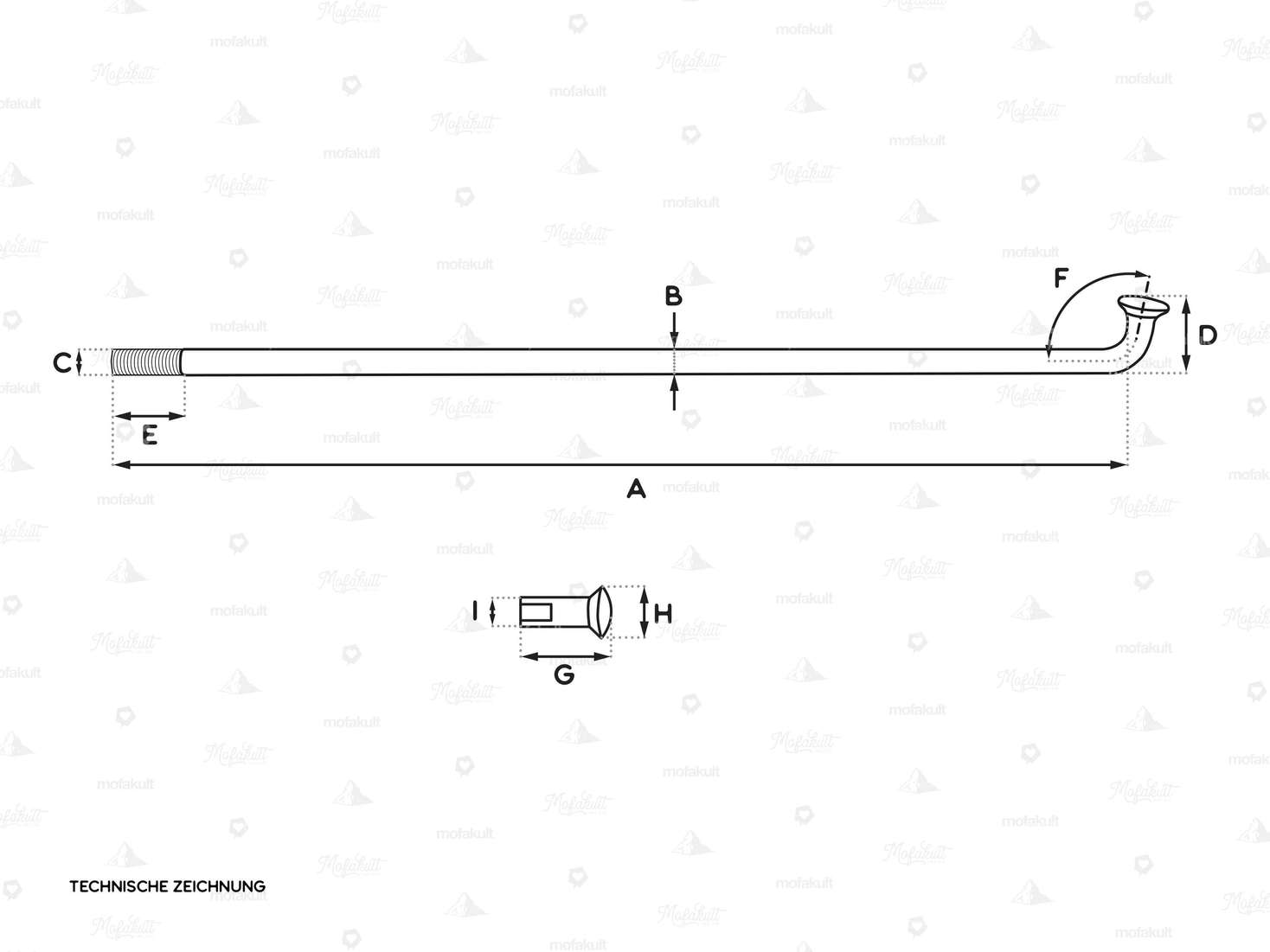

Spoke dimensions:
Length from inside of hook (A): 245 mm
Ø spoke (B): 2.58 mm
Ø thread (C): 3.0 mm
Hook length (D): 9.0 mm
Thread length (E): 12 mm
Hook angle (F): 90°
Ø spoke head (G): 5.15 mm
Material: stainless steel
Dimension spoke nipple:
Total length (H): 14.5 mm
Ø nipple head (I): 7.9 mm
Ø nipple neck (J): 4.9 mm
Material: brass, nickel-plated
You can find the corresponding assembly tools, rim tapes etc. in the accessories section.
German quality product from the manufacturer WWS in original equipment quality.
Details
| Nipple length | 14.5 mm |
| Manufacturer | WWS |
| Material | Chrome steel (known as Nirosta®) |
| Quantity | 36 pcs |
| Length from hook | 245 mm |
| Ø spoke head | 5.15 mm |
| Ø spoke | 2.58 mm |
| Nominal diameter (thread) | 3 mm |
| Ø nipple head | 7.9 mm |
| Ø Nipple neck | 4.9 mm |
| Thread length | 12 mm |
| Hook length | 9 mm |
| Hook angle | 90 ° |
