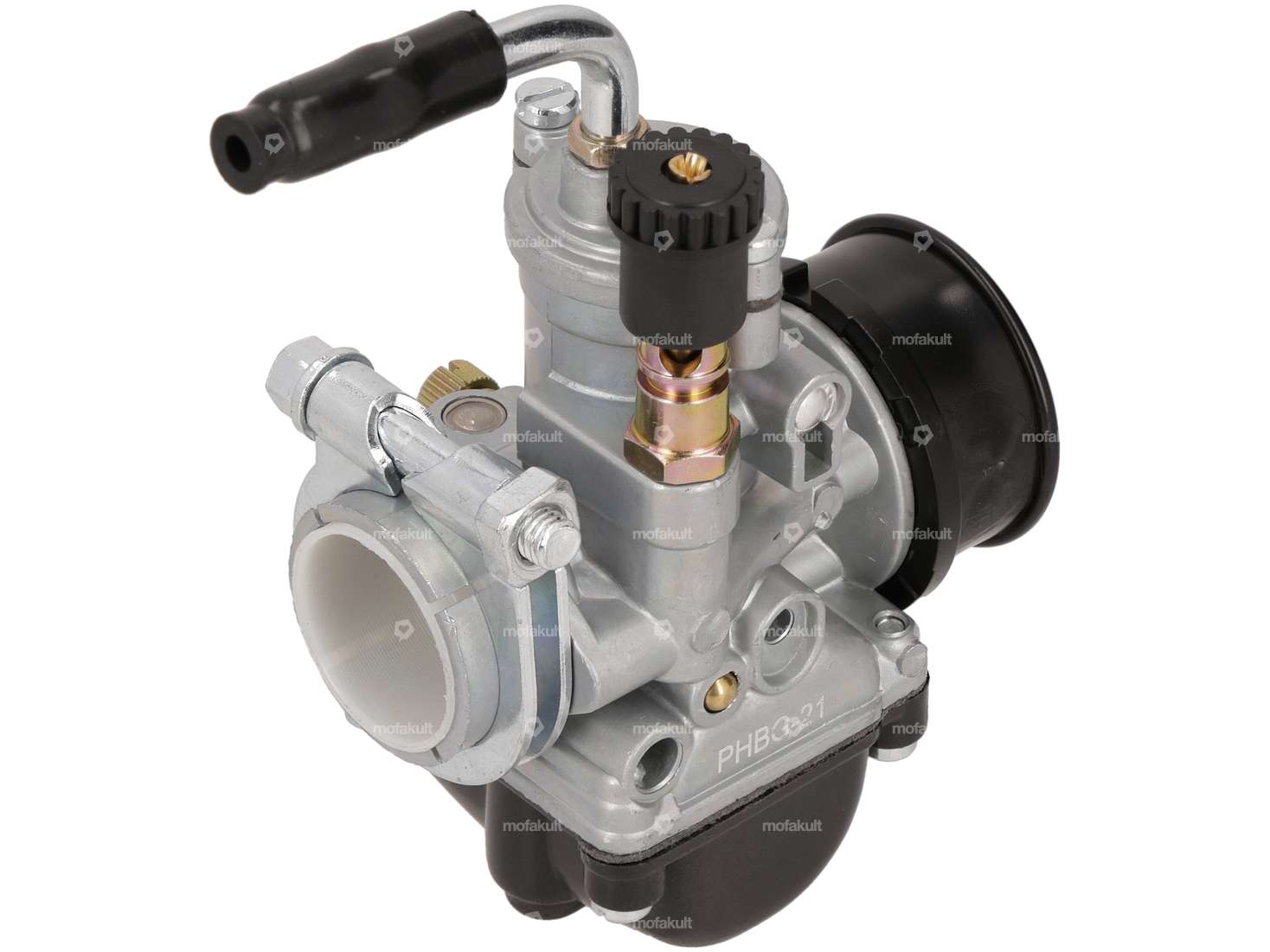

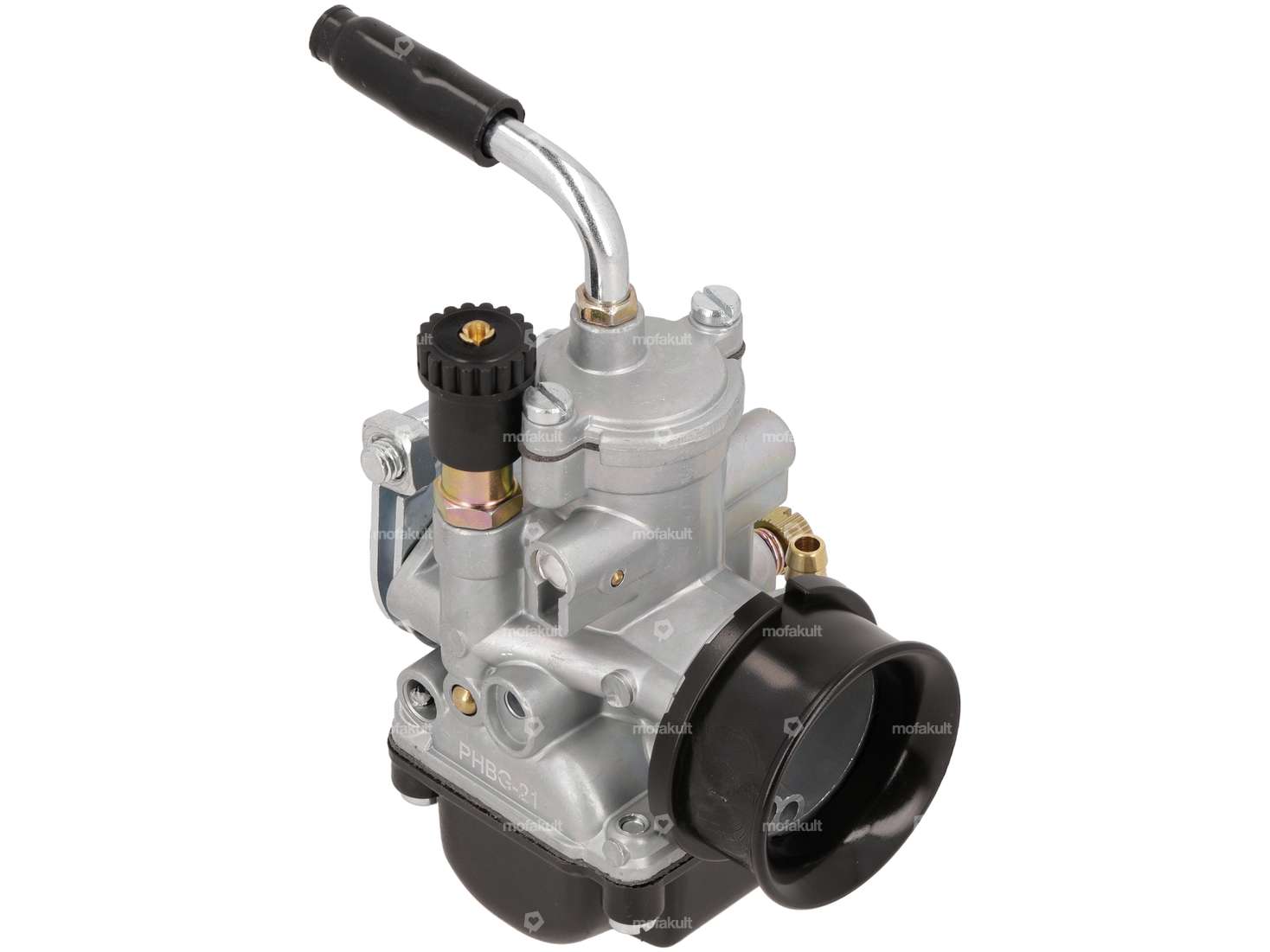

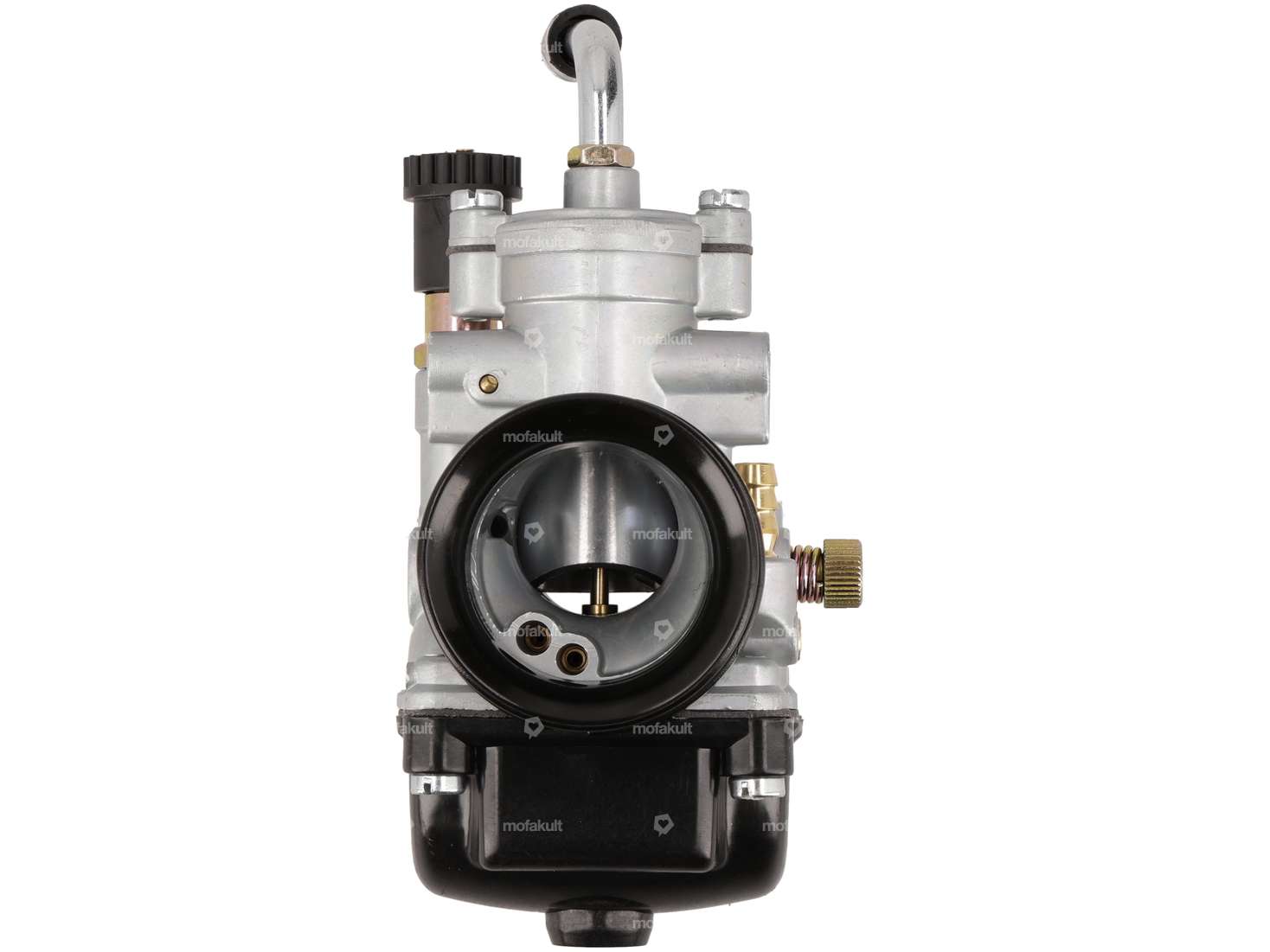

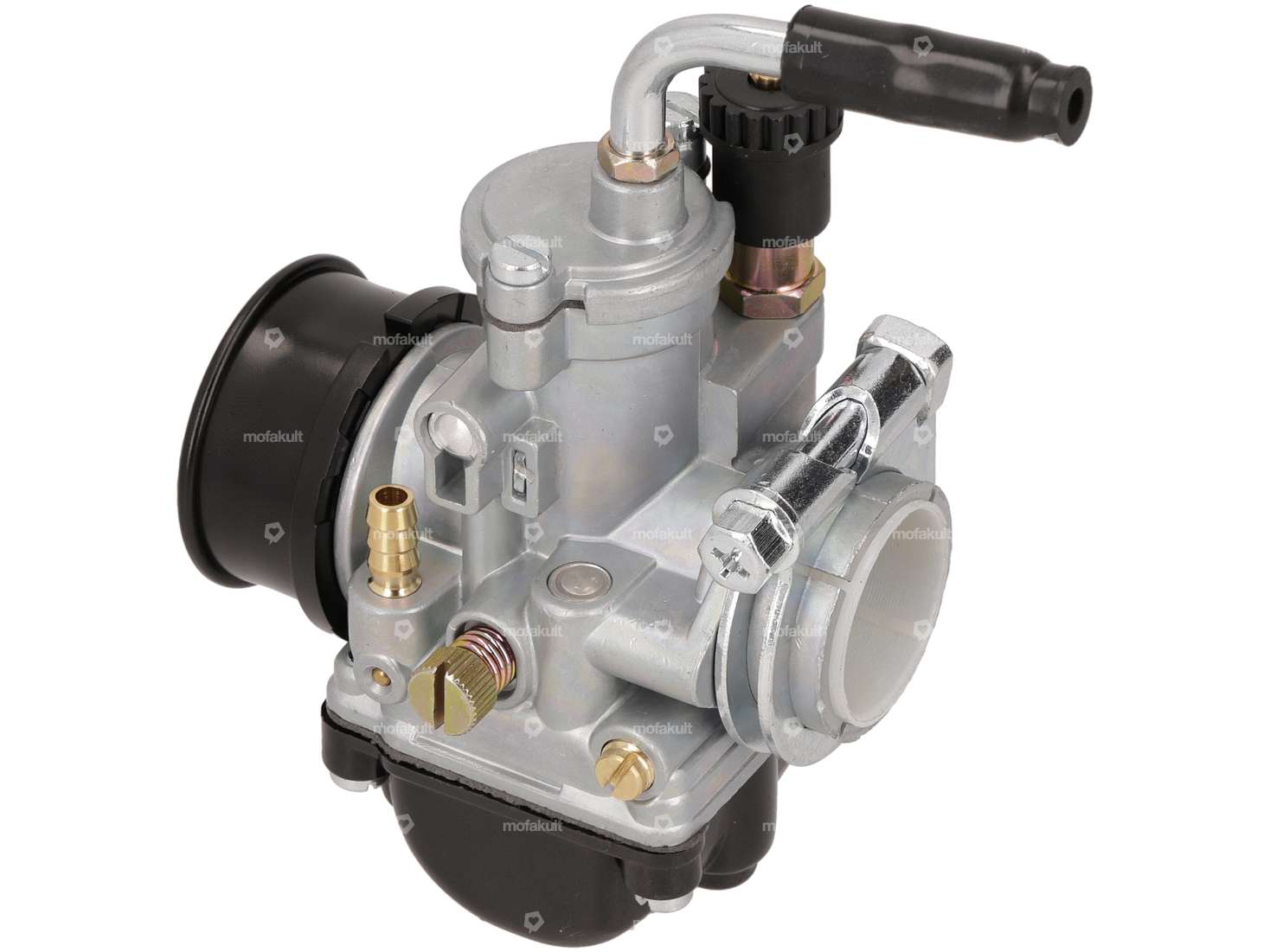

21 mm PHBG AS carburetor hand choke (Dell'Orto replica)

EUR 77.70

Incl. 21% VAT.

Description

21 mm PHBG replica racing carburetor for universal use on your moped, scooter, and small motorcycle.
This racing carburetor is suitable for tuning and is designed for engine displacements between 50 and 75 cc.

The tuning carburetor features a manually operated choke (start lever / starter flap).
The fuel-air mixture can be perfectly adjusted using the main and secondary jets as well as the mixture adjustment screw.

On the air filter side, the carburetor has an M32x1.25 thread. The air filter can be mounted directly onto the thread.

Main jet size (M5): 90
; Idle jet size: 55
; Choke jet size: 53
; Air filter connection diameter: 32 mm (M32 x 1.25)
Intake manifold connection diameter: 24 mm (or 26 mm after removing the reducer sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm

You can find high-quality alternatives, compatible jets, air filters, and intake manifolds in the accessories section.

Affordable aftermarket product from the Asian market.

Nominal diameter21 mm
ManufacturerQuenching
CamouflagedNo
MaterialAluminum, Plastic
Component group CarburetorCarburetor complete
Width60 mm
Carburetor typePHBG
Height132 mm
Total length71 mm
Colorblack
Ø without reducing sleeve26 mm
Ø Inside entrance24 mm
Ø Output inside24 mm
Mounting typePlug connection clamped
Ø Air filter connection32 mm
Area of applicationTuning
Air filter connection threadMF32x1.25 (fine pitch thread)
Ø fuel hose connection5 mm
Mixed oil connectionNo
Vacuum connectionNo
Choke controlHand choke
Choke nozzle size53
Nozzle threadM5x0.8 (standard thread)
Nozzle size90
Size of secondary nozzle55
