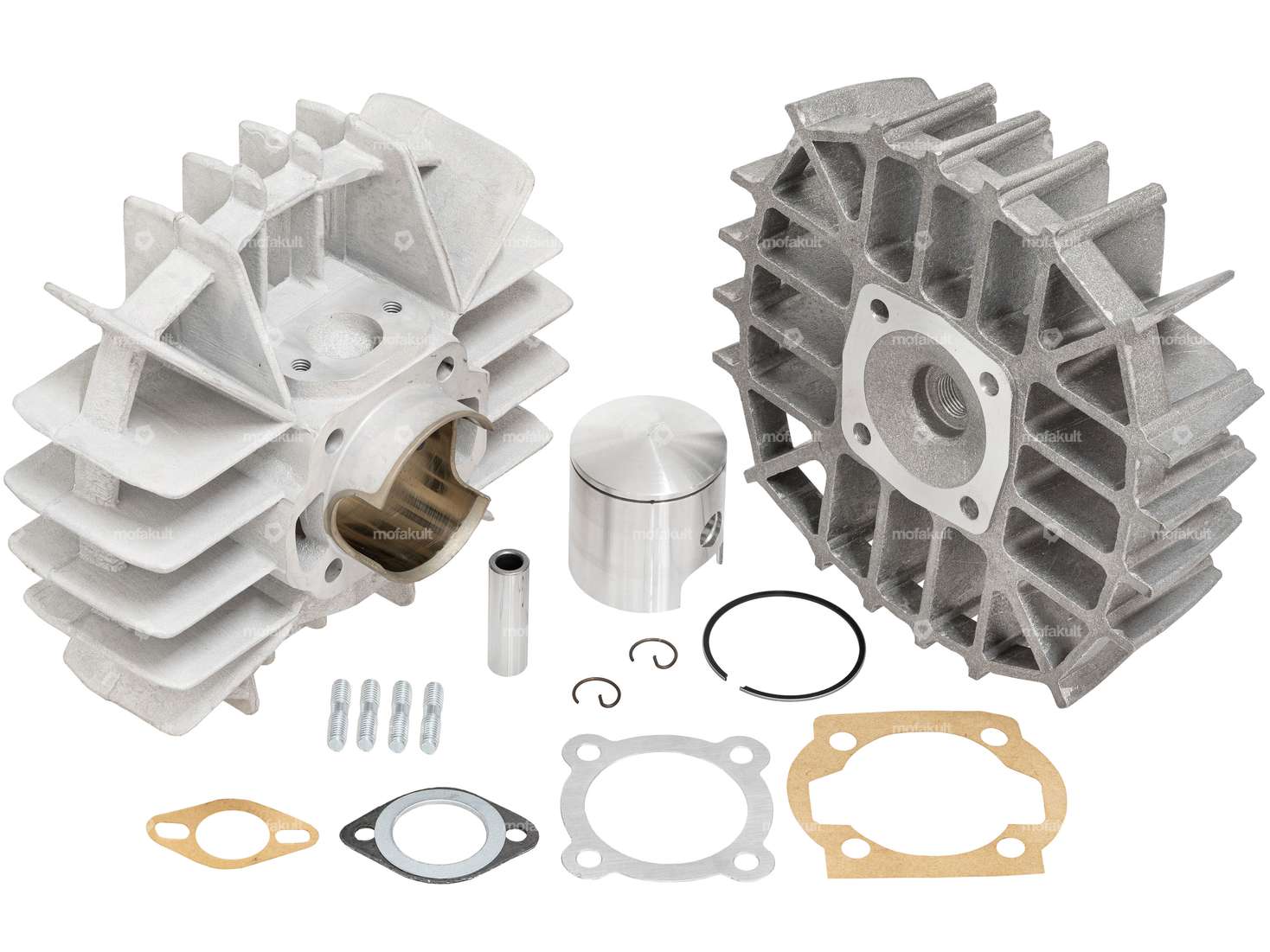

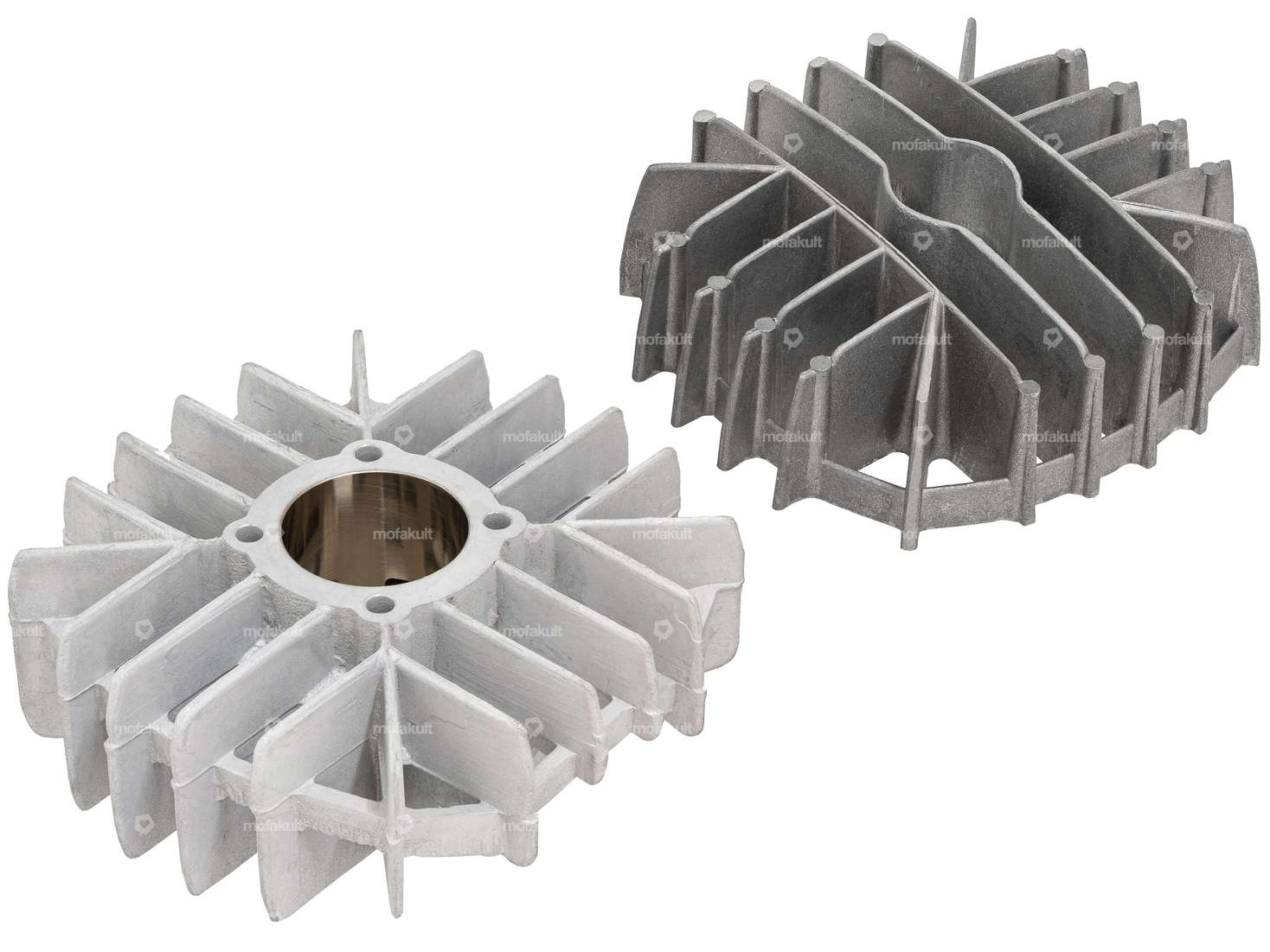

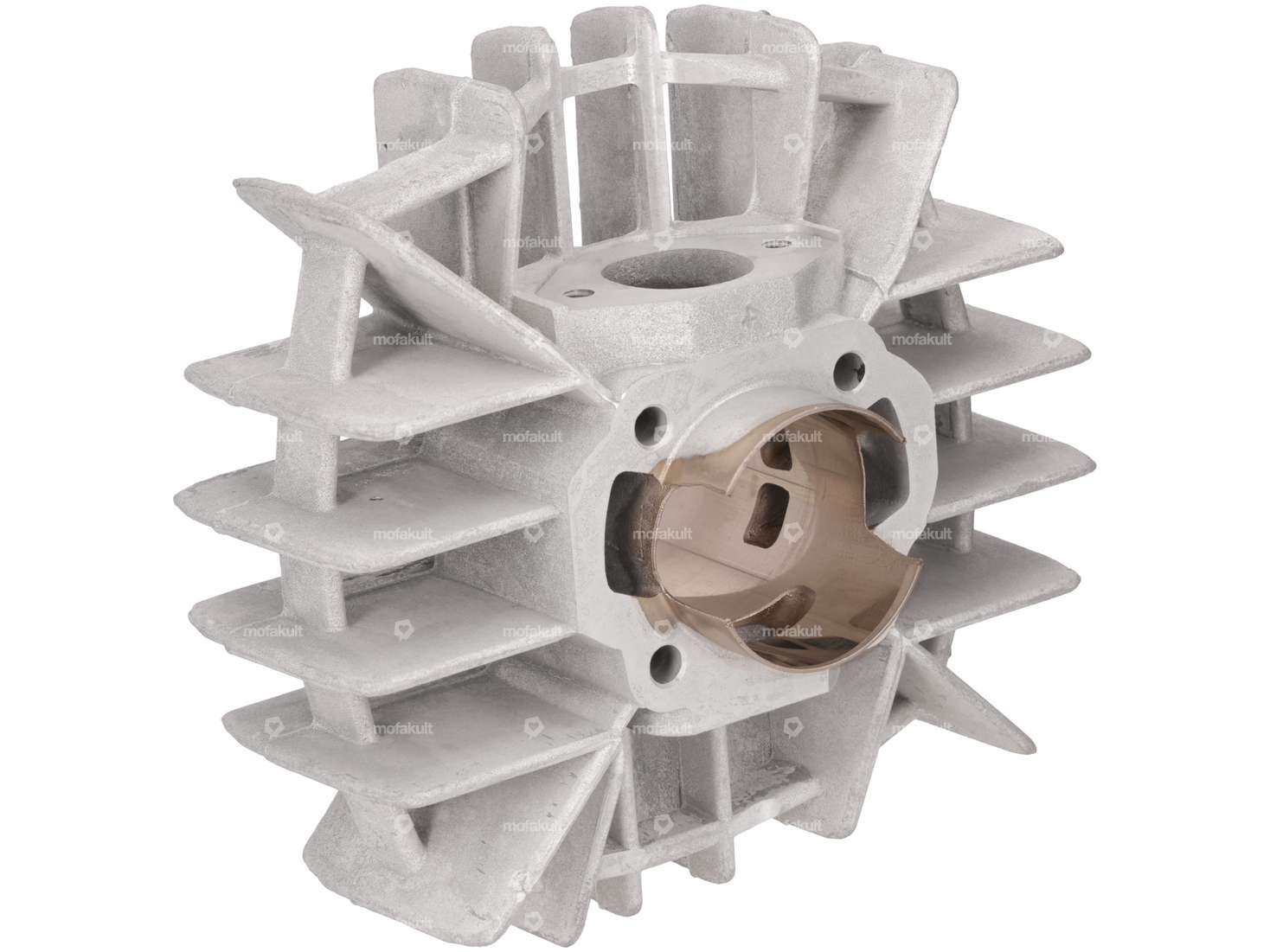

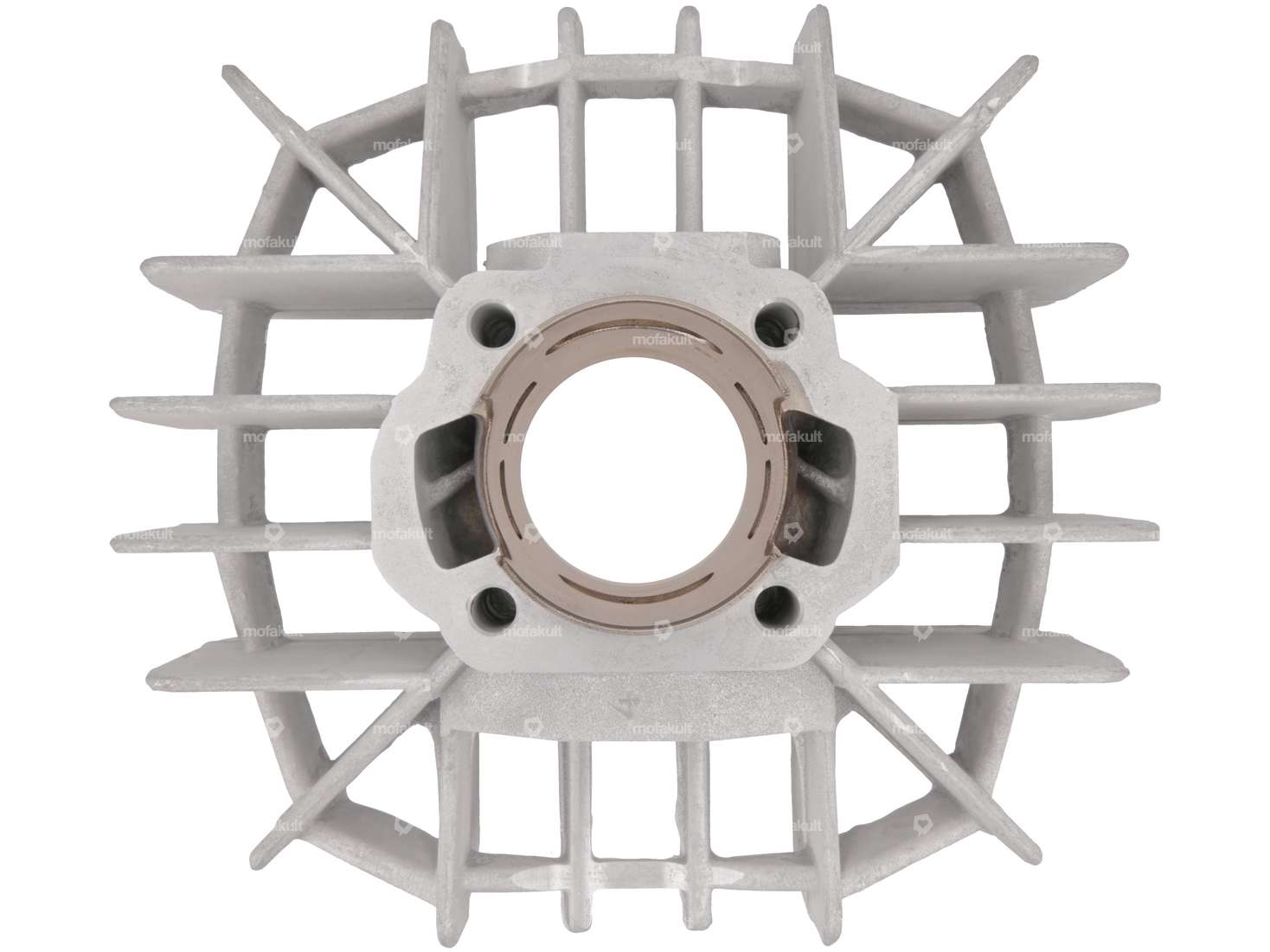

46 mm racing cylinder from Airsal suitable for Puch Maxi S & N, X30 Sport.
The racing kit has a straight exhaust, which is why standard exhausts for Puch mopeds can be fitted.
This is the largest possible racing kit that can be fitted without having to remove the engine housing.
| Manufacturer | Airsal |
| Material | Aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 46 mm |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 44 x 44 |
| Hole spacing inlet | 38 mm |
| Area of application | Tuning |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
Accessories & related products

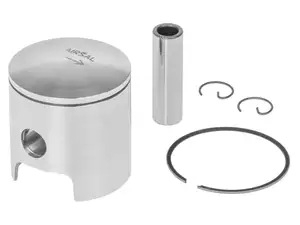

Airsal piston 46 mm | Puch
