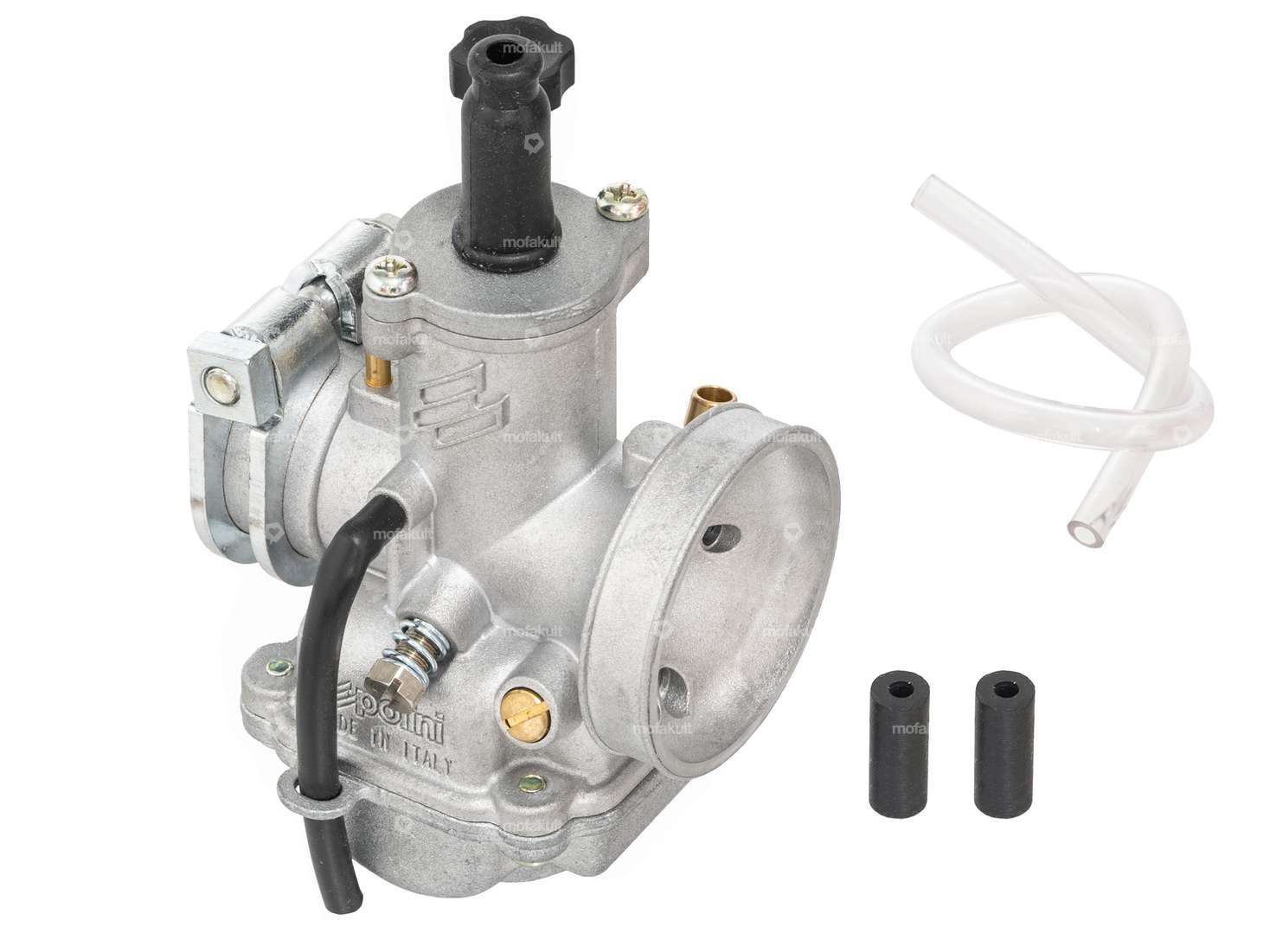

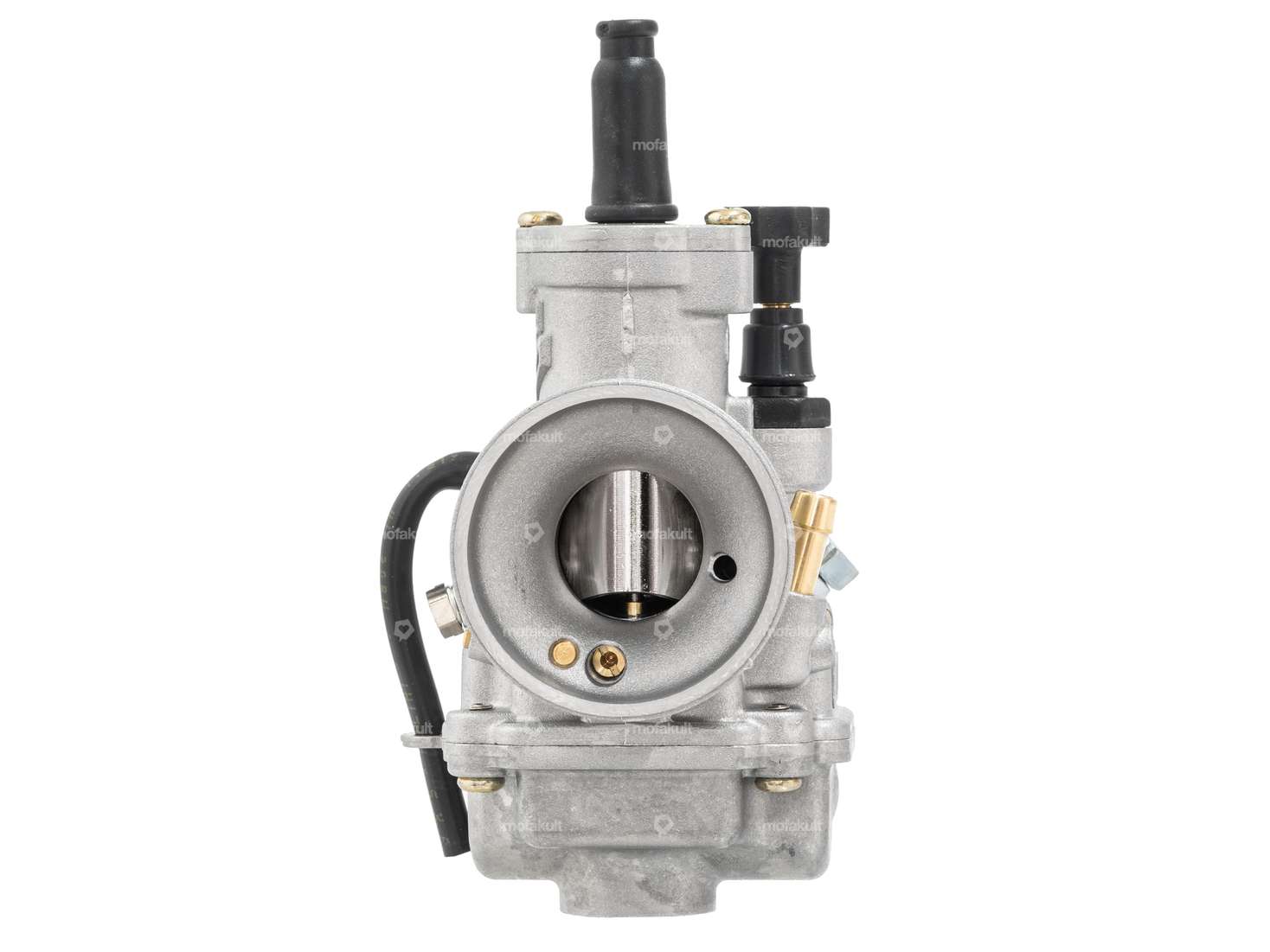

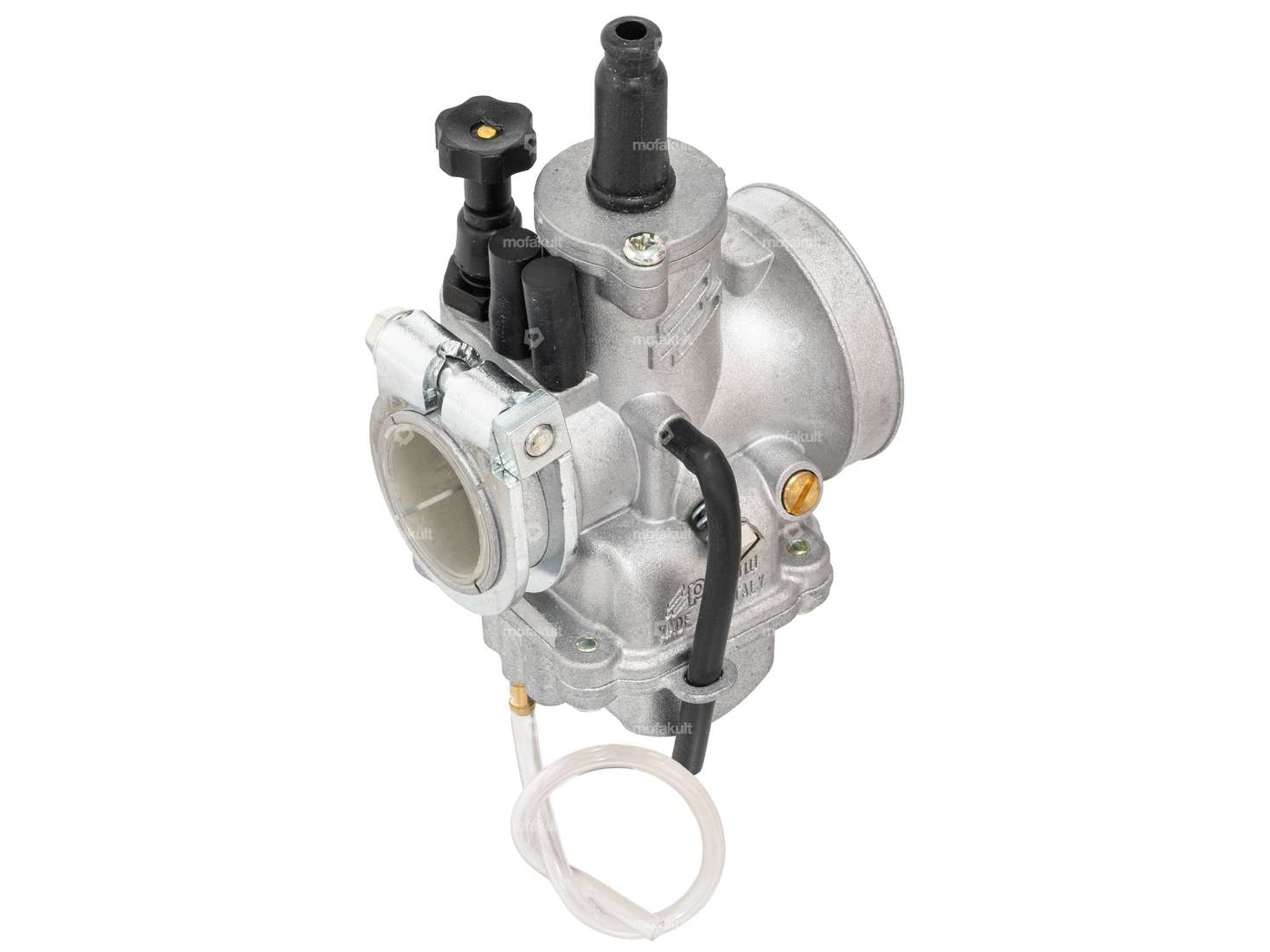

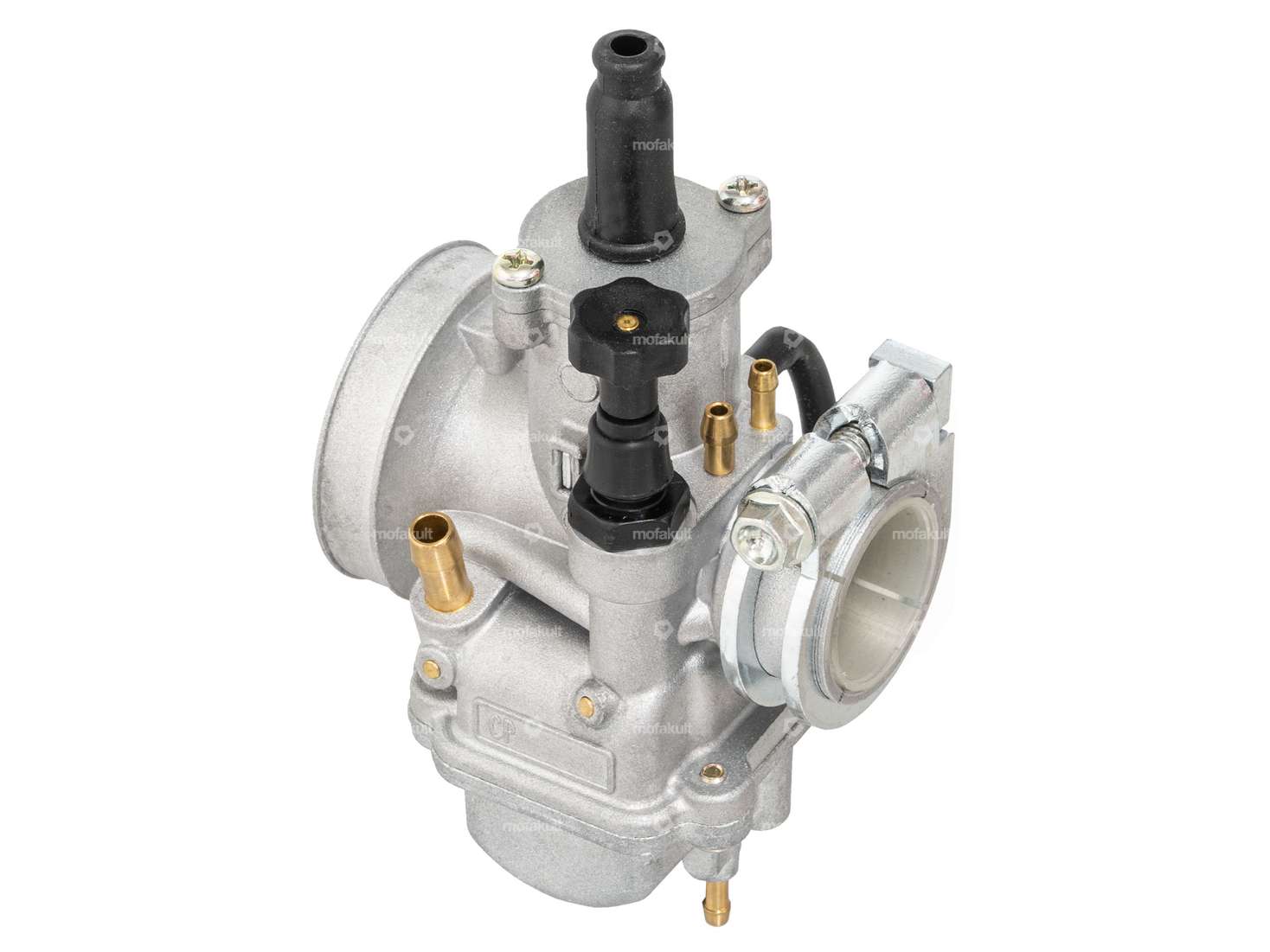

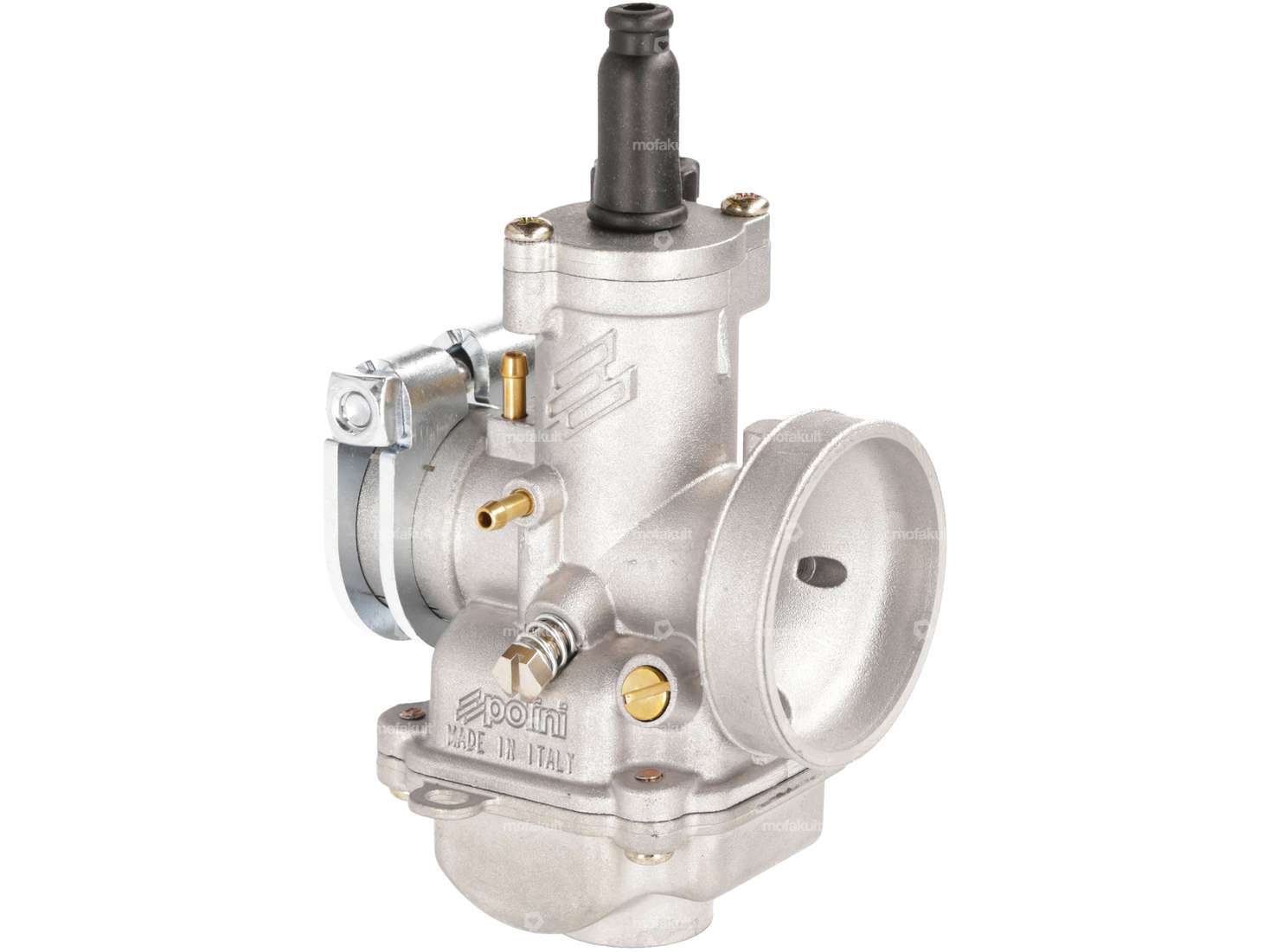

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify the tuning of the carburetor and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
Inlet connection diameter: 24 or 26 mm if the bushes are removed.
Connection diameter of air filter: 46 mm
Main nozzle size: 72
Side nozzle size: 42
Choke is located directly on the carburettor and must be operated by hand.
Quality product from the Italian manufacturer Polini.
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Nominal diameter | 21 mm |
| Width | 75 mm |
| Ø Internal connection | 24 mm |
| Ø without reducing sleeve | 26 mm |
| Total length | 73.5 mm |
| Ø Inside entrance | 21 mm |
| Ø Output inside | 21 mm |
| Ø Air filter connection | 46 mm |
| Height | 135 mm |
| Area of application | Tuning, Racing, Performance, High End |
| Ø fuel hose connection | 7 mm, 6 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 72 |
| Size of secondary nozzle | 42 |
| Mounting type | Plug connection clamped |
Moped fans also bought
Airsal 46 mm cylinder kit straight exhaust | Puch
Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Nominal diameter: 46 mm · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Area of application: Tuning · Number of fixing points: 4 pcs · Hole spacing inlet: 38 mm · Outlet type: straight · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
EUR 231.30
EUR 177.90
Hot
Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing
Ø Stranded wire: 1.25 mm · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Number of components: 1 pcs · Cable length: 2200 mm · Nipple shape: Cylinder
EUR 2.85
AKOA 21 mm intake manifold Dell'Orto PHBG plastic | Puch E50 / Z50 / ZA50 (wind cooled)
Manufacturer: AKOA · Material: Plastic · Color: black-matt · Ø inside: 20.7 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Ø External connection: 26 mm
EUR 35.50
Not in stock
swiing® ingenious intake manifold Gilardoni italkit Inox
Manufacturer: swiing® ingenious parts · Material: Aluminum · Camouflaged: No · Ø inside: 21 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 4 pcs · Total height: 55 mm · Height flange center hole: 42.5 mm · Ø External connection: 24 mm · Hole pattern [mm]: 60 x 35 · Total length: 80 mm
EUR 80.60

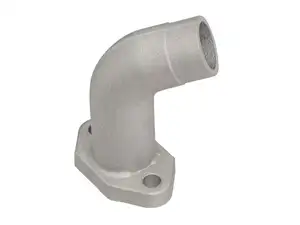

Intake manifold 46 / 47 mm cylinder | Puch
Material: Aluminum · Camouflaged: No · Ø inside: 19 mm · Mounting type: Screws · Area of application: Tuning · Number of fixing points: 2 pcs · Hole spacing inlet: 38 mm · Total height: 75 mm · Height flange center hole: 65 mm · Ø External connection: 24 mm · Total length: 60 mm
EUR 47.30
Polini jet set (80 - 98) main jets long version CP, Keihin, Koso, PWK
Manufacturer: Polini · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: CP · Carburetor type: Coso · Carburetor type: Keihin · Carburetor type: PWK · Drive: External hexagon · Nozzle type: Main nozzle · Nozzle size: 80 · Nozzle size: 82 · Nozzle size: 84 · Nozzle size: 86 · Nozzle size: 88 · Nozzle size: 90 · Nozzle size: 92 · Nozzle size: 94 · Nozzle size: 96 · Nozzle size: 98
EUR 47.30
Hot
swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50
Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Thread length: 11 mm · Thread length: 15 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Weight: 968 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
EUR 219.40
Not in stock

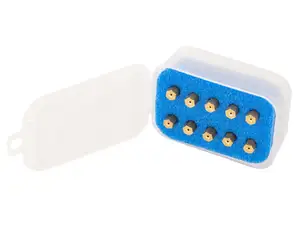

Polini jet set main jets (80 - 125) short version CP, Keihin, Koso, PWK
