For: Pony / Cilo (Beta 521 & 512)

24541

Airsal piston 43.5 mm | Beta 521 & 512

EUR 59.20

Incl. 21% VAT.

Description

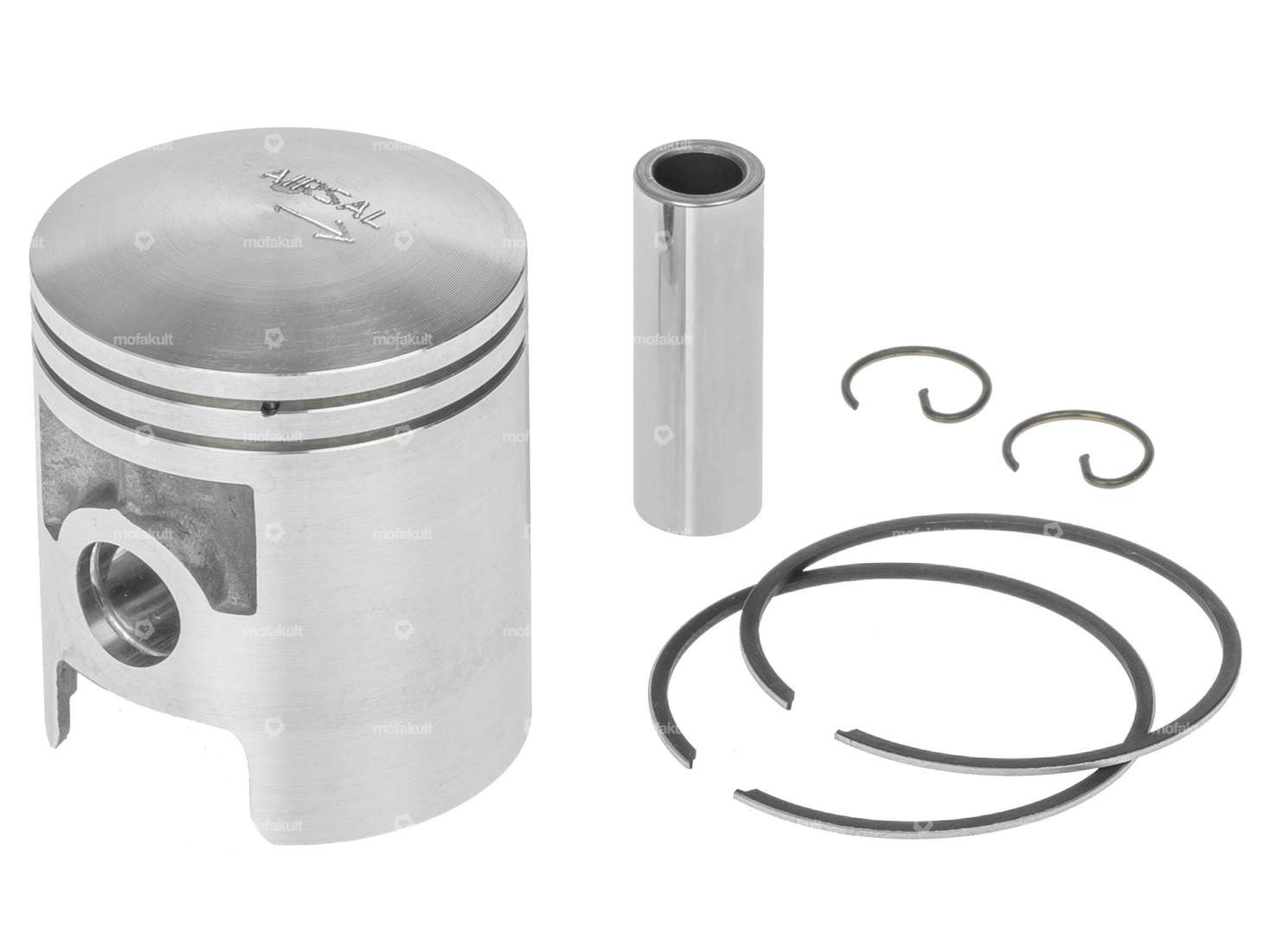

43.50 mm replacement piston with two 1 mm rectangular piston rings with internal fuse (IS) to fit the cylinder kit for Cilo Cross 521 & 512, Pony Cross 521 / GTX 521 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Airsal 43.5 mm piston kit

Airsal 43.5 mm piston kit

18420

Nominal diameter: 43.5 mm · Weight piston kit: 97 g

Nominal diameter43.5 mm
ManufacturerAirsal
Ø outside piston (A)43.5 mm
Compression height (C)25.8 mm
Curvature (D)4.25 mm
Total piston height (E)52.2 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Ø piston pin (B)12 mm
Piston ring height1 mm
Pony / Cilo (Beta 521 & 512)

Beta 512

Beta 521 (engine)
