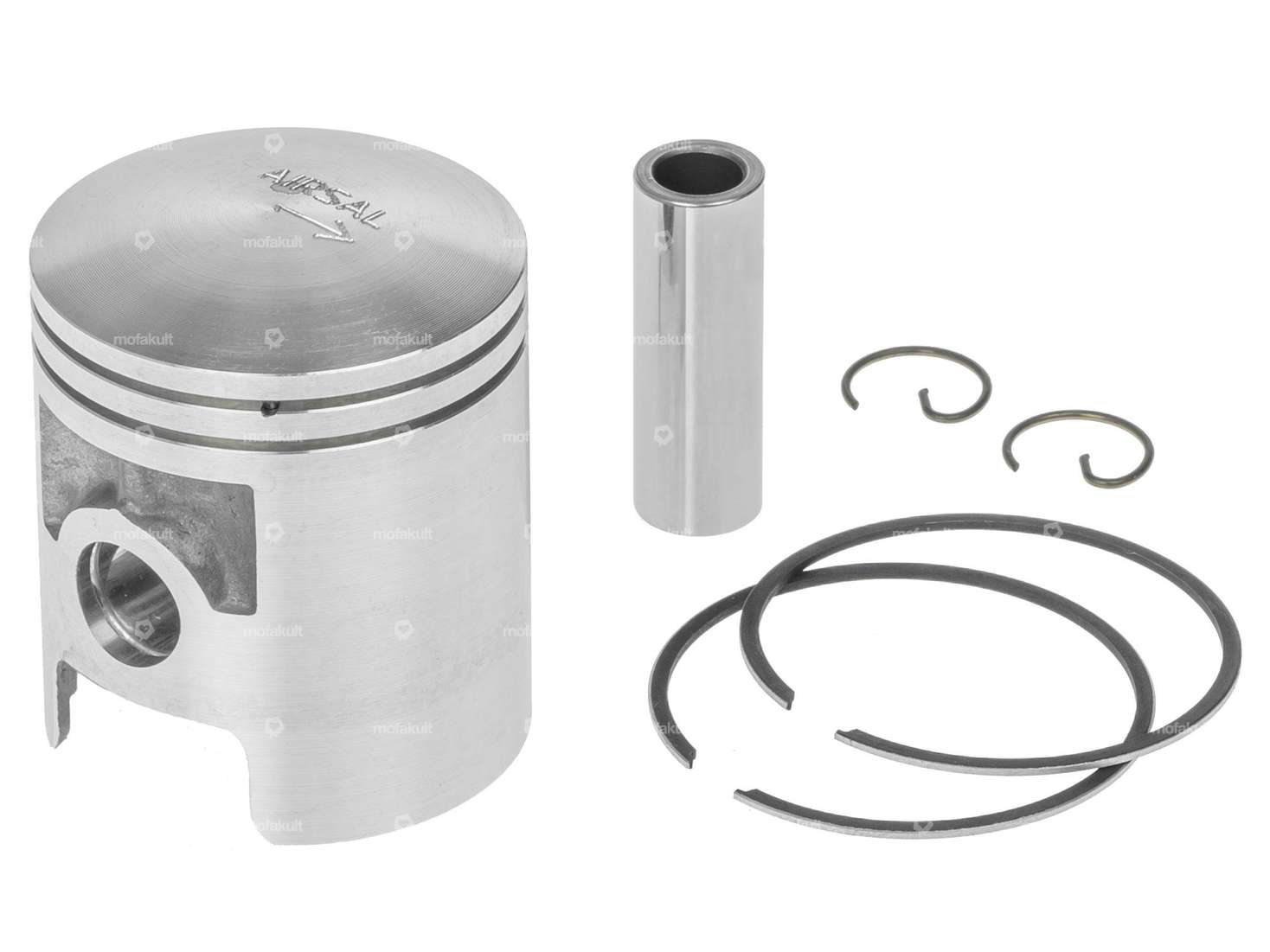

43.5 mm replacement piston with two 1 mm rectangular piston rings with internal fuse (IS) to fit the cylinder kit for Sachs 504 and 505 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Spanish manufacturer Airsal.
The set includes the following fixed parts:
Nominal diameter: 43.5 mm · Piston weight: 97 g
Details
| Nominal diameter | 43.5 mm |
| Manufacturer | Airsal |
| Ø outside piston (A) | 43.5 mm |
| Compression height (C) | 25.8 mm |
| Curvature (D) | 4.25 mm |
| Total piston height (E) | 52.2 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1 mm |
| Ø piston pin (B) | 12 mm |
Suitable for the following models
| Sachs | 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
Accessories & related products
Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 535, 508
Manufacturer: Airsal · Material: Aluminum · Surface: sandblasted · Area of application: Tuning · Nominal diameter: 43.5 mm · Crankshaft stroke: 44 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Number of fixing points: 4 pcs · Ø Inlet inside: 14 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No
