For: Puch

29023

Barikit piston 41 mm | Puch

EUR 65.20

Incl. 21% VAT.

Description

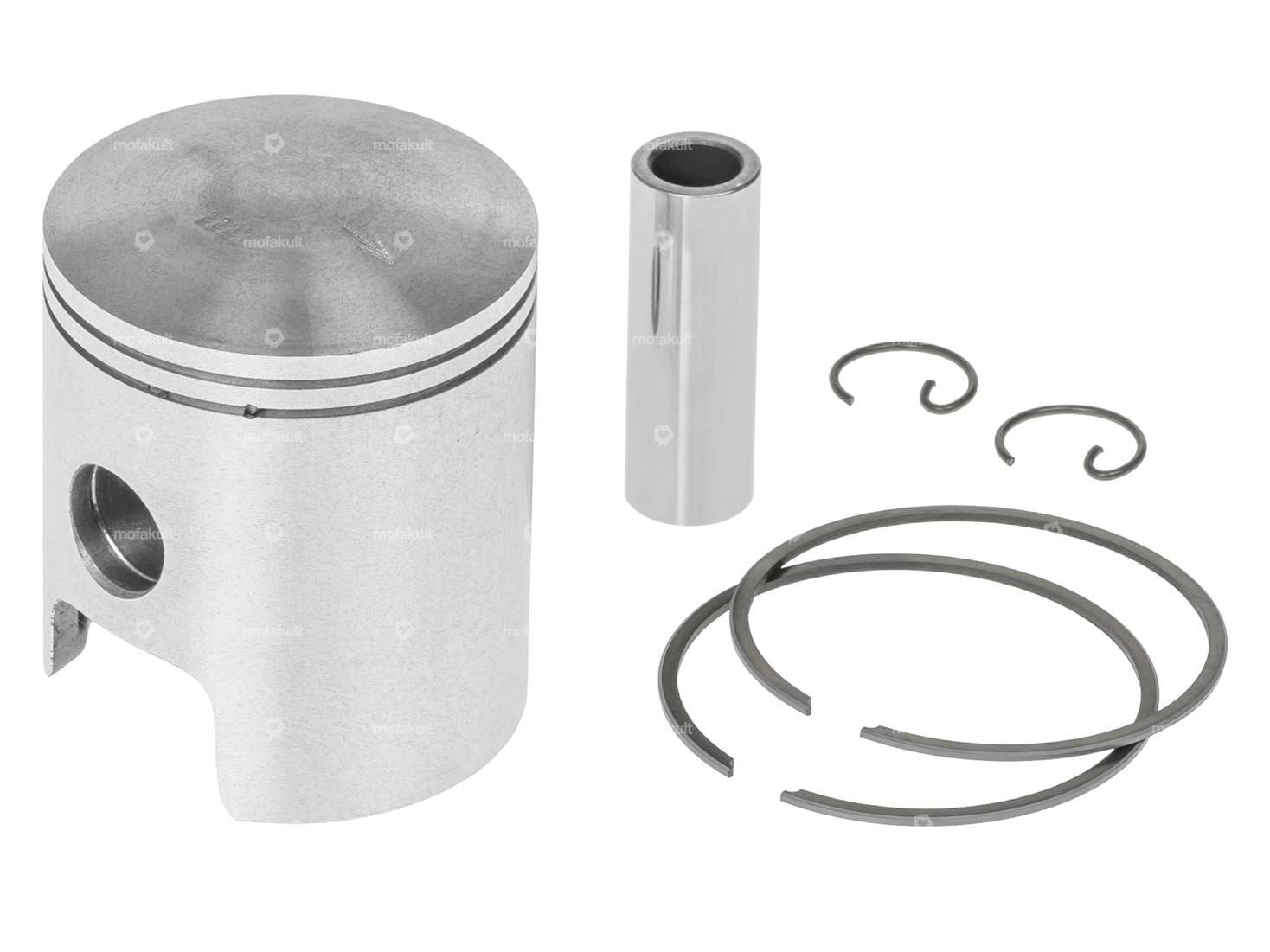

41 mm piston with two 1 mm rectangular piston rings with internal locking (IS) for various Puch cylinders on your Puch moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter41 mm
ManufacturerBarikite
Thick piston ring0.95 mm
Ø outside piston (A)40.94 mm
Compression height (C)22.55 mm
Curvature (D)3.46 mm
Total piston height (E)52.5 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Ø piston pin (B)12 mm
Piston ring impactInternal fuse (IS)
Piston ring height1 mm
Weight piston kit92 g
Puch

E50

ZA50 (air-cooled)

ZA50 (fan-cooled)

Z50 (X30 Sport)

Z50 (X30 Velux)

2-speed MS, MV, MV50

3-speed VSD, DS, VZ, MC
