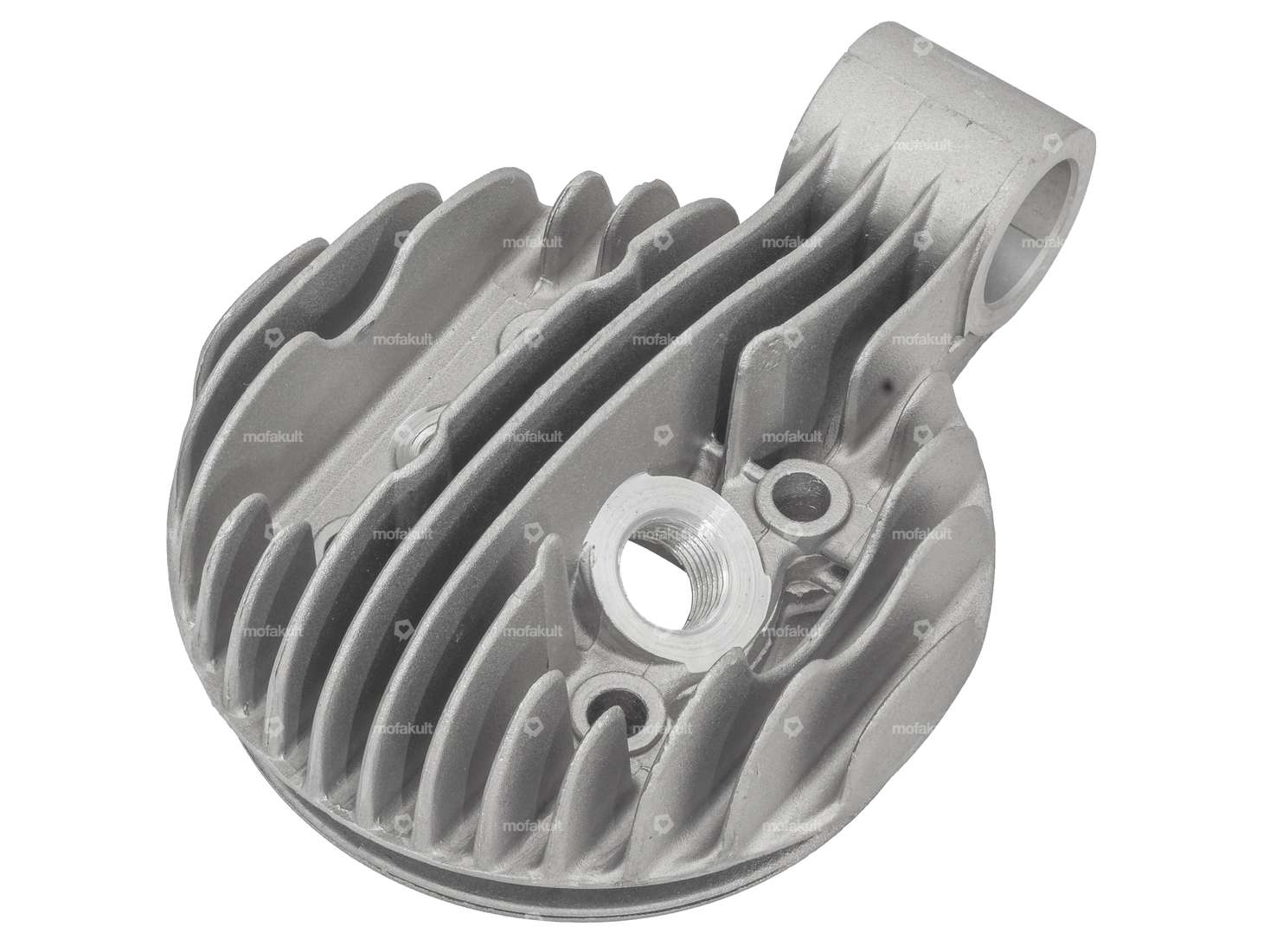

Original cylinder head for mopeds / mopeds with blown Sachs 50/2 & 50/3 engines.
New from 40-year old stock. The cylinder cover may therefore show slight signs of storage, but these do not impair its functionality in any way.
The cooling fins have an outer diameter of 95 mm.

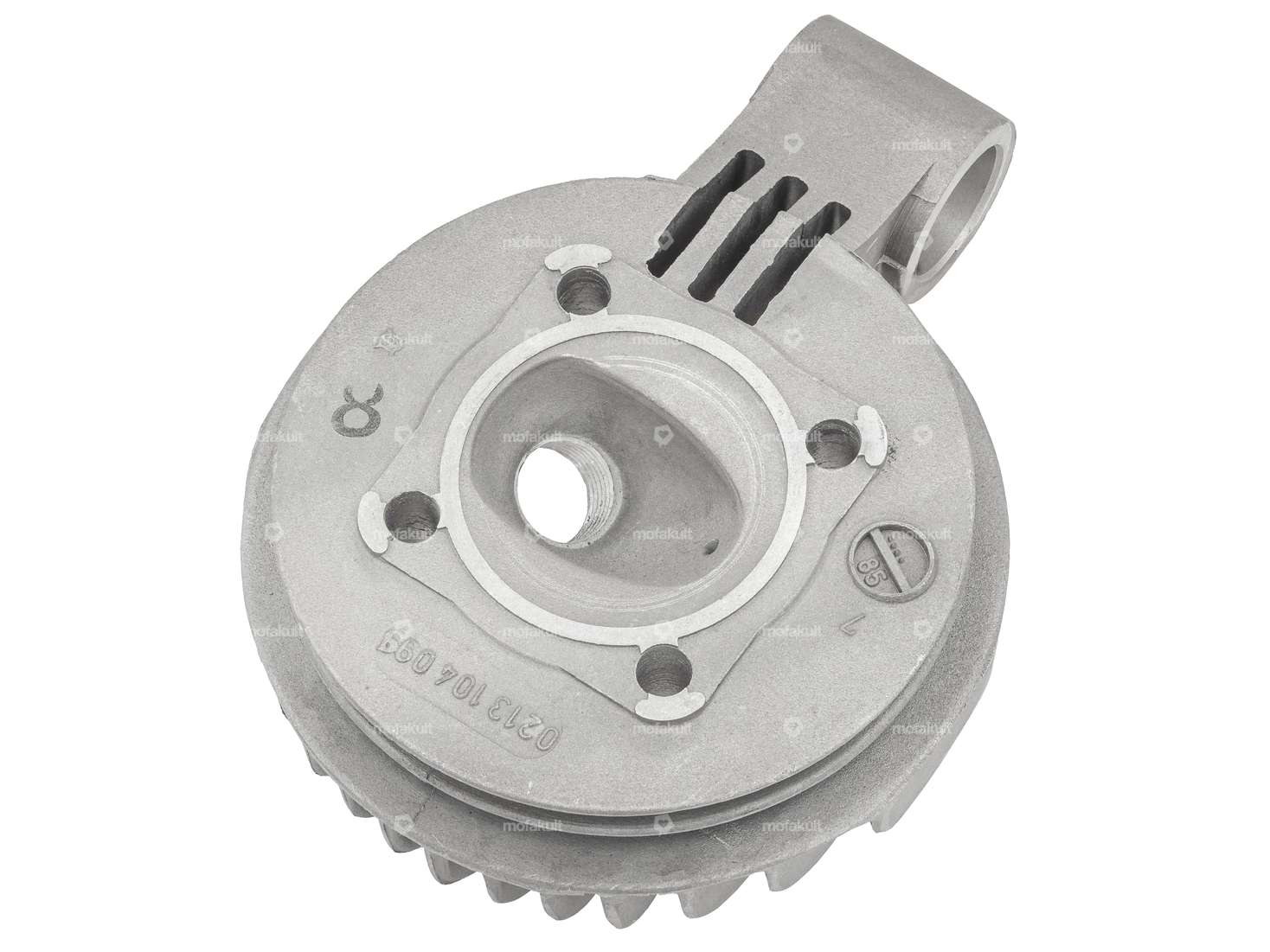

Number on the underside of the cylinder head: 0213 104 099
NOS – New from old stock.
Original Sachs spare part number: A1069 / A1070 / 0213 104 006 / 0213 106 000
| Manufacturer | Sachs |
| Ø outside | 95 mm |
| Number of fixing points | 4 pcs |
| Area of application | Original |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Ratings
Accessories & related products

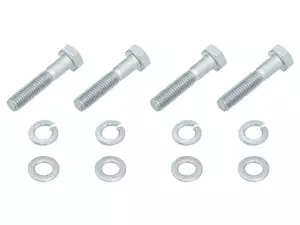

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Number of components: 12 pcs · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø shaft: 5.85 mm · Screw head: Hexagon · Drive: External hexagon · Shank: Yes · Shank length: 8 mm · Area of application: Standard · Width across flats: 10 mm · Strength class: 10.9 · Total length: 34 mm · Thread type: M6x1 (standard thread) · Thread length: 22 mm
EUR 5.85
swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4
Manufacturer: swiing® revival parts · Number of components: 12 pcs · Material: Chrome steel (colloquially known as stainless steel) · Area of application: Standard · Ø shaft: 5.85 mm · Total length: 34 mm · Drive: External hexagon · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Shank: Yes · Shank length: 8 mm · Thread length: 22 mm · Width across flats: 10 mm
EUR 8.85

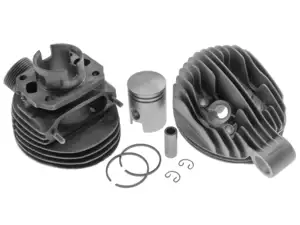

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette
Nominal diameter: 38 mm · Manufacturer: Sachs · Material: Gray cast iron · Surface: sandblasted · Area of application: Original · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole pattern [mm]: 51 x 40
EUR 525.50
Explore categories from Cylinder
Moped fans also bought
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Total length: 135 mm · Width: 125 mm · Height: 55 mm · Area of application: Standard
EUR 39.30
Meteor piston 38 mm | Sachs 50/2, 503 (A2772)
Nominal diameter: 38 mm · Manufacturer: Meteor · Thick piston ring: 1.6 mm · Ø outside piston (A): 37.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 79 g · Pony OEM number: A2772 · Pony OEM number: A4358 · Sachs OEM no.: 0286 377 010 · Sachs OEM no.: 0286 378 005
EUR 59.60

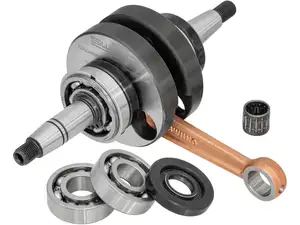

swiing® revival crankshaft "Original" with mounted bearings | Puch E50
