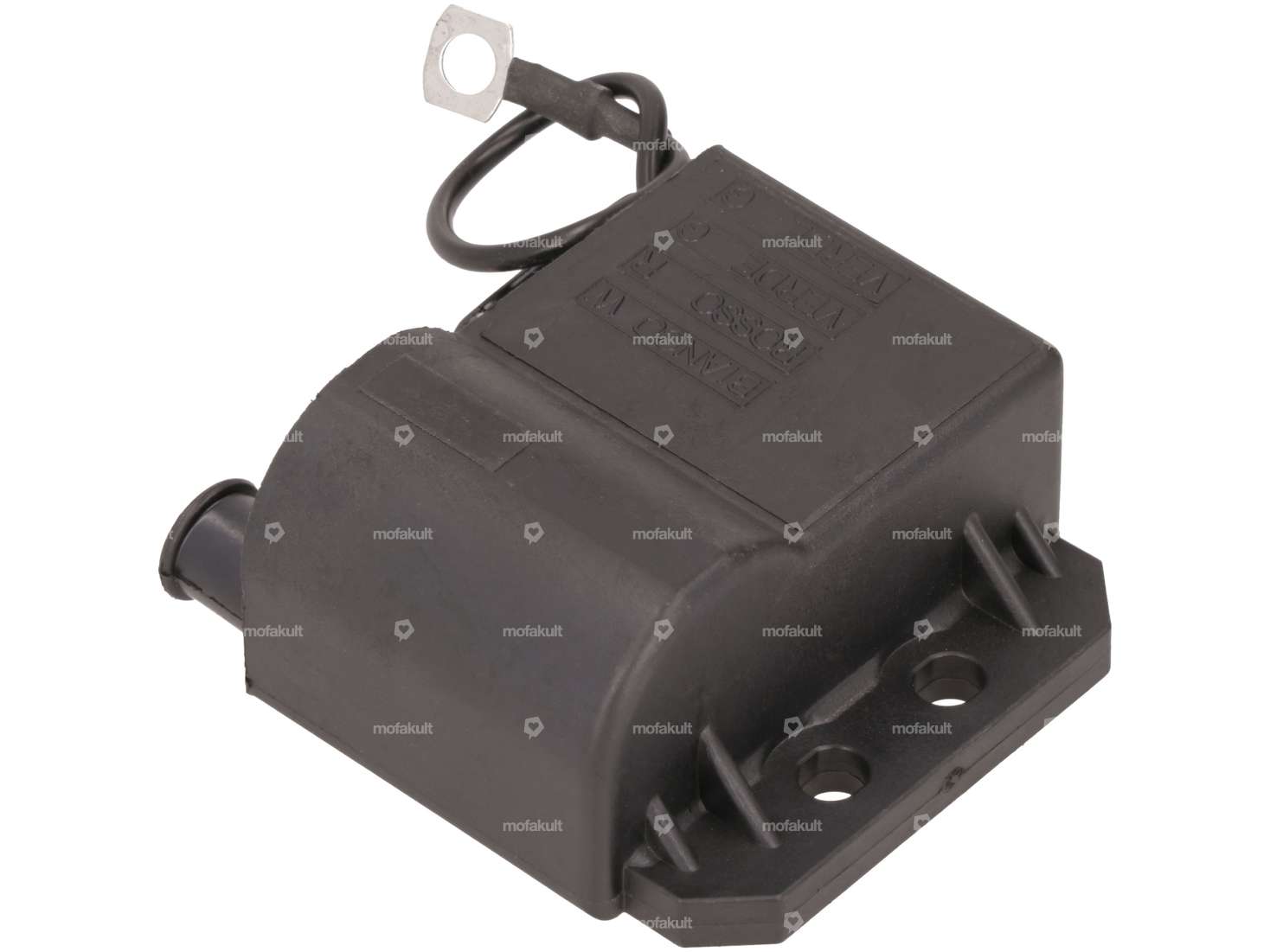

Complete Kokusan-style replica ignition system with 12V voltage and integrated light coil, suitable for various mopeds with left-rotating engines such as the Puch ZA50, Z50, Sachs 50, AB, AC, ADV, or—with adjustments to the base plate—also for various Tomos, Zündapp, or Kreidler models.
Advantages of the CDI ignition system:
- Optimal ignition timing at any RPM
- A strong, consistent spark at all times
- no more misfires
- No need to adjust the ignition
- Little to no wear

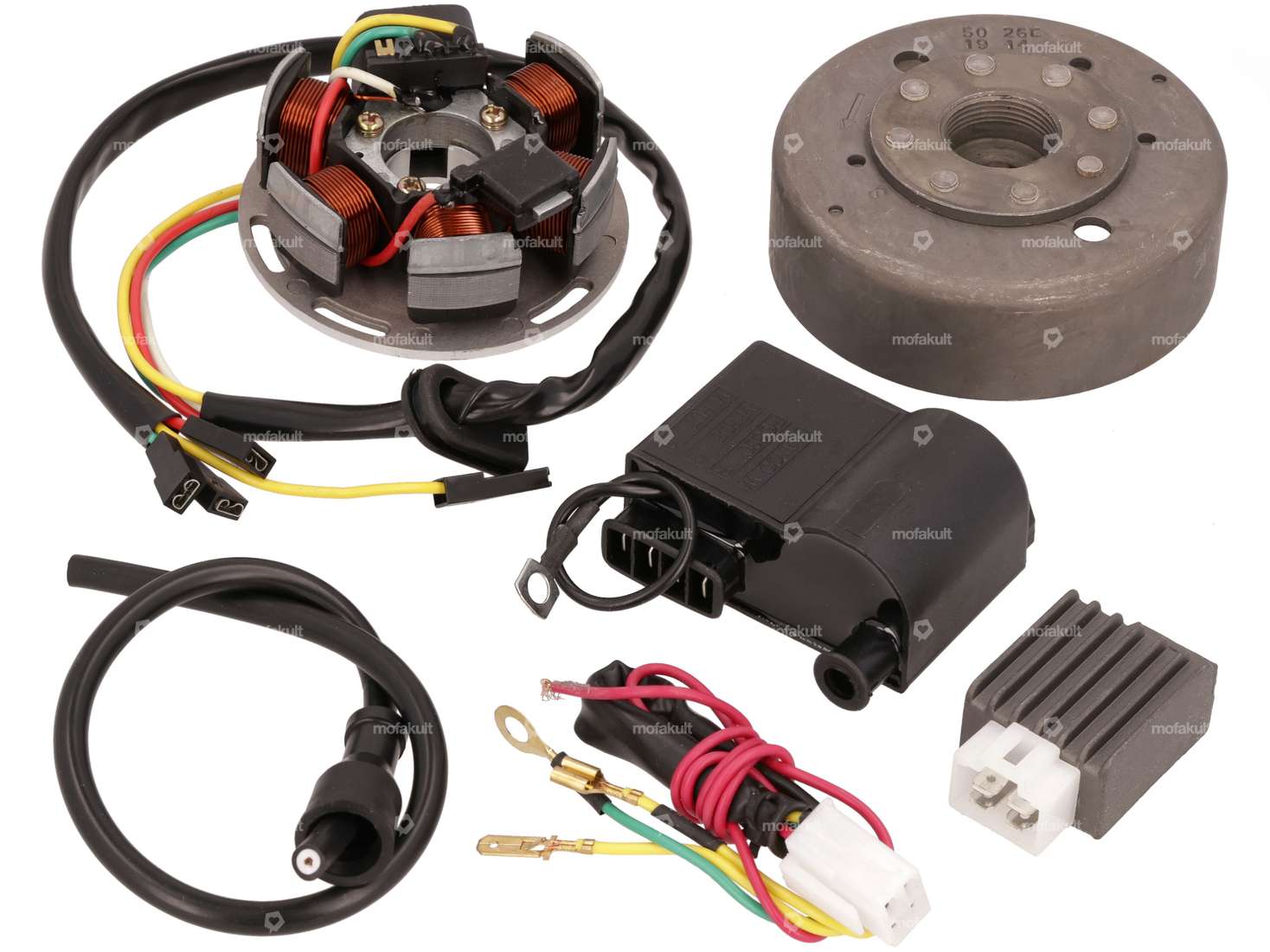

Included in delivery:

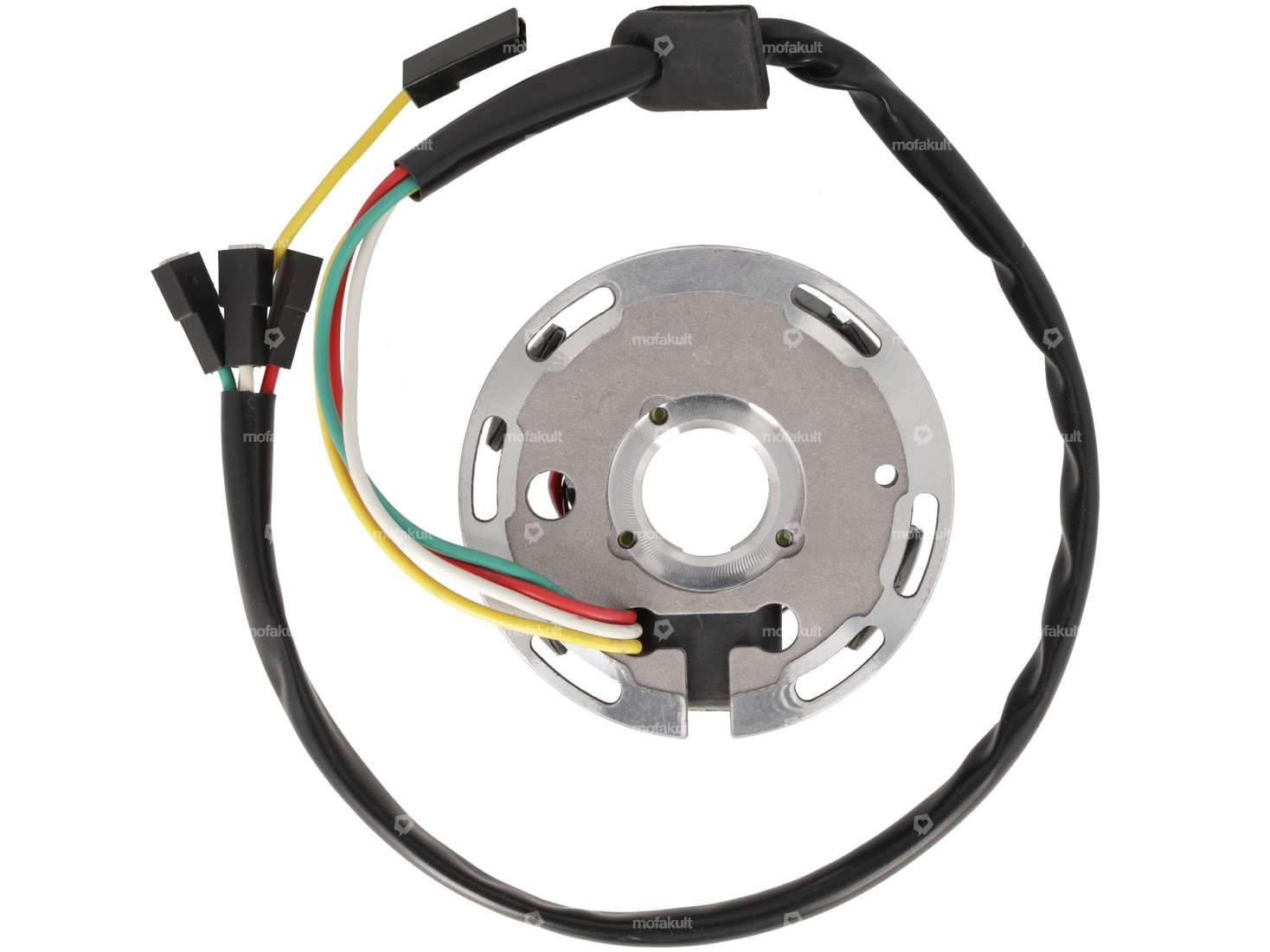

- Base plate with 12V stator

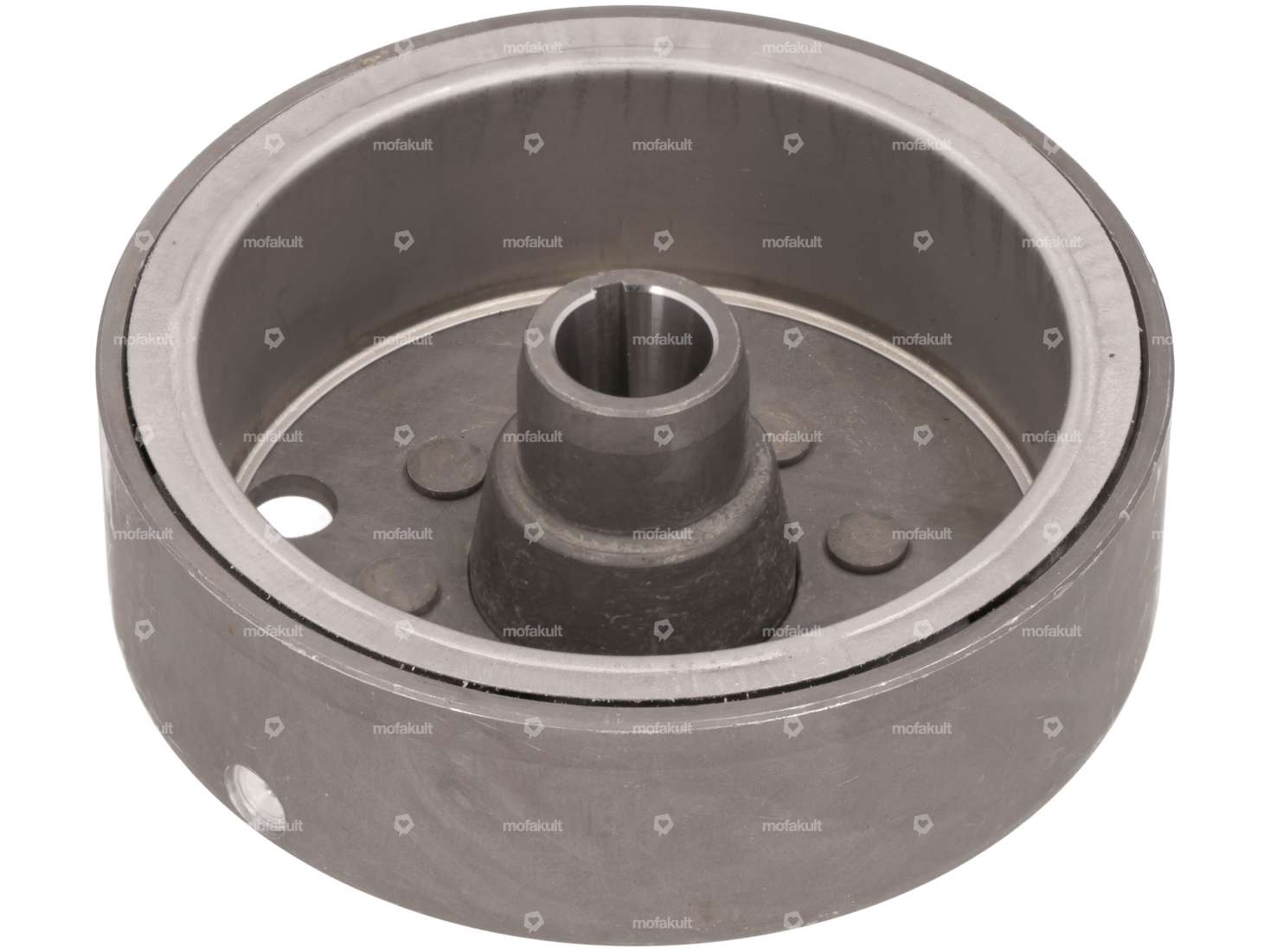

- Rotor (flywheel)
- Complete wiring harness

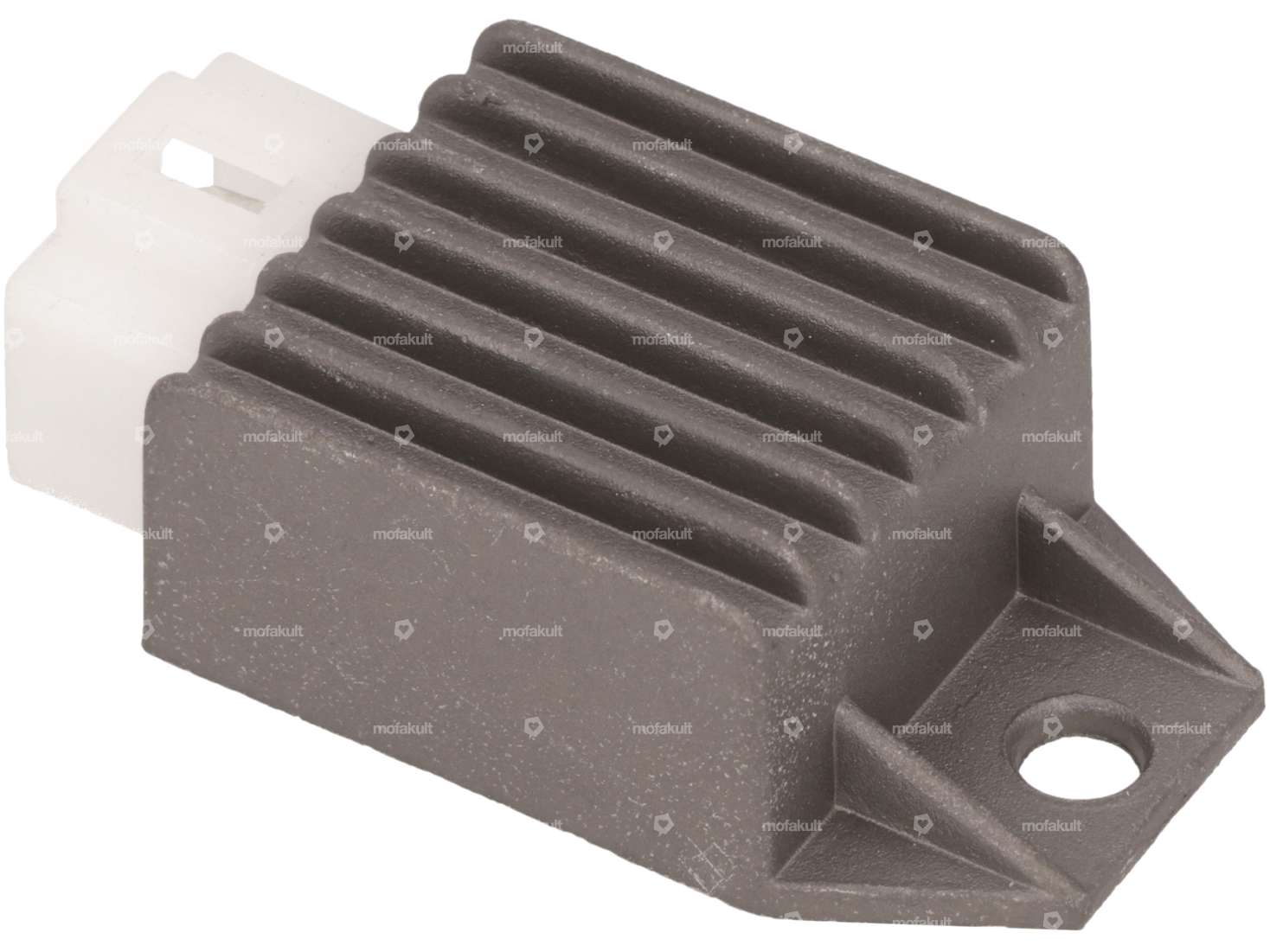

- Voltage regulator
Note: For this ELO ignition system, you’ll need 12V filament bulbs to prevent the bulbs from burning out.
Brand-name product from the manufacturer DMP.
| Manufacturer | DMP |
| Light coil voltage | 12 V |
| Direction of rotation | left |
| Ø mounting plate | 90 mm |
| Weight | 739 g |
| Ø Internal flywheel | 83 mm |
| Ø Flywheel outside | 103 mm |
| Puch | ZA50 (fan-cooled) Z50 (X30 Sport) |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 503 - AB , AC , ADV |
