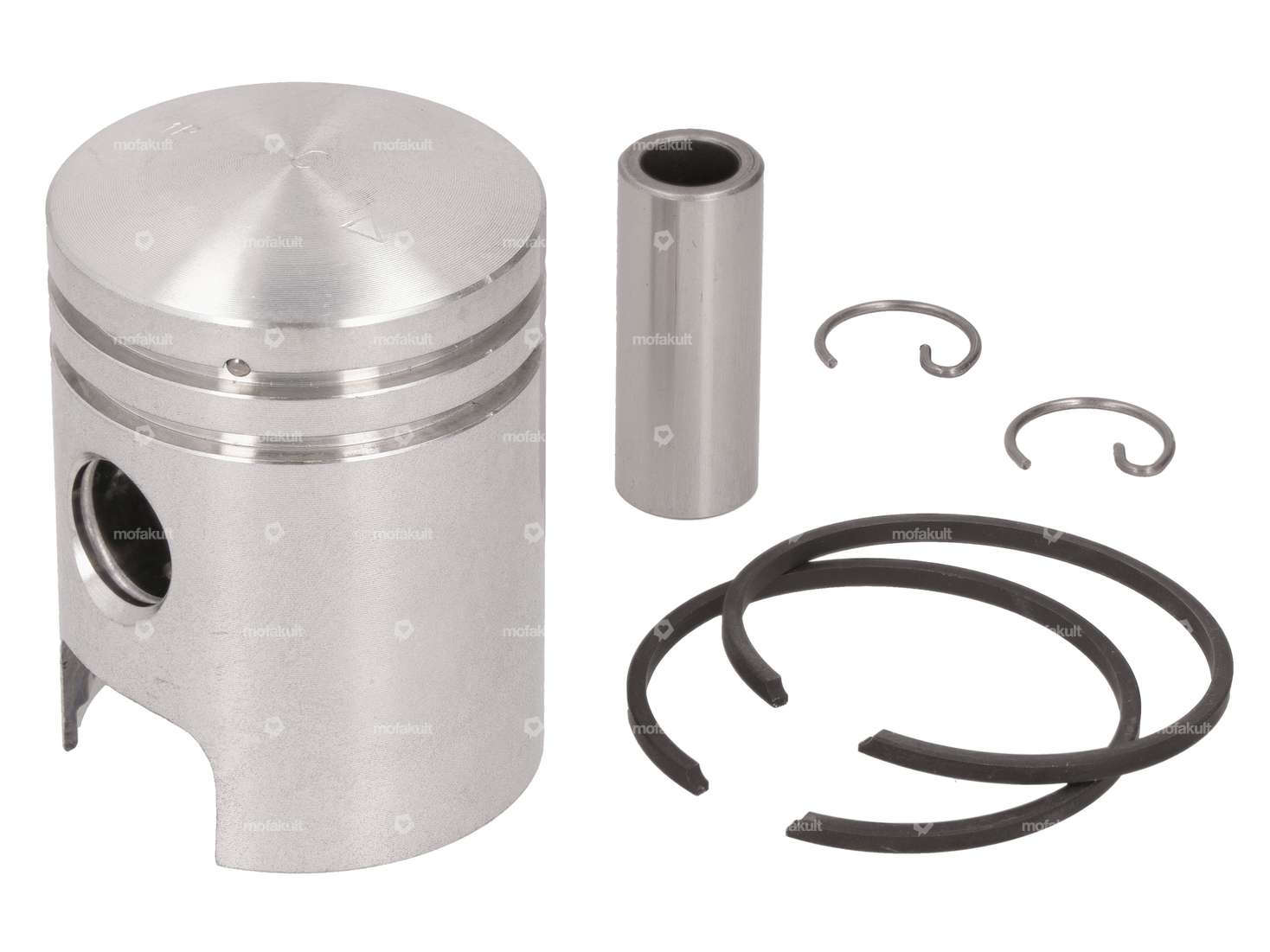

Gilardoni italkit piston 38 mm No. 3 | Puch Maxi

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

Meteor piston 38 mm #2 | Puch

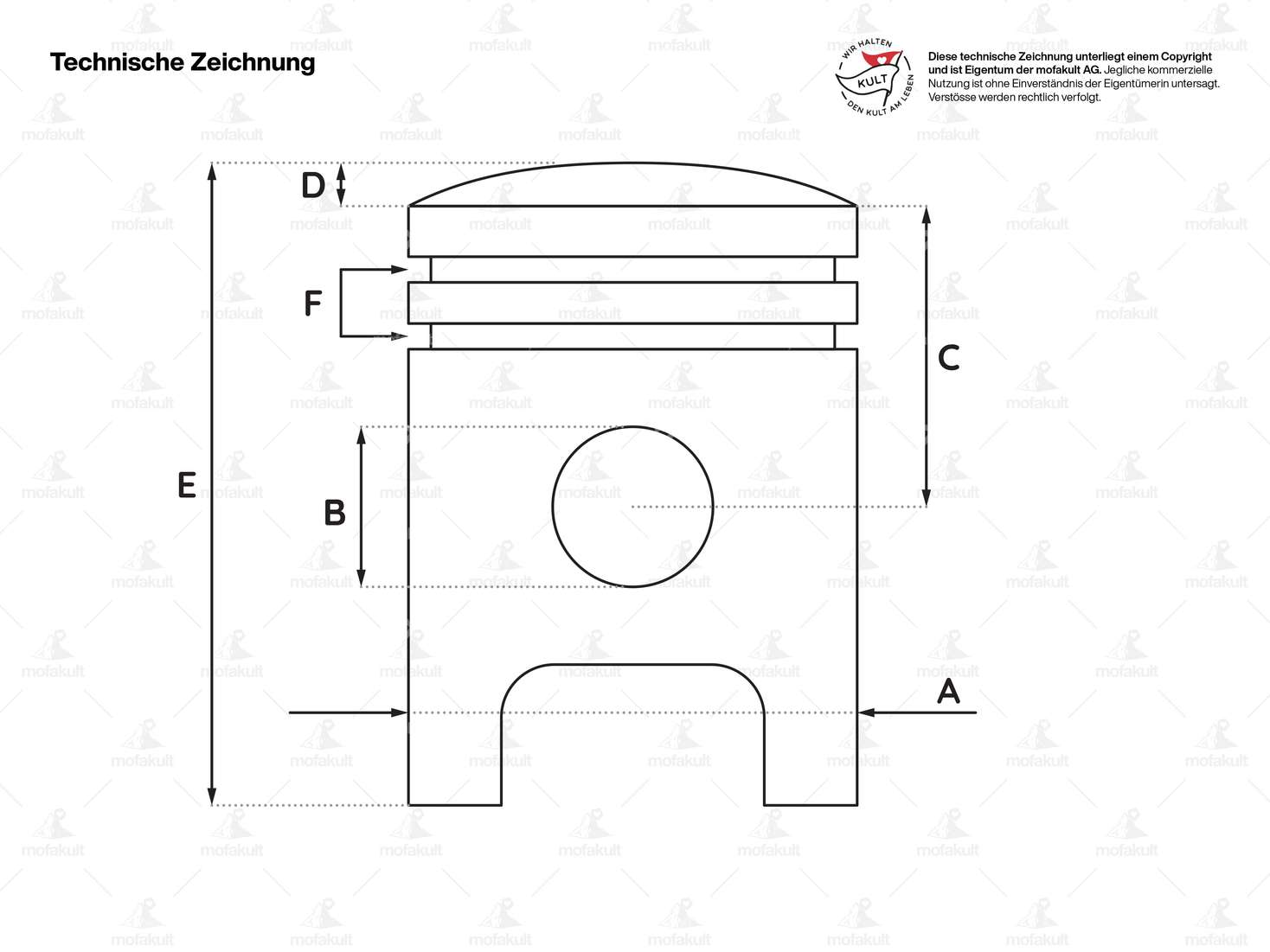

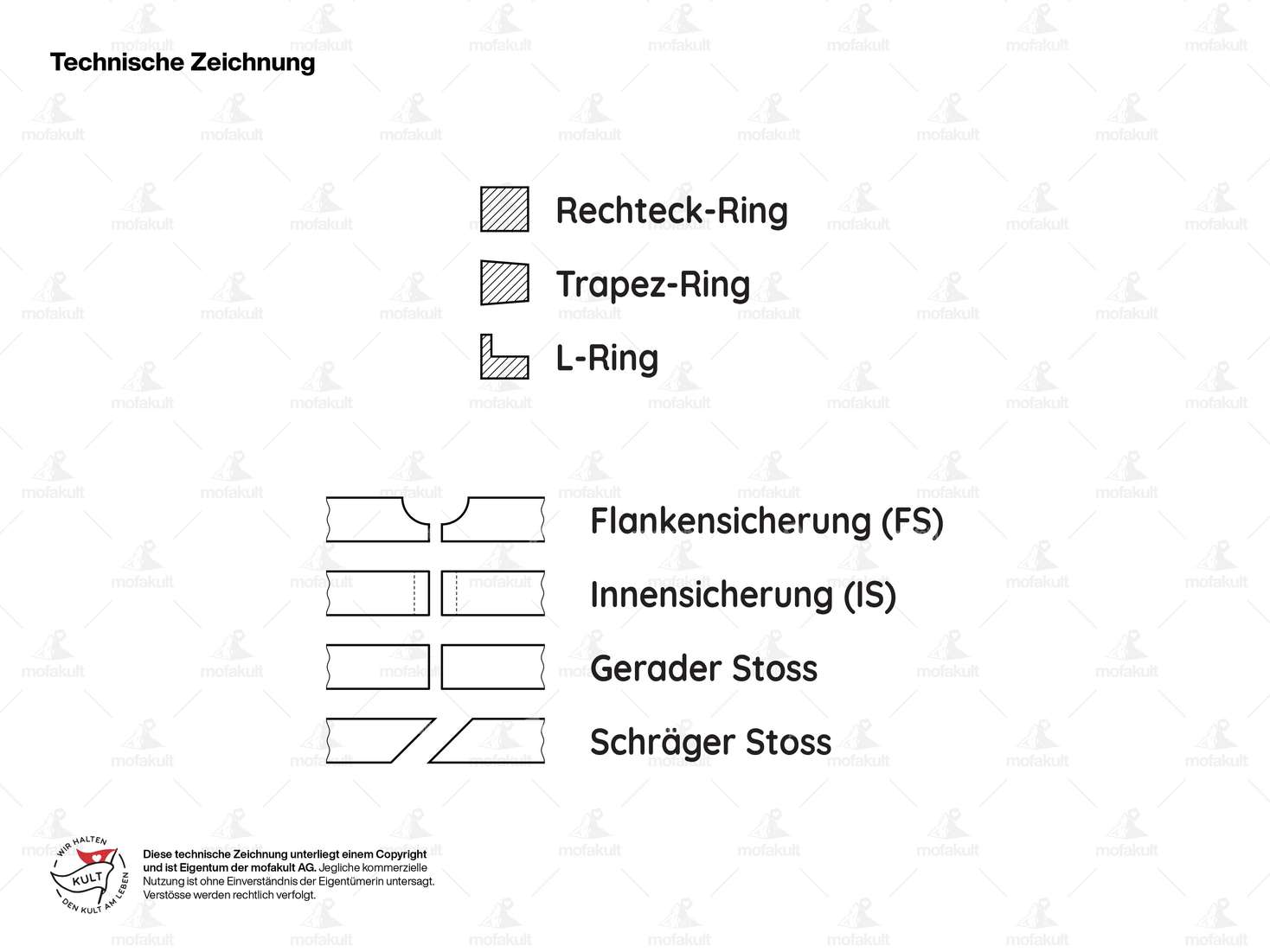

Manufacturer: Meteor · Ø outside piston (A): 37.96 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: 2 · Weight piston kit: 79 g

Motorex 2-stroke oil "POWER SYNT" fully synthetic 1 L

Manufacturer: Motorex · Oil type: fully synthetic · Contents: 1000 ml · Color: red

Buzzetti pliers for piston ring assembly

Manufacturer: Buzzetti · Area of application: (Dis)assembly tool

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats: 10 mm · Width across flats: 17 mm

GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Ø cylinder: 38 mm · Number of components: 4 pcs · Ø outlet inside: 20 mm · Thickness: 0.39 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 1.7 mm · Hole spacing inlet: 32 - 38 mm · Decompressor: Yes · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Standard

Gilardoni italkit piston 38 mm no. 1 | Puch Maxi

Manufacturer: Gilardoni italkit · Nominal diameter: 38 mm · Ø outside piston (A): 37.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.9 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Weight piston kit: 80 g

swiing® revival Stud Bolt Set M6x106 | Puch

Diameter: 5.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Width across flats: 10 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Alternative version of the Puch OEM number: 360.1.10.034.1

GPO screw set for engine mounting Inox | Puch

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Drive: External hexagon · Screw head: Hexagon

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: MF10x1 (fine pitch thread) · Height: 8 mm · Nominal diameter (thread): 10 mm · Drive: External hexagon · Width across flats: 17 mm

15 mm circlip clutch basket E50 engine

Nominal diameter: 15 mm · Fuse type: Outside · Manufacturer: Puch · Place of use: Clutch · Material: Spring steel · Ø inside: 13.8 mm · Thickness: 0.95 mm · Ø outside: 17 mm

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

swiing® revival Screw Set, Engine, Stainless Steel, Small | Puch E50

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Drive: Hexagon socket · Drive: Slot · Screw head: Countersunk head · Screw head: Cylinder head · Area of application: Standard · Puch OEM number: 900.1216 · Puch OEM number: 900.1308

swiing® revival gasket gearbox cover engine 0.5 mm | Puch E50

Ø inside: 106 mm · Ø outside: 116 mm · Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 0.5 mm · Number of fixing points: 4 pcs · Alternative version of the Puch OEM number: 349.1.10.349.1

Circlip A16 x 1 Inox

Fuse type: Outside · Nominal diameter: 16 mm · Place of use: Universal · Material: Chrome steel (colloquially known as stainless steel)

Circlip 16 mm pinion mounting Inox | Puch

Fuse type: Outside · Nominal diameter: 16 mm · Manufacturer: Puch · Material: Chrome steel (colloquially known as stainless steel)

swiing® revival M10x1 SW14 nut, flywheel flange, CNC-machined, original

Manufacturer: swiing® revival parts · Material: Steel · Surface: burnished · Nut type: Flange nut · Thread type: MF10x1 (fine pitch thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Width across flats: 14 mm · Ø outside: 19.8 mm · Height: 10 mm · Alternative version of the Pony OEM number: A4513 · Alternative version of the Sachs OEM number: 0942 072 102 · Alternative version of the Puch OEM number: 901.2943
