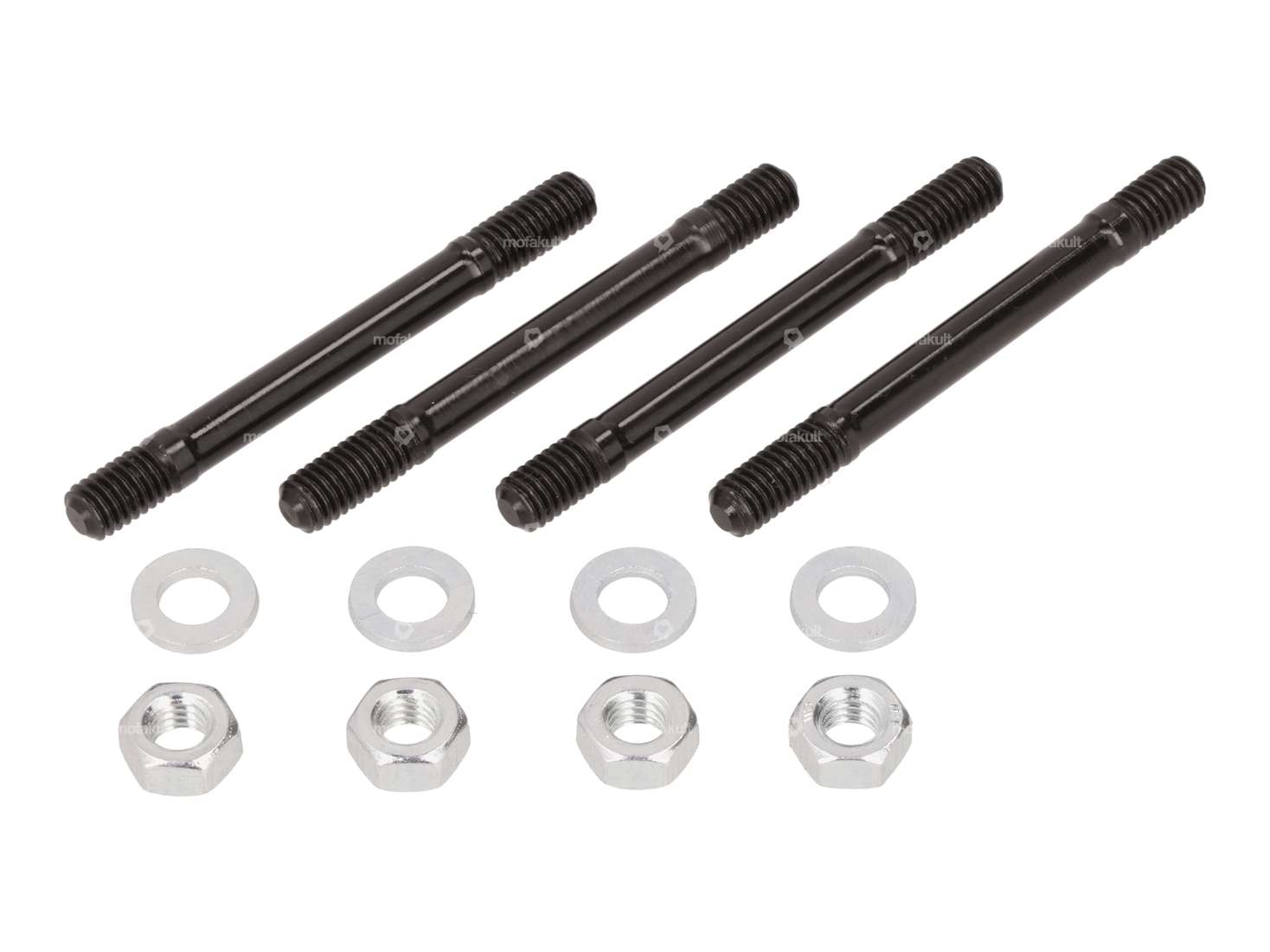

Pin bolt set consisting of four M6 threaded bolts for fastening the GPO «Divertimento» and BAD ASS «Diablo» cylinder to your moped / moped with Sachs 50, 502, 50/2, 50/3 or 50/4 engine.
| Manufacturer | GPO |
| Material | Steel |
| Thread type | M6x1 (standard thread) |
| Surface | blackened |
| Width across flats | 10 mm |
| Nominal diameter (thread) | 6 mm |
| Drive | External hexagon |
| Diameter | 5.3 mm |
| Thread length | 11.8 mm, 7.8 mm |
| Total length | 62 mm |
| Strength class | 10.9 |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL , AML 50/2 - L CH (0.8 PS) , ML CH (0.8 PS) , MB (2.6 PS) , MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS) , LKH (4.5 PS) |
Accessories & related products

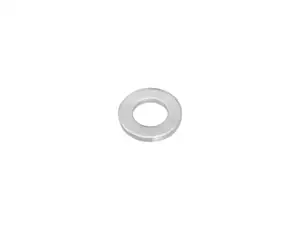

Washer M6 6.4/12/1.6 galvanized
