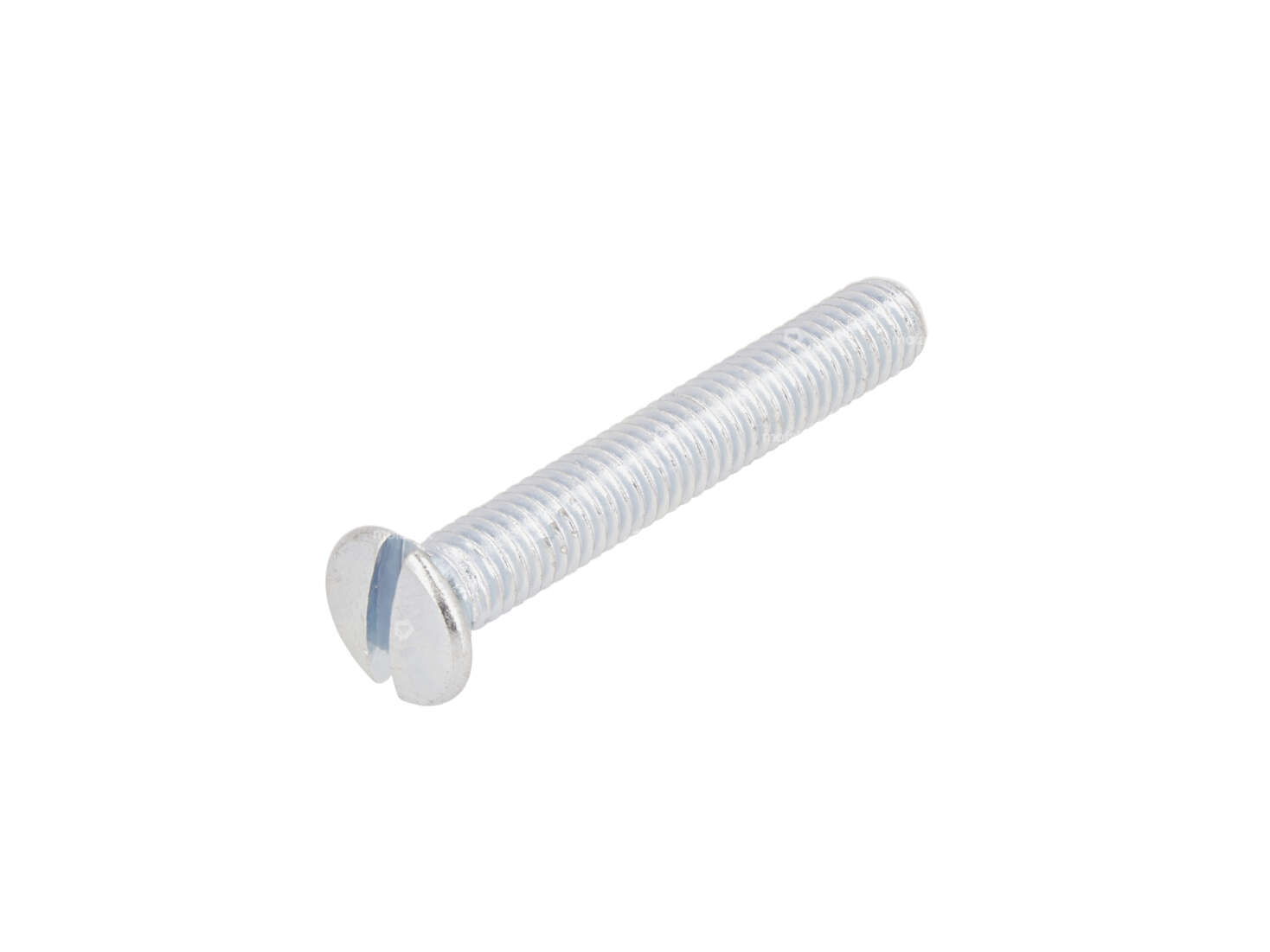

M6x40 slotted countersunk head screw, galvanized

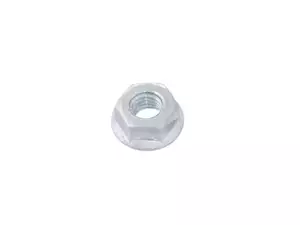

Flange nut M6 galvanized (8 strength)

Material: Steel · Height: 6 mm · Surface: galvanized (blue) · Nut type: Flange nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Strength class: 8 · Width across flats: 10 mm

Washer M6 standard (6.4/12/1.6) galvanized

Nominal diameter inside: 6 mm · Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Ø outside: 12 mm · Thickness: 1.6 mm · Ø inside: 6.4 mm · Hardness [HV]: 140 HV · Thread size: M6 · Pony OEM number: A4515 · Sachs OEM no.: 0944 142 002

Nut M6 galvanized

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Drive: External hexagon · Height: 4.8 mm · Width across flats: 10 mm · Strength class: 8 · Area of application: Standard

Nut M6 Inox

Material: Chrome steel (colloquially known as stainless steel) · Height: 4.8 mm · Surface: stainless · Nut type: Hexagon nut 0.8D · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Strength class: A2-70 · Area of application: Standard · Width across flats: 10 mm

Washer M6 6.1/10.4/1 aluminum

Nominal diameter inside: 6 mm · Material: Aluminum · Thread size: M6 · Nominal diameter (thread): 6 mm · Thickness: 1 mm · Ø inside: 6.1 mm · Number of components: 1 pcs · Ø outside: 10.4 mm

Karcoma fuel tap M12x1 vertical (with union nut) plastic connection

Manufacturer: Karcoma · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: vertical / vertical · Outlet direction: any · Spare tube shape: straight · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 50 mm

swiing® revival cable guide mudguard black | Puch

Total length: 74 mm · Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Height: 12.5 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

swiing® revival gearbox cover gasket (new model) | Puch Z50 engine

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Total length: 170 mm · Width: 120 mm · Thickness: 0.35 mm · Number of fixing points: 7 pcs · Puch OEM number: 349.4.10.249.1

M22 sealing ring 22.5/26.6/1.5 Fiber

Ø inside: 22 mm · Ø outside: 27 mm · Thickness: 1.5 mm · Material: Fiber · Surface: raw

M8 sealing ring Fiber

Place of use: Carburetor · Place of use: Motor housing · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Thickness: 1 mm · Material: Fiber · Surface: raw · Area of application: Standard · Puch OEM number: 26482

Screw M6x45 cylinder head slot galvanized

Material: Steel · Surface: galvanized (blue) · Nominal diameter (thread): 6 mm · Drive: Slot · Screw head: Lens head · Thread type: M6x1 (standard thread) · Ø External head: 9.8 mm · Thread length: 45 mm · Total length: 48.4 mm · Strength class: 4.8

Clutch cover CNC | Puch Z50

Material: Aluminum · Color: silver · Total length: 175 mm · Width: 53 mm · Height: 120 mm
