Piaggio cylinder

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Ø outside: 12 mm · Material: Spring steel · Number of sensors / lugs: 2 pcs · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

Needle bearing 10/13/14.2 Piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Width: 14.2 mm · Ø outside: 13 mm · Ø inside: 10 mm · Dimension needle bearing: 10/13 x 14.2

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Place of use: Cylinder base · Material: Oiled paper

Airsal piston pin lock Ø 12 mm (single)

Material: Spring steel · Manufacturer: Airsal · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

Meteor piston pin lock Ø 10 mm (double)

Material: Spring steel · Manufacturer: Meteor · Ø outside: 10 mm · Number of sensors / lugs: 2 pcs

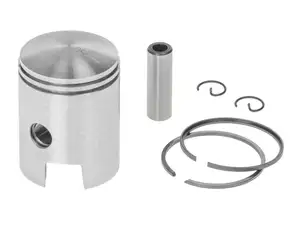

GPO piston 38.4 mm (10 mm KoBo) oversize | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38 mm · Manufacturer: GPO · Ø outside piston (A): 38.35 mm · Compression height (C): 26 mm · Curvature (D): 3.7 mm · Total piston height (E): 51.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 75 g

GPO piston stopper M14x1.25

Material: Steel · Total length: 83 mm · Manufacturer: GPO · Surface: galvanized (blue) · Diameter: 12 mm · Diameter: 16 mm · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 17 mm · Number of components: 1 pcs · Area of application: Special tool

swiing® revival needle roller bearing 12/15/14.2 original

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Width: 14.2 mm · Manufacturer: swiing® revival parts · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001

DR 43 x 1.2 piston rings (pair) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: DR Racing Parts · Height: 1.2 mm · Piston ring impact: Internal fuse (IS)

DR piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 42.9 mm · Compression height (C): 26.1 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 82 g

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Number of components: 7 pcs · Area of application: (Dis)assembly tool

GPO piston 38.2 mm 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.2 mm · Manufacturer: GPO · Ø outside piston (A): 38.16 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 65 g

Polini gasket set Speed Engine engine case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Number of components: 3 pcs · Area of application: Tuning

Malossi piston rings Ø 43 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Malossi · Thick piston ring: 1.75 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Internal fuse (IS)

DR 43 mm piston (12 mm KoBo) Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 42.9 mm · Compression height (C): 26.1 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 83 g

Athena gasket set 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø cylinder: 43 mm · Number of components: 2 pcs · Decompressor: Yes · Area of application: Tuning

Polini cylinder base gasket 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.2 mm · Manufacturer: Polini · Place of use: Cylinder base · Ø cylinder: 43 mm · Area of application: Racing

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø cylinder: 38.4 mm · Number of components: 2 pcs · Decompressor: Yes · Area of application: Tuning

Polini gasket set 46 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Ø cylinder: 46 mm · Number of components: 2 pcs · Decompressor: Yes · Area of application: Tuning

Polini cylinder head for 44 - 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Ø cylinder: 44 - 46 mm · Area of application: Racing

Polini piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Polini · Ø outside piston (A): 45.94 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Weight piston kit: 93 g

Polini 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Polini · Ø outside piston (A): 42.92 mm · Compression height (C): 26.55 mm · Curvature (D): 2.5 mm · Total piston height (E): 50.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 84 g

Polini 46 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Polini · Ø outside piston (A): 45.94 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm

Connecting rod bushing crankshaft 12 mm | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Brass · Ø piston pin (B): 12 mm · Dimension needle bearing: 12 / 14 x 12 mm (axe 12) · Area of application: Standard

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio Ciao

Manufacturer: Olympia · Material: Aluminum · Ø cylinder: 41 - 43 mm · Width: 78 mm · Height: 60 mm · Total length: 120 mm · Candle thread: short · Number of fixing points: 3 pcs · Area of application: Racing · Area of application: Tuning

38 mm Cylinder Head | Piaggio Ciao, Bravo, Boxer

Ø cylinder: 38 mm · Width: 78 mm · Height: 62 mm · Total length: 120 mm · Decompressor: Yes

Olympia cylinder head for 41 - 43 mm cylinder | Piaggio SI

Manufacturer: Olympia · Ø cylinder: 41 - 43 mm · Area of application: Racing

Meteor piston ring 39.2 x 1.5 (FS)

Nominal diameter: 39 mm · Manufacturer: Meteor · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Meteor piston ring 38.2 x 1.5 (FS)

Nominal diameter: 38.2 mm · Manufacturer: Meteor · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Meteor piston ring 38.4 x 1.5 (FS)

Nominal diameter: 38.4 mm · Manufacturer: Meteor · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Meteor piston ring 38.8 x 1.5 (FS)

Nominal diameter: 38.8 mm · Manufacturer: Meteor · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Malossi piston 46.5 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46.5 mm · Manufacturer: Malossi · Ø outside piston (A): 46.4 mm · Compression height (C): 25.9 mm · Curvature (D): 2.4 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Weight piston kit: 101 g

Meteor piston ring 38.6 x 1.5 (FS)

Nominal diameter: 38.6 mm · Manufacturer: Meteor · Thick piston ring: 1.6 mm · Piston ring mold: Rectangular ring · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Malossi cylinder head for 41 - 43 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 41 - 43 mm · Width: 87 mm · Height: 60 mm · Total length: 122 mm · Candle thread: long · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing

Malossi cylinder head for 44 - 47 mm cylinder | Piaggio Ciao, Bravo 1, Boxer

Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Ø cylinder: 44 - 47 mm · Width: 87 mm · Height: 60 mm · Total length: 122 mm · Candle thread: long · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No · Area of application: Racing

Polini cylinder head for 41 - 43 mm cylinder | Piaggio SI

Manufacturer: Polini · Ø cylinder: 41 - 43 mm · Area of application: Racing

Malossi piston rings Ø 46.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46.5 mm · Manufacturer: Malossi · Height: 1.5 mm · Piston ring impact: Internal fuse (IS)

Olympia / DR piston rings 38.4x1.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Olympia · Height: 1.5 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

Gasket cylinder head 43 mm aluminum | Piaggio Ciao, SI, Bravo Boxer

Thickness: 0.4 mm · Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 41 - 43 mm

Meteor piston pin Ø 12 mm (length: 31 - 40 mm)

Manufacturer: Meteor · Material: Steel · Surface: Hardened · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Ø piston pin (B): 12 mm · Pony OEM number: A1112 · Sachs OEM no.: 0216 003 105

Olympia piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Olympia · Ø outside piston (A): 38.34 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Weight piston kit: 76 g

Olympia 38.4 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Olympia · Ø outside piston (A): 38.34 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm

Olympia 43 mm piston (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Olympia · Ø outside piston (A): 42.91 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Weight piston kit: 85 g

Olympia 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Olympia · Ø outside piston (A): 42.91 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Weight piston kit: 99 g

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Weight piston kit: 78 g

Polini piston ring 46 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Polini · Height: 1.5 mm · Piston ring impact: Flank safety device (FS) · Area of application: Racing

Polini piston ring 43 x 1.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 43 mm · Manufacturer: Polini · Height: 1.5 mm · Piston ring impact: Flank safety device (FS)

Polini gasket cylinder head 43 mm | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.5 mm · Manufacturer: Polini · Material: Aluminum · Place of use: Cylinder head · Ø cylinder: 43 mm

Malossi cylinder head for 41 - 43 mm cylinder | Piaggio SI, Bravo

Manufacturer: Malossi · Material: Aluminum · Ø cylinder: 41 - 43 mm · Width: 94 mm · Height: 52 mm · Total length: 134 mm · Number of fixing points: 3 pcs · Hole pattern [mm]: 35 x 55 · Candle thread: short · Decompressor: Yes · Camouflaged: No · Area of application: Racing

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: Athena · Ø outside piston (A): 38.355 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Weight piston kit: 80 g
