Piaggio gearbox

Sealing ring 8.3/13.7/1 oil filler plug / oil drain plug | Piaggio Ciao, SI, Bravo, Boxer

Material: Fiber · Place of use: Motor housing · Manufacturer: Piaggio · Ø inside: 8.3 mm · Ø outside: 13.7 mm · Thickness: 1 mm · Piaggio OEM number: 000397, 485703

swiing® revival gasket set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Material: NBR · Material: Oiled paper · Material: Sealing carton · Manufacturer: swiing® revival parts · Gearbox type: Vario

swiing® ingenious Rear Wheel Nut M14x1.5 SW19 Stainless Steel | Piaggio Ciao, SI, Bravo, Boxer

Drive: External hexagon · Manufacturer: swiing® ingenious parts · Height: 24 mm · Material: Chrome steel (colloquially known as stainless steel) · Thread type: MF14x1.5 (fine pitch thread) · Nominal diameter (thread): 14 mm · Width across flats: 19 mm

Spacer 16.4/24/0.6 clutch mono / gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: blank / oiled · Nominal diameter inside: 16 mm · Ø inside: 16.4 mm · Ø outside: 24 mm · Thickness: 0.6 mm

swiing® revival screw set engine / gearbox galvanized | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue)

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Original · Area of application: Standard · Gearbox type: Vario

swiing® revival nut left-hand thread M12x1.25 splined gearbox | Piaggio Ciao C9, P

Drive: External hexagon · Manufacturer: swiing® revival parts · Height: 7.8 mm · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon flat nut · Thread type: MF12x1.25 (fine pitch thread) · Nominal diameter (thread): 12 mm · Thread depth: 7.8 mm · Width across flats: 21 mm · Piaggio OEM number: 5.20110

CIF gear wheel 36 teeth Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Gearbox type: Vario · Translation: 8.92 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Toothing type: straight toothed · Number of teeth: 36 pcs

CIF gearwheel 23 teeth Mono / Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Ø outside: 32 mm · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Toothing type: helical toothed · Number of teeth: 23 pcs

Olympia freewheel hub galvanized | Piaggio Ciao, SI, Bravo, Boxer

Drive: External hexagon · Manufacturer: Olympia · Thread type: MF14x1.5 (fine pitch thread)

swiing® revival screw set engine / gearbox Inox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

Pinasco Variomatik "2.0 Offroad" Transmission Case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Pinasco · Material: Aluminum · Gearbox type: Vario · Area of application: Tuning

CUBE 6202 2RS ball bearing 15/35/11 triangular bearing plate | Piaggio Ciao, SI, Bravo, Grillo

Bearing type: Deep groove ball bearing · Stock number: 6202 · Ø inside: 15 mm · Ø outside: 35 mm · Width: 11 mm · Manufacturer: CUBE · Ball bearing closed: Yes · Dust protection type: 2RS - NBR contact seal on both sides

Koyo needle bearing set Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1312 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio OEM number: 103613 · Piaggio OEM number: 103614 · Piaggio OEM number: 103689 · Piaggio OEM number: 131509

SKF needle roller bearing 13/19/12 Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: SKF · Width: 12 mm · Piaggio OEM number: 103614

Koyo needle bearing set MG3 & MG4 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo

Koyo needle bearing 13/19/12 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1312 · Dimension needle bearing: 13/19 x 12 · Ø inside: 13 mm · Ø outside: 19 mm · Manufacturer: Koyo · Width: 12 mm · Piaggio OEM number: 103614

INA needle roller bearing 17/23/12 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: HK1712 · Dimension needle bearing: 17/23 x 12 · Ø inside: 17 mm · Ø outside: 23 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103696

Koyo needle bearing set MG2 Mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Stock number: BK0912 · Stock number: BK1512 · Stock number: HK1712 · Stock number: HK2012 · Manufacturer: Koyo · Manufacturer: Piaggio · Piaggio OEM number: 103613 · Piaggio OEM number: 103689 · Piaggio OEM number: 103696 · Piaggio OEM number: 131509

INA Needle roller bearing 15/21/12 Gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Bearing cage: Sheet steel cage · Stock number: HK1512 · Dimension needle bearing: 15/21 x 12 · Ø inside: 15 mm · Ø outside: 21 mm · Manufacturer: INA · Width: 12 mm · Piaggio OEM number: 103689

Malossi gearbox set Vario | Piaggio Ciao, SI, Bravo, Boxer

INA needle roller bearing 9/13/12 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Stock number: BK0912 · Dimension needle bearing: 9/13 x 12 · Ø inside: 9 mm · Ø outside: 13 mm · Manufacturer: INA · Width: 12 mm

Nut Polini Vario input shaft | Piaggio Ciao, SI, Bravo, Boxer

Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Drive: External hexagon · Nominal diameter (thread): 10 mm · Height: 13 mm · Width across flats: 15 mm

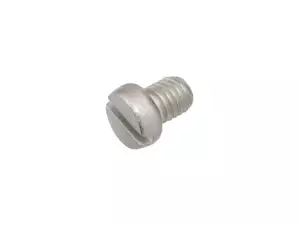

Oil filler plug M8x10 Inox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 8 mm · Drive: Slot · Thread length: 10 mm · Piaggio OEM number: 030280

Rear brake pad fuse | Piaggio Ciao, SI, Bravo, Boxer

Fuse type: Inside · Place of use: Brake · Material: Steel · Surface: galvanized (blue) · Piaggio OEM number: 103112

CIF gasket set engine / gearbox with shaft seals Vario | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Gear hub · Manufacturer: CIF · Gearbox type: Vario · Area of application: Standard · Piaggio OEM number: 008766 · Piaggio OEM number: 008771 · Piaggio OEM number: 112967 · Piaggio OEM number: 131511 · Piaggio OEM number: 182519 · Piaggio OEM number: 240222 · Piaggio OEM number: 480464 · Piaggio OEM number: 482552

CIF gearwheel 29/10 teeth Mono / Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Translation: 10.44 / 1 · Translation: 10.73 / 1 · Translation: 13.05 / 1 · Toothing type: helical toothed · Toothing type: straight toothed · Number of teeth: 10 pcs · Number of teeth: 29 pcs

Oil seal FPM 13/22/4 A Gearbox Vario | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Housing cover · Temperature resistance (min.): -30 - 200 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Material: FPM / FKM (colloquially known as Viton) · Width: 4 mm · Ø inside: 13 mm · Ø outside: 22 mm · Piaggio OEM number: 240222

Evok 11:1 Vario Gear Set | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Translation: 10.73 / 1 · Gearbox type: Vario

Evok Gear Set 9.5:1 Vario | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Surface: Hardened · Material: Steel · Toothing type: helical toothed · Translation: 9.49 / 1 · Gearbox type: Vario

swiing® revival spacer set MG2 & MG3 Mono transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 103058 · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514

Spacer washer 14/24/1 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 14 mm · Manufacturer: Piaggio · Ø inside: 14 mm · Ø outside: 24 mm · Material: Steel · Surface: blank / oiled · Thickness: 1 mm

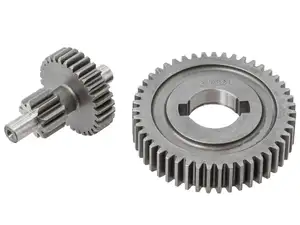

Malossi HTQ gearbox conversion kit reinforced version Vario | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Malossi · Material: Steel · Gearbox type: Vario · Toothing type: straight toothed · Area of application: Cross · Area of application: Performance · Area of application: Tuning

Polini gearbox housing EVO Variomatic | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Surface: varnished · Gearbox type: Vario · Area of application: High End · Area of application: Racing · Area of application: Tuning

swiing® revival gasket set mono gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: NBR · Material: Oiled paper · Material: Sealing carton · Gearbox type: Mono

Evok Gear Sprocket, 37 Teeth, Mono/Vario Transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Ø inside: 23.1 mm · Ø outside: 69.4 mm · Material: Steel · Surface: Hardened · Gearbox type: Mono · Gearbox type: Vario · Translation: 8.41 / 1 · Translation: 9.17 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Toothing type: straight toothed · Number of teeth: 37 pcs · Thickness: 10 mm · Piaggio OEM number: 178697

swiing® revival gasket set engine, cylinder & gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Number of components: 3 pcs · Material: Oiled paper · Thickness: 0.3 mm

CIF revision set gearbox Mono MG2 | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Gearbox type: Mono · Area of application: Standard

swiing® revival spacer set VG4 & VG5 Vario transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

Polini shim set Vario gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Steel · Surface: Hardened · Surface: blank / oiled · Piaggio OEM number: 131512 · Piaggio OEM number: 131513 · Piaggio OEM number: 131514 · Piaggio OEM number: 175747 · Piaggio OEM number: 175751

Spacer 10/18/1 Gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 10 mm · Manufacturer: Piaggio · Ø inside: 10 mm · Ø outside: 18 mm · Material: Steel · Surface: blank / oiled · Thickness: 1 mm

swiing® revival thrust washer 15/28/0.2 gearbox | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Ø inside: 15 mm · Ø outside: 28 mm · Material: Steel · Surface: hardened & ground · Thickness: 0.2 mm

Corteco oil seal set transmission Vario & torque converter | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Corteco

Gear wheel 74 teeth mono gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Material: Steel · Surface: Hardened · Gearbox type: Mono · Toothing type: straight toothed · Number of teeth: 74 pcs

Evok Drive Shaft, 10 Teeth, Vario Transmission | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EVOK · Ø shaft: 13 mm · Material: Steel · Surface: Hardened · Translation: 9.23 / 1 · Translation: 9.49 / 1 · Translation: 10.44 / 1 · Translation: 10.63 / 1 · Translation: 10.73 / 1 · Translation: 11.92 / 1 · Translation: 12.24 / 1 · Translation: 13.05 / 1 · Translation: 14.82 / 1 · Translation: 17.63 / 1 · Toothing type: helical toothed · Number of teeth: 10 pcs · Total length: 135 mm · Thread type: M8x1.25 (standard thread) · Piaggio OEM number: 176447

Polini gasket gearbox EVO | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Gearbox cover · Manufacturer: Polini · Material: Aluminum · Material: Composite materials · Material: Oiled paper · Gearbox type: Vario · Thickness: 0.45 mm

Oil seal NBR 22/35/6 A splined gearbox original | Piaggio Ciao

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A - With rubberized outer part / one sealing lip. · Manufacturer: Piaggio · Ø inside: 22 mm · Ø outside: 35 mm · Width: 6 mm · Material: NBR

Needle bearing 9/13/12 gearbox original | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle box · Dimension needle bearing: 9/13 x 12 · Manufacturer: Piaggio · Ø inside: 9 mm · Ø outside: 13 mm · Width: 12 mm

Brake lever rear wheel NOS | Piaggio Ciao, SI, Bravo, Boxer

Color: silver · Manufacturer: Piaggio · Material: Steel · Surface: galvanized (blue) · Piaggio OEM number: 178339

Transmission shaft 11 teeth variator NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Ø shaft: 13 mm · Material: Steel · Toothing type: helical toothed · Number of teeth: 11 pcs · Total length: 137 mm · Area of application: Original
