Clutch springs suitable for the KTM SX50 clutch for Puch Maxi mopeds with E50 engine.
Specially developed for racing purposes. Designed for the highest loads.

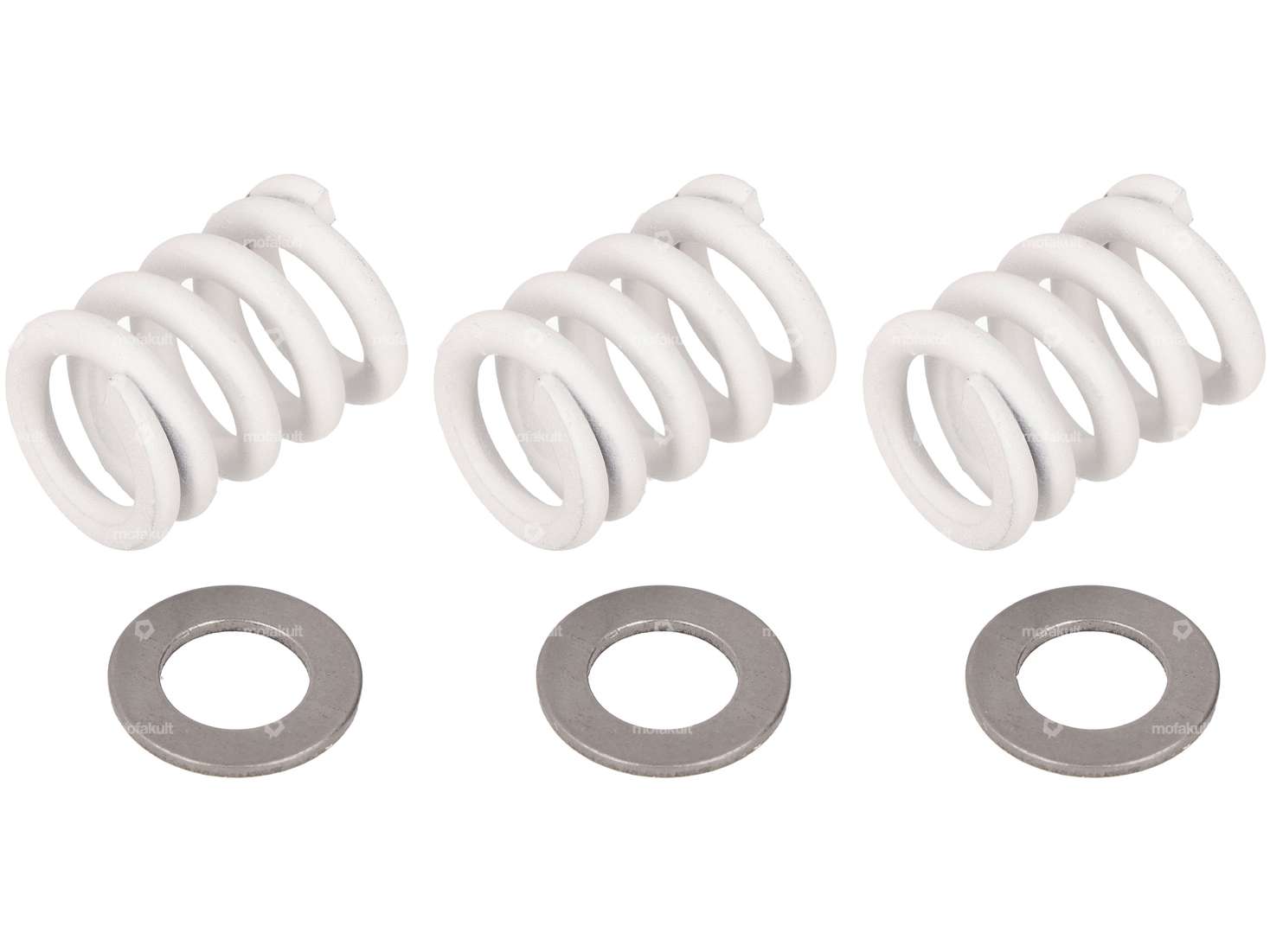

The set consists of 3 springs and 3 washers.
The clutches engage at approx. 5000 - 7000 rpm, depending on the oil, etc.
In order to change the clutch engagement speed, the enclosed shims can be installed. This increases the clutch engagement speed by approx. 500 rpm.
The springs are made of stainless steel and can withstand temperatures of up to 240 degrees.
You can find other spring strengths in our range.
Details
| Spring design | Pressure spring |
| Manufacturer | MBR |
| Area of application | Racing |
| Material | Spring steel |
| Color | white |
| Number of components | 6 pcs |
Suitable for the following models
| Puch | E50 |
