logo_meteor-piston-mk

For: Sachs

25396

Meteor piston 38 mm type E | Sachs 503 ADV

EUR 66.10

Incl. 21% VAT.

Product description

38 mm piston with a 1.5 mm rectangular piston ring with internal circlip (IS) suitable for Sachs 503 ADV engines.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the images.

Tolerance E

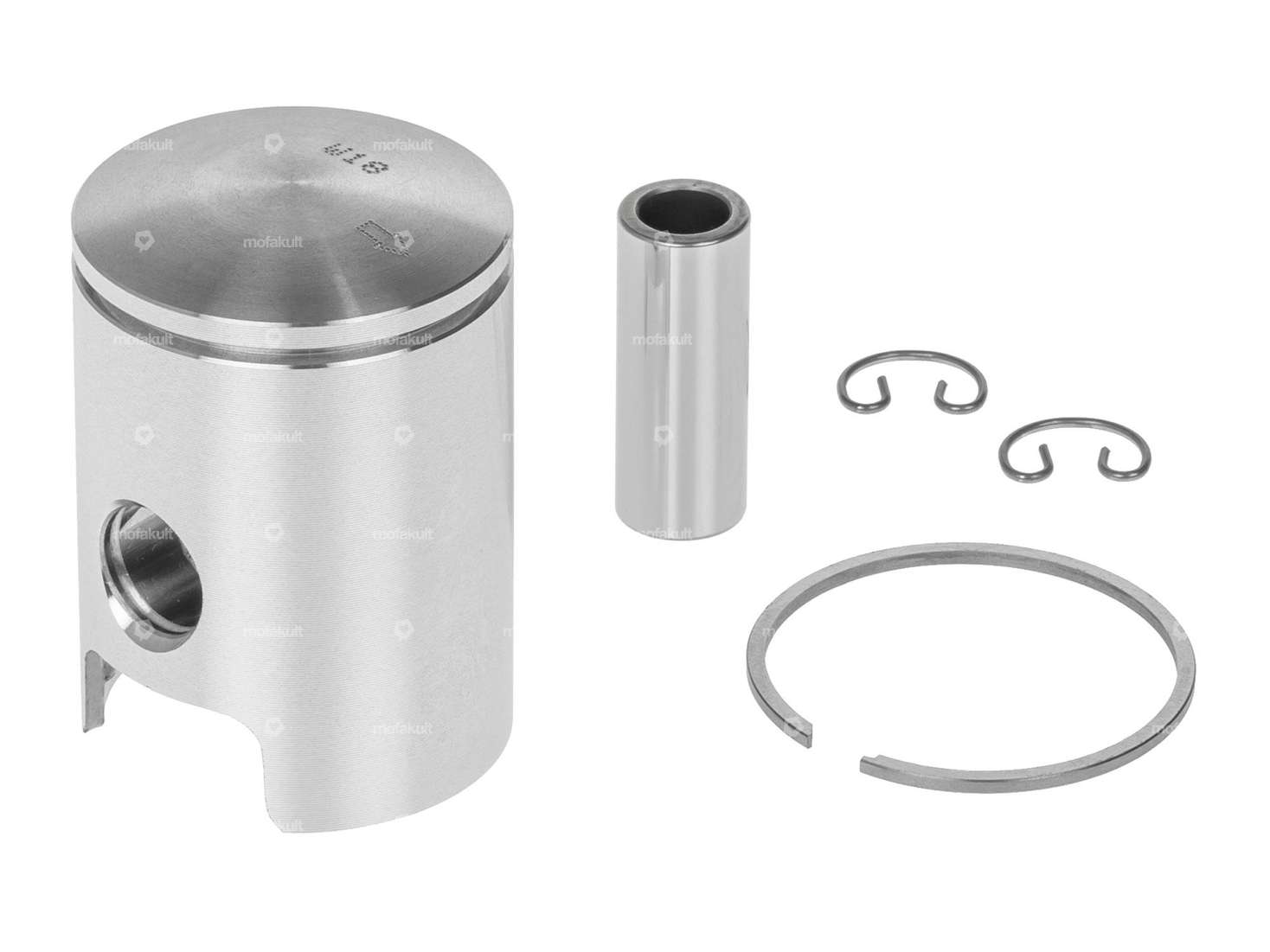

The piston kit contains piston pins, piston clips and piston rings.

You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.

Original Sachs spare part number: A2270E

Quality product from the Italian manufacturer Meteor.

ManufacturerMeteor
Ø outside piston (A)38 mm
Compression height (C)28 mm
Curvature (D)3 mm
Total piston height (E)54 mm
Number of piston rings (F)1 pcs
Nominal diameter38 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance groupE
Piston weight76 g
Sachs

503 - ADV
