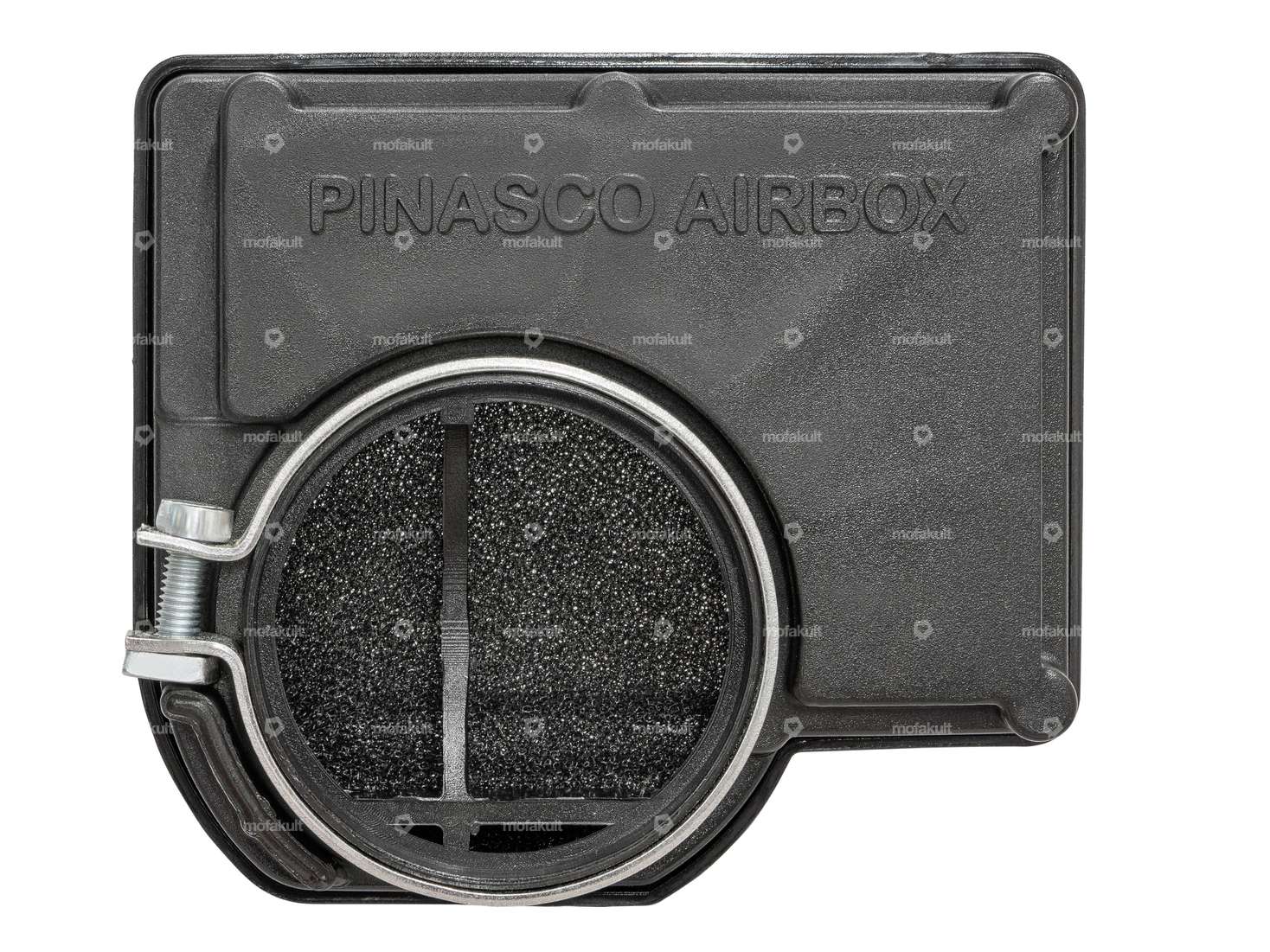

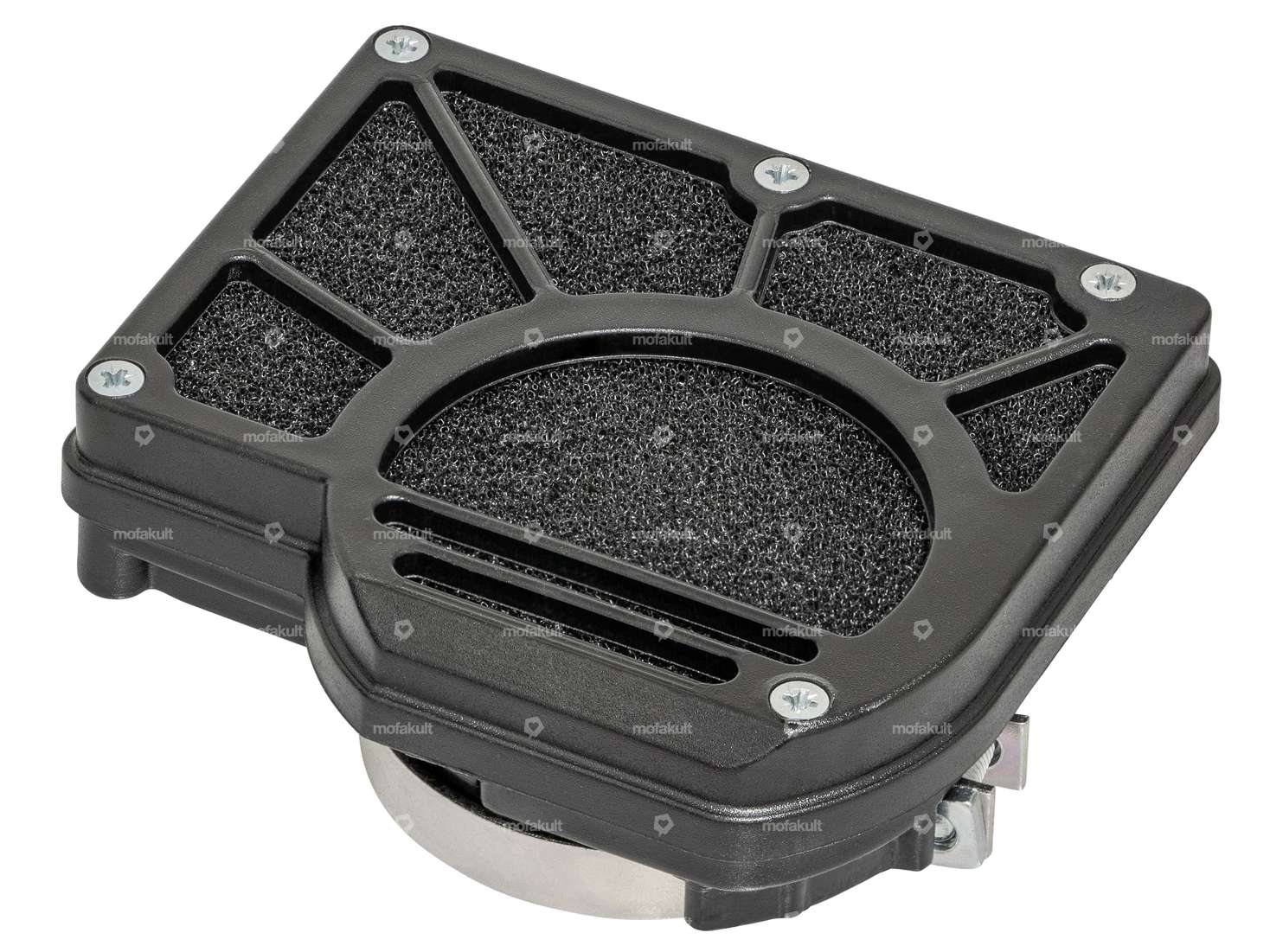

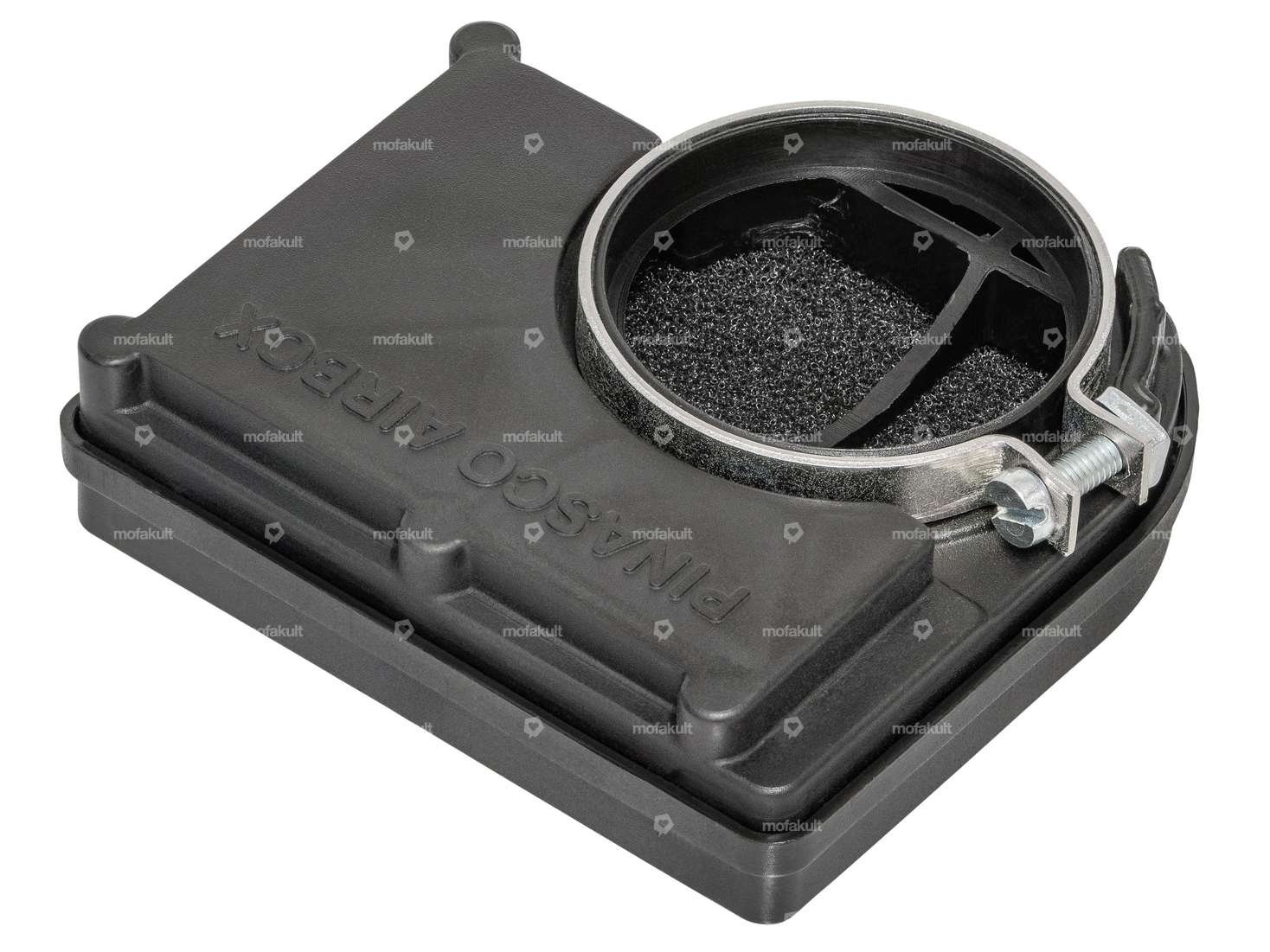

Air filter box from Pinasco suitable for your Piaggio Ciao, Si, Bravo and Boxer moped / moped with Dell'Orto SHA type 3 carburetor.
Our tests show that compared to the Malossi or Polini filter, significantly more power can be extracted (but at the expense of noise).
The special design and the bulkheads in the filter box calm the air and direct it evenly into the carburetor. This results in up to 30% better atomization and thus better performance, especially at lower engine speeds.
Includes air filter clamp with screw.
The air filter mat should be moistened with air filter oil before use. The air filter can be disassembled for cleaning.
Width: 98 mm
Height: 93 mm
Internal connection: 51 mm
External connection 53.5 mm
You can find silencers for tuning your carburetor and alternative air filters in the accessories section.
Quality product from the Italian manufacturer Pinasco.
| Manufacturer | Pinasco |
| Material | Plastic, Foam |
| Width | 98 mm |
| Ø outside | 53.5 mm |
| Color | black |
| Filter type | Box, Foam |
| Height | 93 mm |
| Ø Internal connection | 51 mm |
| Mounting type | Plug connection clamped |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
