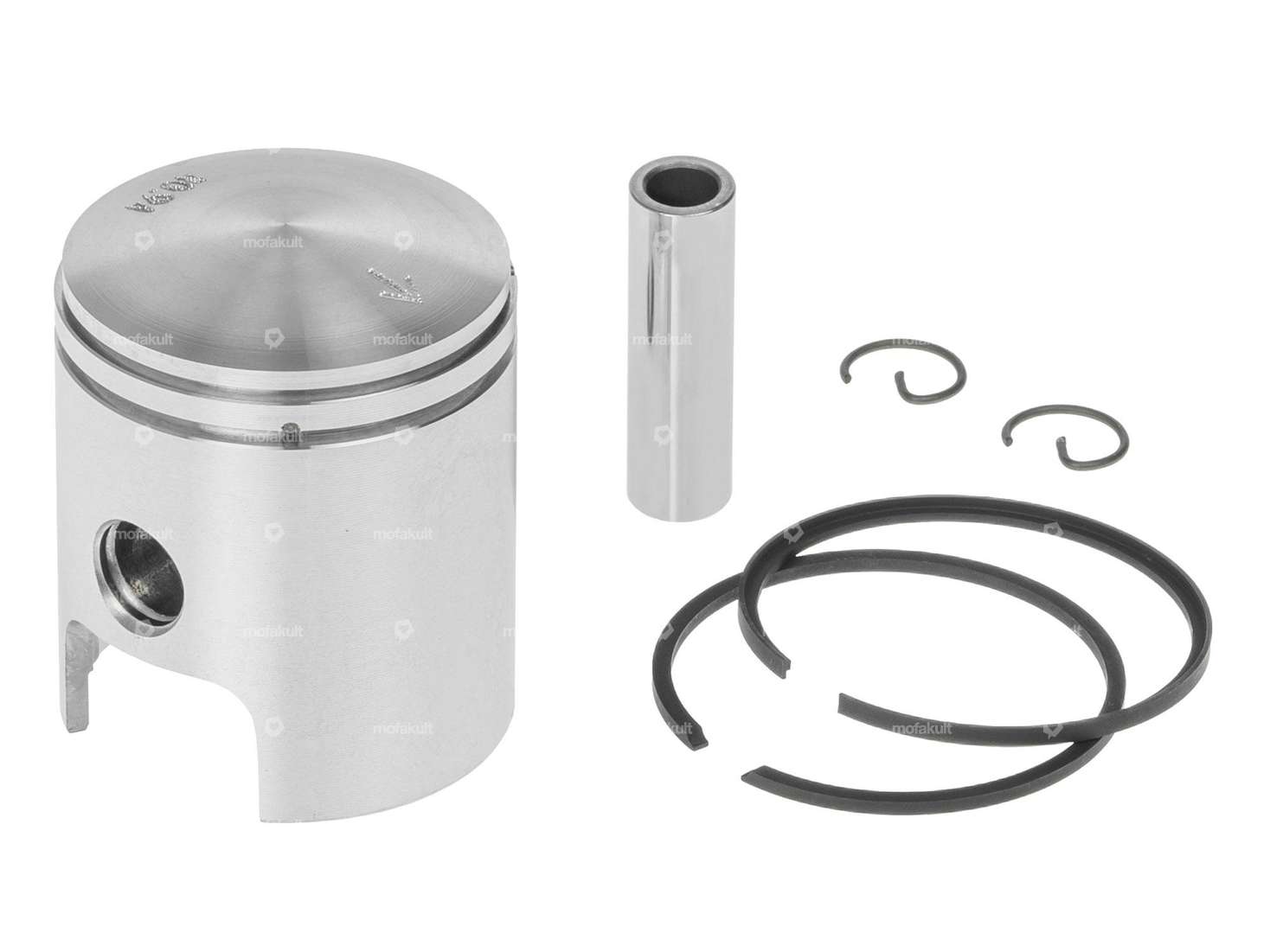

41.0 mm replacement piston with a 2 mm L-shaped piston ring with internal circlip (IS) and a 1.5 mm rectangular piston ring with flank circlip (FS) for the blown 41 mm cylinder on your Puch X30 Velux moped / moped and M50, MS50, VS50, DS50, VZ50 small motorcycle.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Nominal diameter | 41 mm |
| Ø outside piston (A) | 40.94 mm |
| Compression height (C) | 23.25 mm |
| Curvature (D) | 3.65 mm |
| Total piston height (E) | 49.35 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Ø piston pin (B) | 10 mm |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
| Piston weight | 85 g |
Suitable for the following models
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
