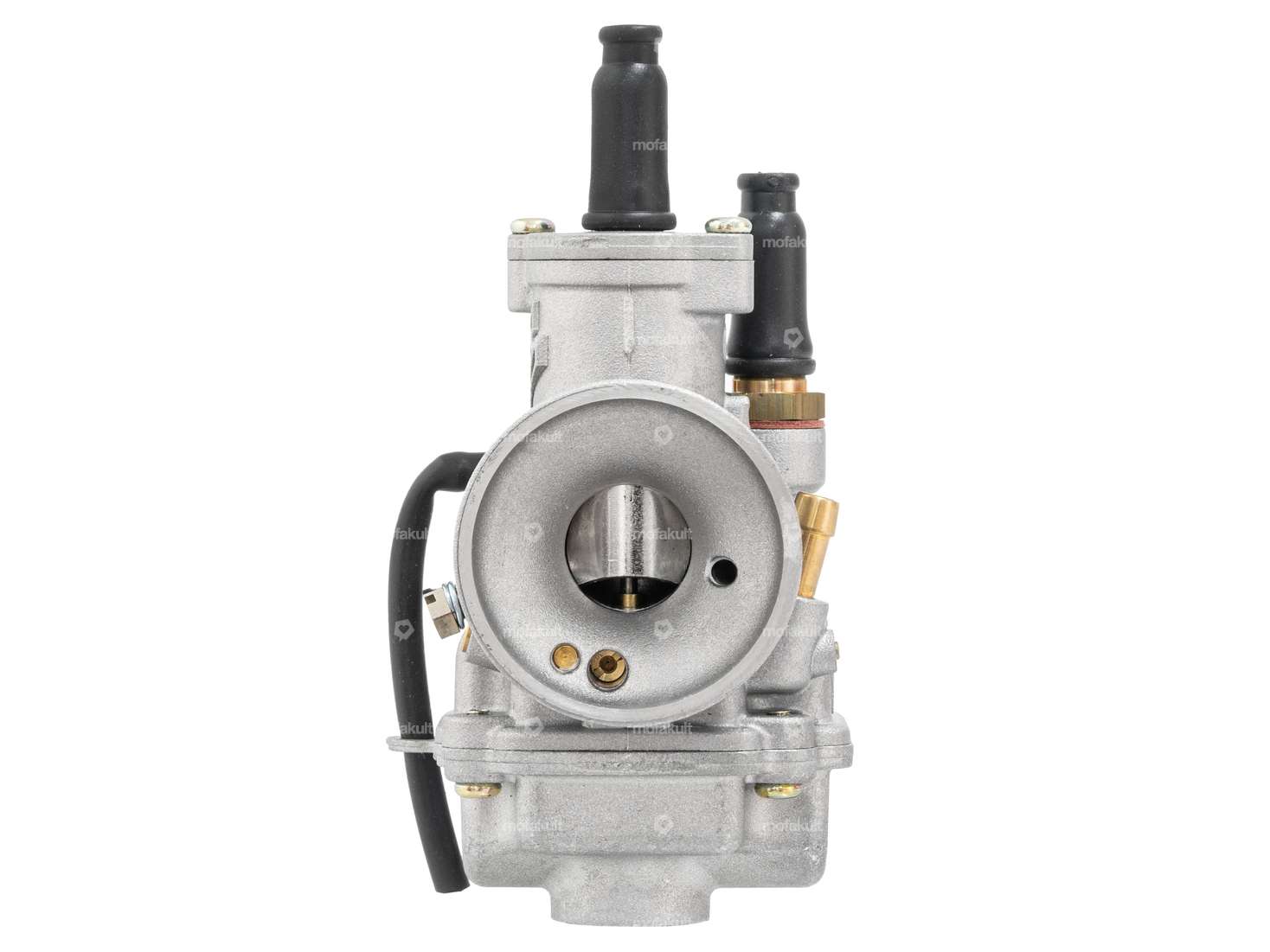

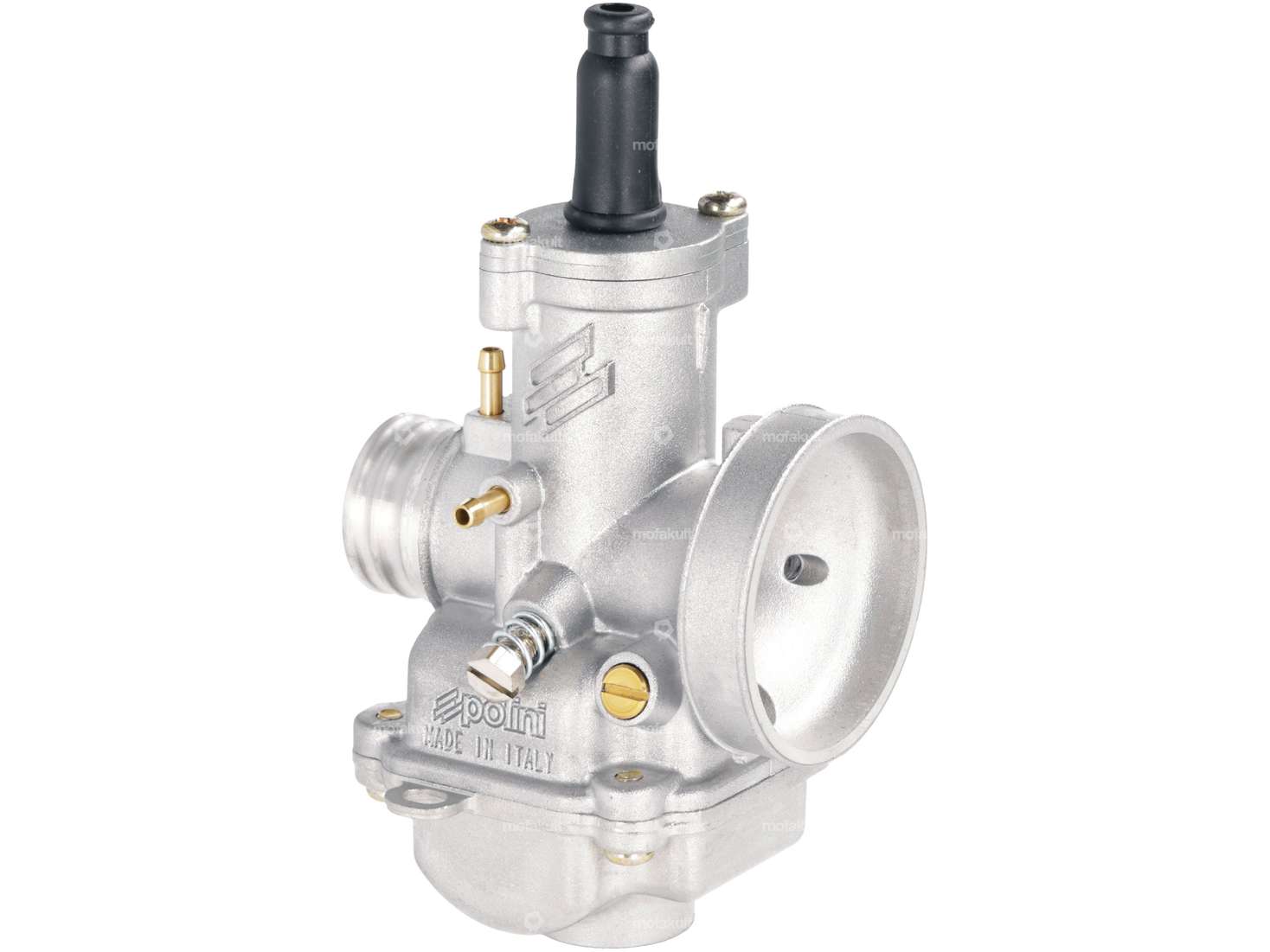

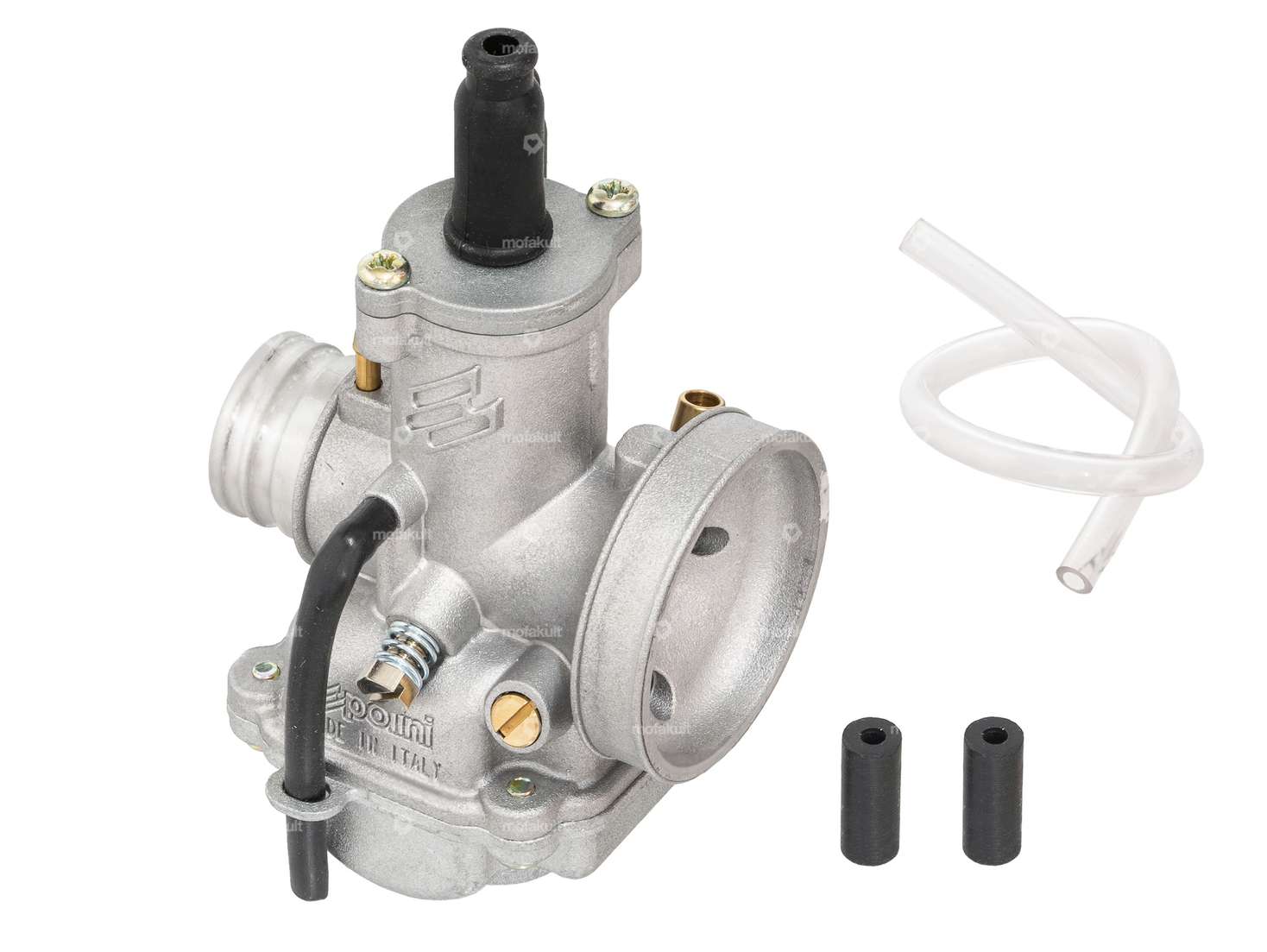

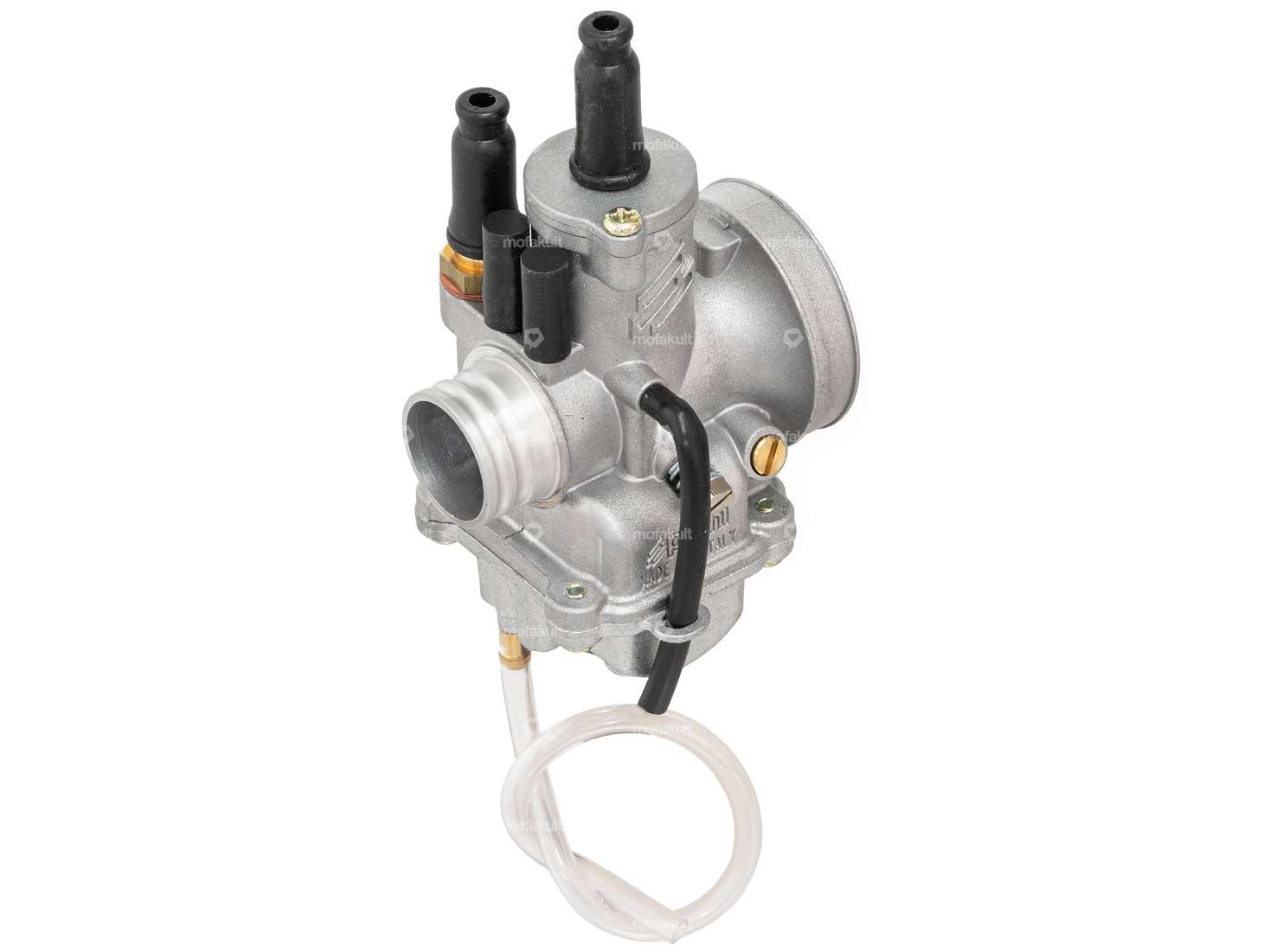

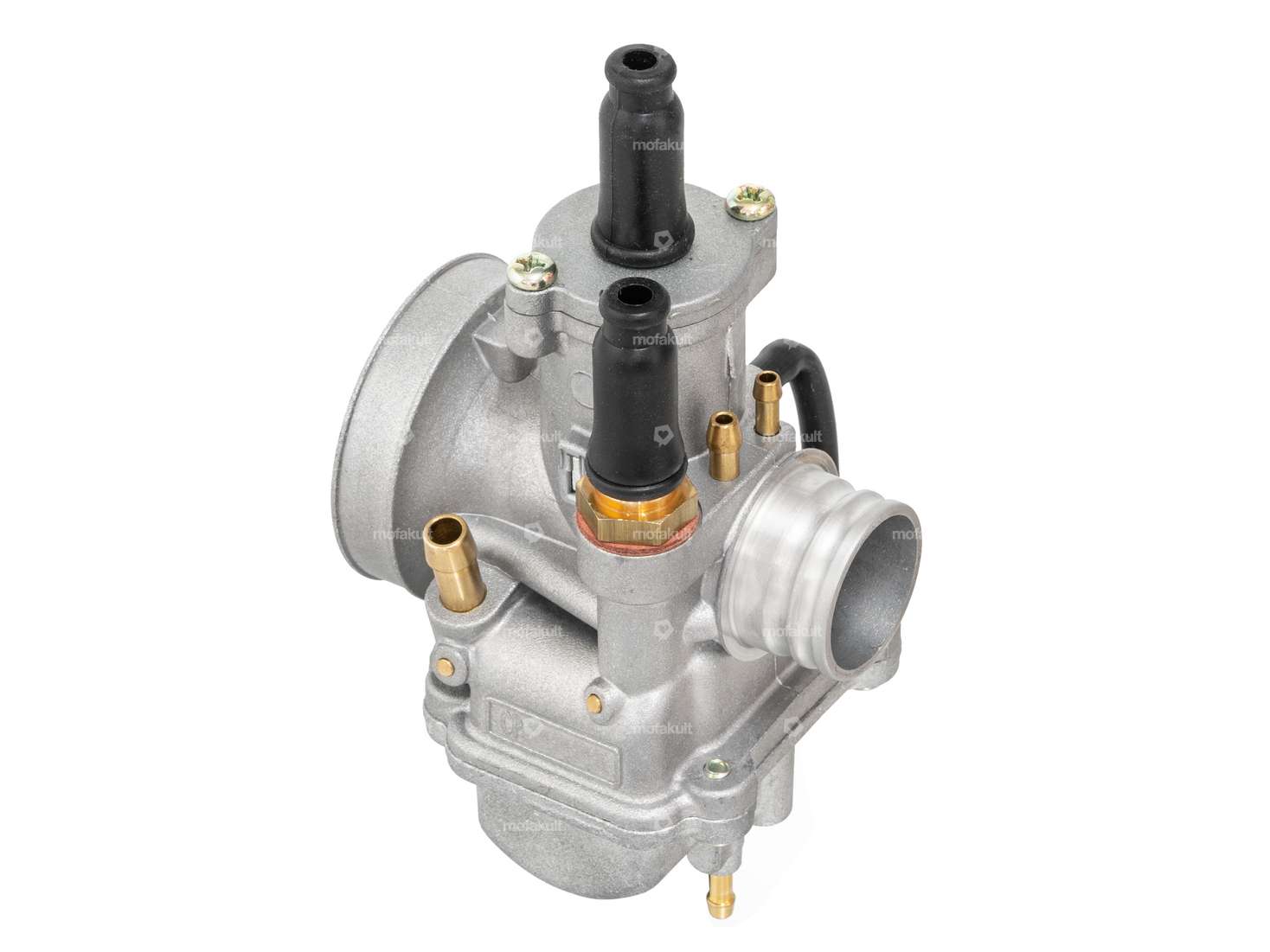

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify the tuning of the carburetor and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
A rubber sleeve (item no. 15414) is used to attach the carburetor to the intake manifold.
Connection diameter of intake manifold: 25 mm
Connection diameter of air filter: 46 mm
Main diameter: 90
Side diameter: 40
Quality product from the Italian manufacturer Polini.
| Nominal diameter | 19 mm |
| Manufacturer | Polini |
| Component group Carburetor | Carburetor complete |
| Carburetor type | CP |
| Choke control | Cable choke |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 90 |
| Area of application | Tuning |
| Mounting type | Plug connection |
| Ø Air filter connection | 46 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Size of secondary nozzle | 40 |
Ratings
Moped fans also bought
Airsal intake manifold 46 / 47 mm cylinder | Puch
Manufacturer: Airsal · Material: Aluminum · Area of application: Tuning · Ø inside: 19 mm · Number of fixing points: 2 pcs · Mounting type: Screws · Ø External connection: 24 mm · Hole spacing inlet: 38 mm · Total length: 60 mm · Height flange center hole: 65 mm · Camouflaged: No · Total height: 75 mm
EUR 47.50
ESJOT sprocket 42 teeth (4/5/6 hole) Ø 98 mm cranked black
Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Color: black · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Ø inside: 98 mm · Thickness: 4.3 mm · Number of teeth: 42 pcs · Number of fixing points: 4 pcs · Number of fixing points: 5 pcs · Number of fixing points: 6 pcs · Ø mounting hole: 6.5 mm · Cranking (offset): 12 mm · Ø bolt circle: 115 mm
EUR 35.60
Polini Speed Engine engine housing electronic ignition | Piaggio Ciao, SI, Bravo, Boxer
Stock number: 6202 · Manufacturer: Polini · Material: Aluminum · Surface: sandblasted · Crankshaft stroke: 43 mm · Total length: 215 mm · Ignition type: Electronic · Width: 175 mm · Height: 104 mm · Color: silver
EUR 250.10

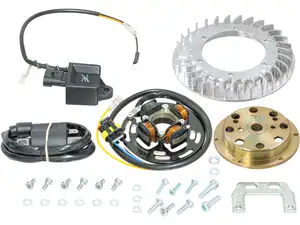

HPI racing ignition 12V with light breaker housing | Piaggio Ciao, SI, Bravo, Boxer
