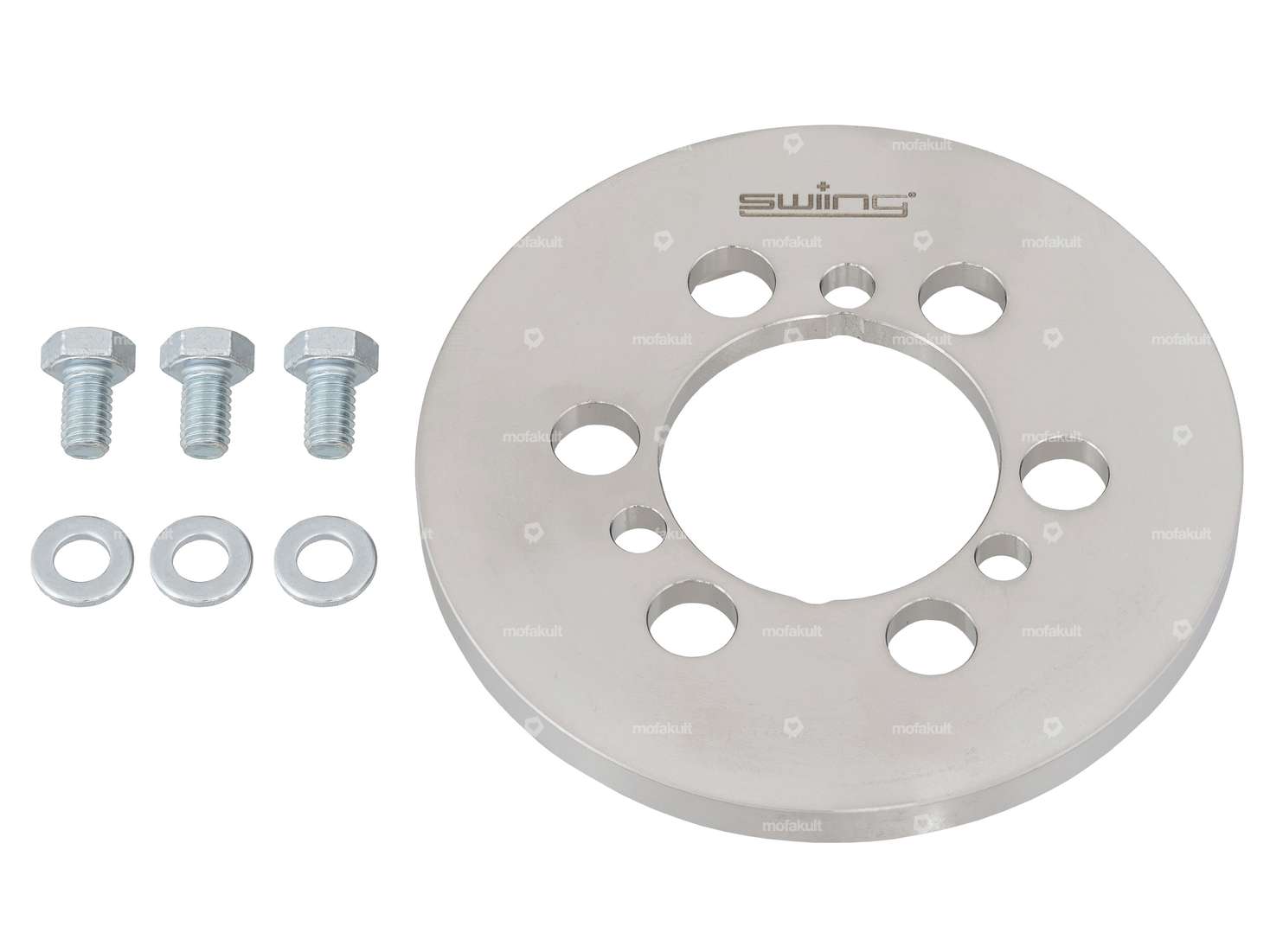

Additional flywheel mass made of stainless steel for all HPI ignitions on your moped, moped and small motorcycle.
The plate fits perfectly on the rotor and is fastened with three screws.
We recommend securing the screws with Loctite.
Weight of the plate without screws: 280 grams
Weight of the plate with screws: 300 grams.
The additional weight means that the engine runs more smoothly when stationary and starting is easier without stalling the engine, which is often the case with a lighter flywheel.

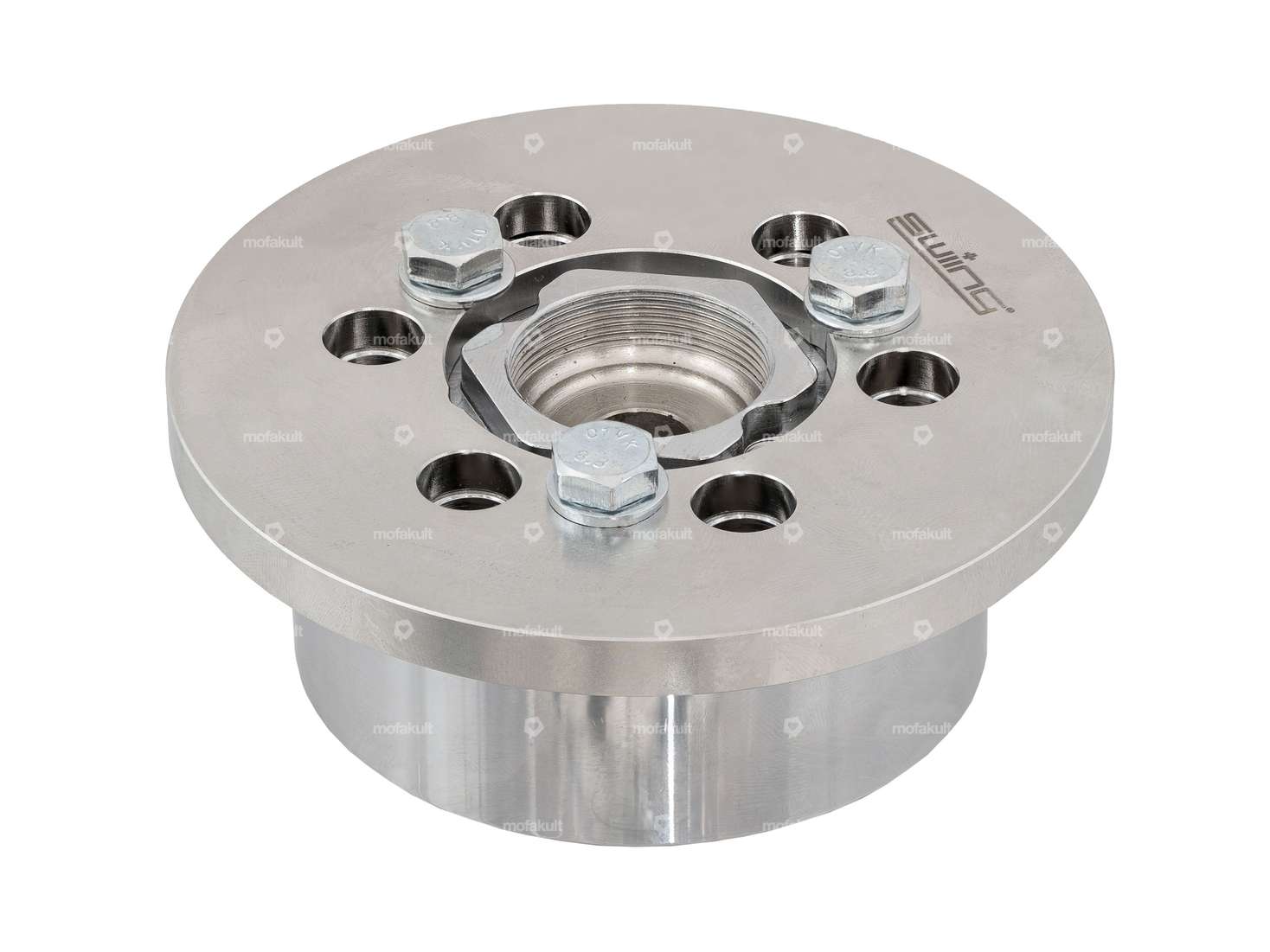

Figure 3 shows the plate in assembled condition.
Exceptional product for the highest demands of the swiing® quality brand.
| Thickness | 12.5 mm |
| Manufacturer | swiing® ingenious parts |
| Number of fixing points | 7 pcs |
| Material | Chrome steel (known as Nirosta®) |
| Surface | blank |
| Ø inside | 39 mm |
| Ø outside | 95 mm |
| Ø mounting hole | 10 mm, 5.5 mm |
| Weight | 300 g |
| Ø bolt circle | 55 mm, 50 mm |
| Area of application | Performance, Racing, High End, Tuning |
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta various Beta 521 (engine) |
| Zündapp Belmondo | |
| Zündapp | 434 Chassis (mountaineer) 278 Motor |
