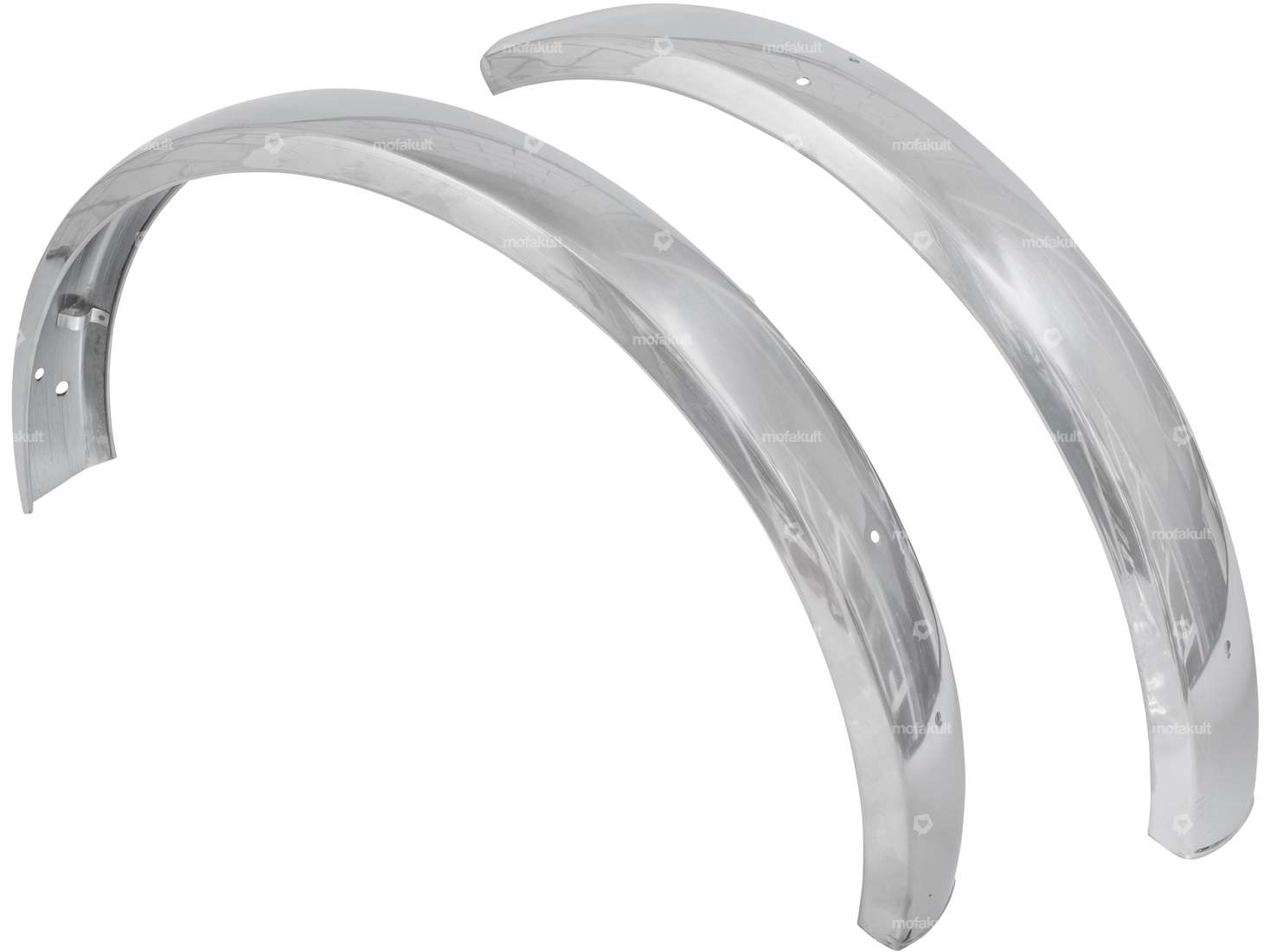

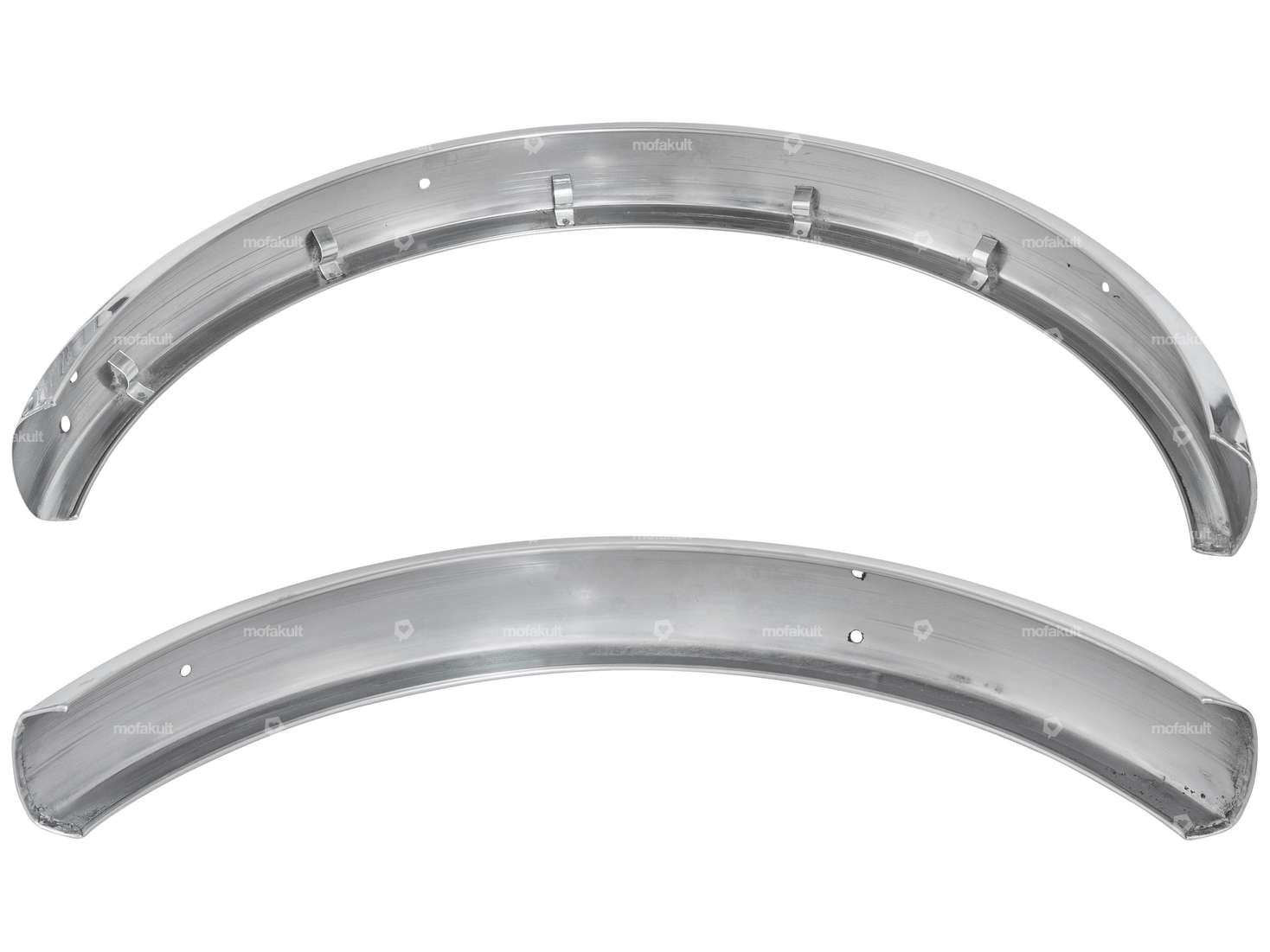

Front and rear mudguards made of stainless steel for your Zündapp Belmondo moped.
The highly polished surface ensures a first-class look and gives your moped the necessary shine.
Since the front mudguard is folded on both sides and the rear mudguard is folded at the rear, the risk of injury is significantly reduced.
The option of using an edge protector or splash guard flap on the front mudguard is also still available. Corresponding holes must still be drilled if required.
All original holes are available for mounting the lower and upper mudguard struts on the front mudguard.
The rear mudguard has all the original mounting brackets and the tabs for the cable routing.
The set consists of the following individual parts:
- swiing® revival front mudguard Art. No. 19171
- swiing® revival rear mudguard Art. No. 19168
Technical data for front mudguard:
- Material: Chrome steel (commonly known as stainless steel)
- Shape: Partly round
- Width of mudguard profile (A): 70 mm
- Height of mudguard profile (B): 25 mm
- Ends: Folded closed on both sides
- Material: Chrome steel (colloquially known as stainless steel), highly polished
- Total height from contact surface to top edge (C): 158 mm
- Total length over ends (D): 525 mm
- Circumference (E): 638 mm
Technical data rear mudguard:
- Material: Chrome steel (colloquially known as stainless steel)
- Shape: part-round
- Width of mudguard profile (A): 70 mm
- Height of mudguard profile (B): 25 mm
- Endings: front side not seamed / rear side closed seamed
- Material: Chrome steel (colloquially known as Nirosta), highly polished
- Total height from support surface to top edge (C): 305 mm
- Total length over ends (D): 595 mm
- Circumference (E): 950 mm
When you buy this complete set, there are whopping percentages off the retail price of the individual parts.
Other parts for your wheel fairing, such as stainless steel polish or struts, can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Wheel size: 17 " · Folding the ends: closed folded · Shape of the mudguard: partly round · Total length over ends: 525 mm · Scope: 638 mm · Wide mudguard profile: 69 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 157 mm · Mounting type: Nuts & bolts
Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Surface: polished · Color: Chrome · Wheel size: 17 " · Folding the ends: not folded, closed folded · Shape of the mudguard: partly round · Total length over ends: 595 mm · Scope: 950 mm · Wide mudguard profile: 70 mm · Height of mudguard profile: 25 mm · Total height from support surface to top edge: 305 mm · Mounting type: Nuts & bolts
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Surface | polished, stainless |
| Color | Chrome |
| Folding the ends | closed folded, not folded |
| Shape of the mudguard | partly round |
| Mounting type | Nuts & bolts |
| Zündapp Belmondo |
Ratings
Accessories & related products

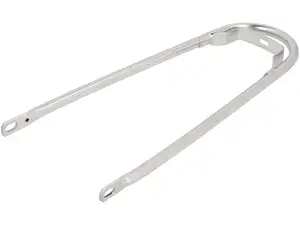

Lower front fender strut Inox | Zündapp Belmondo
Manufacturer: Made in Switzerland · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Ø mounting hole: 6.5 mm · Distance mudguard - center hole: 280 mm · Mounting type: Nuts & bolts · Total length: 305 mm · Number of fixing points: 3 pcs
EUR 80.50
Lower rear fender strut Inox | Zündapp Belmondo
Manufacturer: Made in Switzerland · Material: Chrome steel (colloquially known as stainless steel) · Color: Chrome · Ø mounting hole: 6.5 mm · Distance mudguard - center hole: 318 mm · Mounting type: Nuts & bolts · Total length: 345 mm · Number of fixing points: 3 pcs
EUR 80.50

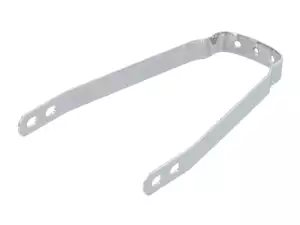

swiing® revival upper front mudguard strut chrome | Zündapp Belmondo
Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Mounting type: Nuts & bolts · Total length: 200 mm · Number of fixing points: 7 pcs · Hole spacing: 20 mm · Hole spacing: 25 mm
EUR 39.70
swiing® revival lower front mudguard strut chrome | Zündapp Belmondo
Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø mounting hole: 6.5 mm · Distance mudguard - center hole: 280 mm · Mounting type: Nuts & bolts · Total length: 305 mm · Number of fixing points: 3 pcs
EUR 42.50

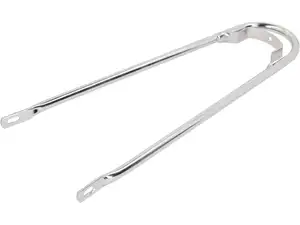

swiing® revival rear mudguard strut chrome | Zündapp Belmondo
Manufacturer: swiing® revival parts · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø mounting hole: 6.5 mm · Distance mudguard - center hole: 318 mm · Mounting type: Nuts & bolts · Total length: 345 mm · Number of fixing points: 3 pcs
EUR 42.50
Moped fans also bought
Motorex engine oil (gear oil) manual 450 ml
Temperature resistance (min.): -30 - 220 °C · Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Area of application: Gearbox lubrication with clutch
EUR 11.70
EUR 26.00/l

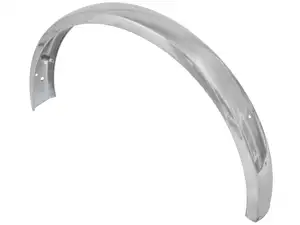

swiing® revival 17" rear fender Inox | Zündapp Belmondo
