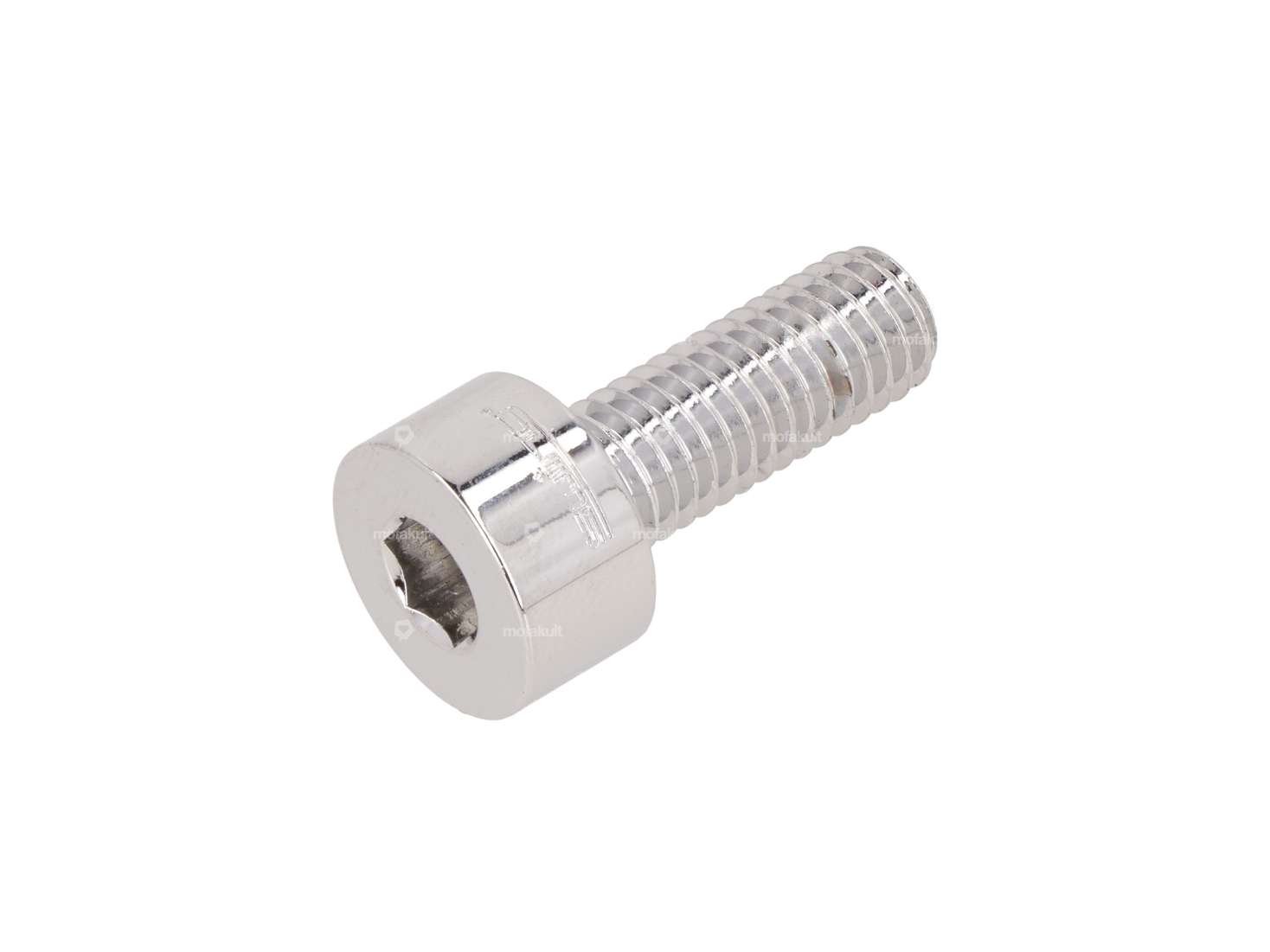

Fixing screw with hexagon socket for the cast wheel hub of your Puch moped/moped
.The chrome-plated screw is a custom-made product to make the original size and shape possible in combination with the elegant appearance of your perfect restoration.
Wheel hubs and threadlocker can be found in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
Original Puch spare part number: 321.1.40.205.1
| Manufacturer | swiing® revival parts |
| Nominal diameter (thread) | 8 mm |
| Surface | chrome-plated |
| Drive | Hexagon socket |
| Total length | 30 mm |
| Screw head | Cylinder head |
| Ø External head | 14.8 mm |
| Thread length | 22 mm |
| Number of components | 1 pcs |
| Thread type | M8x1.25 (standard thread) |
| Material | Steel |
| Color | Chrome |
| Width across flats | 6 mm |
| Puch OEM number | 321.1.40.205.1 |
| Puch |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Color: blue · Contents: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 26.00
EUR 2’600.00/l

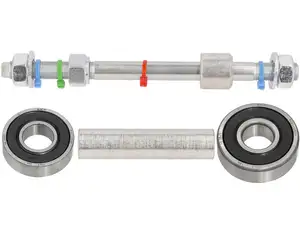

swiing® revival wheel axle set LELEU wheel hub cast wheel rear | Puch
