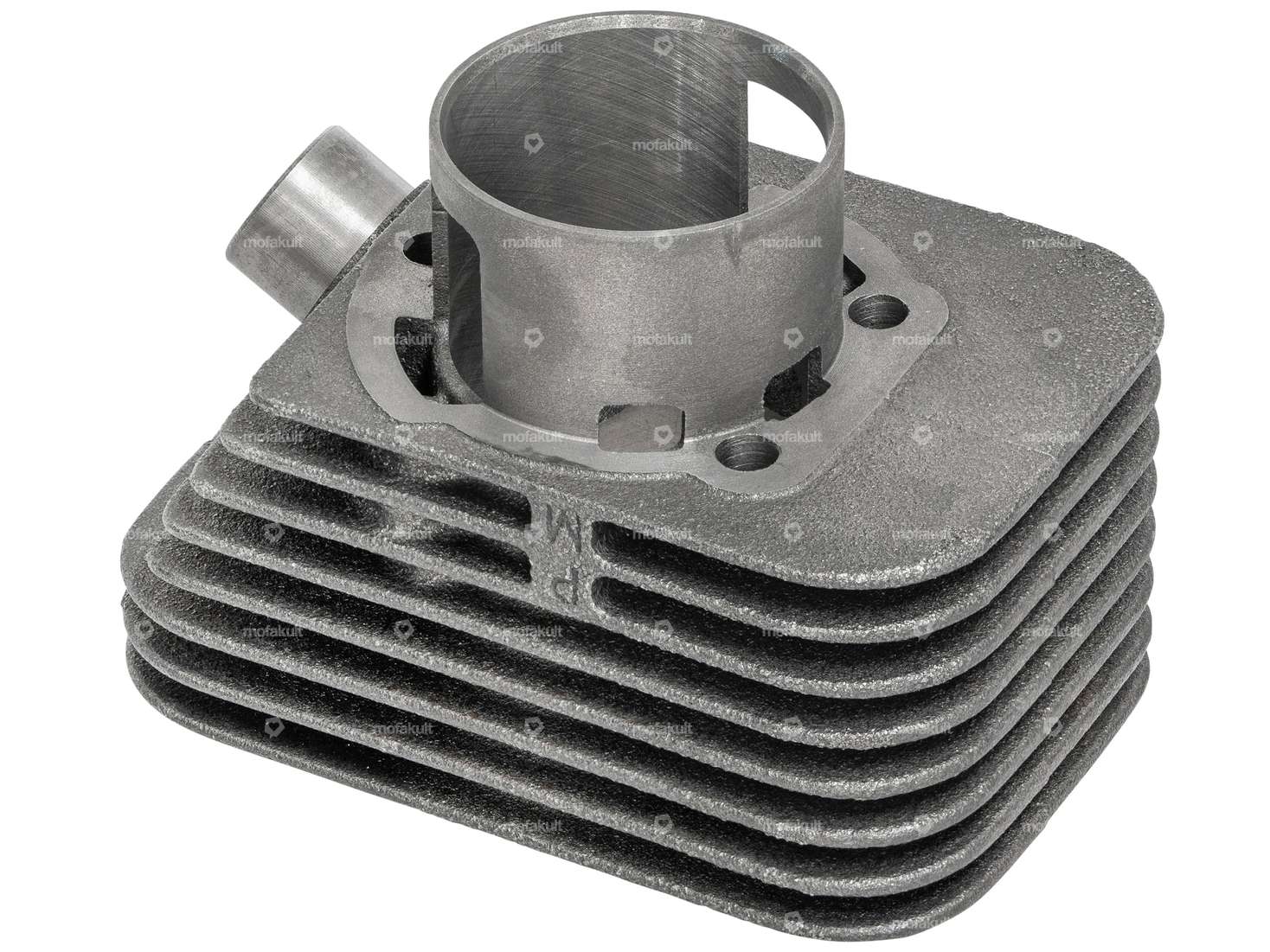

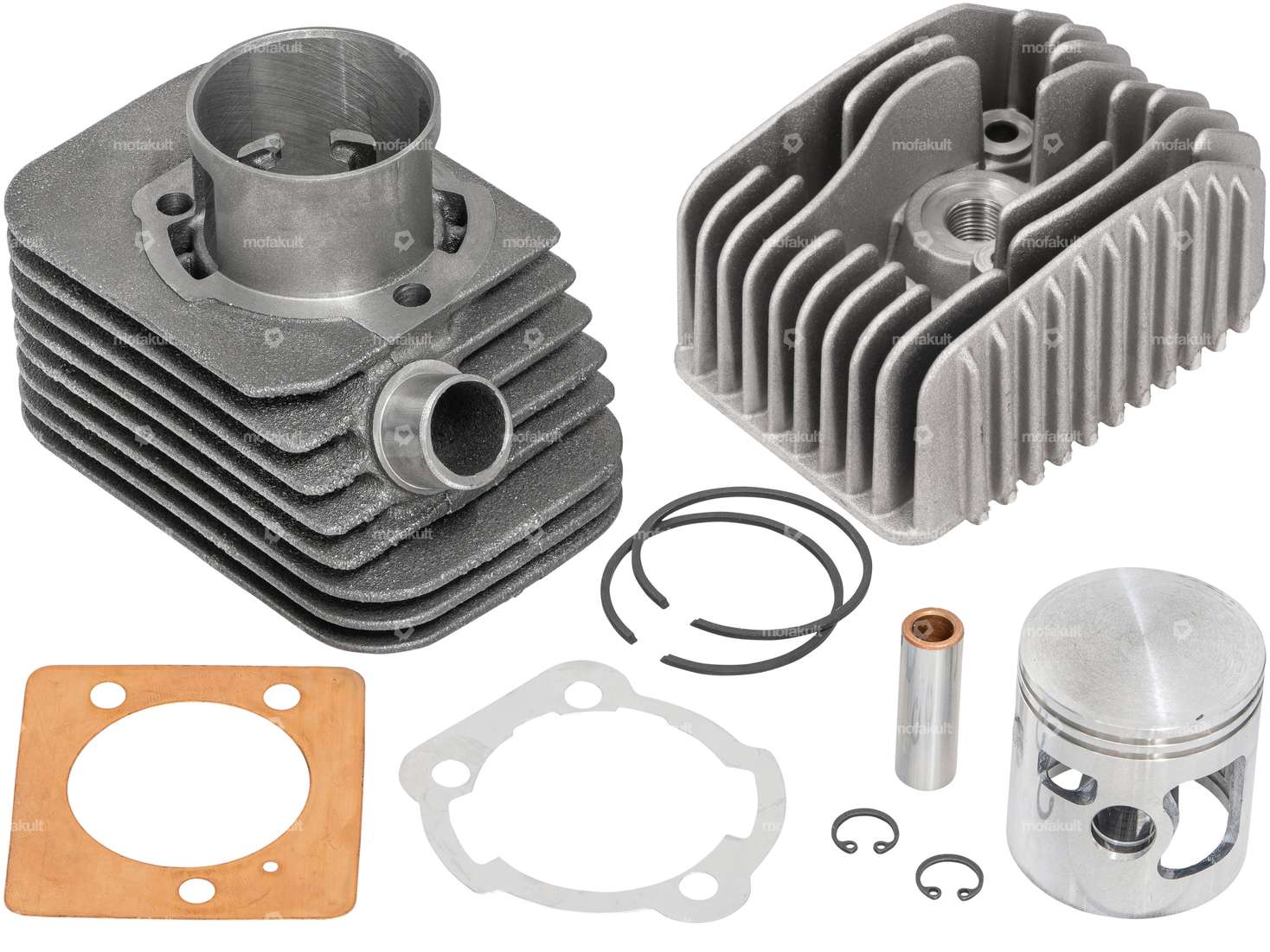

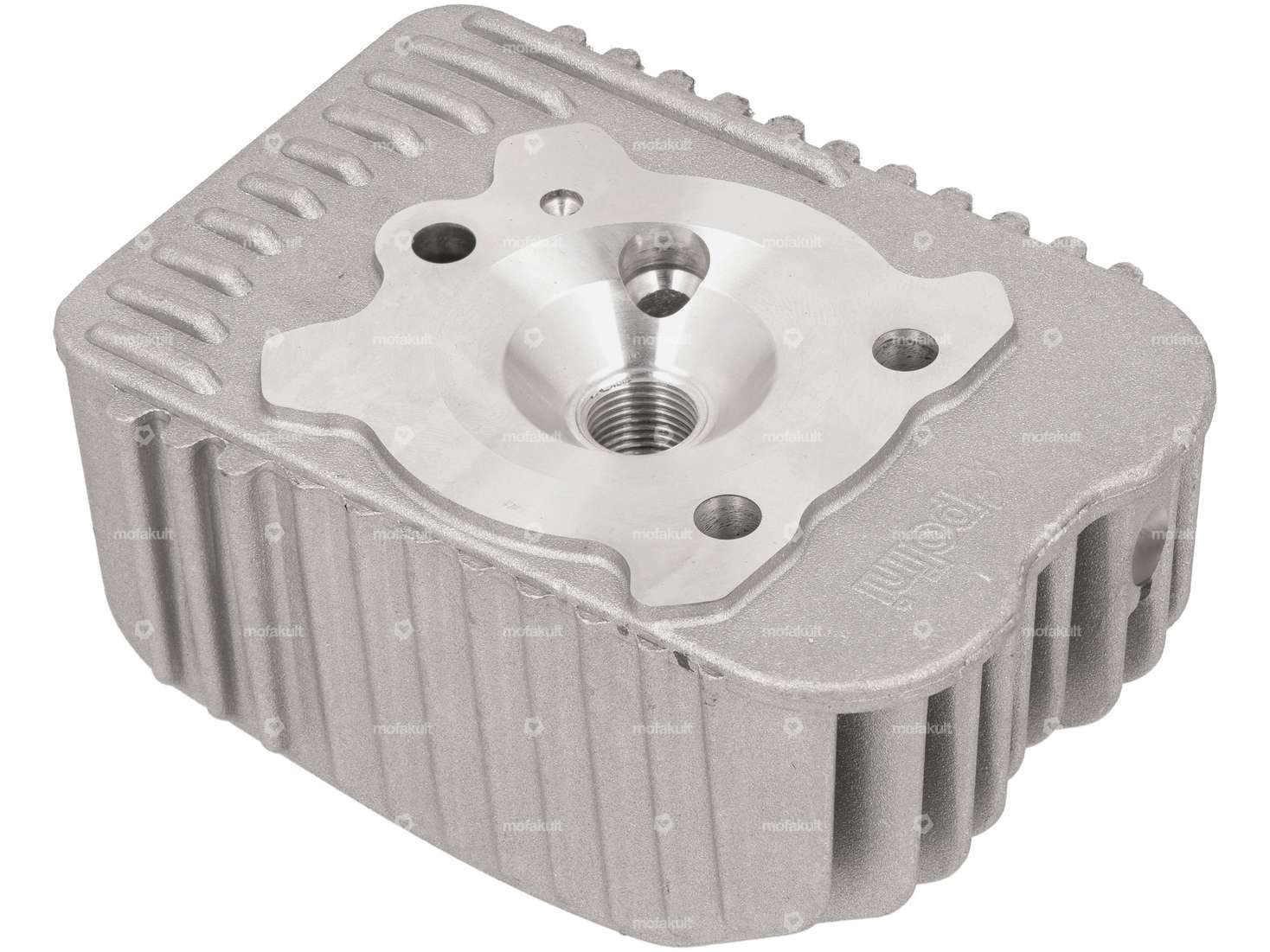

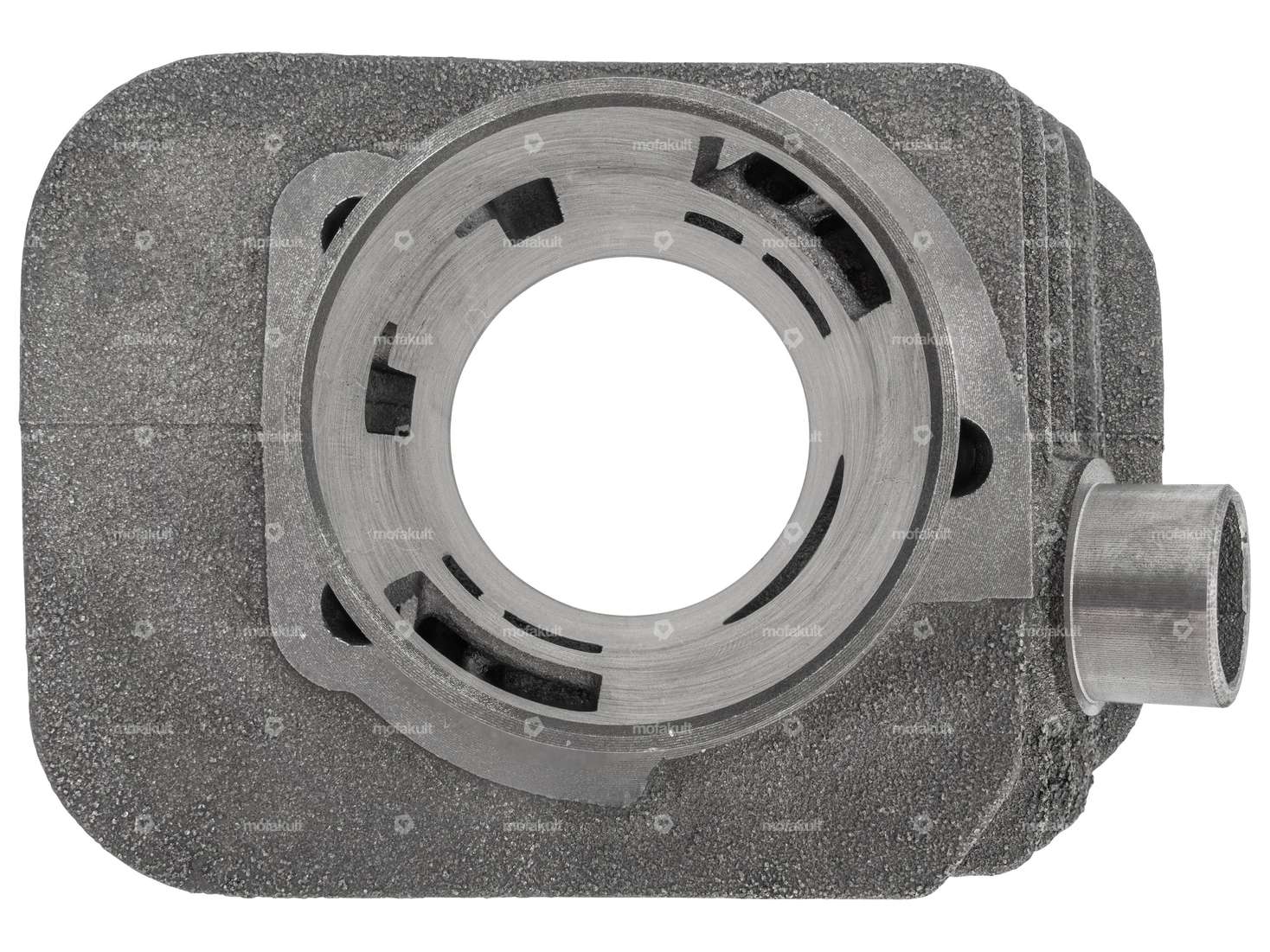

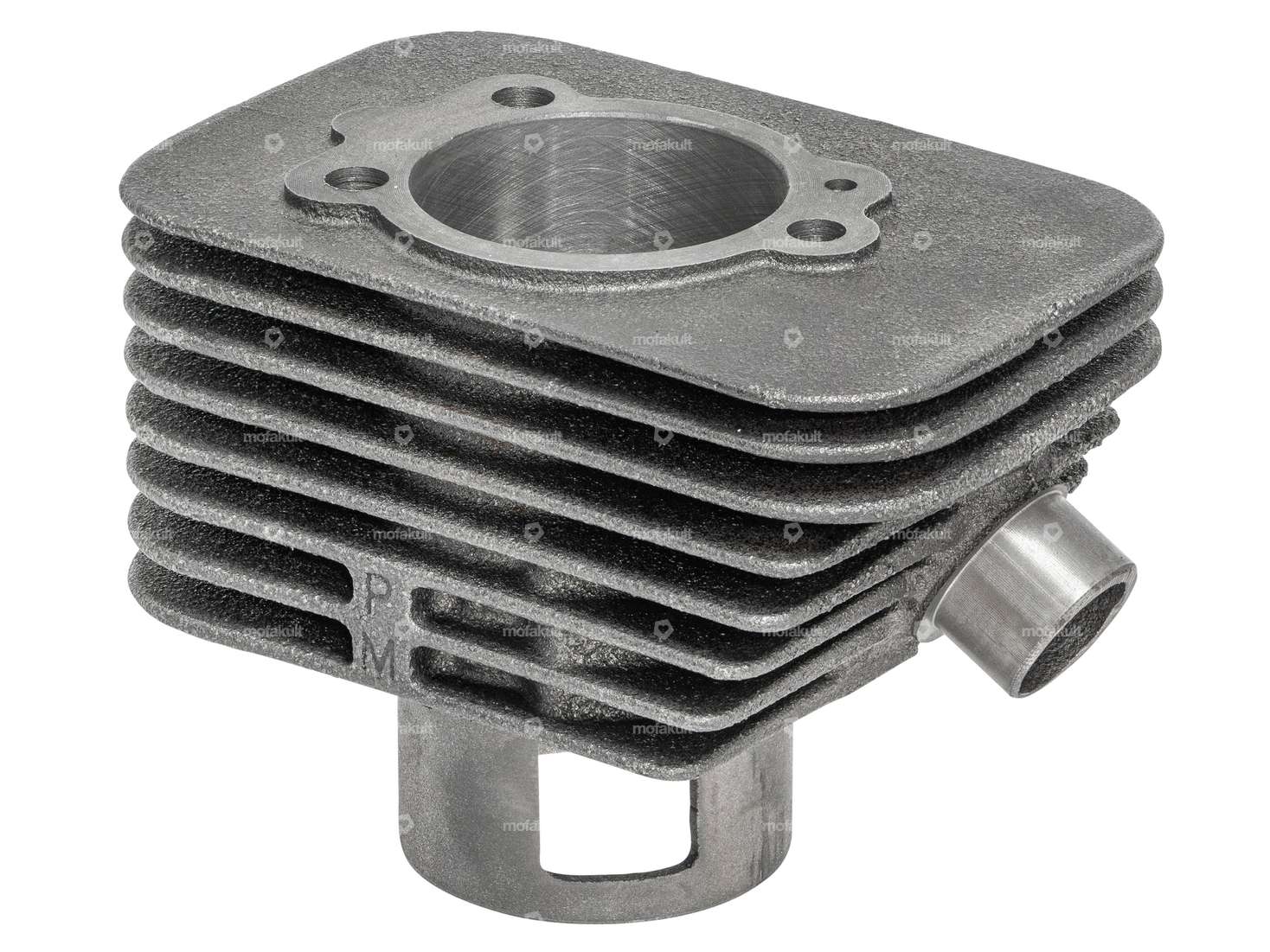

This cast iron cylinder, which is supplied with the matching cylinder head, fits all Piaggio Ciao, Bravo 1 and Boxer mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 12 mm.
We can also offer you this cylinder kit without cylinder head, or with 10 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.
Manufacturer: Polini · Material: Aluminum · Ø cylinder: 44 - 46 mm · Area of application: Racing
Hole pattern [mm]: 55 x 34 · Manufacturer: Polini · Material: Gray cast iron · Surface: sandblasted · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Ø cylinder neck: 49.8 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 18 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Number of fixing points: 3 pcs · Decompressor: Yes · Camouflaged: No · Area of application: Tuning
Nominal diameter | 46 mm |
Manufacturer | Polini |
Material | Gray cast iron |
Area of application | Tuning |
Surface | sandblasted |
Displacement | 70 ccm |
Crankshaft stroke | 43 mm |
Ø piston pin (B) | 12 mm |
Outlet type | clamped |
Number of fixing points | 3 pcs |
Decompressor | Yes |
Camouflaged | No |
Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
