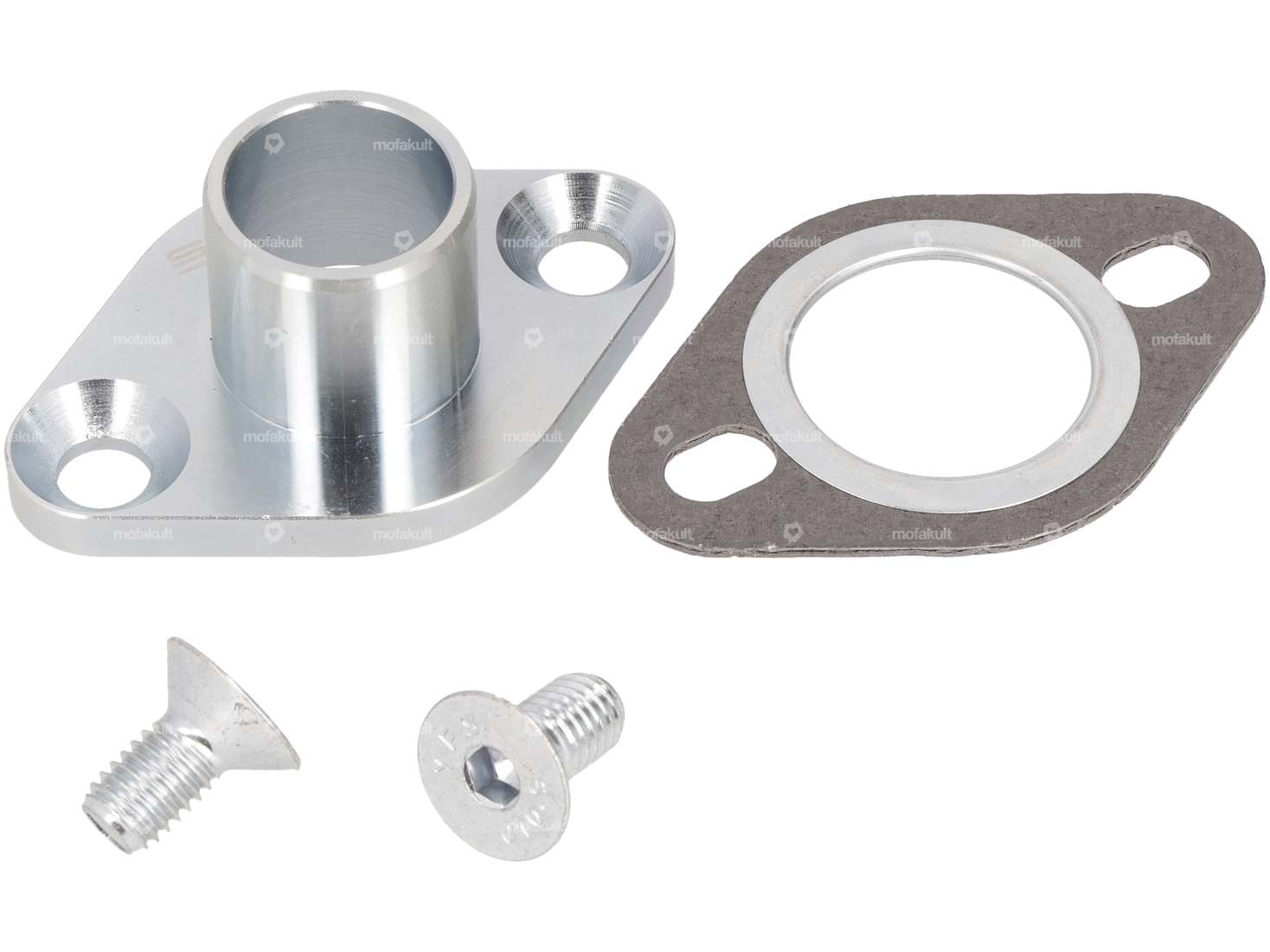

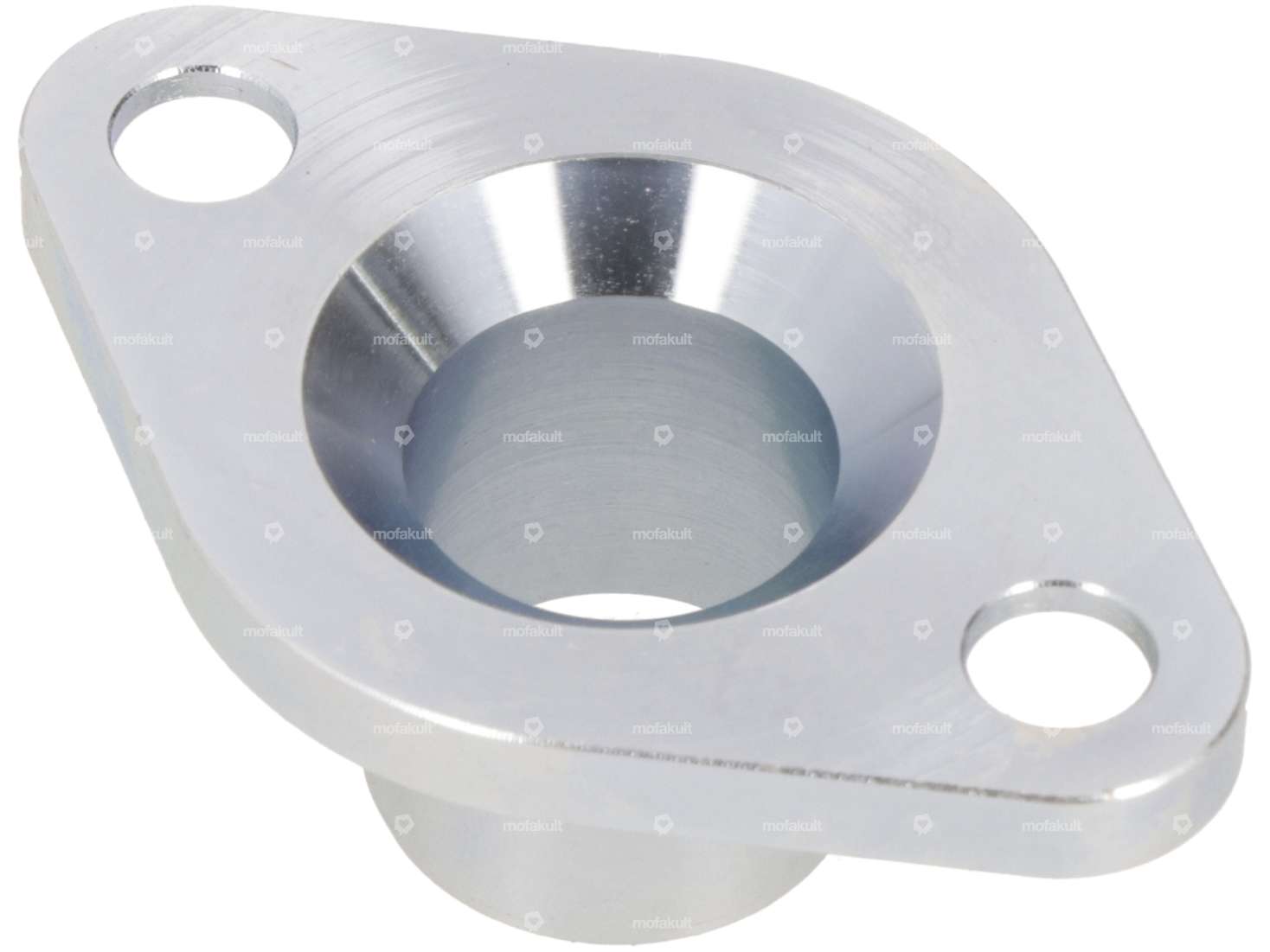

CNC machined exhaust adapter made of galvanized steel, suitable for the Athena cylinder on your moped / moped with Sachs 504, 505 or 508 engine.
As is well known, the Athena exhaust flange included in the cylinder set can only be fitted with laborious adjustments due to incorrect holes and a missing seal. The swiing® exhaust adapter is supplied with a gasket and the matching countersunk screws and solves this problem without any adjustment work.
| Ø inside | 20 mm |
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | galvanized (blue) |
| Total length | 67 mm |
| Ø mounting hole | 8.3 mm |
| Ø outside | 24 mm |
| Width | 43 mm |
| Height | 25.5 mm |
| Hole spacing | 50 mm |
| Sachs | 50/4 505 (with pedal shaft) - 1A (AT) , 2A (HG) 508 - 1 A 535 |
| Hercules |
