swiing ingenious exhaust adapter 26 mm Athena cylinder| Sachs 504, 505, 508

Athena 38 mm cylinder kit without mounting parts | Sachs 504, 505, 508, 535

Nominal diameter: 38 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Hole spacing inlet: 32 mm · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56/61 x 56 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5

Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Hole spacing inlet: 31.5 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5

Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508, 535

Nominal diameter: 48 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Hole spacing inlet: 32.5 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread) · Decompressor: M10x1.5

Athena piston 45 mm #A | Sachs 504, 505

Nominal diameter: 45 mm · Manufacturer: Athena · Ø outside piston (A): 44.92 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Weight piston kit: 98 g

Athena gasket set 38 / 45 mm cylinder kit Sachs 504, 505, 535

Manufacturer: Athena · Number of components: 4 pcs · Area of application: Standard · Area of application: Tuning · Ø cylinder: 38 mm · Ø cylinder: 45 mm

Athena gasket set 48 mm cylinder kit (diaphragm) | Sachs 504, 505

Manufacturer: Athena · Number of components: 3 pcs · Ø cylinder: 48 mm · Area of application: Tuning

Athena piston ring 45 x 1.5 mm | Sachs 504, 505, 535

Manufacturer: Athena · Nominal diameter: 45 mm · Height: 1.5 mm · Diameter: 45 mm · Piston ring impact: Internal fuse (IS)

Gasket outlet Ø 27 mm large

Manufacturer: Made in Italy · Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 26.3 mm · Ø mounting hole: 6.9 mm · Ø outside: 44 mm · Place of use: Outlet · Thickness: 2 mm · Number of fixing points: 2 pcs · Hole spacing: 42 - 56.8 mm

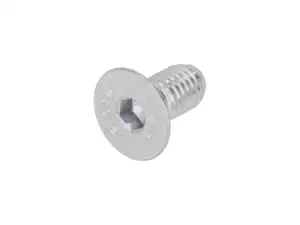

Screw M8x16 countersunk head hexagon socket, galvanized (10.9 strength)

Total length: 16 mm · Material: Steel · Surface: galvanized (blue) · Drive: Hexagon socket · Screw head: Countersunk head · Ø External head: 16 mm · Shank: No · Strength class: 10.9 · Thread type: M8x1.25 (standard thread) · Thread length: 10 mm · Width across flats: 5 mm

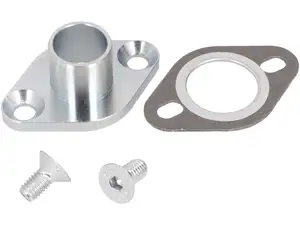

swiing ingenious exhaust adapter 24 mm Athena cylinder| Sachs 504, 505, 508

Ø inside: 20 mm · Ø outside: 24 mm · Total length: 67 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: galvanized (blue) · Width: 43 mm · Height: 25.5 mm · Hole spacing: 50 mm · Ø mounting hole: 8.3 mm

swiing® ingenious tool Ignition adjustment analog M14x1.25

Manufacturer: swiing® ingenious parts · Material: Steel · Number of components: 4 pcs · Thread type: MF14x1.25 (fine pitch thread) · Area of application: Measuring tool · Puch OEM number: 905.6.32.101.0

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Cable length: 2200 mm · Number of components: 1 pcs · Area of application: Standard

Petrol hose 30 cm black

Material: Plastic · Color: black · Total length: 300 mm · Ø inside: 4.6 mm · Ø outside: 8 mm

Handlebar fork plate 40 cm curved with chrome strut

Manufacturer: Made in Germany · Material: Steel · Color: Chrome · Surface: chrome-plated · Width: 730 mm · Fork plate holder length: 100 mm · Height: 400 mm · Ø outside: 22 mm · Mounting type: Fork plate · Clamping diameter: 22 mm · Length handlebar ends: 150 mm · Crossbar: Yes · Ø Strut: 14 mm · Strut length: 320 mm

GPO exhaust cigar Ø 28 / 60 mm without exhaust clamp | Sachs 50/2, 503

Manufacturer: GPO · Material: Steel · Color: Chrome · Surface: chrome-plated · Total length: 535 mm · Ø outside: 60 mm · Exhaust type: Cigar · Ø Internal connection: 28 mm

swiing® revival solid exhaust clamp 26 - 28 mm galvanized (12.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Width: 42 mm · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Mounting type: Nuts & bolts · Material thickness: 1.5 mm

Exhaust clamp 70 mm chrome wide version.

Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Material: Steel · Color: Chrome · Surface: chrome-plated · Width: 28 mm · Ø mounting hole: 8.2 mm · Thickness: 2 mm · Clamping diameter: 67 - 71 mm · Number of fixing points: 1 pcs

Rear muffler cigar Ø 28 / 70 mm black

Ø outside: 70 mm · Total length: 700 mm · Manufacturer: Made in Portugal · Material: Steel · Color: black · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp

Exhaust manifold 22 mm left | Sachs 504, 505 / Hercules Prima

Ø outside: 22 mm · Ø outside: 28 mm · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Bride

swiing® ingenious exhaust manifold 28 mm black | Sachs 503

Ø outside: 28 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Color: black · Mounting type: Bride
